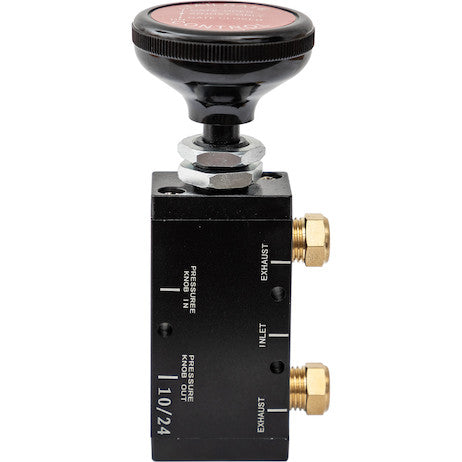

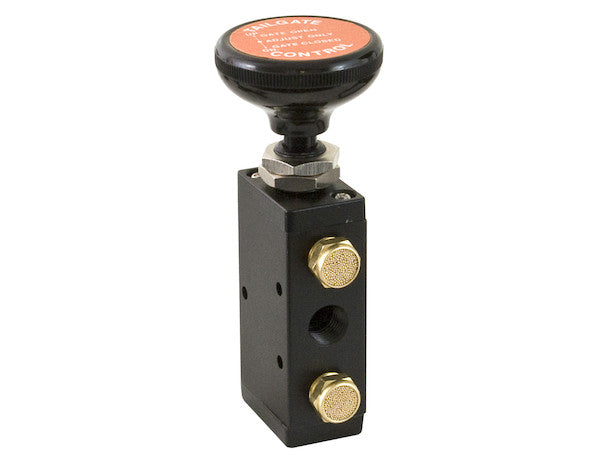

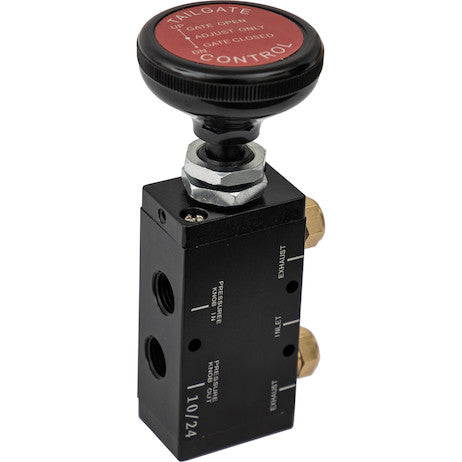

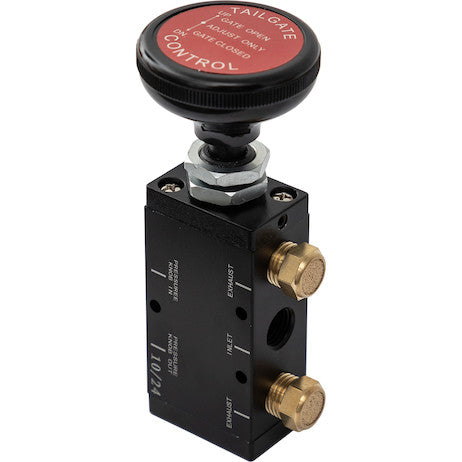

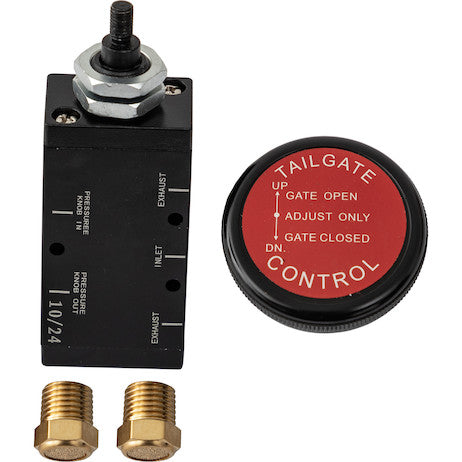

BAV015 - 4-Way 3-Position Manual Air Valve With Five 1/4 Inch NPT Ports

Buyers Products 4-Way, 3-Position Air Valve controls the air flow required for precise operation in many air cylinder applications. It has a detented spool to allow for adjusting linkage without shutting off air pressure. The center position blocks air at valve while opening both cylinder ports to atmosphere.

Specifications

The Buyers Products 4-Way, 3-Position Manual Air Valve with Five 1/4 Inch NPT Ports represents a critical component in the precise control of pneumatic systems, offering robust and reliable operation for a multitude of industrial and mobile applications. Engineered for optimal performance in air cylinder actuation, this valve provides a sophisticated yet straightforward means to manage the direction and flow of compressed air, enabling precise positioning, extension, and retraction of double-acting cylinders.

Fundamental Principles of 4-Way, 3-Position Valve Operation

A 4-way valve, often referred to as a directional control valve, is designed to manage the flow of pressurized fluid (in this case, air) to and from a double-acting actuator, such as a pneumatic cylinder. Its designation as "4-way" indicates that it features four operational flow paths, typically comprising a pressure inlet, two actuator ports (often labeled A and B), and an exhaust port. In practical terms, for a 4-way valve to function effectively, it typically requires a total of five physical ports: one for the pressure supply (P), two for connection to the cylinder (A and B), and two for exhaust (R1 and R2, or EA and EB). The discrepancy between the "Number of Ports" spec (3) and the title (Five 1/4 Inch NPT Ports) is resolved by understanding the standard configuration for optimal exhaust, where distinct exhaust ports ensure efficient pressure release from each side of the cylinder. This particular Buyers Products valve is explicitly designed with five 1/4 inch NPT ports, adhering to the standard, comprehensive design for superior pneumatic control.

The "3-position" aspect signifies the valve's capability to assume three distinct operational states, each providing a unique flow configuration:

1. Position 1 (e.g., Extend): In this state, the valve directs pressurized air from the 'P' port to one of the cylinder ports (e.g., 'A'), simultaneously connecting the other cylinder port (e.g., 'B') to an exhaust port. This action causes the cylinder rod to extend.
2. Position 2 (Center/Neutral): This is a crucial feature of this valve. In its central position, the valve performs a dual function: it blocks the incoming pressurized air from the 'P' port, effectively stopping the supply, and critically, it opens both cylinder ports ('A' and 'B') to atmosphere via the exhaust ports. This "exhausting to atmosphere" feature allows the cylinder to be freely moved or positioned by external forces without resistance from trapped air, and, as noted in the initial description, is invaluable for adjusting linkage without the need to shut off the main air pressure supply to the system. This design also provides a robust "hold" capability if external forces are absent or balanced, as the cylinder is no longer pressurized to move in either direction.
3. Position 3 (e.g., Retract): Conversely, in this position, the valve reverses the flow, sending pressurized air from 'P' to cylinder port 'B' while exhausting cylinder port 'A' through its dedicated exhaust port. This action causes the cylinder rod to retract.

The "manual" actuation of this valve implies direct human interaction, typically via a push/pull handle or lever. This method of control is highly valued for its simplicity, immediate responsiveness, and reliability, especially in environments where electronic or complex pneumatic logic controls are either unnecessary or undesirable. It offers direct operator feedback and eliminates the need for electrical power or intricate pilot air systems for actuation.

Detailed Examination of Technical Specifications and Features

Detented Spool Mechanism: A cornerstone of this valve's design is its detented spool. The presence of three detents directly correlates with the valve's 3-position capability. Detents are mechanical features that positively hold the spool in each of its three defined positions. Unlike spring-return valves, which require continuous manual force to maintain an actuated position, a detented valve holds its selected position until manually moved to another. This is particularly advantageous for applications requiring a sustained action (e.g., holding a tailgate open or closed) without constant operator input, enhancing operational convenience and safety. The ability to adjust linkage without shutting off air pressure, as highlighted, is a direct benefit of this detented design in the neutral position.

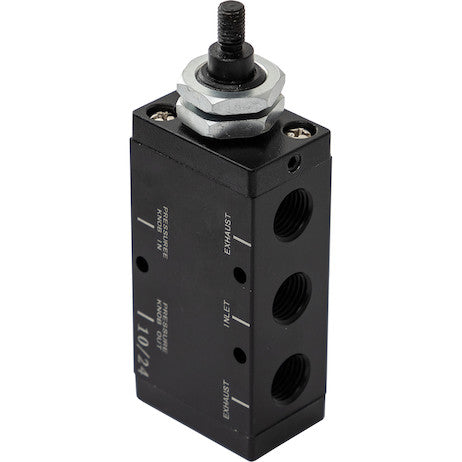

Port Configuration and Threading: The valve features five 1/4 inch NPT ports. "NPT" stands for National Pipe Taper, a standard for tapering pipe threads that ensures a robust, leak-resistant seal through thread interference when tightened. This standard is widely adopted in pneumatic and hydraulic systems due to its reliability under pressure. The 1/4 inch port size denotes a common nominal diameter suitable for a vast range of pneumatic cylinders and system flow requirements, balancing adequate air volume for efficient cylinder operation with manageable fitting sizes. The five ports include one pressure inlet, two cylinder outlets (A and B), and two exhaust outlets (R1 and R2), facilitating precise dual-exhaust pathways that optimize cylinder speed and efficiency during retraction and extension cycles.

Rated Pressure (120 PSI): With a rated pressure of 120 PSI (pounds per square inch), this valve is engineered to operate reliably within the typical pressure ranges encountered in industrial compressed air systems. Most standard pneumatic systems operate between 80 to 120 PSI. This rating indicates the maximum safe working pressure for the valve, ensuring its structural integrity and sealing performance under demanding operational loads. Materials selected for the valve body and internal components are robust enough to withstand these pressures, contributing to its longevity and safety.

Physical Dimensions (1-1/2" Depth, 5" Height, 1" Width): The compact and relatively slender profile of this valve (1-1/2 inches deep, 5 inches high, and 1 inch wide) is a significant advantage for installation in space-constrained environments. Many mobile and industrial applications, such as vehicle chassis or machinery control panels, demand components that offer high functionality without occupying excessive space. These dimensions facilitate flexible mounting options, whether in-line with tubing, panel-mounted for operator access, or bracket-mounted within an equipment enclosure.

Feathering (No): The "Feathering: No" specification indicates that this valve is designed for distinct, full-flow transitions between its positions rather than providing proportional or gradual control of air flow. While feathering (the ability to slowly and precisely modulate flow) is desirable in some applications requiring fine speed control, its absence in this valve design suggests a focus on robust, on/off type actuation. For many air cylinder applications where a full extension, full retraction, or immediate stop is required, distinct detented positions without feathering simplify operation and increase system reliability by eliminating potential for inadvertent partial activation.

Spring to Neutral / Deadman Control (No): This specification confirms the fully detented nature of the valve, reinforcing that it does not feature a spring-return mechanism that would automatically return the spool to a neutral or "deadman" position upon release of manual force. The absence of spring-return means the valve will maintain its selected position indefinitely until manually moved, providing continuous action without constant operator interaction. This is distinct from deadman controls, which are designed to revert to a safe-off state if the operator releases the control, primarily for safety in critical, intermittent operations. For this valve, the detented positions offer a stable control state essential for applications like tailgate operation.

Applications and Operational Contexts

The primary application listed for this valve is as an "Air Tailgate Valve." This context highlights several critical operational requirements that this specific valve design addresses:

1. Durability: Tailgate mechanisms on dump trucks, utility vehicles, or trailers are exposed to harsh outdoor conditions, including dirt, moisture, temperature extremes, and significant vibration. The robust construction implied by Buyers Products' reputation and the valve's technical specifications ensures reliability in such demanding environments.
2. Precise Positioning: For lifting and lowering a heavy tailgate, precise control is essential for safety and efficient operation. The 4-way, 3-position detented design allows the operator to extend the tailgate cylinder, hold it in a specific intermediate position (e.g., partially open for controlled dumping), or retract it fully, with each position locking in place.
3. Operator Convenience: The manual push/pull actuation provides intuitive control, and the detented positions mean the operator doesn't need to continuously hold the lever, freeing them to focus on other tasks. The center-position "exhaust to atmosphere" is particularly useful during installation or maintenance, allowing the tailgate to be manually adjusted without fighting trapped air pressure or needing to de-pressurize the entire pneumatic system.

Beyond tailgates, this valve is ideally suited for numerous other pneumatic cylinder applications across various industries:

• Industrial Machinery: Control of clamping mechanisms, lifting platforms, component indexing, and sorting gates where precise, repeatable positioning is required.
• Mobile Equipment: Snowplow angle control, hoist operations on tow trucks, utility truck boom positioning, and agricultural implement articulation.
• Material Handling: Diverter gates on conveyor systems, package stops, and other tasks requiring synchronized linear motion.
• Vehicle Suspension and Leveling Systems: Manual control for adjusting air bag pressure to level vehicles or modify ride height, especially in heavy-duty or RV applications.
• Workholding and Tooling: Actuation of pneumatic vises, presses, and assembly jigs in workshops and manufacturing plants.

Construction Materials and Longevity

While not explicitly detailed in the specifications, the performance characteristics and intended applications of a valve of this caliber suggest a construction from high-quality, durable materials. Typically, pneumatic valve bodies are machined from corrosion-resistant aluminum alloys or brass, offering excellent strength-to-weight ratios and resistance to environmental degradation. Internal components, such as the spool, often utilize hardened steel or engineered plastics for smooth operation and extended wear life. Seals, critical for maintaining air pressure and preventing leaks, are typically made from elastomers like Buna-N (nitrile rubber) or polyurethane, selected for their resilience, chemical compatibility with compressed air, and ability to perform across a wide range of temperatures. The careful selection of these materials directly contributes to the valve's ability to maintain optimal performance over thousands of operational cycles, even in harsh conditions.

Installation and Maintenance Guidelines

Proper installation is paramount to ensuring the long-term reliability and performance of the 4-Way, 3-Position Manual Air Valve. The 1/4 inch NPT ports require appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) to prevent leaks, ensuring maximum system efficiency and preventing pressure drops. The valve should be securely mounted in a location that provides easy access for the operator while protecting it from direct impact or excessive contamination. Input air quality is another critical factor; implementing an air filter-regulator-lubricator (FRL) unit upstream of the valve is highly recommended to provide clean, dry, and optionally lubricated air. This prevents particulate matter from abrading internal seals and surfaces, mitigates moisture-induced corrosion, and ensures smooth spool movement, thereby extending the service life of the valve and other downstream pneumatic components.

Routine inspection for air leaks, smooth operation of the manual actuator, and absence of physical damage will help preempt potential issues. Due to its robust and detented design, the valve typically requires minimal maintenance, primarily focusing on maintaining air quality and ensuring secure connections.

Conclusion

The Buyers Products 4-Way, 3-Position Manual Air Valve with Five 1/4 Inch NPT Ports stands as a testament to engineering excellence in pneumatic control. Its combination of manual, detented 3-position operation, 4-way flow control, and robust construction makes it an indispensable component for applications demanding precise, reliable, and operator-friendly control of double-acting pneumatic cylinders. From its core function of directing air to its nuanced features like the center position "exhaust to atmosphere" for linkage adjustment, every aspect of this valve is designed to deliver superior performance and durability in the most challenging environments. Whether for primary use as an air tailgate valve or for a broad spectrum of industrial and mobile equipment, this valve provides a dependable solution for effective pneumatic actuation, ensuring safe and efficient operation for years to come.
