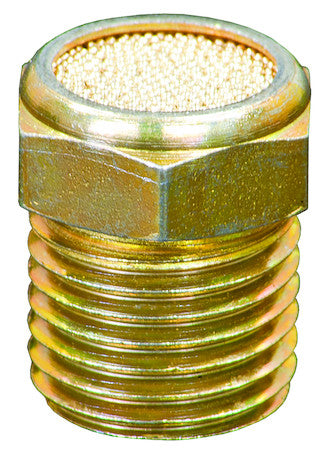

BAV01502 - 1/8 Inch NPT Breather Vent

Buyers Products NPT Breather Vent reduces pressure and noise in pneumatic applications. Each vent has a maximum pressure of 150 PSI and is rated at 40 microns. With a maximum operating temperature of 300??F, the vent is ideal for many operations.

Specifications

The 1/8 Inch NPT Breather Vent from Buyers Products represents a critical component in the optimal functioning and longevity of industrial pneumatic systems. Engineered with precision and manufactured from durable materials, this vent is specifically designed to address the inherent challenges of pressure management, noise attenuation, and particulate filtration within dynamic pneumatic environments. Its compact design and robust performance characteristics make it an indispensable asset across a broad spectrum of applications, from intricate automated machinery to heavy-duty industrial equipment.

At its core, a breather vent serves as a vital interface between a sealed pneumatic system and the ambient atmosphere. The continuous operation of pneumatic actuators, cylinders, and reservoirs invariably leads to volumetric changes within the system. As a cylinder extends or retracts, or as a reservoir’s fluid level fluctuates, air must be allowed to enter or exit the system to equalize internal pressure with the external environment. Without a properly designed breather vent, these pressure differentials can lead to several detrimental outcomes. Excessive positive pressure can stress seals, increase the risk of component failure, and introduce unnecessary resistance to movement. Conversely, a vacuum condition can impede the return stroke of cylinders, lead to cavitation in hydraulic-pneumatic hybrids, and draw unfiltered air and contaminants directly into the system through vulnerable points. The Buyers Products 1/8 Inch NPT Breather Vent precisely manages this air exchange, ensuring that internal pressures remain within safe and operational limits, thereby safeguarding system integrity and promoting consistent performance.

A primary function of this breather vent is the reduction of pressure fluctuations. Pneumatic systems are characterized by rapid air movements, which, when unmanaged, can result in significant pressure surges and drops. By providing a controlled pathway for air ingress and egress, the vent facilitates a smoother, more predictable pressure curve within the system. This controlled pressure equalization is crucial for several reasons. Firstly, it prevents the build-up of damaging static pressure, which can prematurely wear out seals, gaskets, and other dynamic components. Secondly, it optimizes the performance of pneumatic actuators by allowing them to operate against predictable internal pressures, improving response times and accuracy. Thirdly, in applications where pneumatic reservoirs or gearboxes are involved, proper venting prevents pressure accumulation that could lead to seal blowouts or internal damage, thus extending the operational lifespan of expensive equipment.

Beyond pressure management, the Buyers Products Breather Vent significantly contributes to noise attenuation. The rapid expulsion and intake of air, particularly in high-cycle-rate pneumatic operations, can generate considerable acoustic energy. This noise is not merely an inconvenience; sustained exposure can contribute to workplace fatigue, communication difficulties, and in some cases, exceed occupational noise exposure limits, leading to potential regulatory non-compliance and health risks for personnel. The vent's design incorporates principles of sound dampening, allowing air to diffuse gradually rather than being abruptly discharged. This controlled release significantly reduces the characteristic "hiss" or "whoosh" associated with pneumatic exhaust, fostering a quieter, more ergonomic working environment. The impact on operator comfort and the overall professionalism of the operating facility is substantial, making this vent a key component in enhancing operational acoustics.

Critical to the vent's protective capabilities is its 40-micron filtration rating. Air in industrial environments is inherently laden with microscopic particulates, including dust, dirt, moisture droplets, and other airborne contaminants. Introducing these unfiltered elements directly into a pneumatic system can have catastrophic consequences. Particulates larger than typical lubrication film thicknesses can cause abrasive wear on moving parts such as cylinder bores, piston rods, and valve seats. Over time, this wear leads to increased internal leakage, reduced efficiency, and ultimately, premature component failure. Moisture can condense, leading to corrosion and the degradation of pneumatic oils and seals. The 40-micron rating of this breather vent means that it effectively traps particles equal to or larger than 40 micrometers in size, preventing them from entering the sensitive internal mechanisms of the pneumatic system. This level of filtration is a strategic balance, allowing sufficient airflow for pressure equalization while offering robust protection against common industrial contaminants. The porous media employed in the vent is engineered to maintain its structural integrity and filtration efficiency over extended periods, ensuring consistent air quality within the protected system.

The physical characteristics of the 1/8 Inch NPT Breather Vent are meticulously chosen to ensure reliability and ease of integration. The 1/8 NPTF thread (National Pipe Taper Fuel) is a critical specification. NPTF threads are designed for mechanical sealing without the need for additional thread sealant when properly engaged. Unlike standard NPT threads, which rely on sealant to fill helical leak paths, NPTF threads are designed for a "dryseal" interface, where the crest of the male thread crushes into the root of the female thread, creating an interference fit that effectively seals the connection. This eliminates the potential for sealant contamination within the pneumatic system, which can be a significant advantage in sensitive applications. The 1/8-inch size signifies a standard dimension for compact pneumatic connections, providing compatibility with a wide array of existing pneumatic ports and facilitating straightforward installation into machinery. The hexagonal head shape is a practical design choice, allowing for secure tightening and loosening with standard wrenches, which simplifies installation and maintenance procedures.

The material selection for this breather vent, brass, is deliberate and offers a host of engineering advantages. Brass is an alloy of copper and zinc, renowned for its excellent machinability, corrosion resistance, and good mechanical properties. Its inherent resistance to rust and various chemical agents makes it suitable for diverse industrial environments where exposure to moisture or mild corrosives is common. Unlike steel, brass is non-sparking, which can be a crucial safety consideration in environments where flammable gases or dusts are present. Furthermore, brass exhibits good thermal conductivity, allowing it to dissipate heat effectively. This material choice, combined with a plain finish, offers a cost-effective solution that does not compromise on performance or durability for the vast majority of pneumatic applications. The plain finish means it is not coated or plated, relying on brass's intrinsic properties for corrosion resistance, which is generally sufficient for air handling in non-highly corrosive atmospheres.

With a maximum pressure rating of 150 PSI (pounds per square inch), this breather vent is engineered to perform reliably under typical industrial pneumatic operating pressures. This rating indicates the maximum internal system pressure the vent can withstand without compromising its structural integrity or sealing capabilities. Operating within this specified pressure envelope ensures that the vent contributes positively to system safety and longevity, preventing blowouts or structural fatigue. Similarly, the maximum operating temperature of 300°F (approximately 149°C) extends its applicability to environments where heat generation is a factor. Many industrial processes, particularly in manufacturing and heavy machinery, can expose components to elevated temperatures. The brass construction is particularly well-suited for these conditions, maintaining its mechanical properties and structural stability across this temperature range, unlike certain plastics or elastomers that may degrade or lose functionality under similar thermal stress.

The applications for the Buyers Products 1/8 Inch NPT Breather Vent are extensive and varied. In manufacturing automation, these vents are crucial for the efficient operation of pneumatic cylinders used in pick-and-place robotics, clamping mechanisms, and assembly lines. In hydraulic power units, while primarily pneumatic, they can vent gearbox sumps or auxiliary air reservoirs. Material handling equipment, such as conveyors and forklifts utilizing pneumatic assists, benefit from reduced noise and protected components. In the agricultural sector, where equipment is often exposed to dust and variable temperatures, these vents protect pneumatic systems on sprayers, harvesters, and other machinery. Control panels and instrumentation enclosures also frequently incorporate breather vents to equalize internal pressure and prevent condensation while keeping internal electronics free from particulate contamination. Even in more specialized fields like medical device manufacturing or food processing (where brass is permissible), the vent's ability to maintain clean, balanced air pressure is invaluable for ensuring process integrity and equipment reliability.

Proper installation and maintenance are paramount to maximizing the lifespan and effectiveness of the 1/8 Inch NPT Breather Vent. For installation, the NPTF threading should be engaged by hand to ensure correct alignment before using a wrench to tighten to the recommended torque specifications. While NPTF threads are designed for a dryseal, in some critical applications or for added assurance against micro-leakage, a minimal amount of compatible thread sealant can be applied, taking extreme care to prevent any sealant from entering the air passage or filter media. Over-tightening should be avoided, as this can damage the threads or deform the vent body. Regular inspection is crucial for maintenance. The 40-micron filter media, while robust, can eventually become clogged with accumulated particulates, especially in high-dust environments. A clogged vent restricts airflow, negating its pressure equalization and noise reduction benefits, and potentially leading to the very problems it is designed to prevent. Therefore, periodic visual inspection for discoloration or blockage of the filter element is recommended. Depending on the operating environment and cycle frequency, the vent may require cleaning (e.g., using compressed air in the reverse direction of normal flow) or replacement to restore optimal performance. Establishing a preventive maintenance schedule based on operational conditions will ensure continuous system protection.

In summary, the Buyers Products 1/8 Inch NPT Breather Vent is not merely an accessory but a foundational component for reliable and efficient pneumatic operations. Its comprehensive design addresses the multifaceted challenges of pressure management, acoustic control, and particulate exclusion. By consistently maintaining balanced internal pressures, it prevents premature wear on seals and components, thereby extending equipment lifespan and reducing maintenance costs. The significant reduction in operational noise contributes to a safer, more compliant, and productive work environment. Furthermore, its 40-micron filtration capability acts as a diligent guardian, shielding sensitive pneumatic mechanisms from airborne contaminants that could otherwise lead to costly downtime and repairs. Constructed from high-quality brass, featuring a durable hex head design, and rated for demanding pressure and temperature conditions, this vent offers a superior combination of performance, durability, and value. For engineers and maintenance professionals seeking to optimize their pneumatic systems, ensuring operational continuity and protecting valuable assets, the Buyers Products 1/8 Inch NPT Breather Vent stands as an exemplary choice, embodying robust engineering and practical utility for a wide array of industrial applications.
