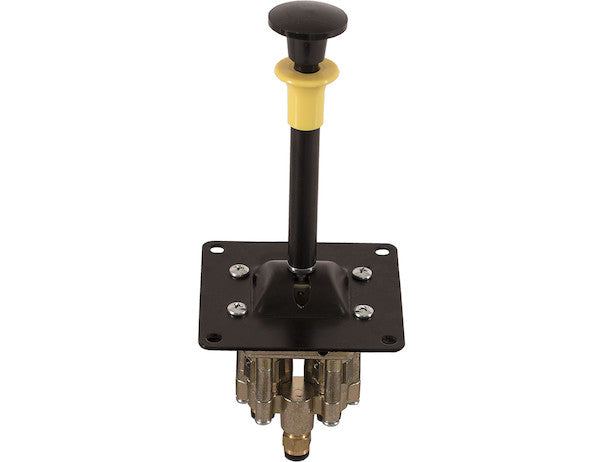

BAV040 - Manual Air Control Valve, 4-Way, 3-Position

Buyers Products BAV040 4-Way, 3-Position Air Valve (Valve Only).

Specifications

Technical Deep Dive: Buyers Products BAV040 Manual Air Control Valve – Precision Pneumatic Control

The Buyers Products BAV040 represents a critical component in advanced pneumatic systems, meticulously engineered for robust and reliable control of double-acting air cylinders and actuators. As a 4-Way, 3-Position manual air control valve, this unit is designed to provide operators with definitive command over pneumatic circuits, ensuring both efficiency and safety in demanding industrial and mobile applications. Its specific configuration, incorporating a spring-to-neutral mechanism and a neutral lockout feature, positions it as an indispensable tool for applications requiring secure, predictable, and operator-controlled pneumatic operations.

Understanding 4-Way, 3-Position Valve Dynamics

The core functionality of the BAV040 is encapsulated in its designation as a "4-Way, 3-Position" valve. To fully appreciate its capabilities, a detailed understanding of this nomenclature is essential:

• 4-Way Functionality: In pneumatic terminology, a "4-Way" valve is defined by its ability to manage four distinct flow paths. These paths typically include: a pressure inlet (P) to supply compressed air, an exhaust port (E or R) to release air, and two working ports (A and B) that connect directly to the dual chambers of a double-acting cylinder or actuator. The BAV040 intelligently directs pressurized air to one side of the actuator while simultaneously exhausting air from the opposing side, facilitating precise extension and retraction movements. This comprehensive management of air flow is fundamental for applications requiring bidirectional motion control.
• 3-Position Operation: The "3-Position" aspect refers to the three distinct operational states or flow configurations the valve can achieve:
  1. Position 1 (Extend/Retract): In this position, compressed air is directed to one working port (e.g., A) to extend the actuator, while the other working port (e.g., B) is connected to exhaust.
  2. Position 2 (Retract/Extend): Conversely, this position directs compressed air to the second working port (e.g., B) to retract the actuator, with port A now connected to exhaust.
  3. Position 3 (Neutral/Center): The BAV040's crucial third position, the neutral or center position, is designed to hold the actuator in a fixed state. In this configuration, typically both working ports (A and B) are blocked from the pressure supply and often blocked from exhaust as well. This creates a hydrostatic lock, preventing unwanted movement of the cylinder. This feature is particularly vital for safety and maintaining a load in a specific position without continuous power input. The BAV040 specifically utilizes a spring-to-neutral mechanism, which means the valve automatically returns to this secure, central position when the manual lever is released, embodying a fundamental "deadman" control principle.
• Non-Feathering Characteristic: The specification "Non-Feathering" indicates that this valve provides definitive, on-or-off air flow to the actuator without proportional control. Feathering, in hydraulic or pneumatic systems, refers to the ability to precisely modulate flow rate for gradual or nuanced movement. The BAV040, being non-feathering, is engineered for applications where quick, decisive, and full-speed actuation is preferred or required, eliminating the complexity and potential for imprecise control associated with feathered operation. This characteristic ensures rapid response and predictable performance for critical functions.

Enhanced Safety and Operational Control: Neutral Lock Out & Deadman Feature

Safety is paramount in any industrial or mobile machinery operation, and the BAV040 integrates robust features to ensure maximum operator and equipment protection:

• Neutral Lock Out: The "Neutral Lock Out" capability is a critical safety mechanism. When the valve is in its neutral (center) position, this feature mechanically locks the manual lever, preventing accidental or unauthorized actuation. This prevents unintended movement of the connected actuator, which could otherwise lead to injury, equipment damage, or loss of cargo. The operator must consciously disengage the lockout before initiating any movement, adding an essential layer of security.
• Spring to Neutral / Deadman Control: The "Spring to Neutral" design is a classic "deadman" control principle. This means that the valve's manual lever must be actively held in either the extend or retract position for the actuator to move. Upon release, internal springs instantly return the valve spool to the neutral, center-blocked position. This ensures that if the operator becomes incapacitated or momentarily distracted, the controlled system immediately returns to a safe, static state. This design is invaluable in applications where sudden, uncontrolled motion could pose significant hazards, such as snowplow blade manipulation, dump body operations, or crane controls.

Precision Pneumatic Specifications and Connectivity

The BAV040 is built to integrate seamlessly into diverse pneumatic systems, offering well-defined specifications for performance and connection:

• Rated Pressure (125 PSI): With a rated pressure of 125 PSI (Pounds per Square Inch), the BAV040 is suitable for the vast majority of standard compressed air systems found in vehicle auxiliary functions and light industrial machinery. This pressure rating ensures sufficient force for operating typical double-acting cylinders in applications such as tailgate locks, snowplow angling, salt spreader controls, and various lifting or clamping mechanisms. The robust design guarantees consistent performance and longevity even under continuous operation at its maximum rated pressure.

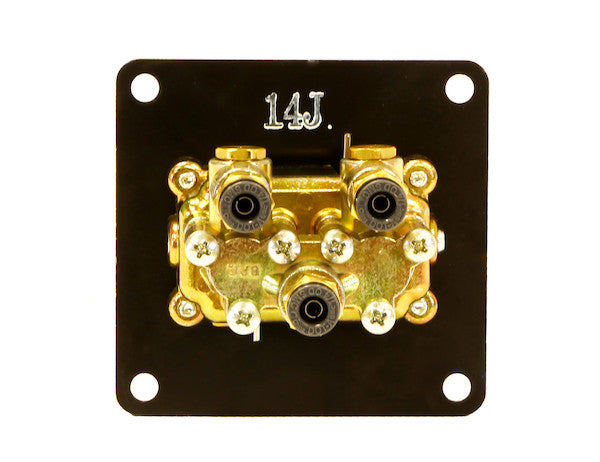

• Port Configuration and Size (0.250): While the primary functionality is "4-Way" (requiring pressure, exhaust, and two actuator lines), the listed "Number of Ports: 2" in the specifications refers to the primary external connections for controlled air lines, often implying the two outputs to the double-acting actuator, with supply and exhaust ports handled through the internal design or implicit connections. The "Port Size" of 0.250 inches (or 1/4 inch) indicates compatibility with commonly available pneumatic tubing and fittings. This standardized sizing facilitates straightforward integration and replacement within existing air systems, reducing complexity and installation time. Proper sizing ensures adequate airflow for efficient actuator operation without significant pressure drops.
• Port Type (Brass Push Lock Fittings): The inclusion of "Brass Push Lock Fittings" offers significant advantages in terms of installation speed, ease of maintenance, and connection reliability.
  • Quick Connection: Push lock fittings allow for rapid tubing insertion and secure retention without the need for tools, threads, or sealants. This significantly reduces installation time and labor costs.
  • Secure Seal: These fittings provide a robust, leak-free seal simply by inserting the appropriate pneumatic tubing. The internal collet and O-ring mechanism ensure a tight connection that withstands operational vibrations and pressure fluctuations.
  • Reusability: Unlike some permanent connection methods, push lock fittings can be easily disconnected and reconnected multiple times, which is beneficial for system modifications, troubleshooting, or component replacement.
  • Brass Construction: The use of brass for the fittings enhances durability and corrosion resistance. Brass is an ideal material for pneumatic applications due to its excellent resistance to oxidation, moisture, and various environmental contaminants commonly encountered in mobile and industrial settings. This material choice contributes to the overall longevity and reliability of the valve assembly.

Robust Construction and Materials

The Buyers Products BAV040 is engineered with durability in mind, utilizing materials and construction methods that ensure reliable performance in harsh conditions:

• Valve Body: Typically, the valve body is constructed from high-strength aluminum or brass alloys, chosen for their excellent balance of weight, mechanical strength, and corrosion resistance. These materials can withstand the rigors of shock, vibration, and temperature extremes common in mobile equipment applications.
• Internal Components: Critical internal components, such as the spool, springs, and seals, are selected for their resistance to wear, fatigue, and chemical degradation. Stainless steel springs ensure consistent return-to-neutral functionality over millions of cycles. High-grade elastomeric seals (e.g., Nitrile Butadiene Rubber – NBR) provide reliable sealing against air leaks and are compatible with common pneumatic lubricants and air quality standards.
• Manual Lever: The manual lever is designed for ergonomic operation and robust performance. Often made from steel or a durable composite, it can endure repeated manual actuation without bending or breaking, even with gloved hands. The connection between the lever and the valve spool is engineered for precise feedback and minimal play, ensuring direct and reliable control.
• Environmental Sealing: Consideration is given to sealing the valve against ingress of dirt, dust, and moisture, which are common in outdoor and industrial environments. This protection helps to maintain the integrity of internal mechanisms and extend the valve's operational life.

Installation, Integration, and System Considerations

Integrating the BAV040 into a pneumatic system requires adherence to best practices to ensure optimal performance and safety:

• Mounting: The valve should be securely mounted in a location easily accessible to the operator but protected from direct impact or excessive environmental exposure. Stable mounting minimizes vibration-induced stress on connections and internal components.
• Air Supply Quality: For any pneumatic system, the quality of compressed air is paramount. Air supplied to the BAV040 should be clean, dry, and filtered to remove particulates and moisture. The use of a suitable FRL (Filter, Regulator, Lubricator) unit upstream of the valve is highly recommended. Lubrication, if required by the system, should be compatible with the valve's internal seals. Contaminated air can lead to premature wear of seals, sticking spools, and overall system degradation.
• Piping and Tubing: Proper routing and securement of pneumatic tubing are essential. Tubing should be cut cleanly and squarely to ensure a proper seal with the push-lock fittings. Avoid sharp bends or kinks that could restrict airflow. The 0.250-inch port size is compatible with standard 1/4-inch OD (Outer Diameter) pneumatic tubing.
• Actuator Connection: The two working ports of the BAV040 should be connected to the respective ports of a double-acting air cylinder or actuator. Correct identification of extend/retract ports on the actuator is crucial for proper operation matching the valve's lever positions.

Diverse Applications Across Industries

The BAV040 Manual Air Control Valve is designed as a core component for a "Neutral Lockout Air Valve Kit," indicating its primary role in systems where safety and controlled positioning are critical. Its robust design and specific features make it ideal for a wide array of applications:

• Mobile Equipment: This is a key sector for the BAV040. Applications include:
  • Snow and Ice Control: Controlling the angle, lift, and deployment of snowplows, salt spreaders, and other winter maintenance equipment. The neutral lockout and deadman features are essential here for operator safety and precise blade positioning.
  • Dump Trucks and Trailers: Operating tailgate mechanisms, tarp systems, and other auxiliary pneumatic functions.
  • Service Vehicles: Controlling pneumatic tools, air horns, and auxiliary lifting mechanisms on utility and service trucks.
  • Agricultural Machinery: Managing various pneumatic functions on farm equipment, such as locking implements, operating gates, or adjusting components.
• Industrial Machinery: The BAV040 can be integrated into manufacturing and processing equipment where manual control of double-acting cylinders is required for:
  • Clamping and Fixturing: Securely holding workpieces for machining, assembly, or inspection.
  • Material Handling: Actuating gates, diverters, or positioning mechanisms on conveyors and sorting systems.
  • Automation Interface: Serving as a manual override or direct control for specific pneumatic tasks within a larger automated system.
• Construction Equipment: Actuating locking pins, positioning devices, or auxiliary functions on excavators, loaders, and other heavy equipment.
• Marine Applications: Control of various pneumatic systems on boats and ships, where robust, corrosion-resistant components are highly valued.

Key Advantages and Operational Benefits

Investing in the Buyers Products BAV040 Manual Air Control Valve offers a multitude of operational and safety advantages:

• Uncompromised Safety: The combination of Neutral Lock Out and Spring to Neutral / Deadman Control features significantly enhances operator safety, preventing accidental actuation and ensuring that systems revert to a safe, static state upon release of the control lever.
• Exceptional Durability: Constructed with high-quality materials and designed for rigorous use, the valve offers long-term reliability and resistance to the harsh conditions often encountered in mobile and industrial environments, minimizing downtime and replacement costs.
• Precision and Predictability: As a non-feathering valve, it delivers clear, decisive actuator movements, ensuring that operations are predictable and repeatable without ambiguity in control.
• Ease of Installation and Maintenance: The 0.250-inch brass push-lock fittings simplify pneumatic connections, allowing for quick, secure, and tool-free installation and easy component replacement when needed.
• Versatile Application: Its robust design and critical safety features make it suitable for a wide range of mobile and industrial applications, offering a versatile solution for pneumatic control needs.
• Operator Efficiency: The intuitive manual lever actuation provides direct, tactile feedback to the operator, enabling efficient and confident control over pneumatic functions.

Longevity and Maintenance Guidelines

To ensure the extended operational life and consistent performance of the BAV040 valve, proper maintenance practices are crucial:

• Air Quality: As previously mentioned, maintaining a clean, dry, and adequately filtered air supply is the single most important factor for valve longevity. Regularly check and drain water from air tanks and filter bowls. Replace filter elements as per manufacturer recommendations.
• Connection Integrity: Periodically inspect all pneumatic tubing and push-lock fittings for signs of wear, damage, or leaks. Ensure tubing is fully inserted and securely seated within the fittings. Address any leaks promptly to prevent pressure loss and system inefficiency.
• Lever Mechanism Inspection: Check the manual lever and its pivot points for any signs of wear, excessive play, or obstruction. Ensure the neutral lockout mechanism engages and disengages smoothly. Lubricate pivot points with a suitable, pneumatic-compatible grease if necessary, taking care not to interfere with internal valve mechanisms.
• Environmental Protection: While robust, protecting the valve from direct exposure to extreme contaminants, chemicals, or physical impact will further extend its lifespan. If the valve is exposed to harsh conditions, consider additional shielding or enclosures.
• Scheduled Checks: Incorporate the valve into regular preventative maintenance schedules for the equipment it controls. This ensures proactive identification and resolution of potential issues before they lead to operational failures.

Conclusion

The Buyers Products BAV040 Manual Air Control Valve stands as a testament to precision engineering and robust design within the pneumatic control landscape. Its 4-Way, 3-Position, non-feathering action, coupled with essential safety features like neutral lockout and spring-to-neutral (deadman) control, makes it an exemplary choice for demanding applications. From its 125 PSI rated pressure to its convenient 0.250-inch brass push-lock fittings, every aspect of the BAV040 is geared towards delivering reliable, safe, and efficient control of double-acting air cylinders. For professionals seeking a high-performance, durable, and secure solution for manual pneumatic actuation in mobile, industrial, or utility environments, the BAV040 offers an unparalleled combination of functionality, safety, and longevity, proving itself as a vital component for optimizing operational control and safeguarding personnel.
