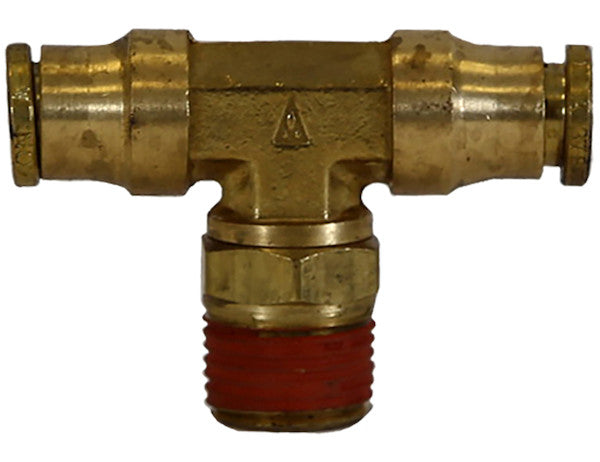

BBT0M25P125S - Brass DOT Push-In Swivel Male Branch Tee 1/4 Inch Tube OD x 1/8 Inch Pipe Thread

Buyers Products Swivel Male Branch Tees are made of long lasting corrosion-resistant brass. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.

Specifications

The Brass DOT Push-In Swivel Male Branch Tee, specifically designed for 1/4 Inch Tube OD and featuring a 1/8 Inch Pipe Thread, represents a critical component in advanced pneumatic systems, particularly within the demanding realm of commercial vehicle air brake applications. This fitting is engineered to provide a robust, reliable, and efficient connection solution, adhering to the stringent safety and performance standards mandated by the Department of Transportation (DOT) under FMVSS 571.106. Its design integrates several key features, each contributing to its superior functionality, ease of installation, and long-term durability in high-stress environments.

At the core of this fitting's exceptional performance is its material composition: high-quality brass. Brass, an alloy primarily of copper and zinc, is meticulously chosen for its intrinsic properties that are ideally suited for pneumatic and hydraulic applications. Its outstanding corrosion resistance ensures longevity and reliable operation, even when exposed to moisture, road salts, chemicals, and varying environmental conditions common in transportation infrastructure. Unlike steel, brass does not rust, which is a critical factor in preventing system contamination and maintaining the integrity of air brake lines. Furthermore, brass exhibits excellent mechanical strength, allowing the fitting to withstand significant internal pressures and external impacts without deformation or failure. It possesses good ductility, which means it can be machined with high precision to create the intricate geometries required for push-in mechanisms and threaded connections, ensuring a consistently tight and leak-free seal. The material's thermal stability also contributes to its reliability, as it can operate effectively across a broad range of temperatures without compromising its structural or sealing capabilities. The inherent antimicrobial properties of copper, a primary component of brass, also offer a minor but beneficial characteristic in certain applications.

The adherence to DOT FMVSS 571.106 Air Brake Performance Regulations is perhaps the most critical attribute of this fitting. FMVSS 571.106, or Federal Motor Vehicle Safety Standard No. 106, specifically dictates the performance requirements for brake hoses, brake hose assemblies, and their end fittings for hydraulic, vacuum, and air brake systems. For air brake systems, this standard mandates rigorous testing for resistance to leakage, burst pressure, tensile strength, vibration, cold temperature impact, and resistance to corrosion, among others. By meeting this standard, the Brass DOT Push-In Swivel Male Branch Tee ensures that it is unequivocally suitable for use in the compressed air systems of heavy-duty vehicles, including trucks, buses, and trailers. Compliance signifies that the fitting has undergone and passed severe evaluations designed to simulate real-world operational stresses and extreme conditions. This compliance is not merely a label; it is a testament to the product's safety, reliability, and its ability to maintain system integrity under dynamic and critical braking scenarios, thereby directly contributing to vehicle and road safety. For fleet operators, manufacturers, and maintenance professionals, specifying DOT-compliant components like this fitting is a non-negotiable requirement to ensure legal operation and maximum operational safety.

The "Push-In" or "Push-to-Connect" (PTC) mechanism is a defining characteristic that significantly enhances the usability and efficiency of this fitting. This innovative design allows for rapid, tool-free installation and disconnection of air lines, dramatically reducing labor time and complexity compared to traditional compression or threaded fittings. The mechanism typically involves a collet or grab ring that grips the outer diameter of the tubing, an O-ring or elastomeric seal that creates an airtight connection, and a tube guide that ensures proper tube insertion. When the tube is pushed into the fitting, the collet's teeth securely grip the tube, while the O-ring compresses around the tube's surface to form a hermetic seal. This design not only streamlines assembly processes but also minimizes the potential for human error, as it eliminates the need for specific torque values or specialized tools, which can be inconsistent in manual applications. The reliability of the push-in connection under pressure and vibration is thoroughly tested to ensure it remains secure throughout the operational life of the vehicle. For maintenance, a simple push on the release collar (if present, or by pressing the collet) allows for quick and clean disconnection, facilitating rapid component replacement or system modifications.

The "Swivel" functionality further elevates the practical utility of this branch tee. A swivel feature allows for rotational movement of the threaded end relative to the tube connection points, even after the pipe thread has been tightened into its receiving port. This capability provides immense flexibility during installation, as it permits precise alignment of the tubing without the need to rotate the entire fitting or twist the connected air lines. In complex air brake systems with confined spaces and intricate routing paths, the ability to independently orient the branch connections greatly simplifies the installation process, reduces strain on the tubing, and minimizes the risk of kinks or excessive bending that could compromise flow or structural integrity. This freedom of movement ensures that tubes can be routed optimally, preventing stresses that could lead to premature wear or leakage. Moreover, in applications where dynamic movement or vibration is present, a swivel fitting can help absorb some of these forces, further enhancing the longevity of both the fitting and the connected tubing.

As a "Male Branch Tee," this fitting serves a specific and essential role in pneumatic circuit design. The "tee" configuration indicates that it has three ports, enabling the division or combination of an air line. Specifically, a branch tee is designed to create a branch line that typically exits at a 90-degree angle from the main flow path. The "male" designation refers to the threaded port, which features external threads (1/8 Inch Pipe Thread) designed to screw into a female-threaded port on a manifold, valve, cylinder, or another system component. This specific configuration allows for the creation of a permanent or semi-permanent connection to a system component while simultaneously providing two push-in ports for connecting tubing, one in-line with the male thread and one branching off. This is particularly useful in air brake systems for routing air from a main supply line to multiple actuators, reservoirs, or control valves, optimizing the layout and minimizing the number of individual connections required.

The specified dimensions, 1/4 Inch Tube OD and 1/8 Inch Pipe Thread, are standard sizes within the industry, ensuring broad compatibility. The 1/4-inch Outer Diameter (OD) for the tube connections is a common size for air brake lines, offering a balance between adequate airflow capacity and minimal footprint. This dimension dictates the size of the air brake nylon or polyurethane tubing that can be securely connected to the push-in ports. Compatibility with standard tubing materials is crucial for integrated system performance. The 1/8 Inch Pipe Thread refers to the nominal diameter of the male tapered pipe thread, which adheres to the National Pipe Taper (NPT) standard. NPT threads are designed to provide a mechanical connection and a fluid-tight seal without the need for additional sealing elements in many applications, relying on the deformation of the thread flanks as they are tightened. However, for critical air brake applications, the use of a thread sealant (such as PTFE tape or liquid sealant) is typically recommended to ensure a completely leak-free connection, especially given the dynamic pressures and vibrations inherent in vehicle operations. Proper thread engagement and controlled torque application are vital during installation to achieve the desired seal without over-stressing the material.

The primary application domain for this Brass DOT Push-In Swivel Male Branch Tee is within commercial vehicle air brake systems. These systems are integral to the safe operation of heavy-duty trucks, buses, and trailers, where compressed air is used to actuate brake chambers. Beyond braking, these fittings are also found in various auxiliary pneumatic systems on these vehicles, such as air suspension systems, air-operated doors, pneumatic seat adjustments, and other utility functions that require reliable air distribution. In industrial settings, similar DOT-compliant fittings may be utilized in pneumatic control circuits where high reliability, compliance with safety standards, and ease of maintenance are paramount, especially in machinery that is subject to similar environmental stresses or requires robust connections for safety-critical operations.

Proper installation is paramount to ensuring the longevity and reliable performance of this fitting and the entire air brake system. For the push-in tube connections, the tube must be cut cleanly and squarely, without nicks or burrs, using a dedicated tube cutter. An improperly cut tube can damage the internal O-ring seal or prevent full insertion, leading to leaks. The tube should then be pushed firmly and completely into the fitting until it bottoms out, ensuring that both the collet grips the tube and the O-ring forms a seal. A slight tug back on the tube after insertion can confirm a secure connection. For the 1/8 Inch NPT male pipe thread, the application of an appropriate thread sealant is highly recommended. PTFE tape should be wrapped clockwise around the threads, typically 2-3 layers, ensuring it does not extend beyond the first thread, which could contaminate the system. Liquid pipe sealant specifically designed for pneumatic applications can also be used. The fitting should then be threaded into the female port and tightened to the manufacturer's specified torque, if available, or until a secure, leak-free connection is achieved without excessive force, which could damage the threads or the component it's screwing into. Due to the swivel feature, the threaded portion can be tightened independently, allowing for subsequent alignment of the push-in ports. After installation, the entire system should be pressure tested for leaks using an appropriate leak detection solution.

Maintaining system integrity involves more than just correct installation; it requires periodic inspection and preventative measures. In air brake systems, regular checks for leaks are crucial, as even minor leaks can compromise braking performance and lead to excessive compressor cycling, which reduces the lifespan of the compressor and other components. Visual inspections should focus on the condition of the tubing, ensuring it is free from chafing, kinks, or cracks, and that all fittings are securely seated. The brass material of the fitting offers inherent corrosion resistance, but harsh environmental conditions or corrosive chemicals should still be monitored. Any signs of damage, wear, or leakage at the fitting or along the tube indicate the need for immediate replacement to prevent system failure. The robust design of these fittings, combined with their brass construction and DOT compliance, ensures a long service life, but proactive maintenance remains essential for maximum safety and operational efficiency.

Beyond FMVSS 571.106, this fitting's design and material selection align with broader industry best practices and standards for pneumatic components. These include general requirements from organizations like SAE (Society of Automotive Engineers) for automotive components, ISO (International Organization for Standardization) for quality management systems and component specifications, and various industrial standards governing materials and manufacturing processes. Manufacturers committed to producing high-quality fittings typically implement rigorous internal quality control procedures, including material certification, dimensional inspection, pressure testing, and functional testing of every batch. This commitment ensures that each Brass DOT Push-In Swivel Male Branch Tee consistently meets or exceeds the specified performance criteria, providing confidence in its application in safety-critical air brake systems. The emphasis on robust design and quality manufacturing also reflects a sustainability aspect, as the longevity of such components reduces the frequency of replacements, thereby minimizing waste and resource consumption over the lifecycle of the vehicle.

In summary, the Brass DOT Push-In Swivel Male Branch Tee with 1/4 Inch Tube OD x 1/8 Inch Pipe Thread represents a pinnacle of engineering for pneumatic connections in demanding applications. Its foundation in high-grade, corrosion-resistant brass guarantees durability and reliability. Crucially, its compliance with DOT FMVSS 571.106 provides an unequivocal assurance of safety and performance for air brake systems. The integration of push-in technology facilitates rapid, error-free installation and maintenance, while the swivel capability offers unparalleled flexibility in tube routing and system alignment. This specific configuration, a male branch tee, is ideally suited for efficient air distribution, allowing for complex system architectures with simplified connections. Coupled with precise sizing for standard tubing and pipe threads, and a strong emphasis on proper installation and maintenance, this fitting stands as an indispensable component for ensuring the operational safety and efficiency of commercial vehicles and other high-performance pneumatic systems. Its design and manufacturing reflect a deep understanding of the challenges faced in the field, delivering a solution that excels in performance, longevity, and ease of use.
