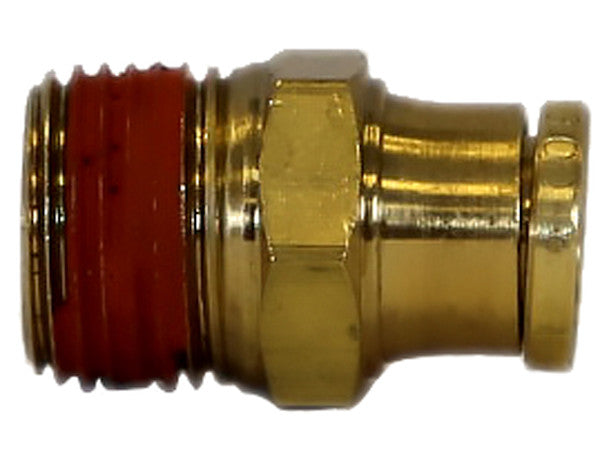

Buyers Products Male Connectors are made of long lasting and corrosion-resistant brass. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.
Specifications
| Color | Natural |
|---|---|
| Finish | Plain |
| Fitting Shape | Straight |
| Male/Female/Union | Male |
| Material | Brass |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | 1/8 NPT |
| Swivel (y/n) | No |
| Works with Tube Outer Diameter | 1/4 |
The Brass DOT Push-In Male Connector, specifically engineered for 1/4 Inch Tube O.D. x 1/8 Inch Pipe Thread applications, represents a critical component in the assembly and maintenance of robust and compliant air brake systems. Manufactured by Buyers Products, this fitting embodies a commitment to high-performance, durability, and adherence to stringent industry standards. Its design integrates advanced fluid connection technology with superior material science to deliver unparalleled reliability in demanding operational environments.
At the core of this connector's exceptional performance is its material composition: high-quality brass. Brass, an alloy primarily of copper and zinc, is meticulously selected for its multifaceted advantages in pneumatic and hydraulic applications. Its inherent resistance to corrosion, particularly against moisture, road salts, and various atmospheric contaminants, is paramount for components exposed to diverse environmental conditions in vehicular applications. Unlike steel, which can succumb to rust and degrade over time, brass maintains its structural integrity and aesthetic 'Natural' finish, ensuring prolonged operational life and consistent performance. Furthermore, brass offers excellent strength-to-weight ratio and superb machinability, allowing for the precise manufacturing of intricate components like threads and collet mechanisms, which are critical for the secure and leak-proof function of the fitting. The thermal conductivity of brass is also beneficial, contributing to stable performance across a broad range of operating temperatures typically encountered in commercial vehicle operations.
A defining characteristic of this connector is its full compliance with DOT FMVSS 571.106 air brake performance specifications. The Federal Motor Vehicle Safety Standard (FMVSS) 106 outlines comprehensive requirements for brake hoses and their associated fittings, ensuring the safety and reliability of air brake systems on commercial vehicles. Compliance with FMVSS 106 is not merely a regulatory checkbox; it signifies that the fitting has undergone rigorous testing and validation processes. These tests often include pressure cycling (simulating repeated brake applications over extended periods), burst strength (verifying resistance to extreme internal pressures), vacuum integrity, vibration resistance (mimicking real-world road conditions), and high-temperature performance. By meeting these demanding specifications, Buyers Products guarantees that this brass male connector will maintain its structural integrity and sealing effectiveness under the severe operational stresses inherent in air brake systems, thereby preventing catastrophic failures and ensuring driver and public safety. This 'Yes' affirmation to D.O.T. FMVSS 571.106 Air Brake Performance Regulations is a testament to its engineering integrity and suitability for critical safety applications.
The 'Push-In' design paradigm of this connector offers significant practical advantages in terms of installation efficiency and system maintenance. Traditional methods, such as compression fittings, often require specialized tools, precise torque settings, and multiple components (nut, sleeve, insert). Push-in technology, by contrast, simplifies the connection process dramatically. It involves merely cutting the air brake tubing squarely, ensuring it is free of burrs, and then inserting it firmly into the fitting until it bottoms out. An internal gripping mechanism, typically a collet with stainless steel teeth, securely holds the tubing in place, while an integrated O-ring (often made of EPDM, which exhibits excellent resistance to heat, ozone, and weathering) creates a robust, airtight seal around the tube's outer diameter. This rapid connection method drastically reduces installation time and labor costs, minimizing vehicle downtime for repairs or system modifications. The reliability of the seal is maintained even under vibration and pressure fluctuations, making it ideal for the dynamic environment of commercial vehicles. The straight fitting shape facilitates direct, inline connections, minimizing potential points of failure and flow restriction, which is crucial for maintaining optimal air pressure and response times throughout the brake system.
The specific dimensions of 1/4 Inch Tube O.D. and 1/8 Inch Pipe Thread are tailored for common configurations within air brake systems. The 1/4 inch outer diameter (O.D.) tubing is frequently employed for secondary lines, auxiliary circuits, gauge lines, and pneumatic controls where precise air flow and pressure are critical but the volume requirements are moderate. This size offers a balance between flexibility for routing and rigidity for reliable pressure transmission. The compatibility with standard DOT-approved nylon or polyamide tubing makes this connector a versatile choice for various system architectures. The 1/8 inch NPT (National Pipe Taper) pipe thread is a widely accepted standard for threaded connections in North America. NPT threads are designed to create a pressure-tight seal without the need for additional sealing components like gaskets in many applications. The tapered design allows the threads to wedge together, forming an interference fit that seals effectively under pressure. A thread sealant, such as PTFE tape or a liquid thread sealant, is typically recommended to lubricate the threads, fill any remaining voids, and ensure a leak-free connection, especially in high-pressure pneumatic systems like air brakes. The 1/8 NPT size is commonly found on air tanks, brake valves, pressure switches, air dryers, and various other pneumatic components, making this male connector a fundamental interface component.
Beyond its material and structural integrity, the internal engineering of this brass connector contributes significantly to its long-term performance. The collet mechanism, often constructed from a durable polymer or brass with stainless steel gripping teeth, is designed for repeated tube insertions and removals without compromising its gripping force or tube integrity. The O-ring seal is precisely seated within the fitting body to ensure concentric compression around the tube, maximizing sealing efficiency and longevity. The absence of a swivel mechanism, as indicated by 'Swivel (y/n): No', implies a fixed connection once installed, which is often preferred in applications where movement at the connection point could introduce fatigue or stress, thereby enhancing the overall stability and robustness of the air brake circuit. The plain finish further simplifies its integration into various systems, providing a clean, functional appearance without reliance on decorative coatings.
The application spectrum for this Brass DOT Push-In Male Connector is extensive, primarily encompassing the commercial vehicle sector. This includes heavy-duty trucks, tractor-trailers, buses, refuse vehicles, and various types of specialty and off-highway equipment. Within these vehicles, it is indispensable for connecting air lines to components such as air tanks, foot valves, hand valves, relay valves, pressure protection valves, quick release valves, air dryers, and auxiliary air systems that power components like air ride suspensions, lift gates, air horns, and air-assisted seats. Its robust construction and DOT compliance also make it suitable for certain industrial pneumatic applications where high reliability and adherence to safety standards are paramount, even if not explicitly regulated by FMVSS 106.
Proper installation is crucial to fully leverage the performance capabilities of this connector and ensure the integrity of the air brake system. The installation process begins with the selection of appropriate air brake tubing that meets DOT specifications for pressure and temperature, ensuring it has a consistent 1/4 inch outer diameter. The tubing must be cut precisely square and clean, free of any nicks, scratches, or burrs that could compromise the seal or gripping mechanism. A specialized tube cutter designed for pneumatic tubing is recommended to achieve these clean cuts. Once prepared, the tubing is simply pushed firmly into the connector until it reaches the stop inside the fitting. A slight resistance will be felt as the O-ring engages, followed by the positive engagement of the collet teeth. A gentle pull-test on the tubing after insertion will confirm that it is securely seated. For the 1/8 NPT threaded connection, it is imperative to apply an appropriate thread sealant to the male threads before assembly. This sealant lubricates the threads for easier assembly, fills any potential helical leak paths, and prevents galling, especially when connecting brass to other metals. Care should be taken not to overtighten the threaded connection, as this can damage the threads or the component to which it is attached. Snug tightening, followed by an additional half to one turn (depending on the sealant and material) is typically sufficient. The non-swivel design mandates careful alignment of the male pipe thread prior to tightening, as the final orientation of the fitting is fixed once tightened.
Maintaining the longevity and optimal performance of air brake systems requires periodic inspection and, if necessary, replacement of components. The corrosion-resistant nature of brass significantly extends the service life of this connector compared to less resilient materials, reducing the frequency of replacement. However, operators should routinely inspect all air brake lines and fittings for signs of damage, wear, or leakage. Visible cracks, severe discoloration, or evidence of air leaks (which can be detected using a soap solution) should prompt immediate attention. While brass is durable, extreme impacts or chemical exposures outside its intended operating parameters could lead to compromise. The 'long lasting' attribute of Buyers Products' brass connectors directly translates into reduced maintenance cycles, lower operational costs, and enhanced safety throughout the vehicle's lifespan.
In summary, the Brass DOT Push-In Male Connector for 1/4 Inch Tube O.D. x 1/8 Inch Pipe Thread is a premium-grade component meticulously engineered for the demanding world of commercial vehicle air brake systems. Its foundation in robust, corrosion-resistant brass ensures enduring performance. Its steadfast compliance with DOT FMVSS 571.106 provides an unequivocal assurance of safety and regulatory adherence, reflecting its ability to withstand extreme operational stresses. The innovative push-in technology facilitates swift, secure, and tool-free tube connections, dramatically improving installation efficiency. The precise dimensions and straight fitting configuration offer versatile application within standard pneumatic architectures. From its 'Natural' color and 'Plain' finish to its unwavering 'Male' connection type, every specification underscores its professional utility and commitment to superior function. This connector is not just a fitting; it is an integral safety component, designed to deliver exceptional reliability, operational efficiency, and peace of mind in mission-critical transportation applications, embodying Buyers Products' dedication to quality and performance.
