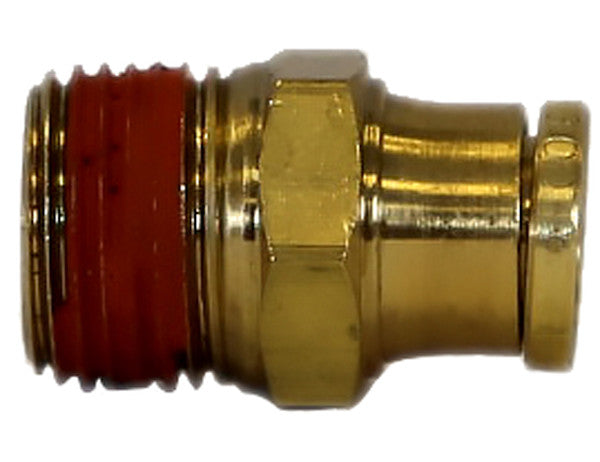

BC00M25P25 - Brass DOT Push-In Male Connector 1/4 Inch Tube O.D. x 1/4 Inch Pipe Thread

Buyers Products Male Connectors are made of long lasting and corrosion-resistant brass. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.

Specifications

Advanced Technical Overview: Brass DOT Push-In Male Connector for Air Brake Systems

This document provides an in-depth technical analysis of the Brass DOT Push-In Male Connector, specifically engineered for 1/4 Inch Tube O.D. x 1/4 Inch Pipe Thread applications. Designed and manufactured to exceed the stringent requirements of modern commercial vehicle air brake systems, this connector exemplifies precision engineering, material science, and adherence to critical safety standards. Its robust construction and intuitive design ensure reliable performance in demanding operational environments.

Material Excellence: The Enduring Properties of Brass

The selection of brass as the primary material for this connector is a deliberate choice rooted in its superior metallurgical properties and proven performance in critical fluid power applications. Brass, an alloy primarily composed of copper and zinc, offers a unique combination of characteristics that are highly advantageous for air brake fittings:

• Corrosion Resistance: Brass exhibits exceptional resistance to corrosion, particularly from moisture, road salts, de-icing agents, and various atmospheric pollutants commonly encountered in commercial vehicle operations. Unlike steel, brass does not readily rust, ensuring long-term integrity and preventing premature failure due to material degradation. This intrinsic corrosion resistance is critical for maintaining a hermetic seal and structural soundness over the product's operational lifespan.
• Durability and Strength: While possessing excellent machinability, brass also provides substantial mechanical strength and ductility. This enables the fitting to withstand significant vibrational stress, pressure fluctuations, and minor impacts without fracturing or deforming. Its inherent toughness contributes to the overall durability and longevity required for heavy-duty vehicle applications where components are subject to constant motion and environmental exposure.
• Temperature Stability: Brass maintains its mechanical properties across a wide range of operating temperatures, from extreme cold to high heat. This stability is crucial for air brake systems, which can experience considerable temperature variations depending on climate, vehicle operation, and proximity to heat-generating components. The material's thermal conductivity also helps dissipate heat, preventing localized thermal stress.
• Resistance to Dezincification: Modern brass alloys are specifically formulated to resist dezincification, a form of corrosion where zinc is leached from the alloy, leaving behind a porous, weakened copper structure. This enhanced resistance ensures the fitting maintains its structural integrity and leak-proof performance over extended periods.
• Spark Resistance: In environments where flammable gases or dust might be present, the non-sparking properties of brass offer an additional layer of safety, reducing the risk of ignition compared to ferrous metals.
• Machinability: Brass's excellent machinability allows for precise manufacturing of intricate geometries, such as the NPT threads and internal push-in mechanisms. This precision is vital for achieving the tight tolerances necessary for an effective seal and reliable tubing retention.

The natural finish of the brass further underscores its inherent quality, providing a clean, unadulterated appearance that reflects its robust composition and manufacturing integrity. This material choice significantly contributes to the connector's designation as "long-lasting" and ensures unparalleled reliability in demanding air brake applications.

DOT FMVSS 571.106 Compliance: A Mandate for Safety and Performance

A cornerstone of this connector's design and functionality is its complete compliance with DOT FMVSS 571.106. This regulation, Federal Motor Vehicle Safety Standard No. 106 (Brake Hoses), sets forth rigorous performance and labeling requirements for brake hose assemblies and their associated fittings, including those used in air brake systems of commercial vehicles. Compliance with FMVSS 106 is not merely a feature; it is a legal and ethical imperative for components used in safety-critical applications like air brakes.

Key aspects of FMVSS 106 compliance include:

• Pressure Resistance: Fittings must withstand specific proof pressure and burst pressure tests without leakage or failure. This ensures the connector can reliably contain the high pneumatic pressures inherent in air brake systems, typically ranging from 100-150 psi (6.9-10.3 bar), with safety margins for surge pressures.
• Temperature Cycling: The connector must endure repeated cycles of extreme temperature variations (e.g., -40°F to 200°F or -40°C to 93°C) while maintaining its integrity and sealing capabilities. This simulates real-world operating conditions, where vehicles traverse diverse climates.
• Vibration Resistance: Fittings are subjected to sustained vibration tests to ensure they remain securely attached to the tubing and do not develop leaks under dynamic vehicle operation.
• Tensile/Pull-Out Resistance: A critical test for push-in fittings, this evaluates the force required to pull the tubing out of the connector. FMVSS 106 specifies minimum retention forces, ensuring that the connection remains secure even under significant mechanical stress or tugging. For 1/4 inch tubing, the pull-out force requirements are substantial to guarantee safety.
• Corrosion Resistance: As previously detailed, the material's resistance to corrosion is tested under controlled environments, often involving salt spray chambers, to ensure long-term functionality.
• Leakage Performance: Throughout all testing protocols, the fitting must demonstrate zero leakage, affirming its ability to maintain pneumatic system integrity.

Meeting these comprehensive performance specifications guarantees that the connector will perform reliably in the most demanding operational scenarios, contributing directly to vehicle safety, reducing the risk of air brake system failures, and minimizing associated downtime and maintenance costs. For fleet operators and vehicle manufacturers, selecting FMVSS 106 compliant components is essential for regulatory adherence, liability mitigation, and ensuring the highest level of operational safety.

Push-In Technology: Efficiency and Reliability in Air Line Connections

The utilization of push-in (also known as push-to-connect or PTC) technology in this male connector offers significant advantages in terms of installation speed, ease of use, and connection reliability for the 1/4 inch O.D. tube. This contemporary fitting design has largely superseded traditional compression fittings in many air brake applications due to its inherent efficiencies.

The fundamental mechanism of a push-in fitting involves:

• Collet/Grab Ring: An internal collet, often made of durable plastic or metal, features teeth that securely grip the outer diameter of the inserted tube. As the tube is pushed in, these teeth engage, preventing accidental withdrawal.
• O-Ring Seal: A high-quality elastomer O-ring (typically EPDM for air brake applications) creates a hermetic seal around the outer surface of the tubing, preventing air leakage. This O-ring is critical for maintaining system pressure and is designed to withstand the operational temperatures and pressures specified by FMVSS 106.
• Release Mechanism: Most push-in fittings incorporate a release collar that, when depressed, disengages the collet teeth, allowing for easy removal and re-use of the tubing without damaging it or the fitting.

Advantages of push-in technology include:

• Rapid Installation: No special tools are required for installation; the tube is simply pushed into the fitting until it seats. This dramatically reduces installation time and labor costs compared to flaring or compression techniques.
• Consistent Connection Quality: The design ensures a consistent, leak-free connection every time, minimizing human error during assembly.
• Reduced Risk of Tubing Damage: Unlike compression fittings that deform the tubing, push-in fittings grip the O.D. without crushing, preserving the tubing's integrity.
• Reusability: Tubing can be easily disconnected and reconnected, facilitating maintenance, repairs, or system modifications without replacing the fitting.
• Vibration Resistance: The robust gripping mechanism and O-ring seal are engineered to maintain integrity under vehicle vibrations, a key requirement for air brake systems.

This straight fitting shape, combined with push-in technology, provides a streamlined and efficient connection point for nylon tubing (e.g., SAE J844 Type A or B) commonly used in air brake systems, ensuring a direct and unhindered pneumatic path.

Male Connector Design and NPT Threading Specifics

The designation "Male Connector" indicates that one end of the fitting features external threads designed to screw into a female-threaded port. In this case, it specifically utilizes a 1/4 NPT (National Pipe Taper) thread. Understanding the characteristics of NPT threads is crucial for proper installation and system integrity.

• Tapered Design: NPT threads are inherently tapered, meaning the diameter of the thread decreases along its length. This taper creates a mechanical interference fit when screwed into a corresponding female NPT port. As the threads engage, the flanks wedge together, forming a metal-to-metal seal.
• Sealant Requirement: Due to the inherent design and manufacturing tolerances, NPT threads are not considered self-sealing solely through metal-to-metal contact. A thread sealant—such as PTFE (polytetrafluoroethylene) tape or a liquid pipe thread sealant (pipe dope) compatible with air brake systems—is mandatory to fill microscopic helical leak paths and ensure a truly leak-tight connection. Proper application of sealant is paramount for preventing air leakage.
• Standardization: 1/4 NPT is a widely recognized and standardized thread specification in North America, ensuring interchangeability and compatibility with a vast array of air brake components, including valves, tanks, air chambers, and manifolds. This standardization simplifies component sourcing and system integration.
• Non-Swivel Design: The "No" specification for swivel capability indicates that this is a fixed, rigid male connector once installed. This design choice contributes to the overall stability and secure positioning of the air line, preventing inadvertent rotation or loosening that could compromise the connection's integrity or place undue stress on the tubing.

The precision-machined 1/4 NPT threads on this brass connector ensure a reliable and durable connection to the air brake system's infrastructure, forming the critical interface between the flexible air line and the rigid components.

Precision Dimensions and System Compatibility

The precise dimensional specifications of this connector are critical for its integration into standard air brake architectures:

• 1/4 Inch Tube O.D. Compatibility: This connector is specifically engineered to accept tubing with a 1/4 inch (6.35 mm) outer diameter. This is a common size for nylon air brake tubing (SAE J844 Type A or B) used in pneumatic control lines, auxiliary air systems, and main air lines in certain applications within commercial vehicles. The internal push-in mechanism is optimized for this specific O.D. to provide maximum grip and sealing performance.
• 1/4 NPT Pipe Thread Size: The 1/4 NPT male thread is a standard interface for connecting to various air system components. This includes ports on air reservoirs (tanks), air dryer units, brake valves (foot valves, relay valves, protection valves), spring brake chambers, air ride suspension components, and pneumatic control panels. The consistent use of NPT sizing throughout the air brake industry facilitates seamless component integration and system repair.
• Straight Fitting Shape: The straight configuration of the fitting ensures a direct, in-line connection between the tubing and the threaded port. This minimizes any potential flow restriction or turbulence that could occur with angled fittings, optimizing pneumatic efficiency. The straight design also simplifies routing in many applications where a direct path is available and minimizes the overall footprint of the connection.

These precise dimensions and standard interfaces make this brass connector a versatile and essential component for a wide range of air brake system applications, ensuring reliable and leak-free pneumatic connections.

Applications and Industry Relevance

The Brass DOT Push-In Male Connector is indispensable across various segments of the commercial vehicle industry and related pneumatic applications:

• Commercial Trucking and Transport: Primarily used in heavy-duty trucks, tractors, trailers, and buses for connecting nylon air lines to air brake system components. This includes connections to brake chambers, air tanks, air dryer systems, leveling valves for air suspensions, and various pneumatic control circuits.
• Off-Highway and Construction Equipment: Essential for pneumatic systems in construction vehicles, agricultural machinery, and other off-highway equipment where robust and DOT-compliant air brake or auxiliary air systems are critical.
• Fleet Maintenance and Repair: A standard replacement part for maintenance shops and service technicians working on commercial vehicle air brake systems, ensuring repairs are performed with compliant and durable components.
• Original Equipment Manufacturing (OEM): Utilized by vehicle and component manufacturers in the assembly of new commercial vehicles and pneumatic sub-systems, guaranteeing adherence to safety and performance specifications from the point of manufacture.
• Industrial Pneumatics (DOT-Regulated): While primarily for vehicles, its DOT compliance makes it suitable for certain industrial pneumatic applications requiring similar levels of safety and performance, especially where equipment mobility and road transport are involved.

Its critical role in ensuring the safe and reliable operation of air brake systems underscores its significant industry relevance and the trust placed in its design and material quality.

Installation Guidelines and Best Practices for Optimal Performance

Proper installation is paramount to achieving the full performance and longevity benefits of the Brass DOT Push-In Male Connector. Adhering to these guidelines ensures a leak-free and secure connection:

• Tubing Preparation: Cut the air brake tubing squarely and cleanly using a dedicated tube cutter. Ensure the cut is free of burrs, nicks, or ovality, as these imperfections can compromise the O-ring seal and collet grip. A clean, square cut is fundamental for a reliable push-in connection.
• Tubing Insertion: Insert the prepared tubing firmly and squarely into the push-in end of the fitting until it bottoms out. A slight resistance will be felt as the collet teeth engage and the O-ring seats. Once fully inserted, pull back gently on the tubing to confirm it is securely locked in place. Never lubricate the tubing as this can compromise the grip.
• Thread Sealant Application: For the 1/4 NPT male thread, apply a suitable pipe thread sealant. For air brake systems, PTFE tape (typically 2-3 wraps, clockwise direction) or a liquid pipe thread sealant (dope) compatible with pneumatic applications and DOT regulations should be used. Ensure the sealant is applied to the threads only, avoiding the first thread to prevent contamination of the pneumatic system.
• Threaded Connection: Hand-tighten the male NPT thread into the female port until snug. Then, using a wrench, tighten to the manufacturer's recommended torque specifications. Over-tightening can damage the threads or the component it is screwing into, potentially creating leaks or structural weaknesses. Under-tightening will result in leakage. The "plain" finish signifies no special coating that would alter torque values.
• Leak Testing: After installation, pressurize the air brake system and meticulously check all connections for leaks using an approved leak detection solution. Bubbles indicate a leak, which must be addressed immediately by re-sealing or re-tightening. This step is non-negotiable for safety.
• Inspection and Maintenance: Regularly inspect air lines and fittings during routine vehicle maintenance for signs of wear, damage, or degradation. Ensure tubing is not chafing, crimped, or under excessive tension.

By following these best practices, technicians can ensure that the Brass DOT Push-In Male Connector delivers its intended performance and contributes to the overall integrity and safety of the air brake system.

Quality Assurance and Reliability

The manufacturing process for this Brass DOT Push-In Male Connector is underpinned by stringent quality assurance protocols. From raw material sourcing to final inspection, each stage is meticulously controlled to ensure consistency, dimensional accuracy, and adherence to performance standards. This commitment to quality translates directly into the reliability of the component in critical air brake applications. The inherent strength and corrosion resistance of brass, combined with precision engineering, minimize the risk of premature failure, leakage, or loss of tube retention, thereby enhancing vehicle uptime and reducing unscheduled maintenance. In safety-critical systems like air brakes, the reliability of every component is paramount, and this connector is designed to provide unwavering performance under the most demanding conditions.

Conclusion

The Brass DOT Push-In Male Connector, with its 1/4 Inch Tube O.D. and 1/4 Inch Pipe Thread, represents a pinnacle of engineering for commercial vehicle air brake systems. Its foundation in high-grade, corrosion-resistant brass ensures longevity and structural integrity. Crucially, its compliance with DOT FMVSS 571.106 underscores a commitment to safety and rigorous performance standards, making it a trusted component for legal and operational compliance. The intuitive push-in technology facilitates rapid, secure, and repeatable connections, while the standardized 1/4 NPT threading guarantees broad compatibility with existing pneumatic infrastructure. Designed as a straight, non-swivel male connector, it provides a stable and direct pathway for air flow. For fleet operators, maintenance professionals, and OEM manufacturers seeking uncompromising reliability, ease of installation, and certified safety in their air brake pneumatic connections, this brass connector stands as an optimal and technically sound solution.
