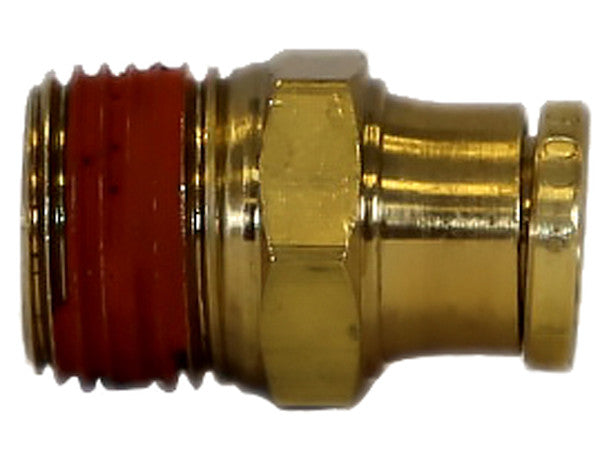

BC00M375P25 - Brass DOT Push-In Male Connector 3/8 Inch Tube O.D. x 1/4 Inch Pipe Thread

Buyers Products Male Connectors are made of long lasting and corrosion-resistant brass. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.

Specifications

Advanced Technical Overview: Brass DOT Push-In Male Connector for Air Brake Systems

This detailed product description highlights the Brass DOT Push-In Male Connector, specifically engineered for critical air brake applications. With a 3/8 inch tube outer diameter (O.D.) and a 1/4 inch National Pipe Taper (NPT) thread, this fitting exemplifies precision engineering and adherence to stringent safety standards. Manufactured from robust brass, it is designed for longevity and unwavering performance in demanding vehicular environments, fully complying with DOT FMVSS 571.106 air brake performance specifications.

Material Excellence: The Advantages of Brass in Pneumatic Systems

The selection of brass as the primary material for this male connector is a deliberate engineering decision rooted in its superior metallurgical properties. Brass, an alloy primarily composed of copper and zinc, offers an optimal balance of strength, ductility, and resistance to environmental degradation, making it ideally suited for pneumatic and hydraulic applications, particularly within air brake systems.

Corrosion Resistance: One of brass's most significant advantages is its inherent resistance to corrosion. Unlike ferrous metals, brass does not rust, and its resistance to various forms of chemical attack, including moisture, road salts, and common automotive fluids, is exceptional. This property ensures the long-term integrity of the fitting, preventing material degradation that could lead to leaks, blockages, or structural failure, which are paramount concerns in air brake systems where safety and reliability are non-negotiable.

Durability and Longevity: Brass fittings are renowned for their exceptional durability. They can withstand significant mechanical stress, including vibration, pressure fluctuations, and thermal cycling, without succumbing to fatigue or deformation. The inherent strength of the material contributes to the "long-lasting" characteristic mentioned, reducing the need for frequent replacements and thereby lowering maintenance costs and vehicle downtime. This robustness is critical for components subjected to the continuous operational stresses of heavy-duty vehicles.

Malleability and Machinability: Despite its strength, brass exhibits excellent malleability and machinability. This allows for the precise fabrication of intricate designs, such as the tapered pipe threads and the internal components of the push-in mechanism. Precision manufacturing ensures tight tolerances, which are essential for creating reliable seals and secure connections, contributing directly to the fitting's performance and DOT compliance.

Thermal Conductivity: While not the primary consideration for air brake fittings, brass possesses good thermal conductivity. This property can help in dissipating heat generated by friction or other operational factors, contributing to the overall stability of the system. More importantly, brass maintains its mechanical properties across a wide range of operating temperatures, ensuring consistent performance in varying climatic conditions.

Non-Sparking Properties: In certain environments, the non-sparking nature of brass can be an added safety benefit, although less critical for air brake lines themselves, it aligns with a general safety-first approach in vehicle component selection.

The natural finish and plain color of the brass connector indicate that it is unplated, allowing the inherent qualities of the brass to provide its protective and aesthetic benefits without additional coatings that could wear or chip over time. This raw, honest material presentation underscores its functional integrity.

Compliance with DOT FMVSS 571.106: The Cornerstone of Air Brake Safety

The declaration that this connector "Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations" is not merely a feature; it is a critical assurance of safety and legal compliance. FMVSS 571.106 refers to Federal Motor Vehicle Safety Standard No. 106, which sets forth performance requirements for brake hoses, brake hose assemblies, and their end fittings, designed for use in hydraulic, vacuum, and air brake systems of motor vehicles.

Understanding FMVSS 571.106: This standard specifies a battery of rigorous tests that air brake components must pass to be deemed safe for public road use. These tests evaluate the component's ability to withstand extreme operating conditions, including:

• Tensile Strength Test: Ensures the fitting can withstand significant pulling forces without separating from the tubing, preventing inadvertent disconnections.
• Air Pressure Hold Test: Verifies the fitting's ability to maintain pressure without leakage under static conditions, crucial for maintaining brake system integrity.
• Vibration Test: Simulates the constant mechanical vibrations experienced during vehicle operation, ensuring the fitting remains secure and leak-free.
• High and Low Temperature Performance: Evaluates the fitting's functionality and sealing capabilities across a broad temperature range, from extreme cold to intense heat, reflecting diverse geographical and operational climates.
• Corrosion Resistance Test: Confirms the material's ability to resist degradation when exposed to corrosive elements, reinforcing the choice of brass.
• Proof Pressure Test: Subjecting the fitting to pressures significantly higher than normal operating pressures to ensure structural integrity and a safety margin.
• Burst Pressure Test: Determining the ultimate pressure at which the fitting fails, providing a critical limit for system design.

Criticality of Compliance: For fleet operators, vehicle manufacturers, and maintenance personnel, using DOT-compliant components is not optional. It is a legal mandate that directly impacts vehicle safety, regulatory adherence, and liability. Non-compliant fittings can lead to catastrophic air brake failures, resulting in severe accidents, financial penalties, and criminal charges. By selecting connectors explicitly designed and tested to meet FMVSS 571.106, users ensure the highest level of safety and operational reliability for their air brake systems.

The engineering and manufacturing processes behind this Buyers Products connector are meticulously controlled to ensure consistent compliance with these demanding specifications, providing peace of mind and upholding the highest standards of automotive safety.

Push-In Technology: Efficiency and Reliability in Connection

The "Push-In" or "Push-to-Connect" (PTC) design represents a significant advancement in pneumatic connection technology, offering unparalleled ease of installation and a robust, leak-free seal. This technology is particularly beneficial in complex air brake systems where rapid and reliable connections are essential.

Mechanism of Operation: A push-in fitting operates on a simple yet highly effective principle. The fitting typically comprises a collet (gripper) and an O-ring seal. When the tubing is inserted into the fitting, the collet's teeth automatically grip the outer diameter of the tube, securing it firmly. Simultaneously, the O-ring compresses around the tube, creating an airtight seal. To disconnect, a release collar or button is depressed, retracting the collet teeth and allowing the tube to be easily withdrawn.

Key Advantages:

• Rapid Installation: Push-in fittings eliminate the need for specialized tools, soldering, or flaring. Installation is as simple as pushing the tube into the fitting until it seats firmly, drastically reducing installation time and labor costs.
• Tool-Free Disconnection: The design allows for quick and easy disconnection, facilitating maintenance, troubleshooting, and system modifications without damaging the tubing or fitting.
• Reliable Seal: The O-ring sealing mechanism provides a consistently reliable, leak-tight connection, crucial for maintaining constant air pressure in brake systems. The seal's integrity is maintained even under vibration and pressure fluctuations.
• Reusability: Both the fitting and the tubing can often be reused multiple times, provided the tubing end is properly cut and free from damage, contributing to cost efficiency.
• Reduced Human Error: The intuitive design minimizes the potential for installation errors, as a secure connection is immediately evident.

Application Suitability: For air brake systems, where speed of assembly on production lines and efficiency in field maintenance are valuable, push-in fittings are a preferred choice. Their ability to form a secure connection with a wide range of thermoplastic tubings (Nylon, Polyethylene, Polyurethane), commonly used in DOT-compliant air brake lines, further enhances their versatility.

Precision Sizing: 3/8 Inch Tube O.D. x 1/4 Inch Pipe Thread

The specific dimensions of this connector are fundamental to its application and interoperability within air brake systems.

3/8 Inch Tube O.D. (Outer Diameter): The 3/8 inch (9.525 mm) outer diameter specification is critical for two primary reasons: the secure grip of the push-in mechanism and appropriate air flow. The collet within the push-in fitting is precisely engineered to grip tubing of this exact O.D., ensuring maximum retention force and preventing tube pull-out under pressure or vibration. The O-ring seal also relies on this precise O.D. to create an effective and enduring seal. Tubing of this size is widely used in medium-duty and heavy-duty vehicle air brake systems, balancing the need for adequate air volume and pressure delivery with routing flexibility and material efficiency. It provides sufficient cross-sectional area for efficient air flow to brake chambers without excessive pressure drop, while remaining manageable for installation within confined chassis spaces.

1/4 Inch Pipe Thread (NPT): The 1/4 inch NPT designation refers to the American National Standard Pipe Taper Thread. This thread type is the most common standard for general-purpose tapered threads in the United States and Canada, known for creating both a mechanical connection and a fluid-tight seal without the need for an additional gasket or O-ring on the threads themselves, though thread sealant is highly recommended for optimal performance.

• Tapered Design: The threads are tapered (1:16 taper) such that when the male (external) thread is tightened into a female (internal) thread, the flanks of the threads compress, creating a metal-to-metal seal. This inherent sealing capability is a significant advantage in high-pressure pneumatic systems.
• Nominal vs. Actual Size: It is important to note that the "1/4 inch" in NPT refers to a nominal pipe size, not the actual measured diameter of the threads. A 1/4 NPT thread has an outside diameter of approximately 0.540 inches (13.72 mm) at the large end of the male thread.
• Secure Connection: When properly torqued and sealed with an appropriate thread sealant (e.g., PTFE tape or liquid sealant), a 1/4 NPT connection provides an extremely robust and leak-proof interface with the receiving port of components such as air tanks, valves, or manifold blocks.

The combination of these specific dimensions makes this connector a standard and versatile component for integrating 3/8 inch air brake tubing into system components with 1/4 NPT female ports.

Fitting Shape: Straight for Direct Integration

The designation of "Straight" for the fitting shape indicates a linear flow path without any directional changes. This seemingly simple characteristic holds significant practical implications for system design and performance.

• Direct Connection: A straight fitting is employed when a direct, inline connection between the tubing and a threaded port is required, often where the tubing approaches the port squarely.
• Minimal Flow Restriction: By avoiding bends or changes in direction within the fitting, straight connectors introduce minimal resistance to airflow. This helps in maintaining optimal air pressure and volume throughout the brake system, which is crucial for responsive and effective braking.
• Space Efficiency: In certain configurations, a straight fitting can be more space-efficient than angled alternatives, allowing for denser component placement or simpler routing paths.
• Robustness: With fewer complex geometries, straight fittings generally possess superior mechanical strength and are less prone to stress concentrations compared to their angled counterparts, contributing to their long-term reliability.

While elbows, tees, or other angled fittings are necessary for routing around obstacles, the straight male connector serves as the fundamental building block for direct port connections, ensuring simplicity and efficiency in pneumatic circuit design.

Fixed Connection: Non-Swivel Design

The specification "Swivel (y/n): No" indicates that this is a non-swivel fitting. This design choice is deliberate and optimized for applications requiring a rigid, fixed connection.

• Stability and Rigidity: A non-swivel fitting provides maximum stability, ensuring that the connected tubing and the fitting itself remain in a fixed orientation relative to the threaded port. This prevents unwanted rotation or movement, which can be critical in applications where tubing paths must be maintained precisely or where rotational forces could lead to wear or fatigue.
• Elimination of Leak Paths: Swivel mechanisms inherently introduce additional potential leak paths due to the moving parts and seals required for rotation. By opting for a non-swivel design, the number of potential points of failure is minimized, enhancing the overall integrity and leak-tightness of the connection.
• Reduced Complexity: Non-swivel fittings are mechanically simpler than their swivel counterparts, leading to greater inherent reliability and often a more compact design.

In air brake systems, where connections must be exceptionally secure and immovable to withstand constant vibration and dynamic loads, a non-swivel design is often preferred for fixed connections to ensure long-term, leak-free operation.

Applications and Installation Best Practices

While primarily designed for DOT-compliant air brake systems in commercial vehicles (trucks, buses, trailers), this brass push-in male connector is also suitable for a broader range of pneumatic applications requiring robust, reliable connections, such as industrial machinery, automation systems, and other transportation applications where similar pressure and environmental demands exist.

Installation Guidelines: Proper installation is paramount to achieving the advertised performance and compliance. For push-in fittings:

1. Tubing Preparation: Ensure the tubing is cut square and clean, free from burrs or nicks. A specialized tube cutter is recommended to achieve a perfect, perpendicular cut. Angled or damaged cuts can compromise the seal and the grip.
2. Cleanliness: Ensure both the tubing and the fitting are clean and free from debris, which could interfere with the sealing mechanism.
3. Full Insertion: Push the tubing firmly and completely into the fitting until it bottoms out. A slight tug-back will confirm that the collet has engaged properly. Incomplete insertion is a common cause of leaks.
4. Thread Sealant: For the 1/4 NPT pipe thread, always use an appropriate thread sealant (e.g., PTFE tape or liquid pipe thread sealant) to ensure a hermetic seal and prevent galling during assembly. Apply sealant to the male threads only, starting from the second thread back, to avoid introducing sealant into the pneumatic system.
5. Proper Torque: Tighten the pipe thread connection to the manufacturer's recommended torque specifications. Over-tightening can damage threads or crack the fitting, while under-tightening can lead to leaks.
6. System Test: After installation, always perform a thorough leak test on the entire air brake system to verify all connections are secure and leak-free.

Maintenance and Inspection: Regular inspection of air brake fittings and tubing for signs of wear, damage, or leaks is crucial. Components showing cracking, deformation, or persistent leakage should be replaced immediately. The robust brass construction and reliable push-in mechanism of this connector contribute to a system that requires minimal maintenance but benefits significantly from periodic checks to ensure ongoing safety and efficiency.

Conclusion

The Brass DOT Push-In Male Connector, with its 3/8 inch tube O.D. and 1/4 inch NPT pipe thread, stands as a testament to engineering excellence in pneumatic connection technology. Its construction from high-quality, corrosion-resistant brass ensures long-term durability, while its design strictly adheres to DOT FMVSS 571.106 air brake performance regulations, guaranteeing safety and compliance. The efficiency of its push-in mechanism, coupled with the reliability of a tapered pipe thread and a robust straight, non-swivel form factor, makes it an indispensable component for critical air brake systems in commercial vehicles and demanding industrial applications. This connector represents a commitment to unparalleled performance, ease of installation, and steadfast reliability, ensuring the operational integrity and safety of pneumatic systems where it is deployed.
