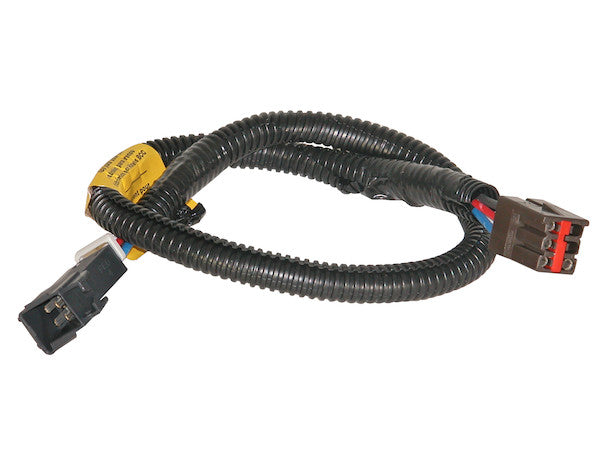

The Brake Control Wiring Harness from Buyers Products is make and model specific to quickly plug in to your vehicle's factory tow package. Choose the harness that fits your Dodge, Ford or Chevy/GMC vehicle. Installation is simple -- no cutting, splicing, or taping needed.
Specifications
| Application | Dodge/Ram 1995-2011 |
|---|---|
| Quick Connect | Yes |
The Brake Control Wiring Harness for Dodge/RAM vehicles, spanning model years 1995 to 2011, represents an indispensable component for any vehicle owner intending to tow a trailer equipped with electric brakes. This meticulously engineered accessory from Buyers Products is specifically designed to facilitate the seamless integration of an aftermarket trailer brake controller into your vehicle's electrical system, leveraging the existing factory tow package infrastructure. The primary objective of this dedicated wiring harness is to provide a robust, reliable, and expedient electrical pathway, ensuring optimal communication and power delivery between the tow vehicle, the brake controller, and the trailer's braking mechanism.
Trailer braking systems are paramount for safe towing, particularly when dealing with substantial loads. Federal and state regulations often mandate the use of independent braking systems for trailers exceeding specific gross vehicle weight ratings (GVWR). An electric trailer brake controller functions as the command center for these systems, modulating the braking force applied to the trailer's electric brakes in proportion to the deceleration of the tow vehicle or through a manual override. For a brake controller to operate effectively, it requires a secure and consistent electrical connection to three critical points: the vehicle's 12V power supply, its brake light switch circuit, and the dedicated output line running to the trailer's electric brakes. Furthermore, a ground connection is essential for circuit completion.
Traditionally, installing an aftermarket brake controller involved a complex and time-consuming process of identifying the correct wires within the vehicle's intricate wiring loom, cutting into them, splicing new connections, and meticulously taping them to ensure insulation and durability. This method carried inherent risks, including potential damage to the vehicle's electrical system, introduction of points of failure through compromised wiring, and nullification of manufacturer warranties. The Brake Control Wiring Harness for Dodge/RAM 1995-2011 completely bypasses these challenges by offering a "Quick Connect" solution. This design principle ensures a plug-and-play installation, significantly reducing the complexity, time, and specialized tools typically required.
The essence of this product lies in its vehicle-specific design. Unlike generic wiring kits that require universal modifications, this harness is precisely tailored to the electrical architecture of Dodge and RAM trucks and SUVs manufactured between 1995 and 2011. During this extensive period, Dodge (and subsequently the standalone RAM brand) produced a wide array of popular towing vehicles, including the RAM 1500, 2500, 3500 series, Dakota, Durango, and various vans. Each of these models, particularly when equipped with a factory-installed tow package, features a standardized connector designed specifically for brake controller integration. The Buyers Products harness is engineered with an OEM-style connector on one end, which mates perfectly with this factory receptacle, and an industry-standard connector on the other end, which interfaces directly with most aftermarket brake controllers. This precision fit guarantees electrical integrity and compatibility without any guesswork or modifications.
Technical Superiority and Design Integrity
The technical specifications and material quality of a brake control wiring harness are critical to its performance and longevity. This harness is constructed with high-grade, automotive-specific wiring, typically comprising multi-strand copper conductors. Copper is chosen for its excellent electrical conductivity, low resistance, and superior thermal properties, ensuring minimal power loss and efficient current transfer. The gauge of the wire is carefully selected to accommodate the varying current demands of a trailer braking system, which can range from low-amperage signal circuits to higher-amperage power and brake output lines. Utilizing appropriate wire gauges prevents overheating, voltage drop, and potential damage to the vehicle's electrical components or the brake controller itself.
Each wire within the harness is encased in durable, heat-resistant insulation. This insulation, often PVC or cross-linked polyethylene (XLPE), is formulated to withstand the rigorous environmental conditions encountered in automotive applications, including extreme temperatures, moisture, oils, greases, and abrasion. The entire harness assembly is further protected by a rugged outer sheath, which consolidates the individual wires into a single, organized cable, enhancing its resistance to physical damage, chafing, and environmental ingress. This level of protection ensures that the electrical signals remain undisturbed and that the harness maintains its functional integrity over years of service.
The Quick Connect feature extends beyond mere convenience; it is a fundamental aspect of the harness's reliability. The OEM-style connectors employed are designed to create a secure, positive lock, preventing accidental disconnections due to vehicle vibration or movement. These connectors are also frequently sealed or feature weather-resistant designs to protect the electrical contacts from corrosion caused by moisture, road salt, and other contaminants. Corrosion in electrical connections can lead to increased resistance, intermittent signals, or complete circuit failure, all of which are detrimental to the safe operation of a trailer braking system. By maintaining a pristine electrical pathway, the Buyers Products harness ensures consistent and reliable brake controller performance.
Streamlined Installation Process
The promise of "no cutting, splicing, or taping needed" is a cornerstone of this product's value proposition, translating directly into a simplified and foolproof installation procedure. For Dodge/RAM vehicles from 1995 to 2011, the factory tow package typically includes a dedicated connector for a brake controller, often located beneath the dashboard, usually in the driver's footwell area, near the steering column, or behind the glove box. The exact location can vary slightly by model and year, but it is always designed to be accessible for such installations.
The installation steps are remarkably straightforward:
- Locate the Factory Connector: The first step involves identifying the vehicle's brake controller port. This is often a small, rectangular, or square connector, typically wrapped in electrical tape or secured to a nearby wiring bundle. Consulting the vehicle's owner's manual or an online vehicle-specific resource can assist in precise location.
- Connect the Vehicle End: Once located, the OEM-style connector on the Buyers Products harness is simply plugged into the vehicle's factory port. A distinct click usually indicates a secure connection.
- Connect the Controller End: The opposite end of the harness features a multi-pin connector designed to mate with the input port of virtually any aftermarket trailer brake controller. This connection is also a straightforward plug-in.
- Mount the Brake Controller: With the harness connected, the brake controller can then be mounted in a location that is easily accessible to the driver but does not obstruct airbags or vehicle controls.
- Route and Secure Wiring: Although the harness eliminates complex wiring, it is good practice to route the cable neatly and secure it using zip ties to prevent it from dangling, snagging, or interfering with vehicle operation. This also protects the harness from abrasion.
- Test the System: After installation, it is crucial to test the brake controller's functionality. This can be done by connecting to a trailer with electric brakes and verifying proper operation, or by using a trailer brake test unit. Check that the trailer brakes engage when the vehicle's brake pedal is pressed and that the manual override lever on the controller functions as expected.
This streamlined process not only saves time and effort but also significantly reduces the likelihood of installation errors, which can compromise safety and lead to costly electrical repairs. The integrity of the vehicle's factory wiring remains intact, preserving its original condition and any associated warranties.
Unparalleled Benefits for Towing Safety and Performance
The integration of this brake control wiring harness translates into a multitude of tangible benefits for the conscientious tower:
- Enhanced Safety: The primary benefit is safety. A properly functioning trailer brake system, facilitated by a reliable wiring harness, ensures that the trailer decelerates in sync with the tow vehicle. This prevents pushing forces from the trailer, significantly reducing stopping distances, improving stability, and minimizing the risk of jackknifing, especially during emergency braking maneuvers or descents.
- Optimal Brake Controller Performance: By providing a direct, low-resistance electrical pathway, the harness ensures that the brake controller receives consistent power and accurate brake signal inputs. This allows the controller to deliver precise and proportional braking force to the trailer, maximizing its effectiveness and responsiveness.
- Preservation of Vehicle Electronics: Avoiding the need to cut into the vehicle's factory wiring loom protects the integrity of its complex electrical system. Modern vehicles rely on intricate electronic networks, and improper wiring can lead to diagnostic trouble codes, module failures, or other unforeseen electrical complications.
- Durability and Longevity: Constructed from high-quality materials resistant to environmental stressors, the harness is built to withstand the demanding conditions of towing. Its robust design ensures years of reliable operation, providing peace of mind to the owner.
- Cost-Effectiveness: While an initial investment, the harness saves money by eliminating the need for professional installation services and preventing potential damage from improper DIY wiring. Its longevity also means fewer replacement costs over the vehicle's lifespan.
- Compliance with Regulations: Many jurisdictions require independent trailer braking systems for specific trailer weights. This harness, by enabling proper brake controller function, helps ensure your towing setup complies with all applicable safety and legal standards.
- Ease of Transfer: Should you upgrade your brake controller in the future, the existing harness remains in place, simplifying the swap. Furthermore, if the brake controller needs to be removed for vehicle servicing or sale, it can be disconnected without leaving behind a compromised wiring system.
Compatibility and Applications (Dodge/RAM 1995-2011)
The extensive model year range (1995-2011) highlights the broad applicability of this specific harness. During this period, Dodge and RAM trucks were renowned for their towing capabilities, making them popular choices for commercial and recreational users alike. This harness is compatible with a significant roster of vehicles that would have been equipped with a factory tow package, including but not limited to:
- Dodge Ram 1500, 2500, 3500 (spanning multiple generations within this timeframe)
- Dodge Dakota (various generations)
- Dodge Durango (various generations)
- Dodge Van (B-Series, Ram Van)
It is imperative for users to verify their specific vehicle's make, model, and year to ensure exact compatibility. While the "Quick Connect" feature is standard for factory tow packages, the precise configuration of the connector can vary between manufacturers and even within a manufacturer's lineup across different model years. The Buyers Products harness is engineered to align perfectly with the Dodge/RAM standard for this specific era, guaranteeing a seamless fit.
The Science Behind Trailer Braking and Harness Function
Trailer brake controllers typically fall into two main categories: proportional and time-delay. Proportional controllers utilize an internal inertia sensor to detect the tow vehicle's deceleration, applying trailer braking force in direct proportion and synchronicity. Time-delay controllers, on the other hand, apply a preset braking force after a brief, adjustable delay once the tow vehicle's brake pedal is pressed. Regardless of the controller type, the wiring harness plays a crucial role in transmitting the necessary electrical signals:
- 12V Power: A constant 12V power supply (typically from the vehicle's battery or a dedicated fuse block) is provided through the harness to power the brake controller itself. This circuit is often fused for protection.
- Ground: A robust ground connection is vital for the proper functioning of any electrical circuit, completing the loop for both the controller's power and the brake output signal.
- Brake Signal (Stop Light Switch): This critical input tells the brake controller when the driver is applying the tow vehicle's brakes. The harness taps into the vehicle's brake light switch circuit, ensuring instant communication.
- Brake Output to Trailer: This is the controlled power signal from the brake controller that travels through the harness, out to the vehicle's trailer wiring connector (typically a 7-way RV blade connector), and ultimately to the trailer's electric brake magnets. The voltage on this line is modulated by the controller to dictate the braking force.
The quality of the conductors and connections within the harness directly impacts the efficiency and responsiveness of these signals. A high-quality harness minimizes electrical resistance, ensuring that the brake controller receives accurate inputs and delivers consistent, effective output to the trailer brakes. Any degradation in these electrical pathways can lead to sluggish response, reduced braking power, or intermittent operation, all of which compromise towing safety.
Conclusion
The Brake Control Wiring Harness for Dodge/RAM Various Models (1995-2011) from Buyers Products is an exemplary solution for integrating an aftermarket trailer brake controller with unparalleled ease and reliability. Its meticulously engineered, vehicle-specific design eliminates the complexities and risks associated with traditional wiring methods, offering a true plug-and-play experience. By leveraging existing factory tow package infrastructure, this harness ensures a secure, durable, and highly efficient electrical connection, which is fundamental to the safe and effective operation of any trailer equipped with electric brakes. For owners of Dodge or RAM trucks and SUVs from this era, seeking a professional-grade, hassle-free brake controller installation, this wiring harness represents an intelligent investment in both towing safety and vehicle integrity. Its technical precision, robust construction, and simplified installation collectively underscore its value as an essential accessory for serious towers.
