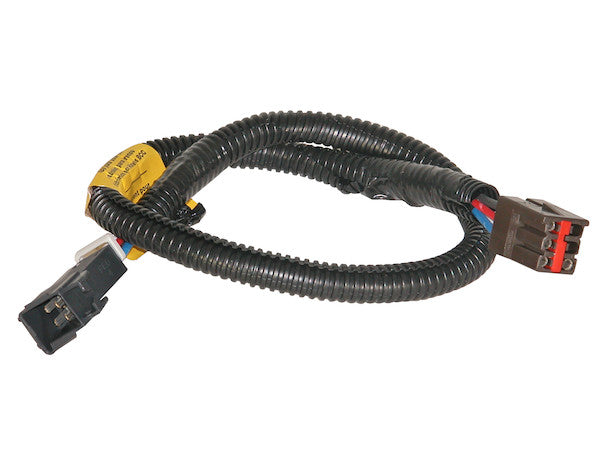

The Brake Control Wiring Harness from Buyers Products is make and model specific to quickly plug in to your vehicle's factory tow package. Choose the harness that fits your Dodge, Ford or Chevy/GMC vehicle. Installation is simple -- no cutting, splicing, or taping needed.
Specifications
| Application | Ford/Lincoln/Mercury 2008-2016 |
|---|---|
| Quick Connect | Yes |
Advanced Technical Overview: Brake Control Wiring Harness for Ford/Lincoln/Mercury Vehicles (2008-2016)
This document provides a comprehensive technical overview of the Brake Control Wiring Harness from Buyers Products, specifically engineered for a range of Ford, Lincoln, and Mercury vehicles manufactured between 2008 and 2016. This product is designed to facilitate the seamless integration of an aftermarket trailer brake controller into the vehicle's existing electrical system, thereby enabling effective and safe trailer braking synchronization. The emphasis of this design is on OEM-level compatibility, ease of installation, and robust electrical performance, eliminating the need for complex and potentially problematic custom wiring procedures.
Product Overview and Functional Principle
The Brake Control Wiring Harness serves as a critical interface between a trailer brake controller and the vehicle's factory wiring for its tow package. Its primary function is to transmit electrical signals and power necessary for the brake controller to operate. This includes receiving a brake signal from the vehicle's brake light circuit, supplying constant 12V power, providing a ground connection, and, most importantly, delivering a variable braking signal to the trailer's electric brakes. By utilizing a vehicle-specific connector, the harness ensures that all these connections are made correctly and securely without altering the vehicle's original wiring harness, which could compromise warranty or introduce electrical faults.
The core principle behind this quick-connect design is to leverage the existing infrastructure of the vehicle's factory tow package. Modern vehicles equipped for towing typically include a dedicated plug or connector point within the dashboard area, often concealed beneath the steering column or within the center console, specifically for aftermarket brake controller installation. This connector provides access to the necessary circuits: battery power (12V+), ground, brake switch signal, and the output wire that runs to the trailer's seven-way connector. The Buyers Products harness is precisely engineered with a male connector that mates perfectly with this factory female connector, and a standardized female connector (typically a pigtail with blunt-cut wires or a specific controller-side plug, depending on the variant) designed to attach to the aftermarket brake controller.
Compatibility Matrix: Ford, Lincoln, and Mercury (2008-2016)
The specified application range of Ford/Lincoln/Mercury vehicles from 2008-2016 covers a significant breadth of models, primarily those equipped from the factory with a towing package or the necessary wiring provisions. While an exhaustive list is impractical for general description, typical compatible models include, but are not limited to:
- Ford F-150, F-250, F-350, F-450 Super Duty Series: These are primary candidates given their heavy-duty towing capabilities. Specific model year variations within 2008-2016 are critical.
- Ford Expedition/Navigator: Full-size SUVs frequently used for towing.
- Ford Explorer/Mercury Mountaineer (prior to 2011 redesign): Mid-size SUVs, though some later generations may also be compatible depending on specific trim and tow package options.
- Ford Ranger (certain configurations up to 2011 in North America): Older generation pick-ups.
- Ford Econoline Vans: Commercial and passenger vans often utilized for towing.
- Lincoln Mark LT (where applicable in model range): Luxury pickup variant.
It is imperative for users to verify the exact year, make, and model of their vehicle, as well as confirm the presence and location of the factory brake controller harness connector. Variations exist even within the same model year based on trim level, engine options, and factory-installed packages. Buyers Products ensures that each harness variant is meticulously designed to match the electrical pinout and physical dimensions of the specific OEM connector for the targeted vehicle series, guaranteeing a true plug-and-play experience.
Technical Specifications and Electrical Integrity
The harness is constructed using automotive-grade wiring, ensuring durability, resistance to environmental factors, and optimal electrical conductivity. Key technical aspects include:
- Wire Gauge: Appropriately sized conductors are selected to handle the maximum anticipated current draw for trailer braking systems (typically up to 30 amps for heavy-duty applications) without excessive voltage drop or overheating. This is crucial for consistent and effective brake controller operation, especially under continuous braking.
- Insulation Material: High-temperature, abrasion-resistant PVC or similar polymer insulation is used to protect the conductors from physical damage, moisture, and chemical exposure commonly encountered in vehicle environments.
- Connectors: The vehicle-side connector is a direct OEM equivalent, molded to precise specifications to ensure a secure, watertight, and vibration-resistant connection. The controller-side connector (or bare wire pigtail) is designed for universal compatibility with most aftermarket trailer brake controllers, adhering to industry standards where applicable.
- Quick Connect Feature: This signifies the harness's ability to be installed without any modification to the vehicle's factory wiring. The design eliminates the need for cutting, splicing, or taping, which are common sources of electrical issues, corrosion, and diminished signal integrity in aftermarket installations.
- Voltage and Current Rating: Designed to operate within the standard 12V DC automotive electrical system, capable of handling the current demands of various electric trailer brake systems, typically up to four axles.
Installation Process and Advantages
The installation of the Brake Control Wiring Harness is engineered for simplicity, making it accessible to both professional installers and DIY enthusiasts. The typical procedure involves:
- Locate the Vehicle's Factory Connector: This is often found under the dash, near the steering column, or in the driver's side kick panel. Consulting the vehicle's owner's manual or an online resource specific to the make and model can assist in identification.
- Clean the Connector: Ensure the factory connector is free from dirt, dust, or debris to ensure optimal electrical contact.
- Plug in the Buyers Products Harness: Align the vehicle-specific end of the harness with the factory connector and firmly push until it locks into place. A distinct click usually indicates a secure connection.
- Connect to the Trailer Brake Controller: The other end of the harness connects to the aftermarket trailer brake controller. Depending on the controller, this might involve plugging into a proprietary port on the controller or splicing the harness wires to the controller's pigtail using appropriate crimp connectors (though many modern controllers utilize a vehicle-specific plug-and-play pigtail that mates directly with the Buyers Products harness).
- Mount the Brake Controller: Securely mount the trailer brake controller in a location that is easily accessible to the driver and does not interfere with vehicle operation (e.g., knee airbags).
- Test the System: Follow the brake controller manufacturer's instructions to calibrate and test the system with a connected trailer, ensuring proper synchronization and braking action.
The advantages of this design are numerous:
- Time Efficiency: Dramatically reduces installation time compared to custom wiring, saving labor costs for professional installations and simplifying the process for end-users.
- Reliability: Factory-matched connectors ensure a robust, secure electrical connection, minimizing the risk of intermittent faults, poor conductivity, or disconnections due to vibration.
- Safety: Proper electrical connections are paramount for safe trailer braking. Eliminating splicing and tapping reduces the potential for short circuits, open circuits, or incorrect wiring that could lead to brake failure.
- Vehicle Warranty Preservation: By not cutting or modifying the vehicle's original wiring harness, the risk of voiding the vehicle's electrical warranty is significantly reduced.
- OEM Standards: The harness is designed to meet or exceed OEM standards for fit, function, and durability, ensuring long-term performance in demanding towing environments.
- Reversibility: The plug-and-play nature means the harness can be easily removed, returning the vehicle to its original factory state, which can be advantageous for vehicle resale or transferring the brake controller to another compatible vehicle.
Considerations and Best Practices
While the Brake Control Wiring Harness simplifies installation, certain considerations are important for optimal performance and safety:
- Brake Controller Compatibility: Ensure the chosen aftermarket trailer brake controller is compatible with the harness type (e.g., whether it uses a universal pigtail or a specific plug). Many brake controller manufacturers offer vehicle-specific pigtails or universal pigtails designed to integrate with these types of harnesses.
- Vehicle-Specific Verification: Double-check the exact year, make, model, and trim level of the vehicle against the harness's application guide. Photos of the factory connector can be helpful in confirming compatibility before purchase.
- Proper Mounting: Securely mount the brake controller according to the manufacturer's instructions. Incorrect mounting can affect accelerometer-based controllers or create a hazard during sudden stops.
- System Testing: Always perform a thorough functional test of the brake controller and trailer brakes after installation. This includes static testing of brake light activation and dynamic testing on a closed course to adjust gain and ensure smooth, synchronized braking.
- Power Requirements: Verify that the vehicle's electrical system and factory tow package wiring are adequate for the intended trailer. For very heavy trailers or trailers with multiple axles, ensuring the vehicle's charging system and battery can handle the sustained current draw is important.
- Corrosion Prevention: While the connectors are designed for durability, applying dielectric grease to the mating surfaces of the connectors can offer an additional layer of protection against moisture and corrosion, especially in regions exposed to road salt or harsh weather.
Conclusion
The Buyers Products Brake Control Wiring Harness for Ford/Lincoln/Mercury vehicles (2008-2016) represents a superior solution for integrating aftermarket trailer brake controllers. By prioritizing vehicle-specific design, plug-and-play installation, and adherence to high electrical standards, this product eliminates the complexities and risks associated with traditional wiring methods. It ensures reliable, safe, and efficient trailer braking, empowering vehicle owners to confidently tow a wide range of trailers while preserving the integrity and warranty of their valuable assets. This technical approach underscores the commitment to quality, performance, and user convenience that defines Buyers Products offerings in the towing accessory market.
