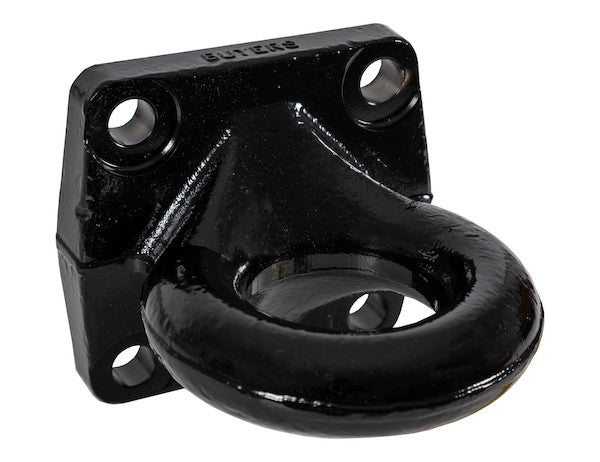

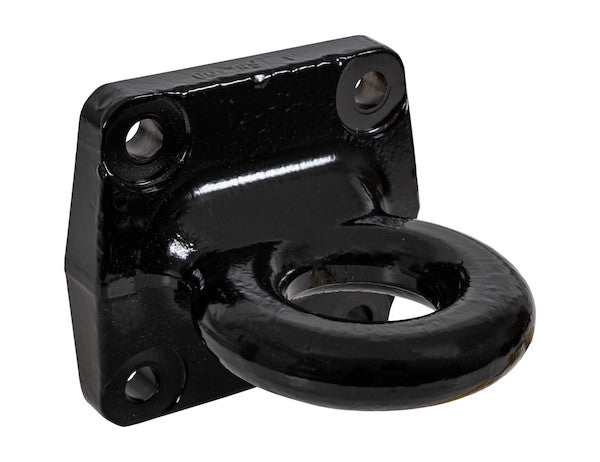

The Forged 4 Bolt Mount Drawbar from Buyers Products features tough one-piece forged alloy steel construction. It's designed for use with pintle hitches. The base model, ideal for contractors, will handle towing weights of up to 42,000 lb. Three heavy-duty models will support towing weights of either 60,000 or 100,000 lb., such as heavy equipment hauling, semi-trailers, and pup trailers. It features either a black powder-coated or zinc-plated finish to resist corrosion.
Specifications
| Bolt Hole Size (in.) | 5/8 |
|---|---|
| Color | Black |
| Eye Inner Diameter (in.) | 2.50 |
| Eye Outer Diameter (in.) | 5.50 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 4.50 |
| M.G.T.W. (lbs.) | 42,000 |
| M.V.L. (lbs.) | 7,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.688 |
| Vertical Hole Spacing (in.) | 4.50 |
Advanced Technical Overview: 2-1/2 Inch I.D. Forged 4-Bolt Mount Drawbar - Black
The 2-1/2 Inch I.D. Forged 4-Bolt Mount Drawbar represents a pinnacle of engineering and material science applied to heavy-duty towing solutions. Designed specifically for rigorous industrial and commercial applications, this drawbar is meticulously crafted to ensure unyielding strength, superior durability, and uncompromising safety. Its technical specifications and construction methodologies underscore its capability to perform reliably under extreme operational demands, serving as a critical component in the secure coupling of trailers to towing vehicles.
Material Science and Forging Excellence
At the core of this drawbar's formidable strength lies its one-piece forged alloy steel construction. The selection of alloy steel is not arbitrary; it signifies a deliberate choice for enhanced mechanical properties beyond those of standard carbon steel. Alloy steels typically incorporate elements such as manganese, chromium, molybdenum, or nickel, which, when combined with precise heat treatment, significantly improve tensile strength, yield strength, hardness, and critically, impact resistance and fatigue life. This makes the material exceptionally well-suited for applications involving dynamic loads, shock, and repetitive stress cycles inherent in heavy-duty towing.
The forging process itself is a testament to superior manufacturing. Unlike casting, which involves pouring molten metal into a mold, or fabrication, which relies on welding multiple components, forging involves shaping solid metal through localized compressive forces. This process refines the metal's grain structure, eliminating internal voids and improving its overall metallurgical integrity. The resulting grain flow is aligned with the part's contour, enhancing strength in critical stress areas, particularly along the length of the drawbar and around the eye. This homogeneous, fine-grained structure significantly increases the material's resistance to fatigue crack initiation and propagation, offering a substantial advantage in longevity and reliability compared to components manufactured by other methods. The one-piece design, devoid of welds in critical load-bearing areas, eliminates potential weak points, stress concentrations, and heat-affected zones that could otherwise compromise the structural integrity under maximum load conditions.
Precision Engineering of the Pintle Eye

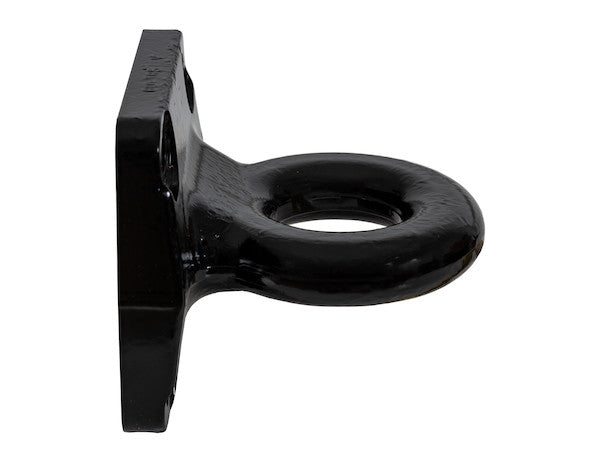

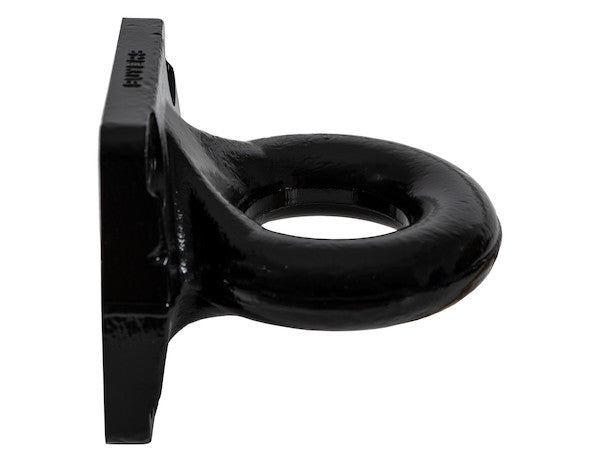

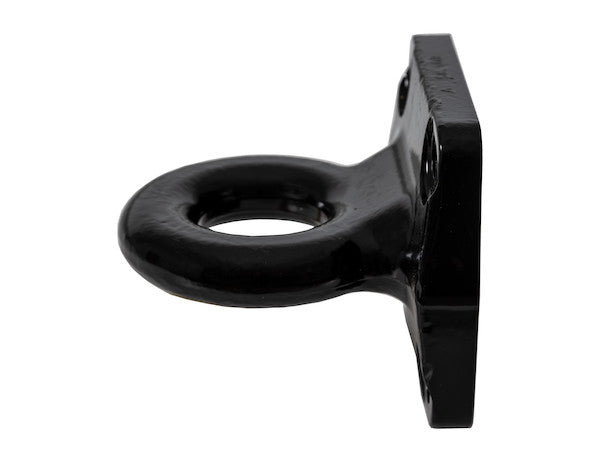

A defining characteristic of this drawbar is its 2-1/2 inch Inner Diameter (I.D.) eye, specifically engineered for optimal compatibility with pintle hitches. Pintle hitches are widely favored in heavy-duty towing for their robust design and ability to handle significant vertical and longitudinal forces, often surpassing the capacities of conventional ball hitches. The drawbar eye functions as the primary interface, providing a secure, articulated connection point for the pintle hook’s lunette ring. The precise 2.50-inch I.D. ensures a snug fit with standard pintle hooks, minimizing play and reducing wear, while the substantial 5.50-inch Outer Diameter (O.D.) provides ample material thickness to withstand the immense shear and tensile forces exerted during towing, acceleration, braking, and cornering maneuvers. This robust eye design is critical for maintaining coupling integrity and preventing disengagement under diverse road conditions and load dynamics.
Comprehensive Load Capacity Ratings
This drawbar is meticulously rated for Maximum Gross Trailer Weight (M.G.T.W.) and Maximum Vertical Load (M.V.L.), indicating its capacity to manage both the total mass of the towed load and the vertical force exerted on the hitch. The base model boasts an M.G.T.W. of 42,000 lbs., making it an ideal solution for general contractors, agricultural machinery, and medium-duty commercial transport. This rating is derived from extensive engineering analysis, finite element modeling (FEM), and rigorous physical testing to ensure it meets or exceeds industry safety factors and performance standards.
Beyond the base model, the product line extends to heavy-duty variants with M.G.T.W. capacities of 60,000 lbs. and a formidable 100,000 lbs. These higher capacities are designed for the most demanding applications, including the hauling of heavy construction equipment, large semi-trailers, and multi-trailer pup configurations. The increased strength for these models is achieved through potentially optimized alloy compositions, advanced heat treatment processes, and refined forging techniques that further enhance the material's structural resilience. Such capacities are indispensable for operations requiring the movement of massive loads, where reliability and safety are paramount and operational failure is not an option.
The M.V.L. of 7,000 lbs. is equally critical. This metric, often referred to as tongue weight, represents the downward force exerted by the trailer coupling on the drawbar. Proper M.V.L. distribution is essential for maintaining vehicle stability, braking performance, and steering control. An M.V.L. of 7,000 lbs. allows for a significant portion of the trailer's weight to be supported by the tow vehicle, crucial for balancing load distribution and preventing trailer sway, particularly with heavier loads or trailers with a higher center of gravity. Exceeding M.V.L. can lead to excessive stress on the tow vehicle's chassis, suspension components, and the drawbar itself, while insufficient M.V.L. can result in dangerous trailer instability. The specified M.V.L. ensures optimal handling and safety when properly loaded.
Robust 4-Bolt Mounting Configuration

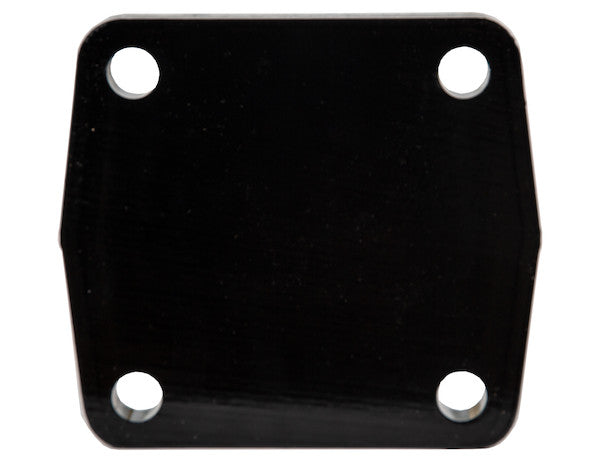

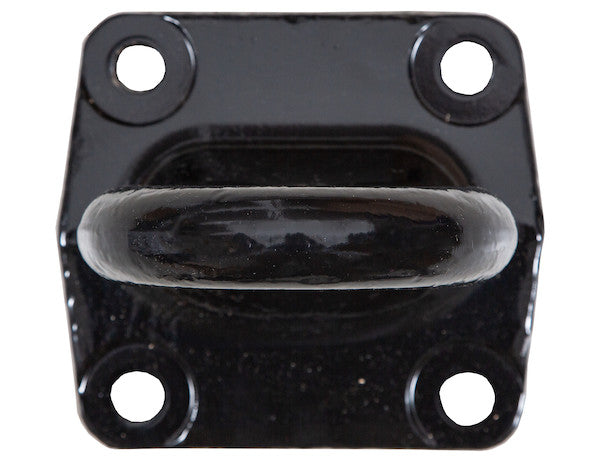

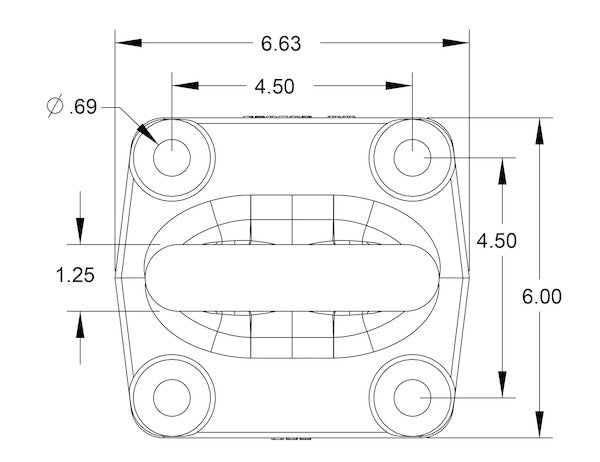

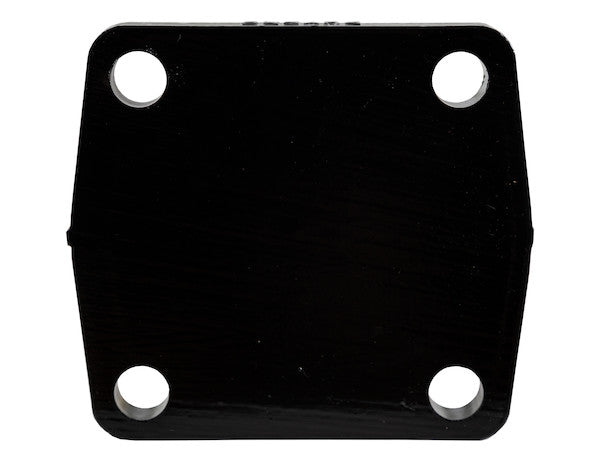

The drawbar features a highly robust 4-bolt mounting pattern, engineered for secure and stable attachment to the tow vehicle's hitch receiver or structural frame. The mounting interface is defined by precise dimensions: a 4.50-inch horizontal hole spacing and a 4.50-inch vertical hole spacing, forming a square bolt pattern. This symmetrical layout facilitates even distribution of applied forces, minimizing localized stress concentrations on the mounting surface of the tow vehicle and the drawbar itself. Each mounting point is designed to accommodate 5/8-inch fasteners, with a nominal mounting hole diameter of 0.688 inches. The slight clearance provided by the 0.688-inch diameter for a 5/8-inch (0.625-inch) bolt allows for ease of installation, accommodates minor manufacturing tolerances, and prevents binding without compromising the structural integrity of the bolted connection. It is imperative that users select high-grade fasteners, typically Grade 8 or equivalent, with appropriate washers and nuts, and adhere to manufacturer-specified torque values to achieve the full load-carrying capacity and ensure the integrity of the mechanical joint. Proper torquing is essential to maintain preload on the bolts, preventing loosening under vibration and dynamic loads, thereby maximizing shear and tensile strength across the mounting points.
Advanced Corrosion Protection: Black Powder-Coat Finish
Environmental resistance is a key factor in the longevity and sustained performance of towing equipment. This drawbar is protected by a premium black powder-coat finish. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the drawbar. The charged powder particles adhere to the electrically grounded surface until melted and fused into a smooth coating in a curing oven. This process creates a much harder, more uniform, and more durable finish compared to conventional liquid painting.
The black powder coat provides exceptional resistance to abrasion, chipping, scratching, and fading, which are common issues in demanding towing environments. More critically, it forms a highly effective barrier against corrosive elements, including road salts, moisture, chemical spills, and UV radiation. This robust protective layer is vital for maintaining the structural integrity of the alloy steel, preventing surface oxidation and rust that could otherwise compromise the drawbar's strength over time. The "Black" color not only provides a professional aesthetic but also contributes to the longevity of the finish by absorbing a certain spectrum of UV light. While zinc plating is mentioned as an alternative finish for certain models, offering galvanic corrosion protection, the powder-coat on this specific black model provides superior impact and abrasion resistance, making it an excellent choice for applications where physical damage to the finish is a concern.
Applications and Operational Advantages
The robust design and impressive load capacities of the 2-1/2 Inch I.D. Forged 4-Bolt Mount Drawbar make it an indispensable asset across a wide spectrum of heavy-duty applications:
- Construction Industry: Contractors frequently rely on this drawbar for hauling heavy equipment such as excavators, bulldozers, skid steers, and material handlers on flatbed or lowboy trailers. Its high M.G.T.W. ensures safe transport of expensive and critical machinery to and from job sites.
- Agriculture: Farmers and agricultural service providers utilize these drawbars for towing large agricultural implements, seeders, plows, and grain wagons, where robust and reliable connections are crucial over varied terrain.
- Commercial Hauling: Operators of semi-trailers, pup trailers, and other multi-trailer configurations benefit from the drawbar's ability to withstand continuous heavy loads and dynamic forces encountered during long-haul transportation. The drawbar's durability contributes to reduced downtime and increased operational efficiency for fleet managers.
- Industrial and Municipal Services: Used by municipalities for towing specialized service vehicles, waste management trailers, or road maintenance equipment. Industrial settings employ them for internal material handling or facility-to-facility transport of heavy goods.
- Mining and Quarrying: In extremely harsh environments, the drawbar's forged alloy steel construction and corrosion resistance make it suitable for towing equipment and supplies across rugged, corrosive landscapes.
The operational benefits extend beyond mere capacity. The inherent strength of the forged one-piece alloy steel ensures maximum safety, reducing the risk of catastrophic failure under load. The precise manufacturing tolerances for the eye and mounting holes guarantee a secure, rattle-free connection, which translates to a more stable towing experience and reduced wear on connecting components. This drawbar represents a critical investment in operational efficiency, safety compliance, and the longevity of towing assets.
Technical Specifications Summary
To summarize, the 2-1/2 Inch I.D. Forged 4-Bolt Mount Drawbar (Black) is engineered with the following critical specifications: a 2.50-inch inner eye diameter and a 5.50-inch outer eye diameter, optimized for pintle hitch compatibility. The mounting interface features a 4-bolt pattern with 4.50-inch horizontal and vertical hole spacing, designed for 5/8-inch fasteners, utilizing mounting holes with a 0.688-inch diameter. Constructed from forged alloy steel, it offers a base Maximum Gross Trailer Weight (M.G.T.W.) of 42,000 lbs. and a Maximum Vertical Load (M.V.L.) of 7,000 lbs. Its black powder-coat finish provides superior corrosion and abrasion resistance, ensuring a long operational life in demanding environments.
Conclusion
The 2-1/2 Inch I.D. Forged 4-Bolt Mount Drawbar embodies a synthesis of advanced material science, precision manufacturing, and rigorous engineering principles. Its one-piece forged alloy steel construction, optimized for pintle hitch systems, provides unparalleled strength and fatigue resistance. With a substantial 42,000 lb. M.G.T.W. (and higher capacity models up to 100,000 lb.) and a 7,000 lb. M.V.L., coupled with a robust 4-bolt mounting system and a durable black powder-coat finish, this drawbar is meticulously designed to meet and exceed the arduous demands of heavy-duty towing operations. It stands as a testament to reliability, safety, and longevity, making it the preferred choice for professionals who require the utmost performance from their towing equipment.
