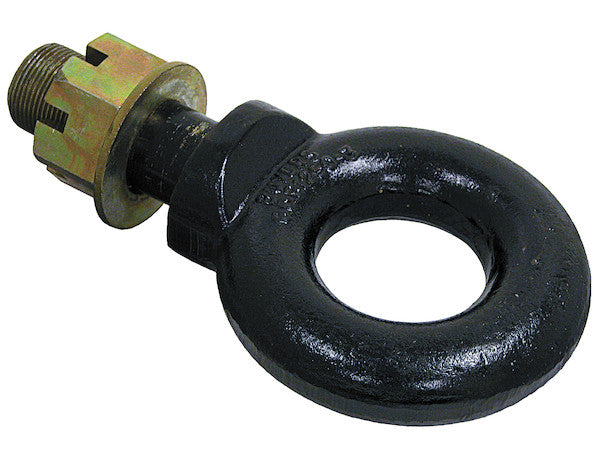

The Forged Alloy Steel Drawbar with Nut from Buyers Products features a nut and cotter pin design that makes it easy to install and remove for optimal towing versatility. Use it for both on and off-road towing (with a swivel pintle hook). Choose from two models rated at 15,000 or 45,000 lb. Both come in strong forged alloy steel for durability and reliability, and include the nut, cotter pin and washer. The drawbar attaches to a nose plate on your trailer.
Specifications
| Color | Black |
|---|---|
| Drawbar Section (in.) | 1.25 X 1.50 |
| Eye Inner Diameter (in.) | 2.5 |
| Eye Outer Diameter (in.) | 5.50 |
| Finish | Powder-Coat |
| M.G.T.W. (lbs.) | 15,000 |
| M.V.L. (lbs.) | 3,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 1.5 |
In the realm of heavy-duty towing and transport, the integrity and performance of every component are paramount. The 2-1/2 Inch I.D. Forged Alloy Steel Drawbar with Nut by Buyers Products stands as a critical link in the towing chain, engineered to deliver unparalleled strength, durability, and operational versatility for a wide spectrum of demanding applications. This detailed technical description delves into the design, material science, performance characteristics, and functional advantages of this robust towing solution.
Precision Engineering for Superior Performance
At the core of this drawbar's exceptional capabilities is its meticulously engineered design. The product features a 2-1/2 inch Inner Diameter (I.D.) eye, a standard dimension specifically chosen for optimal compatibility with a broad range of pintle hooks, especially swivel pintle hooks. This standardized eye size ensures seamless integration into existing towing systems, facilitating secure and efficient coupling between the towing vehicle and trailer. The outer diameter of the eye, measuring 5.50 inches, provides ample material around the critical stress point of the eye, significantly enhancing its structural integrity and resistance to deformation under extreme loading conditions. This thoughtful dimensioning is crucial for dissipating stress concentrations and extending the lifespan of the drawbar in heavy-duty operational environments.
The drawbar section itself, measuring 1.25 inches by 1.50 inches, represents a carefully calculated cross-sectional area designed to withstand the complex forces exerted during towing. These forces include longitudinal tension and compression from acceleration and braking, vertical loads (tongue weight), and torsional stresses from uneven terrain or dynamic maneuvers. The robust rectangular profile optimizes the drawbar's resistance to bending and shearing, ensuring that it maintains its structural form even when subjected to significant transient and static loads. The 1.5-inch mounting hole diameter is precisely machined to accommodate industry-standard fasteners, guaranteeing a secure and rigid attachment to the trailer's nose plate, which is the primary interface between the drawbar and the trailer structure.
The Unrivaled Strength of Forged Alloy Steel
The material selection for this drawbar is a foundational aspect of its superior performance. Constructed from forged alloy steel, this component benefits from a manufacturing process and material composition that significantly surpass those of standard mild steel or cast iron alternatives. Forging is a metal-forming process that involves shaping metal through localized compressive forces using hammers or presses. This process refines the grain structure of the steel, aligning the grain flow with the contour of the part. This alignment results in a significantly stronger, tougher, and more fatigue-resistant component compared to parts produced by casting or machining from rolled plate.
The benefits of forged alloy steel include:
- Enhanced Strength-to-Weight Ratio: Forging produces parts with higher inherent strength, allowing for robust designs without excessive weight, optimizing payload capacity.
- Superior Fatigue Resistance: The refined grain structure and elimination of internal voids or porosity inherent in forged parts dramatically increase their resistance to fatigue failure, which is critical for components subjected to repetitive loading cycles in towing operations.
- Exceptional Impact Toughness: Forged components exhibit excellent resistance to sudden impacts and shock loads, a common occurrence in both on-road and especially off-road towing environments. This reduces the risk of brittle fracture.
- Reduced Stress Concentration: The continuous grain flow achieved through forging helps to distribute stress more evenly across the component, minimizing areas where stress could localize and initiate cracks.
- Corrosion Resistance: While not inherently stainless, alloy steels, especially when combined with a protective coating, offer improved resistance to environmental degradation compared to lower-grade steels.
The term "alloy steel" refers to steel that has had various elements added to it in controlled quantities to improve its properties. Common alloying elements include manganese, chromium, molybdenum, nickel, and vanadium, each contributing specific enhancements such as increased tensile strength, yield strength, hardness, toughness, and wear resistance. The precise composition of the alloy steel used in this drawbar is optimized to meet the rigorous demands of heavy-duty towing, ensuring that it can consistently withstand the high shear, tensile, and compressive forces experienced during operation without yielding or fracturing prematurely.
Optimized for Versatility: On-Road and Off-Road Applications
The design philosophy behind the Buyers Products drawbar emphasizes maximum operational versatility. It is explicitly engineered for both on-road and off-road towing, a distinction that highlights its robust construction and adaptability.
- On-Road Towing: For highway applications, the drawbar provides a stable and secure connection, effectively transmitting braking and acceleration forces while maintaining consistent trailer tracking. The high load ratings ensure compliance with Department of Transportation (DOT) regulations for Gross Trailer Weight (GTW) and vertical tongue loads. The durability of forged alloy steel means extended service life, reducing the frequency of replacement and associated downtime for commercial fleets.
- Off-Road Towing: This is where the drawbar's design truly shines. When paired with a swivel pintle hook, it allows for significant articulation between the towing vehicle and the trailer. Off-road environments present unique challenges, including uneven terrain, steep grades, and dynamic shock loads. A swivel pintle hook system, enabled by the drawbar's eye design, accommodates extreme angles of articulation, preventing binding and allowing the trailer to follow the contours of the ground independently of the towing vehicle. This prevents excessive stress on the drawbar, hitch, and vehicle frame, significantly enhancing safety and maneuverability in demanding conditions such as construction sites, agricultural fields, or remote industrial locations.
Load Ratings: Precision Matched to Performance Demands
The availability of two distinct models, rated at 15,000 lbs. and 45,000 lbs. Maximum Gross Trailer Weight (M.G.T.W.), underscores the product's adaptability to varying towing requirements. The model specified with a 15,000 lbs. M.G.T.W. is complemented by a 3,000 lbs. Maximum Vertical Load (M.V.L.), also known as tongue weight. This is a critical specification, as exceeding the M.V.L. can lead to dangerous instability, excessive wear on the towing vehicle's suspension, and potential frame damage. The M.G.T.W. indicates the maximum permissible weight of the fully loaded trailer that the drawbar is designed to safely tow.
For the higher capacity model, rated at 45,000 lbs., its robust construction allows for the transport of significantly heavier industrial equipment, construction machinery, or large commercial trailers. These ratings are not arbitrary; they are derived from rigorous engineering calculations, material stress analyses, and physical testing to ensure a substantial safety factor under specified operating conditions. Users must always select a drawbar with a M.G.T.W. and M.V.L. rating that meets or exceeds the requirements of their specific towing application to ensure safety and compliance with regulatory standards.
The Durability of a Powder-Coat Finish
To complement the inherent strength and durability of the forged alloy steel, each drawbar receives a high-quality black powder-coat finish. Powder coating is an advanced method of applying a decorative and protective finish. Unlike conventional liquid paint, powder coating is applied as a dry powder through an electrostatic process and then cured under heat, creating a hard finish tougher than traditional paint. The advantages of a powder-coat finish in this application are numerous:
- Superior Corrosion Resistance: The uniform, continuous film of powder coat acts as an effective barrier against moisture, road salts, chemicals, and other corrosive elements encountered in various environments, prolonging the drawbar's aesthetic appeal and structural integrity.
- Enhanced Abrasion and Impact Resistance: The hardened surface of the powder coat offers excellent protection against chips, scratches, and abrasions, which are common wear factors in towing equipment, particularly in rugged or off-road conditions.
- UV Resistance: The finish resists fading and degradation from prolonged exposure to ultraviolet (UV) radiation, maintaining its appearance and protective qualities over time.
- Environmental Advantages: Powder coating emits zero or near-zero volatile organic compounds (VOCs), making it an environmentally friendly finishing process.
The choice of a black finish is both practical and aesthetic, providing a professional appearance that integrates seamlessly with most heavy-duty vehicle and trailer components.
Installation and Maintenance Considerations
Ease of installation and removal is a key operational benefit of this drawbar. The nut and cotter pin design allows for straightforward attachment to the trailer's nose plate. The inclusion of the nut, cotter pin, and washer in the package ensures that installers have all necessary hardware for a complete and secure setup. The washer distributes the clamping force of the nut evenly, preventing localized stress on the drawbar material and the nose plate, while the cotter pin provides an essential secondary locking mechanism, preventing the nut from loosening due due to vibration and dynamic forces during transit.
For optimal safety and longevity, proper installation procedures must be followed, including adherence to recommended torque specifications for the mounting nut. Regular inspection is also crucial for all towing components. Users should perform pre-trip inspections to check for any signs of wear, deformation, cracks, or corrosion on the drawbar, mounting hardware, and the nose plate. The cotter pin should always be verified to be correctly installed and undamaged. While forged alloy steel and powder coating provide exceptional durability, proactive maintenance ensures the highest level of operational safety and extends the service life of the drawbar indefinitely.
Commitment to Quality and Reliability
The 2-1/2 Inch I.D. Forged Alloy Steel Drawbar with Nut from Buyers Products embodies a commitment to delivering high-performance, reliable, and safe towing solutions. From the initial selection of premium alloy steel, through the advanced forging process, to the final application of a protective powder coat, every stage of its manufacture is geared towards producing a component capable of excelling in the most demanding commercial and industrial applications. Its robust design, precise dimensions, and high load capacities make it an indispensable asset for businesses and operators who demand uncompromising strength and versatility from their towing equipment.
By investing in this drawbar, users are not merely acquiring a piece of hardware; they are integrating a meticulously engineered component designed to enhance operational efficiency, ensure cargo security, and uphold the highest standards of safety across diverse towing environments. Whether navigating the complexities of urban logistics or traversing rugged off-road terrains, this drawbar provides the steadfast connection required for reliable transport, reinforcing Buyers Products' reputation as a leader in heavy-duty towing solutions.
