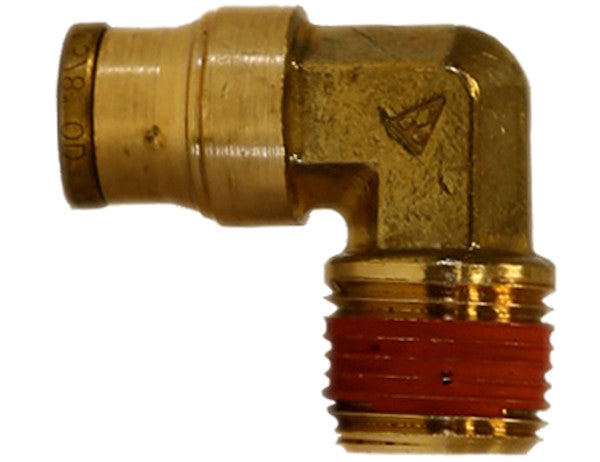

Buyers Products Male Elbows are made of long lasting corrosion-resistant brass. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.
Specifications
| Color | Natural |
|---|---|
| Finish | Plain |
| Fitting Shape | 90?? Elbow |
| Male/Female/Union | Male |
| Material | Brass |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | 1/8 NPT |
| Swivel (y/n) | No |
| Works with Tube Outer Diameter | 1/4 |
The Brass DOT Push-In Male Elbow, with its precise 1/4 Inch Tube O.D. and 1/8 Inch Pipe Thread specifications, represents a pinnacle of engineering for demanding pneumatic applications, particularly within the commercial air brake sector. This component is not merely a connecting piece but a critical element designed to ensure the integrity, safety, and longevity of air brake systems, conforming rigorously to DOT FMVSS 571.106 standards. Its fundamental purpose is to facilitate a secure, leak-free directional change in air lines, combining the robustness of brass with the efficiency of push-in technology.
At the core of this fitting's superior performance is its material composition: brass. Brass, primarily an alloy of copper and zinc, is renowned for an array of properties that make it exceptionally suitable for fluid power applications. Its inherent corrosion resistance is paramount, especially in environments where moisture, road salts, and various atmospheric contaminants are prevalent. Unlike other metals that may succumb to oxidation and degradation over time, brass maintains its structural and sealing integrity, ensuring prolonged operational life and reduced maintenance requirements. This attribute is critical for air brake systems, where any material failure can have severe safety implications. Furthermore, brass exhibits excellent machinability, allowing for the precise manufacturing of intricate components, such as the internal gripping and sealing mechanisms found in push-in fittings. Its ductility allows for slight deformation under stress without catastrophic failure, contributing to its durability in vibratory environments typical of heavy-duty vehicles. The natural, plain finish of the brass signifies that no additional plating is required, relying solely on the material's intrinsic properties for protection and aesthetics.
The "Push-In" or "Push-to-Connect" (PTC) technology integrated into this elbow fitting revolutionizes installation and maintenance procedures. This innovative design allows for rapid, tool-free assembly, significantly reducing installation time and labor costs. The mechanism typically involves a collet or gripping ring that firmly holds the tubing in place, while an internal O-ring or elastomeric seal creates a hermetic barrier against air leakage. Upon insertion of a properly prepared tube, the collet's teeth grip the outer diameter of the tubing, preventing accidental disconnection under pressure and vibration. The O-ring, often made from EPDM or NBR rubber, compresses around the tubing's smooth surface, forming a reliable seal. To disconnect, the collet is simply depressed, releasing the tubing without damaging it. This reusability is a significant advantage, facilitating easier system modifications or component replacements. The design ensures a secure, positive connection that can withstand the rigorous pressure cycles and dynamic stresses inherent in air brake systems, offering superior performance compared to traditional barbed or compression fittings in many applications.
The "Male Elbow" configuration with a 90-degree angle is strategically designed for optimizing air line routing within confined or complex vehicle chassis. In commercial vehicles, space is often at a premium, and air lines must navigate around various structural components, engine parts, and other utility lines. A 90-degree elbow provides a clean, efficient change in direction, preventing kinking or excessive bending of the air tubing, which can lead to flow restriction or premature tube failure. The "Male" designation indicates that the threaded end is external, designed to thread into a female port on a valve, manifold, reservoir, or other air system component. This specific fitting shape is indispensable for creating professional, aesthetically pleasing, and functionally sound pneumatic layouts, contributing to both system efficiency and ease of future diagnostics or repairs.
Precision in dimensional specifications is paramount for the reliable operation of any fluid power system. This fitting is engineered for a "1/4 Inch Tube O.D." (Outer Diameter) and a "1/8 Inch Pipe Thread" (NPT). The 1/4 inch O.D. tubing is a common size in air brake systems, offering an optimal balance between airflow capacity and flexibility. Compatibility with DOT-approved nylon, polyurethane, or polyethylene tubing is critical, and the push-in mechanism is designed to create a secure seal with these materials. The "1/8 NPT" (National Pipe Taper) pipe thread refers to a widely adopted standard for sealing pipe connections. The tapered design of NPT threads ensures that as the male and female threads engage, they create an interference fit that, when combined with an appropriate thread sealant (such as PTFE tape or pipe dope), forms a robust, leak-proof mechanical seal. The 1/8 inch size is commonly utilized for auxiliary air lines, pressure gauges, diagnostic ports, and control lines within the broader air brake infrastructure, where smaller flow rates or connections to compact components are required. The non-swivel design indicates a fixed orientation once installed, which is often preferred for stability in permanent installations where precise alignment can be achieved during initial setup.
Perhaps the most critical aspect of this fitting is its adherence to "DOT FMVSS 571.106 Air Brake Performance Regulations." FMVSS 571.106 (Federal Motor Vehicle Safety Standard No. 106) establishes safety requirements for brake hoses, brake hose assemblies, and brake fluids, including air brake components, for motor vehicles. Compliance with this standard is not merely a label but a testament to rigorous testing and design verification. It mandates stringent performance criteria, including:
- **Pressure Resistance:** Fittings must withstand extreme operating pressures, typically far exceeding normal system pressures, without leakage or structural failure. This includes burst pressure tests to ensure a significant safety margin.
- **Vibration Resistance:** Commercial vehicles are subjected to constant vibration, which can lead to fatigue and loosening of connections. FMVSS 106 components are tested to maintain integrity under prolonged vibratory stress.
- **Temperature Cycling:** The fitting must perform reliably across a wide range of temperatures, from extreme cold to high heat, without material degradation or loss of sealing capability.
- **Corrosion Resistance:** As previously discussed, material choice is critical, and the standard implicitly requires components to resist environmental corrosion over their service life.
- **Leakage Performance:** Critical for air brake systems, where even minor leaks can compromise braking efficiency and lead to system failure. The standard specifies maximum permissible leakage rates under various conditions.
The applications for this robust fitting extend primarily to commercial vehicle air brake systems. This includes heavy-duty trucks, buses, trailers, and specialized vocational vehicles. Within these systems, the elbow could be used for various functions:
- Connecting air lines from the compressor to air reservoirs.
- Routing air from reservoirs to service brake chambers.
- Connecting to parking brake control valves.
- Interfacing with auxiliary air systems such as air suspension components, fifth-wheel air locks, air horns, or tire inflation systems.
- Providing connections for pressure gauges, sensors, and diagnostic ports.
Proper installation and maintenance are key to maximizing the lifespan and performance of this fitting. Installation of push-in fittings is straightforward but requires attention to detail:
- **Tube Preparation:** Ensure the tubing is cut squarely and cleanly, with no burrs or sharp edges that could damage the internal O-ring seal. A specialized tube cutter is recommended for optimal results.
- **Cleanliness:** Keep the tube end and fitting port free of dirt, debris, or contaminants.
- **Insertion:** Push the tubing firmly and fully into the fitting until it bottoms out. A slight tug back on the tube will confirm proper engagement of the collet.
- **Leak Test:** After installation, pressurize the system and use a soap solution or electronic leak detector to verify a leak-free connection.
Buyers Products' commitment to quality assurance is evident in the design and manufacturing of these fittings. Each brass elbow undergoes meticulous production processes, ensuring dimensional accuracy, material integrity, and consistent performance. This dedication translates into a product that delivers exceptional reliability in mission-critical applications. The use of advanced manufacturing techniques and rigorous in-process inspections ensures that every fitting meets the stringent requirements of DOT FMVSS 571.106, offering peace of mind to installers and end-users alike.
In summary, the Brass DOT Push-In Male Elbow 1/4 Inch Tube O.D. x 1/8 Inch Pipe Thread is an indispensable component engineered for superior performance and safety in demanding air brake and pneumatic systems. Its composition of corrosion-resistant brass guarantees longevity and reliability. The integration of push-in technology facilitates quick, secure, and reusable connections, streamlining installation and maintenance. The 90-degree elbow configuration provides essential flexibility for optimal air line routing. Crucially, its full compliance with DOT FMVSS 571.106 underscores its suitability for commercial vehicle applications, where safety and regulatory adherence are non-negotiable. This fitting represents an optimal choice for professionals seeking a high-quality, durable, and technically advanced solution for critical pneumatic connections.
