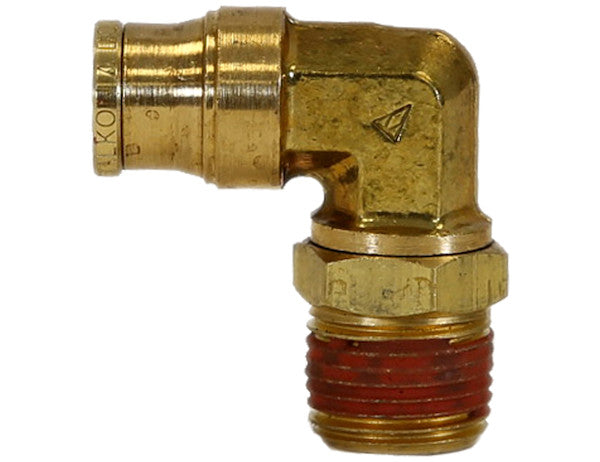

Buyers Products Swivel Male Elbows are made of long lasting corrosion-resistant brass. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.
Specifications
| Color | Natural |
|---|---|
| Finish | Plain |
| Fitting Shape | 90?? Elbow |
| Male/Female/Union | Male |
| Material | Brass |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | 1/4 NPT |
| Swivel (y/n) | Yes |
| Works with Tube Outer Diameter | 1/4 |
Precision Engineering for Critical Applications: The Brass DOT Push-In Swivel Male Elbow
In the demanding realm of commercial vehicle air brake systems, every component plays a pivotal role in ensuring operational safety and reliability. The Brass DOT Push-In Swivel Male Elbow, featuring a 1/4 Inch Tube O.D. and a 1/4 Inch Pipe Thread, represents a pinnacle of precision engineering tailored for these critical applications. This fitting is not merely a connector; it is a meticulously designed interface engineered to deliver unwavering performance under the most challenging conditions, adhering strictly to the stringent DOT FMVSS 571.106 air brake performance specifications. Its robust construction, innovative connection technology, and inherent flexibility make it an indispensable asset for heavy-duty pneumatic systems.
Material Excellence: The Unparalleled Advantages of Brass Construction
The selection of brass as the primary material for this fitting is a deliberate choice rooted in its superior metallurgical properties. Brass, an alloy predominantly composed of copper and zinc, offers a unique combination of characteristics that are ideally suited for high-stakes pneumatic applications. Its inherent strength provides structural integrity, allowing the fitting to withstand significant internal pressures and external mechanical stresses without deformation or failure. Concurrently, brass exhibits excellent ductility, meaning it can be formed and machined with high precision, enabling the creation of intricate designs necessary for reliable sealing and connection mechanisms. This machinability is crucial for achieving the tight tolerances required for push-in fittings and accurate threading.
One of the most critical attributes of brass in vehicle environments is its exceptional corrosion resistance. Commercial vehicles are frequently exposed to a barrage of corrosive elements, including road salts, moisture, grime, and various industrial chemicals. Unlike some other metals, brass forms a passive protective layer that shields it from oxidation and chemical degradation, thereby preserving its structural integrity and functional performance over extended periods. This resistance to corrosion is paramount in air brake systems, where moisture ingress can lead to rust and compromise the efficacy of the entire braking infrastructure. Furthermore, brass exhibits good thermal conductivity, allowing it to dissipate heat efficiently, and maintains its mechanical properties across a broad temperature range, which is vital for components operating in diverse climates and under fluctuating engine heat conditions.
The durability and longevity imparted by brass construction directly translate into reduced maintenance requirements and lower total cost of ownership for fleet operators. By minimizing the risk of premature component failure due to material degradation, the Brass DOT Push-In Swivel Male Elbow contributes significantly to vehicle uptime and operational efficiency. The natural, plain finish of the brass not only signifies its authentic composition but also prevents the need for additional coatings that might chip or wear off, potentially compromising the fitting's integrity or contaminating the air system. This commitment to raw material quality underscores the product's professional-grade stature and its suitability for environments where performance cannot be compromised.
Advanced Connection Technology: The Push-In Fitting Mechanism
The integration of push-in, or push-to-connect (PTC), technology represents a significant advancement in pneumatic fitting design, offering substantial benefits in terms of installation speed, ease, and reliability. The mechanism of a push-in fitting is ingeniously simple yet remarkably effective. It typically consists of a collet (often made of engineered plastic or metal), a gripping ring (metal teeth), and an O-ring seal. When a properly prepared tube is inserted into the fitting, the gripping ring engages with the tube's outer diameter, securely holding it in place against any axial pull. Simultaneously, the O-ring creates a hermetic seal around the tube, preventing air leaks even under high pressure.
The primary advantage of this technology is the dramatic reduction in installation time and labor. Unlike traditional compression fittings that require tightening nuts or flare fittings that demand specialized flaring tools, push-in fittings allow for instant connections with a simple push of the tubing. This significantly streamlines assembly processes, minimizes the need for skilled labor, and reduces the potential for installation errors. The ease of installation does not, however, come at the expense of reliability. Once seated, the connection is remarkably secure, exhibiting excellent resistance to vibration and pressure surges, which are commonplace in vehicle air brake lines. The design inherently ensures a leak-free seal, a non-negotiable requirement for brake systems where pressure loss can lead to catastrophic failure.
Furthermore, push-in fittings offer a degree of reusability and ease of disconnection that is often superior to other connection types. While designed for robust, long-term use, the ability to quickly and cleanly disconnect tubing by simply depressing the collet allows for efficient system modifications, component replacement, or troubleshooting. This versatility enhances the maintainability of complex pneumatic networks, further contributing to operational efficiency and reduced downtime. For air brake systems, where rapid and secure connections are paramount, the push-in mechanism provides a reliable, efficient, and user-friendly solution that meets stringent performance demands.
Ergonomic and Functional Design: The Swivel Male Elbow
The specific configuration of this fitting as a Swivel Male Elbow is a testament to thoughtful design aimed at optimizing system layout and performance. The "90-Degree Elbow" shape is fundamental for managing fluid routing in confined or complex spaces. It allows for a precise directional change in the air line without kinking the tubing or introducing undue stress on the connection points, which could lead to premature failure or leakage. This angular configuration is particularly valuable in vehicle chassis, where space is often at a premium and air lines must navigate around numerous structural components and other systems.
The "Swivel" functionality further enhances the elbow's utility. A swivel mechanism permits the fitting's body to rotate freely relative to its threaded end, even after the threaded connection has been securely tightened into a port. This capability offers several significant advantages:
- Ease of Installation: It allows the installer to orient the push-in port precisely in the desired direction for optimal tube routing without needing to align the entire fitting body during the tightening process. This prevents cross-threading and facilitates quick, accurate setup.
- Stress Reduction: By allowing for minor rotational adjustments, the swivel mechanism helps to absorb and dissipate torsional stresses that might otherwise be transferred to the tubing or the fixed port. This reduces the likelihood of tube kinking, wear, or fatigue at the connection point, thereby extending the lifespan of the entire assembly.
- Flexibility in System Design: The ability to reorient the elbow after installation provides greater flexibility in optimizing hose paths, avoiding interference with other components, and creating a neater, more organized air brake system layout.
Adherence to DOT FMVSS 571.106 Air Brake Performance Specifications
The explicit compliance of this Brass DOT Push-In Swivel Male Elbow with FMVSS 571.106 is not merely a marketing claim but a fundamental assurance of safety and performance. FMVSS 571.106, or Federal Motor Vehicle Safety Standard No. 106, is a critical regulatory benchmark established by the National Highway Traffic Safety Administration (NHTSA) to govern the performance of hydraulic brake hoses, brake hose assemblies, and nonmetallic air brake tubing and air brake hose assemblies. While the standard primarily focuses on hoses and tubing, its requirements implicitly extend to the fittings that connect these components, as the overall integrity of the assembly is paramount.
For air brake fittings, compliance with FMVSS 571.106 signifies that the component has undergone rigorous testing and demonstrated its ability to withstand the extreme conditions encountered in commercial vehicle braking systems. These tests typically include, but are not limited to:
- Pressure Resistance: Fittings must maintain integrity under high operating pressures and survive burst pressure tests significantly above normal operating limits without rupture or leakage. This ensures the system can handle emergency braking demands without failure.
- Temperature Range Performance: The fitting must perform reliably across a wide spectrum of temperatures, from extreme cold (e.g., -40°F/-40°C) to extreme heat (e.g., 200°F/93°C). This guarantees consistent performance in diverse geographical regions and varying operational contexts.
- Vibration Resistance: Commercial vehicles are subject to constant vibration. The fitting and its connection to the tubing must maintain a secure, leak-free seal even under prolonged and intense vibrational stress, preventing gradual loosening or fatigue.
- Pull-Out Resistance: The push-in mechanism must demonstrate superior resistance to axial forces attempting to dislodge the tubing from the fitting, ensuring that accidental tugs or system pressures do not lead to disconnection.
- Leak Integrity: Above all, the fitting must provide and maintain an absolute air-tight seal under all specified operating conditions. Any air loss in a brake system compromises its effectiveness and poses a severe safety hazard.
- Material Compatibility: The materials used (brass, O-ring elastomers, collet plastics) must be compatible with air, potential oil mist from the compressor, and environmental factors, ensuring they do not degrade over time.
Application in Commercial Vehicle Air Brake Systems
The Brass DOT Push-In Swivel Male Elbow is purpose-built for the critical demands of commercial vehicle air brake systems. Air brakes are the predominant braking system in heavy-duty trucks, buses, and trailers due to their reliability, power, and ability to handle the immense kinetic energy of large vehicles. A typical air brake system comprises an air compressor, reservoirs (tanks), various valves (foot valve, hand valve, relay valves), brake chambers (actuators), and an intricate network of air lines (tubing and hoses) that connect these components.
This specific elbow fitting would typically be deployed at points where:
- An air line needs to connect to a component with a male NPT port, such as a brake chamber, relay valve, pressure switch, or air dryer, while simultaneously requiring a 90-degree directional change.
- Space constraints necessitate compact routing and flexible alignment of air lines.
- The system benefits from the rapid and secure installation afforded by push-in technology.
- High vibration and pressure fluctuations demand a robust, leak-proof connection.
Installation Guidelines and Best Practices
While push-in fittings are designed for ease of installation, adhering to best practices is crucial to guarantee optimal performance and longevity, especially in DOT-regulated air brake systems.
- Tube Preparation: Begin by ensuring the air brake tubing (typically nylon or polyurethane) is cut squarely and cleanly, perpendicular to its length. Use a dedicated tubing cutter to achieve a precise cut, as ragged or angled cuts can compromise the seal. Deburr the inner and outer edges of the tube to remove any sharp points or burrs that could damage the O-ring seal or impede insertion.
- Thread Preparation: For the 1/4 NPT male pipe thread, apply an appropriate thread sealant. PTFE (Teflon) tape should be wrapped clockwise (when viewed from the thread end) around the threads for 2-3 turns, leaving the first thread exposed to prevent tape fragments from entering the air system. Alternatively, a high-quality liquid pipe thread sealant compatible with air brake systems can be used. Avoid over-applying, as excess sealant can also contaminate the system.
- Connection Procedure (Push-In): Insert the prepared tube firmly into the push-in end of the fitting until it bottoms out. A slight resistance will be felt as the O-ring is engaged, followed by a positive "click" or tactile sensation as the collet teeth grip the tube. To confirm secure engagement, gently pull back on the tubing; it should not withdraw from the fitting.
- Torque Specifications (NPT): When tightening the male NPT threaded end into a female port, hand-tighten first, then use a wrench to turn it an additional 1 to 2 turns, or as specified by the component manufacturer. Avoid over-tightening, as this can damage the threads of both the fitting and the port, potentially leading to leaks or material stress. The tapered thread design, aided by sealant, provides the seal, not excessive torque.
- Leak Testing: After installation, it is imperative to perform a comprehensive leak test. Pressurize the air brake system to its operating pressure and use a soapy water solution or an electronic leak detector around all connections, including the new fitting. Any bubbles or detection of escaping air indicates a leak that must be addressed immediately before the vehicle is put into service.
- Safety Precautions: Always depressurize the air system before attempting any installation or maintenance. Wear appropriate personal protective equipment, including eye protection.
Performance Characteristics and Reliability
The design and material choices of this Brass DOT Push-In Swivel Male Elbow imbue it with exceptional performance characteristics and long-term reliability. Its robust brass construction allows it to operate effectively within standard air brake pressure ranges, often exceeding 150 PSI (pounds per square inch) operating pressure, with a substantial safety margin before reaching burst pressure. This inherent strength ensures system integrity even during rapid pressure changes or maximum braking events.
The fitting is engineered to endure a broad temperature envelope, typically from sub-zero conditions (e.g., -40°F) to high operational temperatures (e.g., +200°F). This resilience ensures consistent performance irrespective of ambient weather or under-hood thermal conditions. The internal O-ring seal and collet mechanism are designed to maintain their sealing and gripping properties across this temperature spectrum, preventing hardening, cracking, or loss of elasticity.
Vibration dampening is a critical, albeit often overlooked, aspect of pneumatic connections in mobile applications. The precise manufacturing tolerances and secure push-in grip of this fitting help to minimize relative motion between the tubing and the fitting, thereby reducing fatigue stress on the tubing and preventing loosening of the connection over time. This contributes significantly to the overall stability and longevity of the air brake lines.
Furthermore, the design ensures superior seal integrity against contaminants. While clean, dry air is ideal, air brake systems can occasionally carry oil mist from the compressor or moisture. The brass material resists corrosion from these elements, and the robust O-ring seal provides a tight barrier against ingress or egress of fluids and gases, preventing system degradation and ensuring a clean air path to the brake chambers. This comprehensive approach to performance and reliability solidifies the Brass DOT Push-In Swivel Male Elbow as a dependable component for vital air brake infrastructure.
Durability, Maintenance, and Longevity
The inherent durability of brass, coupled with the precision engineering of the push-in and swivel mechanisms, positions this fitting for an extended service life within commercial vehicle applications. Unlike less robust materials, brass resists material fatigue and degradation over time, making it suitable for components that are expected to function flawlessly for many years and hundreds of thousands of miles.
From a maintenance perspective, these fittings are relatively low-maintenance. Routine inspections should be part of a vehicle's standard preventative maintenance schedule. Technicians should visually inspect all air brake fittings for any signs of physical damage, such as cracks, severe abrasions, or deformation. The connections should be checked for any indications of air leaks using a soapy water solution, especially after extended periods of operation or if any system pressure drops are reported. Any fitting exhibiting signs of damage or leakage should be promptly replaced. While the push-in design allows for easy disconnection, fittings are generally considered single-use in terms of their threaded connections to ensure optimal sealing integrity if removed and reinstalled, although the push-in side can handle multiple tube insertions if the tube is properly prepared each time. The longevity of this fitting directly contributes to reduced vehicle downtime and lower operational costs by minimizing the frequency of component replacements and preventing more costly repairs that could arise from brake system failures.
Conclusion
The Brass DOT Push-In Swivel Male Elbow (1/4 Inch Tube O.D. x 1/4 Inch Pipe Thread) is a prime example of a component designed without compromise for an application where safety and reliability are paramount. Its construction from long-lasting, corrosion-resistant brass ensures robust performance in the harshest environments. The efficiency and security of its push-in connection technology simplify installation and guarantee a steadfast, leak-free seal. The functional design, featuring a 90-degree elbow with a swivel capability, provides critical flexibility for optimal routing and stress reduction in complex pneumatic layouts. Crucially, its unwavering adherence to DOT FMVSS 571.106 air brake performance specifications underscores its role as a safety-critical component, meeting the highest regulatory standards for pressure integrity, temperature resilience, and vibration resistance. By integrating superior material science with intelligent design and regulatory compliance, this fitting offers an unparalleled blend of ease of use, durability, and absolute dependability, making it an essential and trusted choice for the integrity and safety of commercial vehicle air brake systems.
