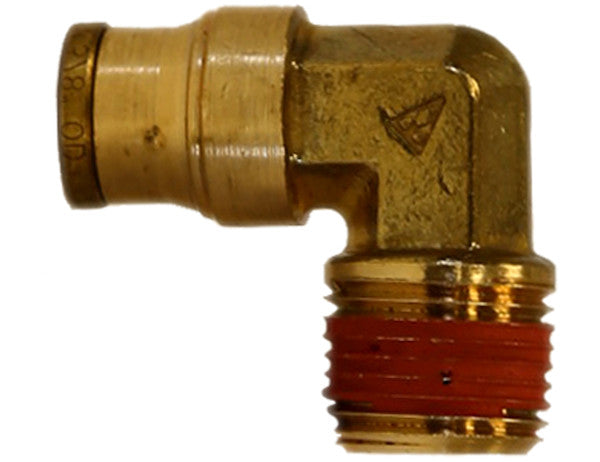

Buyers Products Male Elbows are made of long lasting corrosion-resistant brass. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.
Specifications
| Color | Natural |
|---|---|
| Finish | Plain |
| Fitting Shape | 90° Elbow |
| Male/Female/Union | Male |
| Material | Brass |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | 3/8 NPT |
| Swivel (y/n) | No |
| Works with Tube Outer Diameter | 3/8 |
The Uncompromising Engineering of the Brass DOT Push-In Male Elbow: A Technical Deep Dive
The Brass DOT Push-In Male Elbow, with its precise specifications of 3/8 Inch Tube O.D. x 3/8 Inch Pipe Thread, represents a critical component in modern pneumatic and air brake systems. Engineered for superior performance, robust durability, and unyielding safety, this fitting embodies the fusion of advanced material science and application-specific design. Its compliance with DOT FMVSS 571.106 air brake performance specifications is not merely a regulatory checkbox; it is a testament to its integral role in ensuring the operational integrity and safety of commercial vehicles and heavy-duty equipment.
Precision in Connection: The Push-In (PTC) Technology
At the core of this fitting's appeal is its Push-In, or Push-to-Connect (PTC), mechanism. This innovative design allows for rapid, tool-free installation and removal of pneumatic tubing, significantly reducing labor costs and downtime. The PTC system operates on a simple yet highly effective principle: a resilient collet or gripping mechanism firmly holds the tubing in place upon insertion, while an internal O-ring creates a robust, leak-proof seal around the tube's outer diameter. The efficiency of PTC fittings is particularly valuable in complex systems requiring numerous connections or in confined spaces where traditional wrench-based connections might be impractical. The secure grip provided by the collet ensures that tubing remains seated even under dynamic pressure fluctuations and vibrational stress, crucial for the reliability required in demanding applications like air brake systems. Furthermore, the ability to quickly disconnect by simply depressing the collet release collar facilitates maintenance, repairs, and system modifications with minimal effort.
The Material Advantage: Superior Brass Construction
The selection of brass as the primary material for this elbow fitting is a deliberate choice rooted in its exceptional metallurgical properties. Brass, an alloy predominantly composed of copper and zinc, offers a unique combination of characteristics that make it ideal for high-performance fluid power applications. Its inherent corrosion resistance is paramount, especially in environments exposed to moisture, road salts, chemicals, and varying atmospheric conditions. This resistance ensures a prolonged service life and consistent performance, preventing material degradation that could compromise system integrity. Mechanically, brass exhibits excellent strength-to-weight ratio and superb machinability, allowing for the precise manufacturing of intricate geometries and tight tolerances essential for reliable sealing and connection. It maintains its structural integrity across a wide range of operating temperatures and pressures common in air brake and pneumatic systems. Unlike certain plastics, brass does not significantly degrade from UV exposure or embrittle over time, contributing to the long-term reliability of the system. The smooth, non-porous surface of brass further minimizes friction and promotes optimal airflow, preventing contamination build-up within the fitting that could hinder performance.
Ergonomic Design: The 90-Degree Male Elbow Configuration
The 90-degree elbow configuration is not merely an aesthetic choice but a functional necessity for optimized tubing routing. In many applications, particularly within the chassis of trucks and trailers or the confined spaces of industrial machinery, straight connectors are insufficient to navigate around obstacles or align components effectively. A 90-degree elbow allows for sharp, controlled turns in tubing runs, minimizing tubing length, reducing potential kinking or excessive bending stresses on the hose, and optimizing spatial utilization. The "Male" aspect indicates that this fitting incorporates a male NPT (National Pipe Taper) thread designed to screw into a corresponding female threaded port. This combination of a male thread and an elbow shape provides a versatile solution for connecting a flexible pneumatic tube to a rigid component or manifold at a right angle, ensuring a clean, organized, and structurally sound installation.
Dimensional Precision: 3/8 Inch Tube O.D. and 3/8 NPT Thread
The precise dimensional specifications of 3/8 Inch Tube O.D. (Outer Diameter) and 3/8 NPT (National Pipe Taper) Thread are critical for ensuring proper fit, function, and interchangeability within standard pneumatic systems. The 3/8 inch tube O.D. designation signifies that this fitting is designed to accept pneumatic tubing with an external diameter of 3/8 inch. This standard size is prevalent across various industries, ensuring broad compatibility with a range of nylon, polyurethane, polyethylene, or even soft metal tubing used in air brake lines and general pneumatic circuits. The internal gripping mechanism and O-ring seal within the push-in connector are meticulously calibrated for this specific tube dimension, guaranteeing a secure, leak-free connection. The 3/8 NPT pipe thread is a tapered thread standard widely used in the United States and Canada for general purpose sealing of pipes and fittings. The tapered design of NPT threads allows for mechanical interference between the male and female threads, creating a metal-to-metal seal that becomes tighter as the fitting is wrenched in. For optimal sealing and to prevent galling, it is customary and recommended to use an appropriate thread sealant or PTFE tape on NPT connections, especially in high-pressure air systems, to fill any helical leak paths that might otherwise exist. This dual-dimension specification ensures seamless integration into existing infrastructure and compliance with industry-wide standards for both tubing and threaded connections.
Regulatory Mandate: DOT FMVSS 571.106 Air Brake Performance Specifications
The compliance with DOT FMVSS 571.106 is arguably the most critical feature of this Brass Push-In Male Elbow. FMVSS stands for Federal Motor Vehicle Safety Standard, and section 106 specifically governs "Brake Hoses." While this fitting is not a hose, it is an integral component within the brake system's air lines, and thus its performance directly impacts the overall safety and reliability of the vehicle's air brake system. This standard sets rigorous requirements for the performance and durability of components used in air brake systems of commercial vehicles, including heavy-duty trucks, buses, and trailers. It dictates stringent tests for pressure resistance, temperature extremes, vibration tolerance, corrosion resistance, and burst strength, ensuring that every part can withstand the harsh operating conditions and critical demands of vehicle braking. For a fitting to be DOT FMVSS 571.106 compliant, it must demonstrate an unwavering ability to maintain its structural integrity and sealing effectiveness under sustained high pressures, rapid pressure cycles, and varying environmental factors, without leaking or catastrophic failure. This compliance is not optional; it is a legal requirement for components used in commercial vehicle air brake systems, providing an assurance of safety to operators, fleet managers, and the general public. Choosing a DOT-compliant fitting means investing in a component that has been meticulously engineered and rigorously tested to meet the highest safety standards, mitigating risks associated with brake system failure.
Versatile Applications Across Industries
Given its robust design and DOT compliance, this Brass Push-In Male Elbow finds extensive application in a diverse array of demanding environments. Its primary domain is within the air brake systems of commercial vehicles, including Class 8 heavy-duty trucks, tractor-trailers, buses, and vocational vehicles suchs as refuse trucks and dump trucks. Here, its reliability is paramount for safe operation. Beyond air brakes, it is indispensable in various pneumatic systems within industrial machinery and automation. This includes manufacturing plants, assembly lines, robotics, and material handling equipment where compressed air is used for actuation, clamping, and control. Its resistance to corrosion also makes it suitable for marine applications or environments with high humidity. Furthermore, it is commonly employed in agricultural equipment, construction machinery, and specialized vehicles requiring robust and reliable air connections for auxiliary functions, air ride suspensions, and other pneumatic controls. The ease of installation afforded by the push-in design makes it particularly attractive for field repairs and maintenance, where speed and reliability are critical.
Installation Best Practices for Optimal Performance
Proper installation is paramount to leveraging the full performance capabilities and ensuring the longevity of the Brass DOT Push-In Male Elbow. For the push-in connection, tubing must be cut squarely and cleanly, free from burrs or crimps, to ensure a perfect seal against the internal O-ring. Chamfering the tube end slightly can aid insertion. The tube should be inserted firmly and completely into the fitting until it bottoms out, providing maximum engagement with the collet and O-ring. A gentle tug on the tube can confirm a secure connection. For the 3/8 NPT male thread, it is highly recommended to apply a high-quality thread sealant, such as PTFE tape or a liquid pipe thread sealant, to the male threads. This not only aids in achieving a leak-proof seal but also acts as an anti-galling agent during assembly and disassembly. Over-tightening NPT threads should be avoided as it can stress the fitting or port, potentially leading to cracks or leaks. Hand-tightening followed by one to three additional turns with a wrench is typically sufficient, depending on the sealant and specific application. Regular inspection of connections for signs of wear, damage, or leakage should be part of routine maintenance schedules.
Operational Integrity and Durability Considerations
The design and material selection of this Brass DOT Push-In Male Elbow contribute significantly to its operational integrity and overall durability. It is engineered to withstand the dynamic pressures inherent in air brake systems, typically operating at 100-125 PSI but capable of handling much higher burst pressures far exceeding operational limits as per DOT standards. The robust brass construction, coupled with high-quality internal sealing components, ensures exceptional leak integrity, minimizing air loss which can lead to inefficient system performance and increased compressor cycling. Its resistance to vibration, a constant factor in mobile applications, prevents loosening of connections and maintains a secure seal. The inherent thermal stability of brass allows the fitting to perform reliably across a broad temperature range, from extreme cold to elevated engine compartment temperatures, without compromising its mechanical properties or sealing capabilities. This comprehensive approach to design and material specification ensures a fitting that not only meets but often exceeds the demanding performance expectations of critical air systems.
The Buyers Products Commitment to Quality
Buyers Products is renowned for its commitment to manufacturing high-quality, reliable components for demanding applications. This Brass DOT Push-In Male Elbow is a prime example of that dedication. Every fitting is subjected to stringent quality control processes, from raw material inspection to final product testing, ensuring consistent dimensions, material integrity, and adherence to performance specifications. By choosing a Buyers Products fitting, users are investing in a component backed by a reputation for excellence, designed to provide long-lasting, trouble-free service in the most critical systems. The natural finish and plain appearance reflect a focus on functional performance over superficial aesthetics, underscoring its industrial utility and robust engineering.
Conclusion
The Brass DOT Push-In Male Elbow (3/8 Inch Tube O.D. x 3/8 Inch Pipe Thread) is far more than a simple connector; it is a meticulously engineered, safety-critical component essential for the reliable operation of air brake and pneumatic systems. Its combination of corrosion-resistant brass construction, efficient push-in technology, precise 90-degree design, and unwavering compliance with DOT FMVSS 571.106 standards positions it as an indispensable fitting for commercial vehicles and heavy-duty industrial applications. By offering ease of installation, superior sealing performance, and exceptional durability under harsh conditions, this fitting significantly contributes to the safety, efficiency, and longevity of the systems it serves. Its technical sophistication makes it the preferred choice for engineers, fleet managers, and maintenance professionals who demand uncompromising performance and regulatory assurance in their critical fluid power infrastructure.
