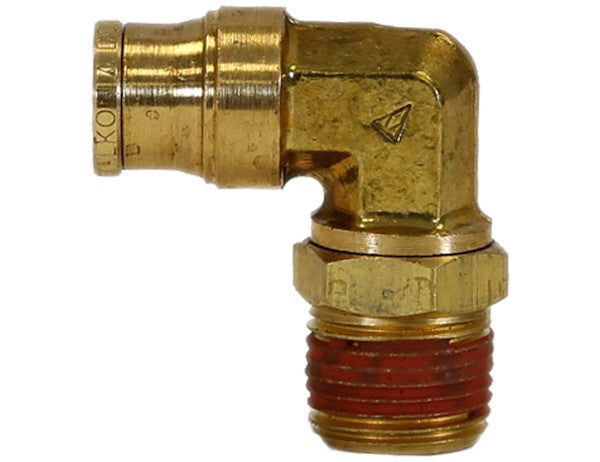

BE90M375P375S - Brass DOT Push-In Swivel Male Elbow 3/8 Inch Tube O.D. x 3/8 Inch Pipe Thread

Buyers Products Swivel Male Elbows are made of long lasting corrosion-resistant brass. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.

Specifications

Comprehensive Technical Description: Brass DOT Push-In Swivel Male Elbow 3/8 Inch Tube O.D. x 3/8 Inch Pipe Thread

This in-depth technical overview explores the meticulous design, material science, and performance engineering inherent in the Brass DOT Push-In Swivel Male Elbow. This critical component is engineered to deliver superior reliability and operational efficiency within high-stakes pneumatic systems, predominantly in commercial vehicle air brake applications. Its design integrates advanced features for secure connections, optimal fluid redirection, and simplified installation, all while adhering to the most rigorous safety and performance mandates.

Material Engineering: The Enduring Superiority of Brass

The selection of high-quality brass for the construction of this fitting is a foundational engineering decision, leveraging the alloy's intrinsic properties that are exceptionally suited for demanding fluid power environments. Brass, primarily an alloy of copper and zinc, offers a unique combination of characteristics vital for components exposed to varying pressures, temperatures, and environmental conditions. Its use in this DOT-compliant fitting underscores a commitment to long-term performance and safety.

• Exceptional Corrosion Resistance: One of brass's most significant advantages, explicitly noted in the product description, is its inherent resistance to corrosion. In the harsh operational environments typical of commercial vehicles—exposed to moisture, road salts, de-icing chemicals, and atmospheric pollutants—brass maintains its structural integrity and surface finish. Unlike ferrous metals, it does not suffer from galvanic corrosion, which is critical for preventing internal degradation that could lead to particulate generation and compromise the pneumatic system or its seals. High-quality brass alloys, often specified as dezincification-resistant (DZR or DR brass), further enhance this property by mitigating the selective leaching of zinc, ensuring the alloy's mechanical properties remain stable over decades of service.
• Robust Mechanical Properties: Brass exhibits an optimal balance of tensile strength, hardness, and ductility. This allows the fitting to withstand the dynamic pressures, recurrent vibrations, and mechanical stresses that characterize air brake systems without succumbing to fatigue, deformation, or brittle fracture. Its malleability facilitates complex machining processes, enabling the creation of intricate internal geometries and precise external features necessary for the push-in mechanism and pipe threads.
• Thermal Stability and Conductivity: The material retains its mechanical and sealing properties across an expansive operational temperature spectrum, from sub-zero conditions encountered in winter climates to elevated temperatures generated by engine compartments or braking systems. Brass's good thermal conductivity also contributes to dissipating localized heat, preventing thermal stress concentrations that could compromise the fitting's integrity.
• Superior Machinability: The ease with which brass can be machined allows for manufacturing components with exceptionally tight tolerances. This precision is paramount for the integrity of the push-in connection's gripping and sealing elements, as well as for the accuracy of the NPT threads, ensuring optimal mating with other system components and reliable, leak-free performance.
• Non-Sparking Characteristics: In certain industrial or vehicular settings where the presence of flammable gases or liquids might be a concern, the non-sparking nature of brass provides an additional layer of safety, reducing the risk of ignition compared to other metallic options.

The natural brass color and plain finish are indicative of a design philosophy that prioritizes material performance and functional integrity, foregoing unnecessary coatings that could chip or degrade under challenging operational conditions. This ensures the inherent properties of the brass are fully utilized for maximum durability.

Advanced Design Architecture: Swivel, Push-In, and 90° Elbow

This fitting masterfully integrates three primary design components—a 90° elbow, swivel functionality, and push-in connection technology—each engineered to collectively enhance routing flexibility, installation efficiency, and system reliability.

90° Elbow Geometry: Precision Airflow Redirection

The 90° elbow configuration is a cornerstone of efficient pneumatic system design, specifically chosen for its ability to effect a sharp, precise change in tubing direction. This is indispensable in space-constrained applications, such as within vehicle chassis or compact machinery, where clean and organized tubing runs are essential for preventing kinks, abrasion, and unnecessary tubing length. The internal bore of the elbow is meticulously designed to ensure laminar or minimally turbulent airflow, thereby reducing pressure drops and maintaining the dynamic response characteristics of the pneumatic system. This geometric precision contributes directly to the overall efficiency and responsiveness of the air brake system.

Swivel Functionality: Enhancing Installation and Mitigating Stress

The incorporation of a swivel mechanism represents a significant ergonomic and mechanical advantage. This feature permits the elbow body, specifically the push-in port, to rotate freely relative to the male NPT threaded base after the latter has been securely tightened into its receiving port. The benefits derived from this capability are multifaceted:

• Optimized Tubing Alignment: During installation, the swivel feature allows technicians to orient the outgoing tubing connection in the most appropriate direction for routing, eliminating the need to over-tighten or loosen the pipe thread connection to achieve proper alignment. This greatly streamlines assembly, especially in confined or difficult-to-access locations.
• Elimination of Torsional Stress: By allowing rotational freedom, the swivel mechanism prevents the transmission of torsional forces from the tubing connection to the threaded port. This is crucial for pneumatic tubing (e.g., nylon or polyamide), which can be susceptible to material fatigue, kinking, or premature failure when subjected to persistent twisting or bending stresses at the connection point. The swivel acts as a stress isolator, prolonging the life of both the tubing and the fitting.
• Vibration Dampening: The internal structure of the swivel, comprising precision-machined surfaces and high-performance O-rings, can subtly absorb some levels of high-frequency vibration inherent in vehicular operation. This contributes to the overall stability of the connection and reduces the potential for vibratory loosening over time.
• Enhanced Maintenance Access: For routine inspections or component replacement, the ability to reorient the fitting without disturbing the primary threaded connection simplifies access to the tubing or adjacent components, reducing maintenance time and effort.

The integrity of the swivel joint is maintained by robust internal sealing elements, typically an elastomeric O-ring, which ensures a leak-tight connection across the rotational interface under all operating pressures.

Push-In Connection Technology: Speed, Security, and Simplicity

The push-in (also known as push-to-connect or instant) fitting technology is a hallmark of modern pneumatic connectivity, offering a paradigm shift in ease and speed of assembly compared to traditional connection methods. This mechanism is specifically engineered for use with calibrated, semi-rigid pneumatic tubing materials such as nylon, polyamide, or polyurethane, which are standard in air brake and industrial pneumatic applications.

The internal architecture of the push-in mechanism is a sophisticated integration of components:

• Collet (Release Sleeve): An external ring or sleeve that, when manually depressed, disengages the gripping mechanism, allowing for tube release.
• Gripping Teeth (Grab Ring): Precisely machined metallic teeth or fingers, often made from stainless steel for corrosion resistance and strength, are designed to engage and securely grip the outer diameter of the inserted tubing. These teeth are engineered to allow easy one-way insertion but resist pull-out forces, creating a robust mechanical lock. Their design ensures a firm hold without scoring or compromising the integrity of the tube surface.
• Elastomeric O-Ring Seal: A high-performance internal O-ring, typically made from NBR (Nitrile Butadiene Rubber) or FKM (Fluoroelastomer) for superior chemical and temperature resistance, creates a positive, leak-proof seal against the smooth outer surface of the inserted tubing. The O-ring material is carefully chosen for compatibility with compressed air, operating temperatures, and resistance to environmental factors.
• Tube Guide: An internal chamfer or guide ensures the tubing is inserted squarely, preventing kinking and facilitating smooth passage past the O-ring and gripping teeth, thereby guaranteeing proper seating and seal formation.

The functional advantages of this technology are profound:

• Tool-Free & Rapid Installation: Tubing connection requires no special tools; a simple, firm push until the tube bottoms out establishes a secure and sealed connection. This drastically reduces installation time and labor costs during initial assembly and subsequent maintenance.
• High Pull-Out Resistance: The design of the gripping teeth ensures a formidable resistance to axial pull-out forces, maintaining connection integrity even under dynamic loads or system surges.
• Leak-Proof Reliability: The combination of the O-ring seal and the secure mechanical grip guarantees a consistently leak-free connection, critical for maintaining system pressure and efficiency in air brake systems.
• Reusability and Maintainability: While not indefinitely reusable, high-quality push-in fittings allow for multiple disconnections and reconnections of tubing (provided the tubing end remains clean, square, and undamaged), offering flexibility during system modifications or repairs.

This particular fitting is dimensioned for a 3/8 inch Tube Outer Diameter (O.D.). The precise manufacturing of both the fitting's internal components and the tubing's external dimensions is paramount for the optimal engagement of the gripping and sealing elements, ensuring reliable performance.

Male Pipe Thread: 3/8 Inch NPT Standard

The male threaded interface of this fitting adheres to the universally recognized 3/8 inch NPT (National Pipe Taper) standard, prevalent across North American fluid power applications. NPT threads are distinguished by their tapered profile, which facilitates a mechanical interference fit that becomes tighter as the male thread is screwed into a corresponding female NPT port.

• Tapered Sealing Mechanism: The 1 in 16 taper (3/4 inch per foot) on both male and female NPT threads causes the thread flanks to wedge together as they are tightened. This metal-to-metal contact forms the basis of the seal.
• Crucial Role of Thread Sealant: Despite their inherent tapered sealing characteristic, it is an industry standard and imperative practice to utilize a thread sealant, such as PTFE (Polytetrafluoroethylene) tape or liquid pipe thread sealant, on NPT connections. The sealant fills any microscopic helical leak paths that persist even with tight metal-to-metal contact, lubricates the threads to ensure proper engagement, and aids in preventing galling. This combination ensures a reliable, hermetic seal essential for pressurized air systems.
• Nominal Sizing Convention: The "3/8 inch" designation refers to the nominal pipe size, which is an approximate internal diameter and not a direct measurement of the thread's major diameter. This standardized sizing ensures broad compatibility with a vast array of industrial and commercial components featuring 3/8 NPT ports.

The precise dimensional conformity and adherence to NPT standards guarantee seamless integration and robust connections within various pneumatic infrastructures.

Performance and Compliance: Adherence to DOT FMVSS 571.106 Air Brake Specifications

The Brass DOT Push-In Swivel Male Elbow's compliance with DOT FMVSS 571.106 Air Brake Performance Specifications is its most critical attribute, signifying that it has met the stringent safety and operational requirements mandated by the U.S. Department of Transportation for all air brake system components in commercial motor vehicles. This compliance is not merely a certification but a guarantee of validated performance under extreme conditions.

The FMVSS 571.106 standard necessitates rigorous testing across multiple critical parameters:

• Pressure Integrity (Proof & Burst Pressure): The fitting must successfully withstand specified proof pressures (sustained high pressure) and burst pressures (ultimate pressure resistance) without leakage or catastrophic failure. This testing ensures a substantial safety margin above normal operating pressures, safeguarding against system overloads.
• Vibration Endurance: Commercial vehicles operate in environments characterized by constant and often severe vibrations. The fitting is subjected to prolonged vibration tests to ensure its structural integrity, mechanical grip, and seal performance remain unimpaired, preventing loosening, fatigue, or stress cracks that could lead to air loss.
• Temperature Cycling Performance: Components must demonstrate consistent performance across a wide range of ambient temperatures, typically from -40°F to 200°F (-40°C to 93°C). This test evaluates the thermal expansion and contraction effects on the material, seals (O-rings), and gripping mechanisms, ensuring leak-free operation in diverse climatic conditions.
• Tubing Pull-Out Resistance: The efficacy of the push-in mechanism is stringently tested for its ability to securely retain the tubing under significant tensile loads, simulating forces encountered during vehicle operation. This prevents accidental disconnections that could lead to catastrophic air loss.
• Leakage Rate Limits: FMVSS 571.106 imposes strict maximum permissible air leakage rates under various pressure conditions. This ensures the air brake system maintains operational pressure efficiently, which is fundamental for consistent brake response and overall vehicle safety.
• Corrosion and Material Compatibility: The fitting's resistance to corrosive elements and the compatibility of its materials (brass body, O-ring, gripping teeth) with air brake system fluids and media are verified to ensure long-term durability and prevent material degradation.

The explicit "Yes" for DOT FMVSS 571.106 compliance confirms that this Brass Push-In Swivel Male Elbow is purpose-built and validated for the most critical and demanding applications in commercial transportation, offering unparalleled assurance of safety and reliability.

Applications: Critical Junctions in Heavy-Duty Systems

The robust engineering, material selection, and DOT compliance of this Brass Push-In Swivel Male Elbow position it as an essential component across a broad spectrum of high-reliability pneumatic applications, with a clear emphasis on the heavy-duty transportation industry.

• Commercial Vehicle Air Brake Systems: This is the primary and most critical application. The fitting is integral to Class 8 trucks, intermodal trailers, municipal buses, and other heavy vehicles, facilitating connections between air tanks, various brake valves (e.g., foot valve, relay valves), brake chambers, and emergency air lines. The 90° elbow is vital for navigating complex chassis layouts, while the swivel mechanism simplifies routing and installation, and the push-in technology allows for rapid, secure connections crucial for maintenance and repair turnaround times.
• Air Ride Suspension Systems: Modern commercial vehicles frequently employ air suspensions for optimized load leveling, enhanced ride comfort, and superior cargo protection. These systems rely on a precise and leak-free pneumatic network, where this fitting ensures the integrity of air lines connected to air springs, height control valves, and air reservoirs.
• Auxiliary Air System Integration: Beyond core braking and suspension, heavy vehicles utilize compressed air for numerous auxiliary functions, including:
  • Pneumatic Door Actuators: In passenger buses.
  • Air Horns: For mandatory signaling.
  • Fifth Wheel Air Release Mechanisms: For automated trailer coupling and uncoupling.
  • Trailer Air Supply Lines: Connecting the tractor's air system to the trailer's braking and suspension systems.
  • Accessory Air Ports: For onboard tools, tire inflation, or other air-driven implements.
• Heavy Equipment and Construction Machinery: While DOT-specific for road vehicles, the fitting's robust construction and high performance characteristics make it suitable for pneumatic systems in construction equipment, agricultural machinery, and specialized industrial vehicles where durability, resistance to harsh environments, and reliable connections are paramount.
• Industrial Pneumatic Control: In certain industrial settings requiring high reliability and quick assembly, especially where conditions mimic those of vehicular environments (e.g., vibration, wide temperature swings, corrosive atmospheres), this fitting offers an advantageous solution for complex pneumatic control panels and machinery.

Across these diverse applications, the confluence of brass durability, swivel flexibility, push-in efficiency, and DOT compliance establishes this fitting as a benchmark for dependable pneumatic connectivity.

Installation Best Practices and Maintenance Protocols

Optimal performance and an extended service life for the Brass DOT Push-In Swivel Male Elbow are directly correlated with adherence to precise installation and prudent maintenance practices. These guidelines ensure the integrity of the pneumatic system and uphold safety standards.

• Tubing Preparation:
  • Precision Cutting: Always employ a dedicated, sharp tube cutter designed for pneumatic tubing to achieve a clean, square, and burr-free cut. An improperly cut or jagged tube end can damage the internal O-ring seal or impede the gripping mechanism, leading to leaks or insecure connections.
  • Deburring: Ensure that both the outer and inner edges of the cut tubing are meticulously deburred. Sharp edges or burrs can scratch the O-ring, compromise the seal, or even prevent full insertion of the tube.
  • Cleanliness: Maintain absolute cleanliness of both the tubing and the fitting. Any dirt, metal shavings, or foreign particles can degrade the internal seals, scratch the tube surface, or clog system components.
• Tubing Insertion Procedure:
  • Firm and Square Insertion: With the prepared tubing, firmly and squarely push it into the push-in port until it bottoms out against the internal tube stop. A slight resistance will be felt as the tube passes the O-ring. Ensure the tube is not twisted or angled during insertion.
  • Verification Pull: After insertion, gently but firmly pull on the tubing to confirm it is securely engaged by the gripping teeth. A properly installed tube will resist this pull, indicating a reliable mechanical lock.
• Threaded Connection (3/8 NPT) Protocol:
  • Application of Thread Sealant: Apply a suitable amount of high-quality PTFE thread sealant tape (typically 2-3 wraps clockwise from the leading edge, avoiding the first thread) or an anaerobic liquid pipe thread sealant to the male NPT threads. Ensure that no sealant enters the internal bore of the fitting or the receiving port to prevent contamination of the air system.
  • Controlled Torque: Hand-tighten the fitting into the female receiving port, then use an appropriately sized wrench to tighten to the manufacturer's recommended torque specifications. Over-tightening can cause thread damage, fitting distortion, or cracking, while under-tightening will result in leaks. The swivel feature allows for optimal directional alignment of the push-in port *after* the NPT connection has been properly torqued, ensuring mechanical integrity and correct orientation.
• Disconnection Procedure (when required):
  • Depressurize System: Always ensure the pneumatic system is fully depressurized before attempting to disconnect any tubing.
  • Depress Collet: Firmly and evenly depress the collet (release sleeve) against the body of the fitting. This action disengages the gripping teeth.
  • Straight Pull: While holding the collet depressed, pull the tubing straight out of the fitting. Avoid twisting, jerking, or angling the tube during removal.
  • Tubing Inspection: Post-disconnection, inspect the end of the tubing for any signs of scoring, deformation, or damage. If the tube end is compromised, cut a fresh, square section before reinsertion, or replace the tubing entirely to ensure seal integrity.
• System Leak Testing: Following installation or maintenance, pressurize the entire pneumatic system and conduct a thorough leak test using a soapy water solution or an electronic leak detector at all connection points. Any presence of bubbling indicates a leak that must be addressed immediately to prevent pressure loss and ensure safety.

Periodic visual inspections of all fittings and tubing for signs of wear, abrasion, corrosion, or damage are highly recommended, especially in demanding operational environments. Proactive replacement of compromised components is a critical aspect of preventive maintenance, safeguarding the overall reliability and safety of the pneumatic system.

Manufacturing Precision and Quality Assurance

The integrity and performance of a DOT-compliant fitting are intrinsically linked to the precision of its manufacturing processes and the rigor of its quality assurance protocols. High-volume, high-precision manufacturing techniques, often utilizing advanced CNC machining, are essential to achieve the micron-level tolerances required for the intricate internal features of the push-in mechanism and the exact threading of the NPT port. Every component, from the brass body to the internal O-rings and gripping teeth, must meet strict dimensional specifications and material quality standards.

Quality assurance is not a secondary step but an integrated aspect of the production lifecycle. It typically involves:

• Material Certification: Verifying that incoming raw brass material conforms to specified metallurgical compositions and mechanical properties.
• Dimensional Gauging: Regular in-process and final inspections using precision gauges to ensure all critical dimensions (e.g., tube O.D. receptor, thread pitch and taper, O-ring groove) are within allowable tolerances.
• Functional Testing: Batch or 100% testing of fittings for push-in retention, leakage under pressure, and rotational torque for swivel components.
• Compliance Documentation: Maintaining comprehensive records and certifications to demonstrate adherence to industry standards, particularly FMVSS 571.106.

This commitment to manufacturing excellence and rigorous quality control ensures that each Brass DOT Push-In Swivel Male Elbow consistently delivers the specified performance, reliability, and safety critical for its intended applications.

Total Cost of Ownership and Sustainability Considerations

While the initial investment in a high-quality, DOT-compliant brass fitting may be higher than lesser-grade alternatives, it represents a significant long-term value proposition through a reduced Total Cost of Ownership (TCO). The inherent durability and corrosion resistance of brass, combined with the proven reliability of the push-in and swivel mechanisms, translate directly into:

• Reduced Downtime: Fewer fitting failures mean less vehicle or equipment downtime for repairs, maximizing operational availability.
• Lower Maintenance Costs: The longevity of brass and the ease of push-in installation minimize the frequency and complexity of maintenance tasks.
• Enhanced Safety: Compliance with FMVSS 571.106 mitigates regulatory risks and, more importantly, enhances the safety of personnel and cargo by ensuring critical air brake systems function flawlessly.
• Operational Efficiency: Leak-free connections maintain system pressure, ensuring optimal performance of air brakes and auxiliary pneumatic functions.

Furthermore, brass is a highly sustainable material. It is indefinitely recyclable without loss of properties, making it an environmentally responsible choice at the end of its exceptionally long service life. This combination of economic advantage and environmental consciousness further elevates the value of this technically superior fitting.

Conclusion: A Pinnacle of Pneumatic Connectivity

The Brass DOT Push-In Swivel Male Elbow, with its 3/8 Inch Tube O.D. and 3/8 Inch Pipe Thread, stands as an exemplar of advanced pneumatic fitting technology. Its foundation in premium corrosion-resistant brass ensures unmatched longevity and robust mechanical integrity across diverse and challenging environments. The sophisticated integration of a 90° elbow for precise directional changes, a swivel mechanism for installation flexibility and stress mitigation, and cutting-edge push-in technology for rapid and secure connections, collectively delivers a solution of unparalleled efficiency.

Crucially, its stringent adherence to DOT FMVSS 571.106 air brake performance regulations certifies its absolute suitability for safety-critical applications in commercial transportation, offering peace of mind through validated reliability. This fitting is not merely a component; it is a meticulously engineered solution that underpins the safety, efficiency, and operational continuity of demanding pneumatic systems, representing a strategic investment in superior performance and lasting value.
