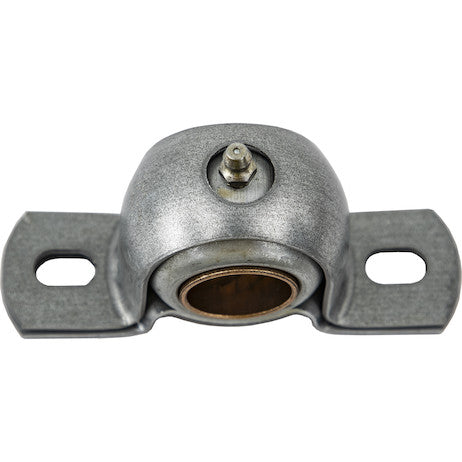

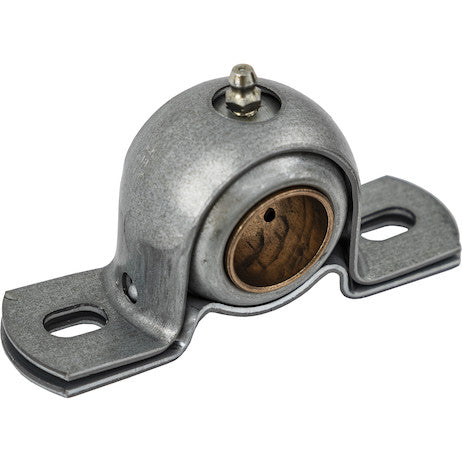

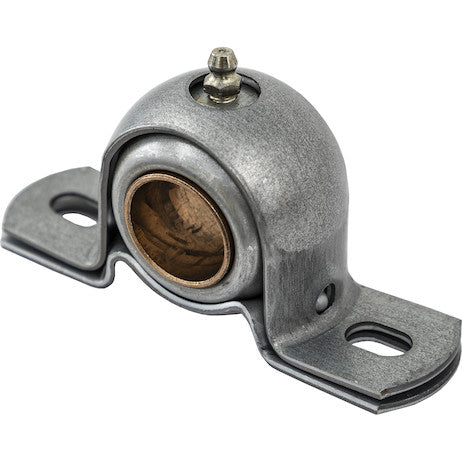

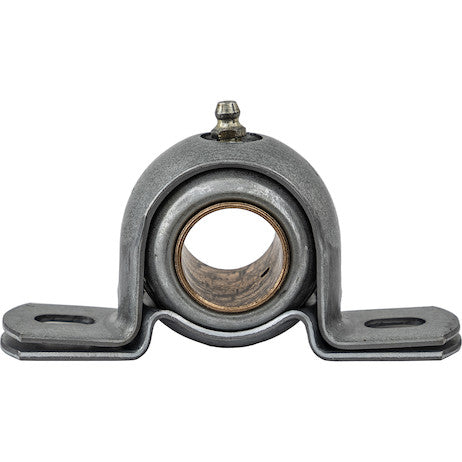

Buyers Products Bronze Pillow Block Bearing is equipped to handle most light duty applications. It includes a top-mounted grease fitting for easy maintenance. The strap style pillow block with an insulated bronze bearing is easy to install with a standard 2 bolt mount. It comes in a variety of diameters to fit your needs.
Specifications
| Bearing Insert Material | Bronze |
|---|---|
| Bearing Insert Type | Self Aligning |
| Bolt Hole Center to Center | 3.375 |
| Bore Diameter | 1.000 |
| Greasable (y/n) | Yes |
| Housing Finish | Galvanized |
| Housing Material | Carbon Steel |
| Locking Type | No Lock |
| Mounting Surface to Shaft Center | 1.750 |
| Overall Depth | 1.50 |
| Overall Height | 2.25 |
| Overall Width | 4.63 |
Advanced Engineering Analysis: The 1-Inch Shaft Diameter Bronze Pillow Block Bearing for Industrial Applications
The Buyers Products 1-Inch Shaft Diameter Bronze Pillow Block Bearing represents a robust and meticulously engineered solution for a diverse array of light to moderate duty industrial applications. This component is designed to provide reliable rotational support for shafts, integrating critical features that ensure longevity, ease of maintenance, and adaptability in challenging operational environments. This detailed technical exposition will delve into the material science, mechanical design, operational characteristics, and installation considerations that underscore the superior performance of this specific bronze pillow block bearing.
Fundamental Design and Material Science
The Bronze Bearing Insert: Properties and Performance
At the core of this pillow block assembly is the bronze bearing insert, a critical component engineered from a high-quality bronze alloy. Bronze, primarily an alloy of copper and tin, often with other elements like zinc, manganese, or lead, is renowned for its exceptional tribological properties. Specifically, its low coefficient of friction, inherent wear resistance, and excellent corrosion resistance make it an ideal material for plain bearings. Unlike rolling element bearings that utilize balls or rollers, plain bearings, also known as sleeve bearings or journal bearings, rely on a sliding contact surface. The bronze material facilitates this sliding motion efficiently, especially when augmented by proper lubrication.
The "insulated bronze bearing" specification hints at characteristics that contribute to its robust performance. While "insulated" can sometimes refer to electrical insulation, in the context of a mechanical bearing, it often implies a material property that dampens vibration, reduces noise, or provides a thermal buffer between the shaft and the housing, contributing to smoother and quieter operation. The inherent compliance of bronze, compared to harder materials, allows it to conform slightly to the shaft's surface, distributing loads more evenly and preventing localized stress concentrations. This characteristic, combined with its ability to embed small foreign particles without scoring the shaft, makes bronze an excellent choice for environments where contaminants might be present.
The selection of bronze as the bearing insert material is deliberate for applications requiring reliable performance under conditions that might challenge other bearing types. Bronze bearings excel in scenarios involving moderate speeds, oscillating movements, and shock loads where the elastic deformation capabilities of bronze can absorb impact energy more effectively than rigid rolling elements. Furthermore, the material exhibits good thermal conductivity, assisting in the dissipation of heat generated by friction, thus maintaining operational integrity and extending service life.
Self-Aligning Mechanism: Mitigating Misalignment Stress
A key engineering feature of this product is its "Self Aligning" bearing insert type. This design characteristic is paramount for accommodating minor angular misalignments between the shaft and the bearing housing, which can arise from manufacturing tolerances, frame deflections under load, or installation inaccuracies. In a self-aligning bearing, the outer surface of the bronze insert is spherically machined to mate with a complementary spherical seat within the pillow block housing. This allows the insert to pivot slightly, maintaining full contact with the shaft even when the shaft is not perfectly perpendicular to the housing bore.
The benefits of a self-aligning capability are substantial. Without it, even a slight misalignment would cause concentrated stresses at the edges of a rigid bearing, leading to premature wear, increased friction, higher operating temperatures, and ultimately, bearing failure. By permitting the bearing to adjust its angle relative to the shaft, the self-aligning feature ensures that the load is distributed uniformly across the entire bearing surface. This not only significantly prolongs the operational lifespan of the bearing but also reduces power consumption by minimizing unnecessary friction and preventing damage to the shaft itself.
Housing Construction: Carbon Steel with Galvanized Finish
The external structure, the pillow block housing, is constructed from robust carbon steel, providing exceptional mechanical strength, rigidity, and impact resistance. Carbon steel is a preferred material for bearing housings due to its high tensile strength and durability, ensuring that the bearing assembly can withstand operational stresses without deformation. The housing is designed in a strap style, which offers a practical and secure method for encapsulating the bearing insert while providing ample support for the shaft.
Crucially, the housing features a galvanized finish. Galvanization is a process where the steel is coated with a layer of zinc. This zinc coating acts as a sacrificial barrier, protecting the underlying steel from corrosion. In corrosive environments, the zinc will corrode preferentially to the steel, thus extending the life of the housing significantly. This finish is particularly beneficial in outdoor applications, wash-down areas, or any setting exposed to moisture, chemicals, or abrasive substances. The combination of strong carbon steel and a protective galvanized coating ensures the structural integrity and aesthetic longevity of the pillow block assembly, even under harsh industrial conditions.
Precision Dimensions and Operational Parameters
Shaft Diameter and Bore Precision
The central specification of this product is its 1.000-inch bore diameter, precisely engineered to accommodate a 1-inch shaft. This exact dimension is critical for establishing the correct fit between the shaft and the bearing insert. A proper fit minimizes play and vibration, thereby enhancing the stability of the rotating assembly and ensuring efficient power transmission. Designers must select shafts manufactured to appropriate tolerance classes to achieve the desired fit, which is typically a clearance fit for plain bearings to allow for a lubricating film.
The precision in bore diameter is paramount for optimal performance. An undersized shaft would lead to excessive clearance, causing vibration and potential impact damage, while an oversized shaft would lead to an interference fit, causing excessive friction, heat generation, and accelerated wear. The standard 1-inch diameter ensures broad compatibility with readily available industrial shafts and components.
Light Duty Applications: Defining the Operating Envelope
The product is specifically engineered to handle "light duty applications." This designation is crucial for proper selection and refers to operational scenarios characterized by relatively low rotational speeds, moderate radial and axial loads, and often intermittent or periodic operation rather than continuous high-speed duty cycles. Examples of typical light duty applications include conveyor systems for lightweight materials, agricultural machinery, material handling equipment, packaging machinery, small industrial fans, and general utility equipment where cost-effectiveness, simplicity, and robustness in potentially dirty environments are prioritized over extreme precision or high-speed capabilities.
In such applications, the bronze plain bearing offers significant advantages. It is less susceptible to damage from shock loads than some rolling element bearings and can operate effectively in environments with dust, grit, or moisture where sealed rolling bearings might fail due to seal degradation. The bronze's inherent wear properties, combined with diligent lubrication, ensure reliable performance within its specified operational envelope.
Maintenance, Installation, and Ergonomics
Integrated Lubrication System: The Greasable Design
Maintaining the performance and extending the service life of any plain bearing heavily relies on effective lubrication. This bronze pillow block bearing is designed with a top-mounted grease fitting, making it "Greasable (y/n): Yes." This feature simplifies routine maintenance, allowing for the easy injection of lubricant into the bearing cavity. Lubrication is vital for bronze bearings as it forms a hydrodynamic film between the rotating shaft and the stationary bearing surface, preventing direct metal-to-metal contact, which is the primary cause of friction, heat, and wear.
The top-mounted position of the grease fitting ensures convenient access, even when the bearing is installed in confined spaces. Regular lubrication with an appropriate industrial grease (typically a lithium-based grease of NLGI grade 1 or 2, depending on temperature and speed) is crucial. Proper greasing reduces friction to a minimum, dissipates heat, and helps to flush out contaminants that might have entered the bearing area. The ability to periodically replenish the lubricant extends the bearing's functional life significantly, contributing to lower overall maintenance costs and reduced downtime for machinery.
Installation Simplicity: The 2-Bolt Mount Configuration
The pillow block bearing features a standard 2-bolt mount, simplifying the installation process. The "Bolt Hole Center to Center" dimension is 3.375 inches, a standard spacing that ensures compatibility with common mounting patterns and facilitates easy replacement or integration into new designs. The strap-style housing, combined with the 2-bolt mounting, provides a secure and stable attachment to the equipment frame or foundation.
Installation involves aligning the bearing block with the shaft and securing it firmly using appropriate bolts and washers. The simplicity of this mounting style reduces installation time and labor costs, making it a highly practical choice for industrial machinery manufacturers and maintenance personnel. The "Mounting Surface to Shaft Center" dimension of 1.750 inches is also critical for designers, as it defines the height of the shaft centerline above the mounting plane, enabling precise layout and alignment with other components in the drive system.
Detailed Dimensional Specifications for Precision Integration
Understanding the full dimensional profile of the pillow block bearing is essential for mechanical designers and engineers. The provided specifications offer a comprehensive view:
- Overall Depth (1.50 inches): This dimension refers to the measurement from the front to the back of the pillow block housing, critical for ensuring adequate clearance in tight installations.
- Overall Height (2.25 inches): The vertical measurement from the base of the mounting surface to the highest point of the housing. This dimension directly influences the total vertical space required for the bearing assembly.
- Overall Width (4.63 inches): The horizontal measurement across the widest part of the housing, which is important for lateral spacing and ensuring no interference with adjacent components.
- Mounting Surface to Shaft Center (1.750 inches): As previously mentioned, this critical dimension dictates the shaft's elevation relative to the mounting platform, facilitating accurate alignment within the machine's framework.
These precise dimensions enable engineers to integrate the bearing seamlessly into existing designs or new equipment, ensuring proper fit, alignment, and operational efficiency without the need for extensive modifications.
Advanced Considerations and Comparative Advantages
Tribological Performance and Wear Mechanisms
The tribological system of a bronze plain bearing operating with a steel shaft involves complex interactions. Under ideal conditions with sufficient lubrication, the bearing operates in a hydrodynamic regime where the lubricant film completely separates the shaft and bearing surfaces. However, during start-up, shutdown, or under heavy loads, boundary lubrication can occur, where direct metal-to-metal contact is partially present. In such scenarios, the inherent properties of bronze, such as its ability to form a protective oxide layer and its relatively low hardness compared to steel, help to prevent galling and severe wear on the shaft.
Bronze alloys are specifically chosen for their balance of strength, ductility, and wear resistance. The composition of the bronze insert is optimized to provide a surface that is hard enough to resist abrasive wear but soft enough to allow for some embeddability of small particles, preventing them from scoring the shaft. The absence of a "Locking Type" implies that the shaft is free to rotate within the bearing bore, relying on external shaft collars or other retaining mechanisms if axial shaft movement needs to be restricted.
Environmental Robustness and Application Versatility
The galvanized carbon steel housing and bronze insert combine to create a bearing solution that is remarkably robust in challenging environments. Unlike some precision rolling element bearings that can be highly sensitive to ingress of contaminants, this bronze pillow block bearing is well-suited for dirty, dusty, or humid conditions. The bronze material's ability to tolerate minor particulate matter and its corrosion resistance, coupled with the galvanized housing, make it a reliable choice for outdoor equipment, agricultural machinery, and processing plants where cleanliness cannot always be strictly maintained.
The operational noise profile of plain bearings is generally lower than that of rolling element bearings, which can produce high-frequency noise due to the discrete rolling elements. This makes bronze plain bearings suitable for applications where noise reduction is a consideration.
Economic and Lifecycle Benefits
From an economic perspective, bronze plain bearings often offer a cost-effective solution, particularly for light to moderate duty applications. Their manufacturing process is typically less complex than that of high-precision rolling element bearings, contributing to lower unit costs. Furthermore, their inherent durability and ease of maintenance, particularly with the integrated greasing capability, translate into lower lifecycle costs. The ability to extend bearing life through simple and regular lubrication reduces the frequency of replacements and associated labor, enhancing the overall value proposition.
The universal adoption of the 1-inch shaft diameter also contributes to cost savings by allowing for standardization of shafts and associated components, streamlining inventory management and procurement processes for manufacturers and end-users alike.
Conclusion: A Reliable Solution for Industrial Support
The Buyers Products 1-Inch Shaft Diameter Bronze Pillow Block Bearing stands as a testament to effective mechanical design, material selection, and practical engineering. Its core features—a high-quality self-aligning bronze bearing insert, a robust galvanized carbon steel housing, and a convenient greasable design—collectively deliver a highly reliable, durable, and easily maintainable solution for a broad spectrum of light duty industrial applications. From its precision-engineered 1.000-inch bore to its standard 2-bolt mounting configuration and carefully considered dimensional specifications, every aspect of this bearing is tailored to ensure optimal performance, ease of integration, and long-term operational efficiency. This product embodies a commitment to quality and functionality, providing an essential component for dependable machinery and continuous productivity across various industrial sectors.
