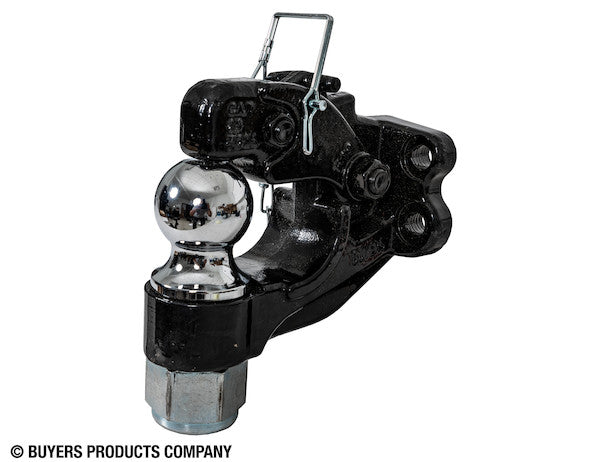

Haul it your way with the Buyers Products 15 Ton Bolt-On Combination Hitch. The patented design combines a ball hitch and a pintle hook into a single versatile piece of equipment. This makes it easy to pull loads up to 24,000 lb with either a coupler or drawbar/pintle ring without needing to change hitches. Ideal for tradesman, contractors, and haulers who tow a range of loads. Heavy duty forged steel construction features a corrosion resistant black powder-coated finish. A spring-loaded locking arm provides secure coupling. The unit includes a 2-5/16 in. chrome-plated ball, but it can accommodate other ball sizes as well. A drilling template is included.
Specifications
| Ball Diameter (in.) | 2-5/16 |
|---|---|
| Ball Finish | Chrome |
| Ball Material | Forged Steel |
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.0 |
| Finish | Powder-Coat |
| M.G.T.W. (lbs) | 30,000 |
| M.V.L. (lbs) | 4,000 |
| Material | Forged Steel |
| Pintle Hook Type | Standard |
The Buyers Products 15 Ton Combination Hitch, featuring a robust 2-5/16 Inch Ball, represents a pinnacle of towing equipment engineering, designed to address the multifaceted demands of professional hauling operations. This technical exposition delves into the core attributes, design principles, material science, and operational benefits that establish this hitch as a critical asset for diverse industrial and commercial applications. Its innovative design integrates two distinct coupling mechanisms—a ball hitch and a pintle hook—into a singular, high-capacity unit, thereby eliminating the need for frequent equipment changes and enhancing operational efficiency.
At its foundation, this combination hitch is engineered for formidable strength and reliability, evidenced by its Maximum Gross Trailer Weight (M.G.T.W.) rating of 30,000 lbs, correlating directly to the "15 Ton" designation. This substantial capacity ensures it is suitable for a broad spectrum of heavy-duty towing tasks, from transporting construction machinery and agricultural implements to managing commercial trailers with significant payloads. Complementing this is a Maximum Vertical Load (M.V.L.) rating of 4,000 lbs, which quantifies the maximum downward force that can be exerted on the hitch by the trailer's tongue. Maintaining the M.V.L. within specified limits is paramount for ensuring vehicle stability, optimal braking performance, and preventing undue stress on the towing vehicle's frame and suspension components, thereby contributing significantly to overall towing safety and vehicle longevity.
The structural integrity of the hitch is primarily derived from its heavy-duty forged steel construction. Forging, a manufacturing process involving the shaping of metal through localized compressive forces, reorients the metal's grain structure, resulting in superior strength, toughness, and fatigue resistance compared to cast or machined components. This enhanced material property is crucial for components subjected to dynamic loads, vibrations, and sudden impacts inherent in towing operations. Forged steel provides an intrinsic robustness that minimizes the risk of material failure under extreme stress, offering unparalleled durability and a prolonged service life even in the most rigorous environments. This choice of material underscores a commitment to engineering excellence and reliability, vital for professional-grade equipment where failure is not an option.
Surface protection is another critical engineering consideration, addressed by the corrosion-resistant black powder-coated finish. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto a grounded substrate. The charged powder adheres to the part and is then melted and fused into a smooth protective layer in a curing oven. This process yields a finish that is significantly more durable and resistant to chipping, scratching, fading, and chemical corrosion than conventional liquid paints. For a hitch exposed to harsh weather, road salt, abrasive debris, and various environmental contaminants, this powder-coat finish acts as a formidable barrier, maintaining the aesthetic and structural integrity of the forged steel components over years of service, thereby reducing maintenance requirements and extending the product's lifespan.
The versatility of this hitch stems from its dual functionality. The integrated ball hitch mechanism is equipped with a 2-5/16 inch chrome-plated forged steel ball. The 2-5/16 inch diameter is a widely recognized standard for heavy-duty Class IV and Class V trailer couplers, making this hitch immediately compatible with a vast array of commercial and industrial trailers. The ball itself is crafted from forged steel, mirroring the primary hitch body's material properties for consistent strength, and is chrome-plated. Chrome plating not only provides an aesthetically pleasing, polished finish but also offers a hard, wear-resistant surface that reduces friction during coupling and uncoupling, while also adding a layer of corrosion protection against moisture and environmental factors. The design also permits the accommodation of other ball sizes, providing an additional layer of adaptability for operators who might encounter trailers equipped with alternative coupler dimensions, ensuring the hitch remains a flexible solution across various fleet configurations.
Simultaneously, the integrated pintle hook mechanism caters to trailers equipped with drawbar eyes, commonly found on heavy-duty utility trailers, construction equipment, agricultural machinery, and military-grade applications. The standard pintle hook type is designed for robust and secure coupling. Its operational principle relies on a spring-loaded locking arm, an essential safety feature. This mechanism ensures that once the drawbar eye is seated within the hook, the arm automatically engages and is held firmly in place by spring tension, preventing accidental disengagement during transit, especially over uneven terrain or during sudden maneuvers. The compatibility range for drawbar eye inner diameters, specified between 2.38 and 3.0 inches, covers the most common sizes for heavy-duty pintle-style connections, guaranteeing broad interoperability. The secure engagement provided by the pintle hook minimizes play between the towing vehicle and the trailer, resulting in a more stable tow and reduced wear on the coupling components over time.
Installation of the Buyers Products 15 Ton Combination Hitch is streamlined via its bolt-on design, accompanied by an included drilling template. The bolt-on methodology offers a secure and robust attachment to the towing vehicle's frame or hitch plate, ensuring that the substantial towing forces are effectively distributed and transmitted. The provision of a drilling template is a critical inclusion, simplifying the installation process by guiding precise hole placement. This minimizes the potential for error, ensures proper alignment, and facilitates a professional-grade attachment, which is paramount for safety and optimal performance. While specific fasteners are typically purchased separately based on the vehicle's frame thickness and material, the bolt-on interface is designed to accommodate industry-standard high-strength bolts (e.g., Grade 8 or equivalent) capable of withstanding the specified M.G.T.W. and M.V.L. requirements. Proper torque application for these bolts, following manufacturer guidelines, is essential to achieve the desired clamping force and prevent loosening under dynamic loads.
The professional application of this hitch spans numerous sectors. In construction, it facilitates the towing of dump trailers, equipment trailers carrying mini excavators or skid steers, and material hauling trailers. For agricultural operations, it can connect tractors to various implements, fertilizer spreaders, or grain wagons. Utility companies benefit from its ability to tow reel trailers, generator trailers, or service vehicles carrying specialized equipment. Municipal fleets can employ it for debris removal, road maintenance equipment, or emergency response vehicles. The inherent versatility means that a single vehicle equipped with this hitch can perform multiple towing tasks throughout a workday or across different projects, dramatically improving fleet utilization and reducing the capital expenditure associated with maintaining multiple dedicated towing vehicles or an inventory of single-function hitches.
Beyond operational flexibility, the Buyers Products 15 Ton Combination Hitch offers significant economic and logistical advantages. By integrating two critical towing functions into one robust unit, businesses can streamline their equipment inventory. Instead of purchasing, storing, and maintaining separate ball hitches and pintle hooks, a single combination unit serves both purposes. This reduction in complexity translates into lower procurement costs, minimized storage space requirements, and simplified maintenance protocols. Furthermore, the time saved by operators no longer needing to swap out hitches between different trailer types directly contributes to increased productivity and reduced labor costs. In a demanding operational environment, every minute saved on equipment preparation can translate into substantial financial benefits.
Safety remains a paramount concern in all towing operations, and the design of this combination hitch integrates features that contribute to enhanced safety profiles. The robust forged steel construction, combined with the secure spring-loaded locking arm for the pintle function and the durable chrome-plated ball, ensures reliable coupling under varying conditions. However, the user's adherence to safe towing practices is equally critical. This includes regularly inspecting the hitch for wear, damage, or loose fasteners, ensuring the trailer's Gross Trailer Weight (GTW) and Tongue Weight (TW) remain within the specified M.G.T.W. and M.V.L. limits of the hitch and the towing vehicle, and properly distributing the load on the trailer. Regular maintenance, such as cleaning and lubricating moving parts, checking for corrosion, and verifying bolt torque, will preserve the hitch’s mechanical integrity and ensure its long-term reliability. Compliance with local and federal towing regulations is also imperative, as is understanding the towing vehicle's specific capacities and limitations.
In conclusion, the Buyers Products 15 Ton Combination Hitch with its 2-5/16 Inch Ball is engineered to meet the highest standards of performance, durability, and versatility required by professional tow operators. Its design embodies a thoughtful fusion of robust materials, precision manufacturing, and practical functionality. The heavy-duty forged steel construction, coupled with a resilient powder-coated finish, guarantees exceptional longevity and resistance to environmental degradation. The patented combination design, offering both ball and pintle hook capabilities, provides unparalleled flexibility, allowing seamless transitions between diverse trailer types without the need for equipment changes. With a substantial M.G.T.W. of 30,000 lbs and an M.V.L. of 4,000 lbs, this hitch is certified for rigorous applications. Its easy bolt-on installation, aided by a drilling template, further enhances its value proposition. For professionals in construction, agriculture, utilities, and various commercial sectors who demand efficiency, reliability, and adaptability from their towing equipment, this combination hitch stands as an indispensable tool, optimized for superior operational outcomes and long-term return on investment. It represents not merely a component, but a strategic investment in robust, adaptable, and safe towing capability for the most demanding tasks.
