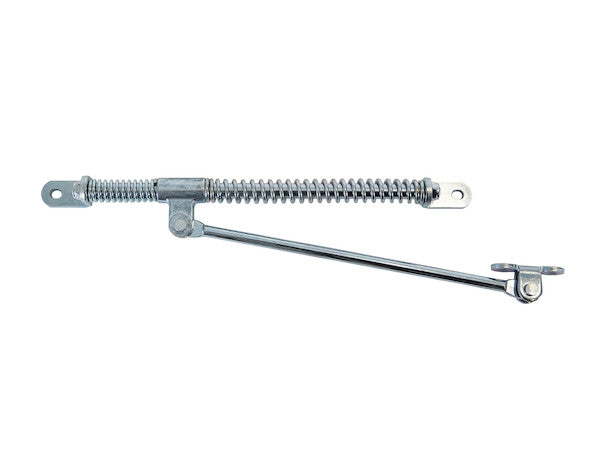

BH2395AA11 - Door Check and Hold Back with 11 Inch Arm/13 Inch Slide Rod/50 Pound Spring

Buyers Products Door Check and Hold Back operates on doors with vertical or horizontal hinges for maximum versatility. The spring-assisted slide passes over the center of the check to hold the door open at 90??. It releases automatically and closes door with a slight push. Parts are cadmium-plated for corrosion protection and are available with either 30 lb or 50 lb pressure springs.

Specifications

The Buyers Products Door Check and Hold Back with an 11-inch arm, 13-inch slide rod, and 50-pound spring represents a robust and precisely engineered solution for controlled door management across a diverse range of applications. This critical component is designed to enhance both safety and operational efficiency by preventing uncontrolled door swings and ensuring doors remain securely open when required, while also facilitating a smooth, controlled closure.

At its core, this device functions as a dual-purpose mechanism: a door check and a hold back. As a door check, it regulates the speed and extent of door opening, mitigating the risk of impact damage to the door, its hinges, or adjacent structures. As a hold back, it firmly retains the door in an open position, typically at a 90-degree angle, allowing unimpeded access and operation. The innovative spring-assisted slide mechanism is central to its functionality. Upon opening the door to the designated 90-degree threshold, the slide component traverses past a pivotal center point, engaging a spring-loaded detent that locks the door in the open position. This mechanical lock provides a reliable hold, preventing the door from inadvertently swinging shut due to wind, vehicle movement, or slight inclines. To release the door, a slight manual push is all that is required, disengaging the spring mechanism and allowing the door to return to its closed position with a controlled trajectory. This semi-automatic release significantly improves user convenience and operational fluidity, eliminating the need for manual latches or prop rods.

The dimensional specifications of this Door Check and Hold Back are critical to its performance envelope. The 11.00-inch arm length provides a substantial moment arm, which is essential for effectively controlling larger or heavier doors. A longer arm allows for greater mechanical advantage, distributing the forces more efficiently across the door and its mounting points. This specific length is meticulously calibrated to ensure optimal leverage without imposing excessive stress on the door structure or the check mechanism itself. Complementing the arm is the 13.00-inch slide rod length. This extended rod length ensures a comprehensive range of motion and engagement, facilitating a stable and secure hold at the 90-degree open position. The interplay between the arm and the slide rod dictates the travel and operational arc of the door, ensuring smooth articulation and reliable engagement of the hold-back feature. The design carefully balances the need for a wide opening angle with the structural integrity and operational precision of the mechanism.

Further elaborating on the physical dimensions, the extended length of 6.84 inches signifies the overall dimension of the unit when the door is fully open and the check is engaged. Conversely, the retracted length of 3.55 inches indicates its compact footprint when the door is closed. These precise measurements are vital for installers, allowing for accurate pre-planning of mounting locations to ensure proper clearance and functionality within specific door frame geometries. The relatively compact retracted length ensures that the door check does not protrude excessively or interfere with the door's closed seal, maintaining aesthetic and functional integrity.

A paramount feature of this particular model is its 50-pound spring strength. This rating indicates the force exerted by the internal spring, directly correlating to the device's capacity to firmly hold open and effectively check the motion of heavier doors or doors subjected to significant external forces, such as strong winds or vibrations from mobile applications. While 30 lb options exist for lighter-duty applications, the 50 lb spring is engineered for more demanding environments, offering enhanced resistance to accidental closure and a more decisive hold. This higher spring force ensures that doors on commercial vehicles, industrial enclosures, or utility bodies remain steadfastly open, even when operating on uneven terrain or in adverse weather conditions. The spring itself is typically constructed from high-tensile spring steel, selected for its excellent fatigue resistance and ability to maintain its calibrated force over countless cycles of operation. The consistent pressure provided by the spring is integral to both the smooth checking action and the reliable hold-back function, contributing to the overall longevity and dependability of the unit.

Material selection and protective finishes are critical for durability, particularly in components exposed to environmental elements. This door check and hold back is fabricated from robust carbon steel, a material renowned for its high tensile strength, excellent ductility, and ability to withstand significant mechanical stress. Carbon steel provides the necessary structural rigidity and resilience for demanding applications where impact resistance and wear are concerns. To combat the pervasive threat of corrosion, the component undergoes a meticulous zinc plating process. Zinc plating, often referred to as galvanization when applied in a hot-dip process, forms a sacrificial barrier on the surface of the carbon steel. In the presence of moisture and oxygen, zinc corrodes preferentially to steel, protecting the underlying substrate from rust and degradation. This electroplated coating provides a durable, adherent layer that resists chipping and flaking, ensuring long-term aesthetic and functional integrity. The "Zinc Plated" finish, as specified, offers superior corrosion resistance compared to untreated steel, making the product suitable for outdoor use, marine environments, and applications where exposure to moisture, road salts, or chemical agents is probable. While the initial description mentions "cadmium-plated," the specification table clarifies "Zinc Plated," which is a widely adopted and environmentally preferred corrosion protection method offering excellent performance characteristics in line with industrial expectations.

The versatility of this door check and hold back is further underscored by its compatibility with both vertical and horizontal hinges. This design flexibility is a significant advantage, as it broadens the scope of applications considerably. Whether a door is top-hinged, side-hinged, or even bottom-hinged in certain specialized contexts, this unit can be reliably integrated. This adaptability is particularly valuable in custom fabrication scenarios or for aftermarket installations on equipment with non-standard door configurations, eliminating the need for application-specific hardware and streamlining inventory management for fleet operators and manufacturers. The ability to function effectively regardless of hinge orientation speaks to a well-considered engineering design that accommodates various kinematic constraints of door movement.

The term "Style: Door Check/Hold Back" precisely defines its combined functionality. It is not merely a damper nor solely a latch. It is a comprehensive door management system in a single compact unit. This integrated approach simplifies installation and reduces the overall component count for door assemblies, contributing to greater reliability and lower potential points of failure compared to separate checking and holding mechanisms.

While the product specifications indicate "Keeper Included (y/n): No," this detail is a deliberate design choice that offers flexibility to the installer. A keeper, which is the component that the arm or slide rod engages to create the hold-back function, is often highly specific to the door frame or body structure it is being mounted to. By not including a universal keeper, the manufacturer allows the end-user or fabricator to select or custom-design a keeper that perfectly integrates with their specific application, ensuring optimal alignment, secure engagement, and aesthetic congruence. This approach prevents potential incompatibility issues that might arise from a one-size-fits-all keeper, ultimately leading to a more robust and tailored installation.

The applications for such a robust door check and hold back are extensive and critical across numerous industries. In the commercial vehicle sector, these units are indispensable for utility trucks, service vans, emergency vehicles, and fleet trailers, where cabinet doors, compartment doors, and access panels must remain open for safe and efficient operation during loading, unloading, or maintenance activities. The 50 lb spring strength is particularly beneficial in these environments, preventing doors from swinging shut unexpectedly and potentially injuring personnel or damaging equipment. Industrial enclosures, such as those found on machinery, electrical cabinets, or access points to controlled environments, also benefit immensely. The hold-back function ensures service technicians can safely access internal components without having to manually prop open a heavy or awkward door. In marine applications, where constant motion and exposure to corrosive elements are factors, the zinc-plated carbon steel construction and strong spring provide reliable performance and extended service life for hatch covers, locker doors, and equipment access panels.

Beyond these, specialized equipment in construction, agriculture, and mining often feature heavy-duty access doors that require absolute control. The inherent safety implications of an uncontrolled door swing in these high-risk environments underscore the value of a dependable door check and hold back. Furthermore, its application extends to recreational vehicles (RVs) and campers, where compartment doors and storage hatches need to be secured open for convenience during travel setup and use.

Installation considerations for this unit involve standard mounting procedures for mechanical hardware. Proper alignment between the arm, slide rod, and the custom-selected keeper is paramount to ensure smooth operation and the reliable engagement and disengagement of the hold-back feature. The mounting surfaces must be structurally sound to support the forces exerted by the door and the check mechanism, particularly with heavier doors or those subject to dynamic loads. Using appropriate fasteners and reinforcing mounting areas, if necessary, will ensure the long-term integrity of the installation.

The engineering behind this Buyers Products Door Check and Hold Back emphasizes longevity and minimal maintenance. The robust carbon steel components, coupled with the durable zinc plating, are designed for years of reliable service even in challenging conditions. The internal spring mechanism is self-contained and requires no routine lubrication or adjustment under normal operating conditions. Regular visual inspections for wear or damage, particularly in high-cycle applications, are recommended to ensure optimal performance and preempt any potential issues. However, the inherent simplicity and strength of the design contribute to its exceptional reliability.

In summary, the Buyers Products Door Check and Hold Back with its 11-inch arm, 13-inch slide rod, and 50-pound spring is a meticulously engineered component that delivers superior door control and retention. Its dual functionality as a door check and a hold back, combined with its versatile hinge compatibility, robust carbon steel construction, and protective zinc plating, makes it an ideal solution for a vast array of demanding applications. The powerful 50-pound spring ensures steadfast performance for heavier doors, while the precise dimensional specifications guarantee smooth operation and reliable engagement. This product is not merely a piece of hardware; it is a critical safety and efficiency enhancement, designed to provide consistent, controlled, and dependable door management in the most challenging environments.
