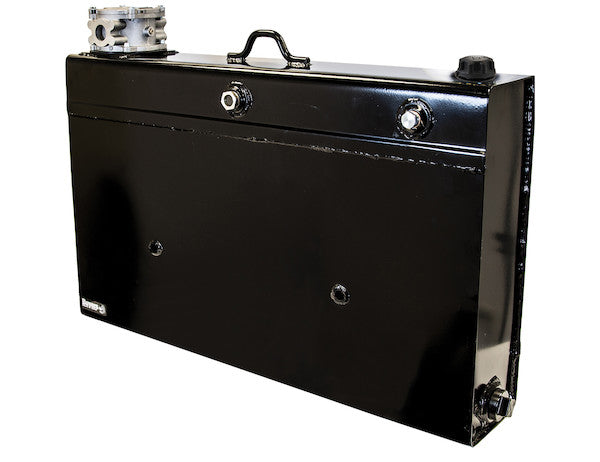

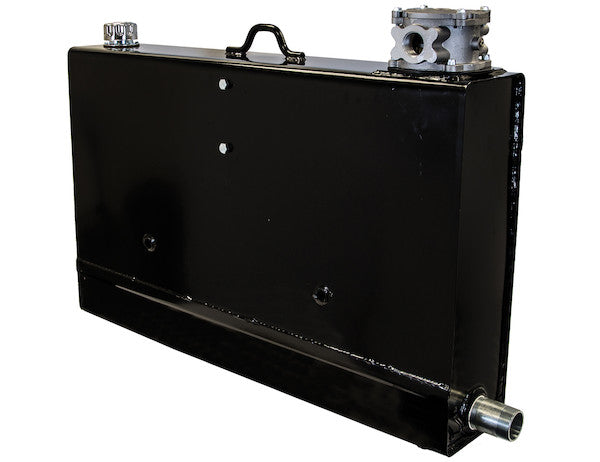

BH36SF10 - 36 Gallon Steel Bulkhead Hydraulic Reservoir With 10 Micron Filter

The 36 gal Steel Bulkhead Reservoir from Buyers Products features tough, durable 12 Ga steel construction and is designed to keep fluid cool and contaminant-free. The reservoir's black powder-coated finish resists rust and corrosion caused by the elements. It is ideal for placement at the back of a service body truck bed. The reservoir features multiple ways to reduce fluid contaminants. Choose either a 10 micron or 25 micron return line filter, depending on your filtering needs and fluid flow rate. A 150 micron stainless steel strainer and a nylon filler strainer-breather cap with a 30 mesh strainer also work to keep fluids pure. The reservoir also includes a built-in sight gauge for oil level, as well as ports for an optional sight/temperature gauge. Mounting hardware not included.

Specifications

Optimizing Hydraulic System Performance: An In-Depth Examination of the 36 Gallon Steel Bulkhead Hydraulic Reservoir with 10 Micron Filter

The hydraulic reservoir serves as the cornerstone of any high-performance hydraulic system, fulfilling critical functions beyond mere fluid storage. It is instrumental in heat dissipation, fluid conditioning, and the separation of air and contaminants, all of which are paramount to the longevity and operational efficiency of hydraulic components. The 36 Gallon Steel Bulkhead Hydraulic Reservoir, engineered by Buyers Products, exemplifies a robust solution designed to meet the rigorous demands of mobile and industrial hydraulic applications. This detailed technical description delves into the multifaceted design and performance attributes that position this reservoir as an indispensable asset for maintaining optimal hydraulic system health.

Structural Integrity and Material Science: The Foundation of Durability

The integrity of a hydraulic reservoir begins with its construction material. This unit is fabricated from 12 gauge (12 Ga) carbon steel, a material chosen for its exceptional strength-to-weight ratio and inherent resistance to the operational stresses encountered in dynamic environments. 12 gauge steel, typically measuring approximately 0.1084 inches (2.75 mm) in thickness, provides substantial structural rigidity, effectively mitigating deformation under fluid pressure, external impacts, and sustained vibration – common challenges in mobile applications such as service body trucks. This robust construction ensures the reservoir maintains its structural form and integrity throughout its service life, safeguarding the hydraulic fluid and internal components.

Complementing the robust carbon steel construction is a premium black powder-coated finish. Powder coating is a highly durable and environmentally friendly finishing process that delivers superior protection against external aggressors. Unlike conventional liquid paints, powder coating forms a thick, uniform layer that is exceptionally resistant to chipping, scratching, fading, and the corrosive effects of environmental elements, including moisture, road salts, chemicals, and UV radiation. The black color also contributes to the reservoir's thermal management capabilities, as discussed further below, by enhancing radiative heat transfer. This synergistic combination of heavy-gauge carbon steel and a professional powder-coat finish ensures prolonged aesthetic appeal and, more critically, an extended operational lifespan in harsh conditions, thereby reducing maintenance requirements and total cost of ownership.

Optimal Fluid Capacity and Management

With a total volumetric capacity of 36 gallons, this reservoir is meticulously designed to support a broad spectrum of hydraulic systems, particularly those with demanding flow rates and thermal load requirements. The specification for a 32-gallon usable capacity is a crucial design parameter. In hydraulic system design, it is standard practice to maintain a certain air gap above the fluid level to facilitate de-aeration, prevent fluid cavitation at the pump inlet, and accommodate thermal expansion of the hydraulic fluid. This 4-gallon differential (approximately 11% of total capacity) provides ample headspace, ensuring efficient de-aeration and preventing fluid overflow under extreme operating conditions. Proper sizing of the reservoir, considering both total and usable capacity, is vital for ensuring adequate fluid residence time for cooling and contaminant settlement, preventing fluid starvation, and supporting system expansion.

Advanced Contaminant Control: A Multi-Stage Filtration Strategy

The efficacy and longevity of any hydraulic system are directly proportional to the cleanliness of its working fluid. Contamination, whether particulate, water, or air, is the primary cause of hydraulic component wear and system failures. This 36 Gallon Steel Bulkhead Hydraulic Reservoir integrates a sophisticated, multi-stage filtration and conditioning system to proactively manage fluid purity, significantly extending the operational life of pumps, valves, cylinders, and other critical components. The inclusion of a 10-micron return line filter, a 150-micron suction strainer, and a 30-mesh filler-breather cap represents a comprehensive approach to fluid contaminant management.

1. High-Efficiency Return Line Filtration (10 Micron)

The centerpiece of the fluid conditioning system is the integral return line filter, supplied with a 10-micron rating. Micron rating specifies the size of the smallest particle that the filter element can capture. A 10-micron filter is considered high-efficiency for many mobile and industrial applications, effectively removing fine particulate matter that can cause abrasive wear in precision hydraulic components. This return line filter operates on the principle of continuous filtration, processing all fluid returning from the hydraulic circuit before it re-enters the main reservoir fluid body. The filter head is constructed from durable aluminum, providing a robust housing for the filter element. With a flow rating of 50 gallons per minute (GPM), this filter is capable of handling the return flow from many medium to large-scale hydraulic systems without imposing excessive back pressure, which could otherwise lead to system inefficiencies or component damage.

The importance of a fine return line filter like the 10-micron option cannot be overstated. A substantial portion of contamination in a hydraulic system is generated internally through the normal wear of components, which produces metallic debris. External contaminants also enter the system through cylinder rod seals, worn breathers, and during fluid top-offs. By capturing these particles before they can recirculate, the 10-micron filter safeguards the entire hydraulic loop, preventing a cascading effect of wear and tear. While an alternative 25-micron option is mentioned for different filtering needs and flow rates, the 10-micron variant offers a superior level of protection for systems where extended component life and peak performance are critical.

2. Primary Pump Protection: 150 Micron Stainless Steel Suction Strainer

Immediately upstream of the hydraulic pump, a 150-micron stainless steel suction strainer is strategically placed. The primary function of this strainer is to provide coarse filtration, protecting the hydraulic pump from larger contaminants that could cause catastrophic damage, such as abrasive wear or seizure. While the return line filter handles fine particles, the suction strainer acts as the first line of defense, preventing debris that might be present in the reservoir from being drawn directly into the pump's sensitive internal mechanisms. The use of stainless steel for the strainer material ensures robust construction, resistance to corrosion, and compatibility with a wide range of hydraulic fluids, thereby guaranteeing reliable, long-term performance.

3. Atmospheric Contamination Prevention: Nylon Filler Strainer-Breather Cap with 30 Mesh

The reservoir is equipped with a nylon filler strainer-breather cap featuring a 30-mesh strainer. This component serves a dual critical purpose. Firstly, as a filler cap, it provides a secure access point for replenishing hydraulic fluid, and the integrated 30-mesh strainer (approximately 595 microns) ensures that any particles introduced during top-off are immediately captured, preventing external contamination from entering the clean fluid. Secondly, as a breather, it allows air to enter and exit the reservoir as the fluid level fluctuates during system operation (e.g., cylinder extension and retraction). Without a breather, changes in fluid volume would create a vacuum or positive pressure, potentially damaging the reservoir or impeding fluid flow. The 30-mesh rating on the breather element filters airborne particulates, such as dust and dirt, preventing them from contaminating the hydraulic fluid. The nylon construction offers excellent resistance to hydraulic fluids and environmental factors, ensuring longevity and consistent performance.

4. Proactive Maintenance: Magnetic Drain Plug

A magnetic drain plug is an often-underestimated but highly valuable feature in hydraulic reservoirs. This integral component is designed to attract and capture ferrous metallic particles that accumulate in the hydraulic fluid due as wear debris from pumps, motors, and other steel components. By magnetically holding these particles, the drain plug prevents their recirculation through the system, thereby reducing abrasive wear on moving parts. During routine fluid changes or inspections, the magnetic drain plug can be easily removed and cleaned, providing a simple yet effective method of both contamination removal and a diagnostic indicator of internal system wear. The presence of significant ferrous debris on the magnet can signal a need for closer inspection of system components, enabling proactive maintenance and preventing more severe failures.

Thermal Management Capabilities

Effective heat dissipation is another critical function of the hydraulic reservoir. Hydraulic systems inherently generate heat due to friction, fluid shear, and inefficiencies in pumps and valves. Elevated fluid temperatures accelerate the degradation of hydraulic fluid, leading to reduced viscosity, oxidation, and the formation of harmful acids and sludge, which in turn can damage seals and internal components. The large surface area of the 36-gallon steel reservoir, combined with its black powder-coated finish, is conducive to efficient heat transfer to the ambient environment. Steel, being a good conductor, facilitates the transfer of heat from the fluid to the tank walls, while the black finish enhances radiant heat dissipation. This design attribute helps maintain the hydraulic fluid within its optimal operating temperature range, prolonging fluid life, preserving seal integrity, and ensuring consistent system performance.

Comprehensive Fluid Level and Condition Monitoring

Accurate and readily accessible fluid monitoring is essential for proactive maintenance and operational safety. This reservoir incorporates several features to facilitate this crucial aspect of system management.

• Integral Sight Gauge: A built-in sight gauge provides a clear, visual indication of the hydraulic fluid level. This allows operators to quickly assess the fluid volume, ensuring it remains within recommended operational limits. Maintaining the correct fluid level is paramount to prevent pump cavitation (due to low levels) or fluid overflow and aeration (due to overfilling).
• Ports for Optional Sight/Temperature Gauge: Beyond the integral level gauge, the reservoir is equipped with dedicated ports for the installation of an optional sight/temperature gauge. This provision enables sophisticated monitoring, allowing operators to simultaneously observe both the fluid level and its temperature. Real-time temperature monitoring is particularly valuable for diagnosing potential system overheating issues, assessing the efficiency of the cooling system, and ensuring that the hydraulic fluid operates within its specified temperature envelope. The ability to easily add this monitoring capability provides flexibility for users who require more granular control and diagnostic information, contributing to enhanced system reliability and predictive maintenance strategies.

Versatile Port Configuration and Connectivity

The design of the reservoir's porting is crucial for seamless integration into diverse hydraulic circuits. This unit features thoughtfully placed and sized ports to accommodate various system requirements.

• Suction Port: A prominent 2 NPTF (National Pipe Taper Fuel) suction port is provided for connecting the main hydraulic pump. The 2-inch diameter ensures unrestricted fluid flow to the pump, minimizing pressure drop and preventing cavitation, especially during high-demand operations. NPTF threads are a common standard, ensuring compatibility with a wide array of hydraulic fittings and components.
• Additional Port Size (2 NPTF): The inclusion of an additional 2 NPTF port offers significant versatility for system designers. This port can be utilized for various purposes, such as an auxiliary return line for a secondary circuit, a dedicated drain port, a connection point for a fluid conditioning unit, or for pressure line connections in certain configurations. Its generous sizing maintains optimal flow characteristics for secondary connections, preventing bottlenecks and ensuring efficient system operation.
• Filter Ports: The specification confirms the presence of one dedicated filter port, indicative of the integral return line filter discussed previously. This dedicated port ensures proper positioning and secure connection of the filtration unit within the reservoir's fluid path.

Strategic Mounting and Installation

The designation as a "Bulkhead" reservoir implies a design optimized for through-wall or flush mounting, often into the structure of a vehicle body or equipment frame. This configuration offers several advantages: it allows for a cleaner installation with hoses routed efficiently, protects connections from external damage, and can contribute to better weight distribution in mobile applications. The upright mount position and style further underscore its suitability for integration into vehicle beds, such as the back of a service body truck, maximizing available space and ensuring ergonomic access for maintenance.

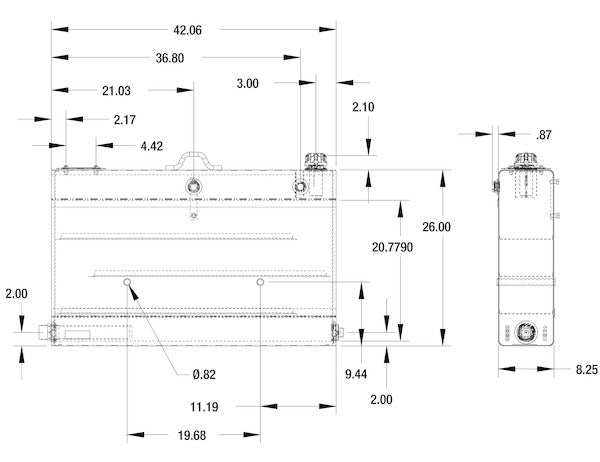

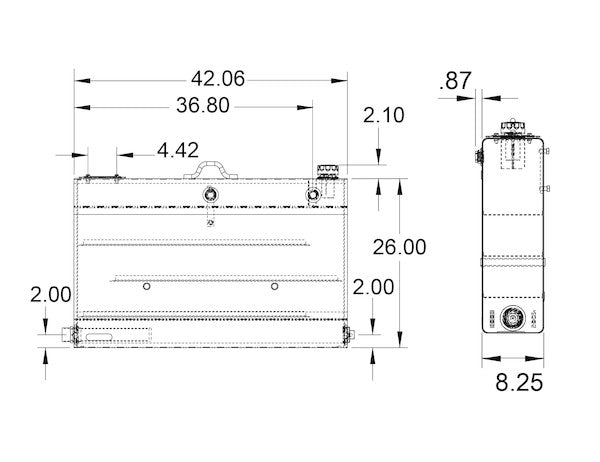

Precise mounting dimensions are provided for accurate integration:

• Mounting Hole Diameter: 0.824 inches (approximately 21 mm)
• Mounting Holes - Center to Bottom of Tank: 9.44 inches
• Mounting Holes - Center to Center: 19.68 inches

These specifications enable installers to prepare mounting surfaces with precision, ensuring a secure and stable attachment. It is important to note that mounting hardware and brackets are not included, providing flexibility for installers to select fastening solutions that best suit their specific application and structural requirements. While integral brackets are not present, this allows for custom bracket fabrication or selection of universal mounting kits, adapting the reservoir to a wider range of vehicles and equipment.

Considerations for System Integration and Component Selection

The design philosophy of this reservoir emphasizes core functionality and robust construction while allowing for customization of ancillary components. The absence of an included diffuser implies that system designers should consider the implications for fluid turbulence and aeration if the return line flow rate is particularly high or if fluid residence time is critically short. However, the multi-stage filtration system significantly aids in de-aeration by providing quiescent zones and extended flow paths within the filter assembly. Similarly, the lack of an included valve or integral brackets ensures that system integrators can select these components based on their specific application needs, fluid compatibility, and operational pressures, rather than being constrained by pre-selected options. This flexibility is a significant advantage for engineers designing bespoke hydraulic systems.

Conclusion: A Robust Solution for Demanding Hydraulic Applications

The 36 Gallon Steel Bulkhead Hydraulic Reservoir with its 10-micron filtration system is engineered to deliver reliable and sustained performance in challenging operational environments. Its heavy-duty 12 gauge carbon steel construction, protected by a resilient powder-coat finish, ensures long-term durability and corrosion resistance. The integrated multi-stage fluid conditioning system, featuring a fine 10-micron return line filter, a robust 150-micron suction strainer, a high-quality breather, and a magnetic drain plug, actively safeguards hydraulic fluid purity, thereby extending component life and reducing costly downtime. Thoughtful features such as the integral sight gauge and provisions for an optional temperature gauge facilitate critical fluid monitoring. With its versatile porting and robust mounting characteristics, this reservoir provides a comprehensive, high-quality foundation for diverse mobile and industrial hydraulic systems, ultimately contributing to enhanced operational efficiency, reduced maintenance intervals, and a lower total cost of ownership over the lifespan of the equipment.
