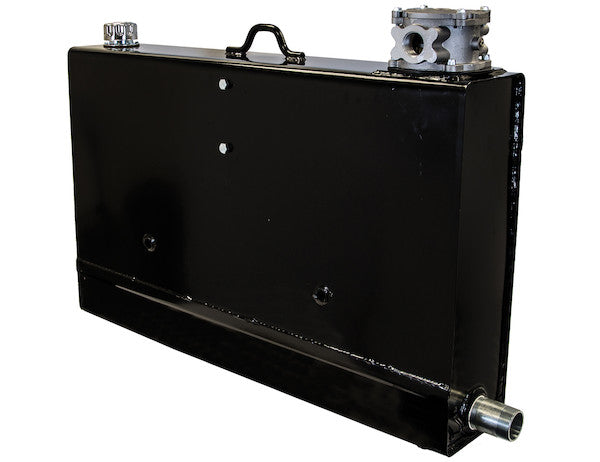

BH36SF25 - 36 Gallon Steel Bulkhead Hydraulic Reservoir With 25 Micron Filter

The 36 gal Steel Bulkhead Reservoir from Buyers Products features tough, durable 12 Ga steel construction and is designed to keep fluid cool and contaminant-free. The reservoir's black powder-coated finish resists rust and corrosion caused by the elements. It is ideal for placement at the back of a service body truck bed. The reservoir features multiple ways to reduce fluid contaminants. Choose either a 10 micron or 25 micron return line filter, depending on your filtering needs and fluid flow rate. A 150 micron stainless steel strainer and a nylon filler strainer-breather cap with a 30 mesh strainer also work to keep fluids pure. The reservoir also includes a built-in sight gauge for oil level, as well as ports for an optional sight/temperature gauge. Mounting hardware not included.

Specifications

Advanced Technical Overview: 36 Gallon Steel Bulkhead Hydraulic Reservoir with Integrated 25 Micron Filtration

The 36 Gallon Steel Bulkhead Hydraulic Reservoir is engineered as a robust and indispensable component for a wide array of hydraulic systems, particularly those operating in demanding mobile and industrial environments. This unit, distinguished by its 12-gauge carbon steel construction, is designed to not only store hydraulic fluid efficiently but also to actively maintain its purity and thermal stability, which are critical factors for extending the operational lifespan and ensuring the peak performance of hydraulic machinery. The implementation of a bulkhead design significantly streamlines system integration, providing a more organized and protected connection point for hydraulic lines.

Structural Integrity and Environmental Resistance

The foundation of this hydraulic reservoir’s reliability lies in its material composition and manufacturing precision. Constructed from high-strength 12-gauge (approximately 0.1084 inches or 2.75mm thick) carbon steel, the tank offers exceptional mechanical strength and resistance to physical impact, vibration, and static loads commonly encountered in heavy-duty applications. This gauge thickness is carefully selected to provide an optimal balance between structural rigidity and manageability, ensuring the reservoir can withstand the rigors of continuous operation without compromising its integrity.

Further enhancing its durability, the entire steel structure is meticulously treated with a black powder-coated finish. This advanced coating technique provides a superior protective barrier compared to conventional liquid paints. The powder-coat adheres electrostatically, then cures under heat to form a hard, resilient layer that is highly resistant to abrasion, chipping, and fading. Critically, it offers formidable protection against corrosion and rust, which are pervasive threats in outdoor or chemically exposed environments. This weather-resistant finish ensures the reservoir maintains its aesthetic and structural integrity, even when exposed to harsh elements such such as moisture, road salts, UV radiation, and temperature extremes, thereby safeguarding the hydraulic fluid and extending the reservoir's service life.

The rectangular form factor of the reservoir, coupled with its upright mount style, facilitates efficient space utilization, making it particularly well-suited for integration into the confined spaces often found on the back of service body truck beds or within the chassis of various industrial equipment. The dimensions – 42.00 inches in depth, 26 inches in height, and 8.50 inches in width – are carefully calibrated for optimal volumetric efficiency (36 gallons total, 32 gallons usable capacity) while allowing for appropriate heat dissipation and fluid de-aeration zones within the tank.

Advanced Fluid Management and Contamination Control System

The integrity of a hydraulic system is directly proportional to the cleanliness and condition of its working fluid. This 36-gallon reservoir is equipped with a sophisticated multi-stage filtration system designed to minimize fluid contamination and mitigate the common issues associated with particle ingress and thermal degradation.

Primary Filtration: The 25 Micron Return Line Filter

At the heart of the contamination control strategy is the integrated 25-micron return line filter. This critical component is positioned to process hydraulic fluid as it returns from the system's actuators and motors before re-entering the main reservoir circulation. A 25-micron rating signifies that the filter is designed to capture solid particles equal to or larger than 25 micrometers (µm) in size. To provide context, the average human hair is approximately 70 micrometers thick. This level of filtration is effective in removing wear particles generated by pumps, valves, and cylinders, as well as environmental dust and debris that may enter the system. By continuously removing these contaminants, the filter prevents them from recirculating and causing abrasive wear on precision hydraulic components, thereby extending the lifespan of pumps, valves, and cylinders, and reducing costly downtime for repairs and maintenance. The filter head, fabricated from robust aluminum, ensures a durable and corrosion-resistant housing for the filter element, capable of withstanding typical system pressures and environmental conditions. With a return line filter flow rating of 50 GPM, this system is capable of efficiently handling the return flow of many medium to large hydraulic power units.

The option to choose between a 10-micron or 25-micron return line filter provides operational flexibility, allowing users to tailor filtration precision to specific application requirements and fluid flow rates. While the standard configuration includes a 25-micron filter, the availability of a 10-micron option signifies a capability for finer filtration, which may be desirable in highly sensitive systems or those operating in extremely clean environments. Finer filtration generally leads to even greater protection against abrasive wear, though it might entail more frequent filter element replacement depending on the system's contamination levels and flow characteristics.

Pre-filtration and Contaminant Exclusion

Beyond the primary return line filter, the reservoir incorporates additional mechanisms for comprehensive fluid cleanliness:

1. 150 Micron Stainless Steel Suction Strainer: Positioned on the suction line, this coarser strainer acts as a preliminary defense against larger particulate matter. By capturing larger debris, such as manufacturing residue, gasket fragments, or significant environmental contaminants, the 150-micron stainless steel strainer protects the main pump from catastrophic damage caused by cavitation or the ingestion of large particles. Its stainless steel construction ensures durability and resistance to corrosion, even when submerged in hydraulic fluid.
2. Nylon Filler Strainer-Breather Cap with 30 Mesh Strainer: The reservoir’s filler cap is not merely a sealing mechanism but an integral part of the contamination control strategy. It incorporates a dual function:
   • Filler Strainer (30 Mesh): This mesh provides a final barrier against contaminants entering the reservoir during fluid replenishment. A 30-mesh screen is designed to prevent the introduction of larger debris (particles larger than approximately 595 microns) that could inadvertently be present in refilling containers or transfer equipment.
   • Breather Cap: As hydraulic fluid levels fluctuate during system operation (due to cylinder extension/retraction and thermal expansion/contraction), air must enter and exit the reservoir. The breather cap allows for this necessary air exchange while simultaneously filtering airborne particles, preventing atmospheric dust and moisture from contaminating the hydraulic fluid. This design is crucial in maintaining a closed, clean environment within the reservoir.

Thermal Management

Maintaining optimal fluid temperature is as crucial as maintaining fluid cleanliness. Excessively high temperatures can degrade hydraulic fluid, leading to reduced viscosity, oxidation, seal degradation, and accelerated wear of components. While a dedicated diffuser is not included (as per specifications), the thoughtful design of the 36-gallon steel tank contributes significantly to passive heat dissipation. The large surface area of the steel tank, especially when exposed to ambient air, facilitates convective cooling. The black powder-coat finish, while primarily for corrosion protection, also contributes to heat radiation. Proper reservoir sizing, which this 36-gallon unit provides for many applications, allows for sufficient residence time for the fluid, enabling some heat to dissipate before recirculation. The depth of 42 inches in conjunction with its height and width contributes to this surface area and volume balance for effective thermal transfer.

Operational Monitoring and Maintenance Features

Effective hydraulic system management requires continuous monitoring and ease of maintenance. This reservoir is equipped with features that support these critical aspects:

1. Integral Sight Gauge for Oil Level: A built-in sight gauge provides operators with a direct, visual indication of the hydraulic fluid level within the reservoir. This allows for quick and accurate assessment, facilitating timely top-offs and preventing damage from low fluid conditions (e.g., pump cavitation). The inclusion of this feature as standard underscores its importance in daily operational checks.
2. Ports for Optional Sight/Temperature Gauge: Beyond the basic level indication, the reservoir includes provisions (ports) for the installation of an optional sight/temperature gauge. This allows for an upgrade to simultaneously monitor both fluid level and temperature, providing a more comprehensive understanding of the fluid's condition. Real-time temperature monitoring is crucial for identifying overheating issues that could indicate system malfunctions or excessive workload, enabling proactive intervention to prevent fluid degradation or component failure. The specification table confirms a Temperature Gauge is indicated as 'Yes', implying the reservoir is equipped for this functionality, possibly with a pre-installed port or connection point.
3. Magnetic Drain Plug: The inclusion of a magnetic drain plug is a significant feature for proactive maintenance. Positioned at the lowest point of the reservoir, this plug contains a powerful magnet designed to attract and hold ferrous metallic particles (e.g., iron, steel) that accumulate in the hydraulic fluid due to normal wear and tear of pumps, motors, and other components. During routine fluid changes or inspections, the drain plug can be removed, and any trapped metallic debris can be observed and removed. The quantity and type of particles can provide valuable diagnostic information about the health of the hydraulic system, indicating potential wear issues before they lead to catastrophic failure. This simple yet effective device dramatically enhances fluid cleanliness and extends the life of the hydraulic fluid and components.

Design and Integration: The Bulkhead Advantage

The "Bulkhead" designation in the product title refers to a specific design approach for routing hydraulic lines. In a bulkhead reservoir, the fluid ports (suction, return, drain) are typically integrated into a panel or wall of the reservoir, allowing for direct external connection of hoses and pipes without requiring internal plumbing or complicated internal fittings. This design offers several key advantages:

• Simplified Plumbing: It provides a clean, organized interface for connecting external hydraulic lines, reducing the complexity of hose routing and potential for leaks.
• Enhanced Protection: By routing connections through a solid bulkhead, the vulnerability of external fittings and hoses is reduced, minimizing the risk of damage or accidental disconnection.
• Ease of Installation and Maintenance: The bulkhead design simplifies the process of installing the reservoir into a system and makes future maintenance and troubleshooting more straightforward.
• Reduced Contamination Risk: With fewer internal connections, there are fewer potential entry points for contaminants into the fluid directly within the reservoir.

The specification table indicates "Number of Filter Ports: 1" and "Style 1 Port Diameter: 2.00". This suggests a well-defined main port for critical fluid transfer, reinforcing the streamlined bulkhead approach for system integration.

Applications and Performance Benefits

The 36 Gallon Steel Bulkhead Hydraulic Reservoir is engineered for a diverse range of heavy-duty hydraulic applications where reliability, durability, and fluid cleanliness are paramount. Typical applications include:

• Mobile Hydraulics: Dump trucks, refuse vehicles, utility trucks, service body trucks, snowplows, and other municipal vehicles.
• Construction Equipment: Excavators, loaders, backhoes, cranes, and other machinery requiring robust hydraulic power.
• Agricultural Machinery: Tractors, harvesters, and implements with hydraulic functions.
• Industrial Power Units: Static hydraulic power units in manufacturing plants, material handling systems, and processing facilities.

The benefits of utilizing such a meticulously designed reservoir are substantial:

• Extended Component Life: Multi-stage filtration and magnetic particle removal drastically reduce abrasive wear on pumps, motors, valves, and cylinders, leading to significantly longer operational life for expensive hydraulic components.
• Reduced Downtime: By maintaining fluid cleanliness and facilitating thermal management, the reservoir minimizes the likelihood of hydraulic system failures, leading to fewer unscheduled repairs and increased operational availability.
• Optimized System Efficiency: Clean, properly conditioned hydraulic fluid ensures pumps and actuators operate at their designed efficiency, preventing energy losses due to friction, cavitation, or fluid degradation.
• Lower Operating Costs: Longer fluid life, reduced component replacement, and minimized downtime all contribute to a lower total cost of ownership over the equipment's lifespan.
• Enhanced Safety: A well-maintained hydraulic system with stable fluid conditions operates more predictably and reliably, contributing to a safer working environment.

Technical Specifications in Detail

Delving deeper into the provided specifications offers further insights into the product's design and intended performance:

• Capacity (36 Gallons) & Usable Capacity (32 Gallons): The nominal capacity of 36 gallons provides ample fluid volume for a wide range of hydraulic systems. The 32-gallon usable capacity accounts for the necessary headspace for fluid expansion, de-aeration, and to ensure the suction line remains fully submerged even with minor level fluctuations, preventing pump cavitation.
• Material (Carbon Steel, 12 Gauge): As discussed, this material selection is fundamental to the reservoir's structural integrity and longevity in demanding applications.
• Finish (Powder-Coat, Black): Confirms the robust corrosion resistance and aesthetic durability.

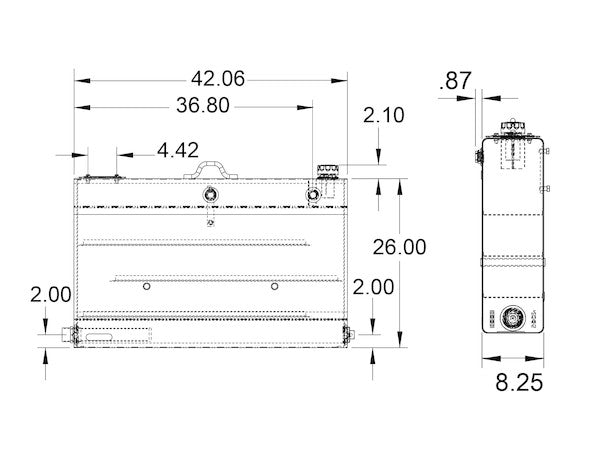

• Depth (42.00"), Height (26"), Width (8.50"): These dimensions define the reservoir's footprint and volume, crucial for integration planning. The relatively slender width is advantageous for back-of-cab or side-mounting applications where space is at a premium, while the depth allows for sufficient volume.
• Filter Head Material (Aluminum): The use of aluminum for the filter head ensures a lightweight yet strong and corrosion-resistant interface for the return line filter, simplifying maintenance.
• Mount Position & Style (Upright): Specifies the orientation for installation, critical for ensuring proper fluid dynamics, de-aeration, and gauge visibility.
• Mounting Holes: Precise dimensions for mounting holes (0.824" diameter, 9.44" center to bottom of tank, 19.68" center to center) indicate a standardized approach for secure installation, though hardware and brackets are not included, allowing for customized mounting solutions tailored to specific vehicle or equipment chassis.
• Return Line Filter Flow Rating (50 GPM) & Rating (25 Micron): These figures are critical for matching the reservoir to the hydraulic system's flow requirements. A 50 GPM flow rating indicates suitability for systems with moderate to high return flow volumes, effectively filtering the fluid before recirculation.
• Integral Level Gauge (Yes) & Oil Level Gauge (Yes): Reiteration of the built-in visual fluid level monitoring.
• Magnetic Drain Plug (Yes): Confirms the presence of this valuable maintenance feature.
• Temperature Gauge (Yes): Indicates the reservoir is prepared for temperature monitoring, likely via a dedicated port or compatible with the sight gauge port.

Conclusion

The 36 Gallon Steel Bulkhead Hydraulic Reservoir with a 25 Micron Filter represents a thoughtfully engineered solution for maintaining the health and efficiency of hydraulic systems. Its heavy-duty 12-gauge steel construction and advanced powder-coat finish provide exceptional durability and resistance to environmental degradation. The multi-layered contamination control system, comprising a 25-micron return line filter, a 150-micron suction strainer, and a 30-mesh breather/filler cap, is designed to ensure hydraulic fluid remains clean, significantly extending the life of critical components. With integrated features for fluid level and temperature monitoring, along with a magnetic drain plug for proactive maintenance, this reservoir offers a comprehensive package for reliable hydraulic fluid management in challenging operational contexts. Its bulkhead design further simplifies installation and promotes system integrity, making it an ideal choice for mobile and industrial hydraulic applications demanding robust performance and longevity.
