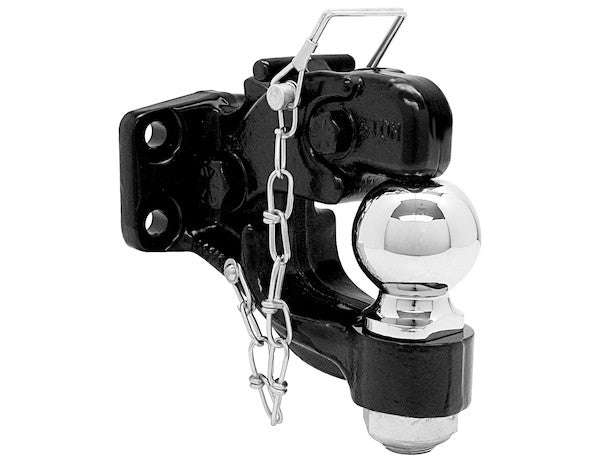

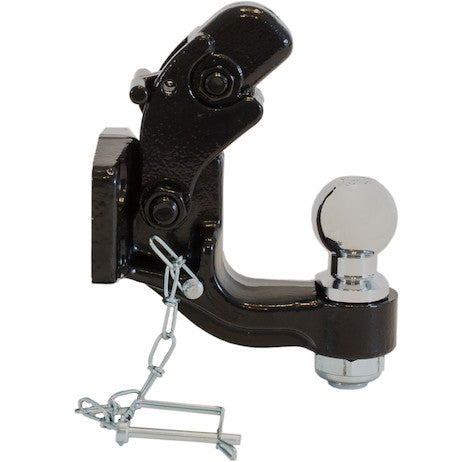

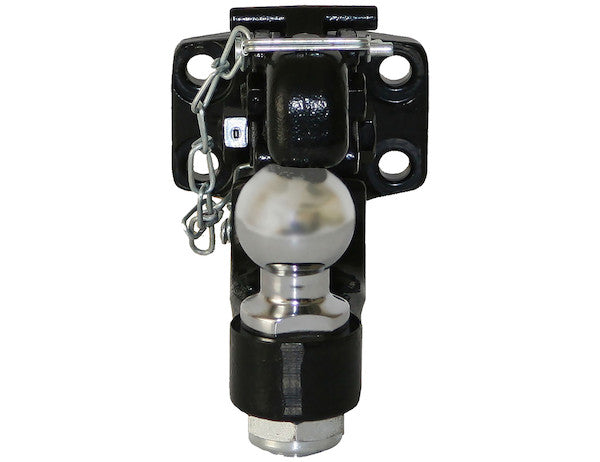

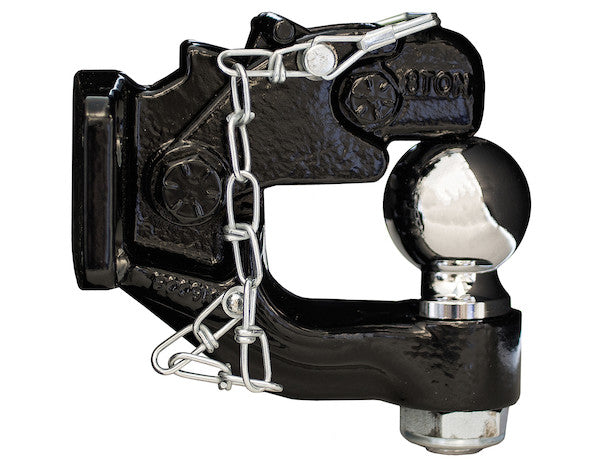

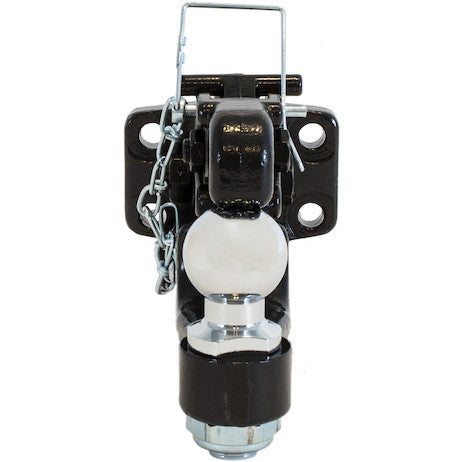

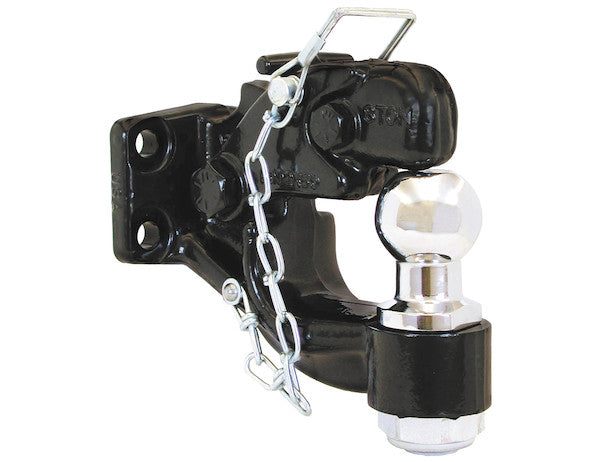

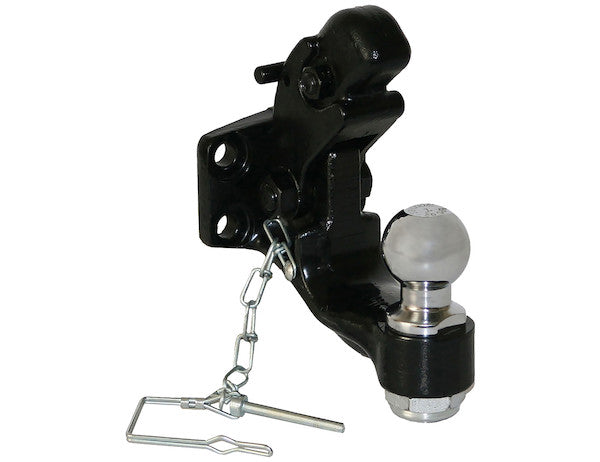

Buyers Products 8 Ton Combination Hitch combines both a ball hitch and pintle hook into one product. It allows you to pull loads that have either a coupler or a drawbar/pintle ring without having to change hitches. The hitch is ideal for contractors, tradesmen and haulers who tow a range of construction equipment. The hitch is available with 1-7/8 in., 2 in., or 2-5/16 in. ball sizes to accommodate different size couplers. It is bolt-mounted (drilling template included). A mounting kit with Grade 8 fasteners is available to order separately or as a set.
Specifications
| Ball Diameter (in.) | 2 |
|---|---|
| Ball Finish | Chrome |
| Ball Material | Forged Steel |
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.5-3.0 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 3.375 |
| M.G.T.W. (lbs) | 12,000 |
| M.V.L. (lbs) | 3,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.531 |
| Pintle Hook Type | Standard |
| Vertical Hole Spacing (in.) | 1.75 |
The Buyers Products Combination Hitch, specifically the 2-inch ball variant, represents a pinnacle in towing versatility and robust engineering. While commonly referred to as an "8 Ton" hitch, a designation that speaks to its heavy-duty class, it is precisely engineered and rated for a Maximum Gross Trailer Weight (M.G.T.W.) of 12,000 lbs and a Maximum Vertical Load (M.V.L.) of 3,000 lbs. This precise specification, rigorously tested and documented, ensures that users can confidently transport substantial loads across diverse operational environments. This innovative towing solution meticulously integrates the functionalities of a standard ball hitch and a traditional pintle hook into a single, unified device, thereby eliminating the necessity for time-consuming hitch changes and enhancing operational efficiency across a broad spectrum of towing applications.
Crafted from premium forged steel, the core material selection for this combination hitch underscores its commitment to exceptional durability and structural integrity. Forged steel, renowned for its superior strength-to-weight ratio and resistance to impact and fatigue, undergoes a specialized manufacturing process that aligns its grain structure with the shape of the component. This results in a material that is significantly stronger and more resilient than cast alternatives, capable of withstanding the immense dynamic forces inherent in heavy-duty towing. The hitch body is further fortified with a robust black powder-coat finish. This advanced coating technique provides a durable, corrosion-resistant layer that protects the underlying steel from environmental aggressors such as moisture, road salts, and abrasions, significantly extending the product's service life and maintaining its aesthetic integrity even in challenging outdoor conditions. The 2-inch ball component, a critical interface between the towing vehicle and the trailer coupler, is meticulously finished with a chrome plating. This not only imparts a sleek, professional appearance but also serves a functional purpose by increasing surface hardness, reducing friction during coupling and uncoupling, and offering enhanced resistance to rust and wear over prolonged use. The specific 2-inch ball diameter is standardized for a vast array of medium to heavy-duty trailers, ensuring broad compatibility.
The engineering precision extends to its operational mechanics. The pintle hook mechanism is designed to accommodate drawbar eyes with an inner diameter ranging from 2.5 to 3.0 inches, providing secure attachment for trailers equipped with pintle rings. This dual functionality is crucial for professionals who manage a fleet of varied equipment, from utility trailers utilizing standard ball couplers to construction equipment featuring pintle rings, such as generators, air compressors, and heavy-duty flatbed trailers. The intuitive design allows for quick and secure transitions between these modes, maximizing uptime and operational flexibility. The robust locking mechanism of the pintle hook ensures a secure connection, preventing accidental disengagement even under severe road conditions or dynamic load shifts.

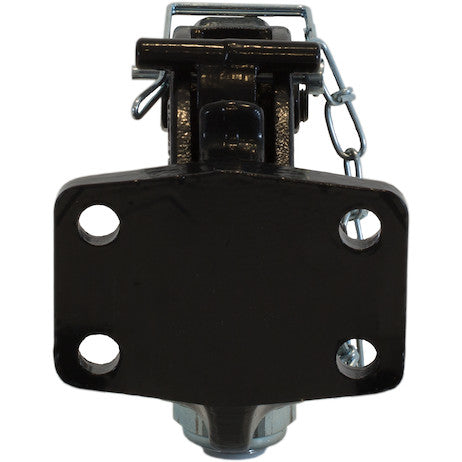

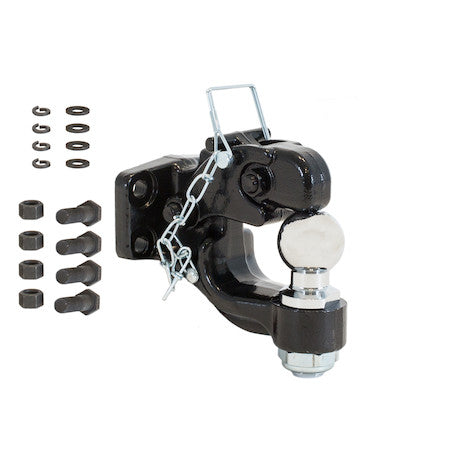

Installation of the Buyers Products Combination Hitch is designed for straightforward integration onto appropriate towing vehicle frames or mounting plates. The unit is bolt-mounted, a method favored for its secure and permanent attachment. To facilitate accurate and efficient installation, a detailed drilling template is included, guiding installers to precisely align the mounting holes with the vehicle's frame. The specified mounting hole diameter of 0.531 inches, coupled with horizontal hole spacing of 3.375 inches and vertical hole spacing of 1.75 inches, ensures compatibility with industry-standard mounting patterns. For optimal safety and structural integrity, it is strongly recommended to utilize a mounting kit that incorporates Grade 8 fasteners. These high-strength bolts, characterized by their superior tensile and shear strength, are engineered to withstand the extreme forces associated with heavy towing, providing an unyielding connection between the hitch and the tow vehicle. This mounting kit is available separately or as a complete set, offering convenience and assurance of correct component selection.
The technical specifications of this hitch are a testament to its professional-grade capabilities. The 12,000 lb M.G.T.W. rating implies that the hitch is capable of safely handling the total weight of a loaded trailer, while the 3,000 lb M.V.L. (Maximum Vertical Load), often referred to as tongue weight, indicates the maximum downward force the trailer can exert on the hitch. Maintaining a proper tongue weight, typically between 10-15% of the M.G.T.W. for conventional trailers, is paramount for stable and safe towing, preventing trailer sway and ensuring optimal vehicle handling. The robust forged steel construction and precise manufacturing tolerances ensure that these load capacities are not just theoretical limits but are consistently achievable under real-world operational conditions, complying with or exceeding industry safety standards for towing equipment.
This combination hitch addresses the multifaceted needs of a diverse professional clientele. For contractors, who frequently transport a variety of heavy machinery, materials, and specialized tools, the ability to switch seamlessly between coupler and pintle ring connections without equipment changes translates directly into improved project timelines and reduced logistical complexities. Tradesmen, from electricians to plumbers, often utilize utility trailers for tools and supplies, which typically employ ball couplers, while occasionally requiring the capacity to tow more specialized equipment with pintle rings. The adaptability of this hitch caters perfectly to these varied requirements. Haulers, particularly those engaged in hotshot trucking or diversified freight services, benefit immensely from the increased flexibility in trailer selection, enabling them to accept a broader range of hauling contracts without needing to reconfigure their tow vehicles.
Beyond its primary function, the design and material choices of the Buyers Products 8 Ton Combination Hitch contribute significantly to its long-term value and low cost of ownership. The powder-coat finish, while aesthetically pleasing, is a critical barrier against the initiation and propagation of rust, a common antagonist for towing components exposed to harsh environments. This reduces the need for frequent maintenance or replacement due to corrosion. The chrome-plated ball is not only durable but also inherently resistant to pitting and flaking, ensuring a smooth mating surface for trailer couplers for years. Regular inspection, in line with recommended maintenance practices for towing equipment, is straightforward, focusing on the integrity of the bolt connections and the smooth operation of the pintle latching mechanism. The robust construction minimizes wear parts, further contributing to its longevity and reliability in demanding commercial applications.
In summary, the Buyers Products 8 Ton Combination Hitch with a 2-inch ball is more than just a towing accessory; it is a meticulously engineered, professional-grade solution designed to optimize efficiency, enhance safety, and provide unparalleled versatility for heavy-duty towing operations. Its superior material composition, including forged steel and advanced protective coatings, coupled with precise manufacturing and a thoughtfully integrated dual-purpose design, positions it as an indispensable tool for contractors, tradesmen, haulers, and any professional requiring robust, reliable, and adaptable towing capabilities. By consolidating the functions of a ball hitch and a pintle hook into one durable unit, it streamlines operations, reduces equipment downtime, and ensures that the towing vehicle is always ready for the next challenge, irrespective of the trailer attachment type. This commitment to quality, performance, and user convenience makes it a strategic investment for any operation prioritizing effectiveness and safety in their towing fleet.
