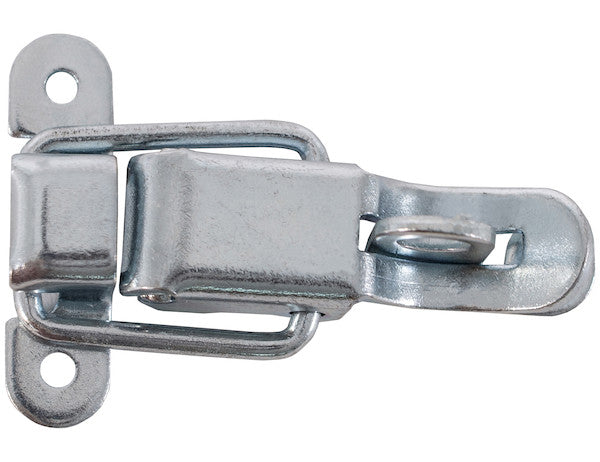

Buyers Products Large Padlock Eye Pull-Down Catch comes complete with a striker and pre-drilled bolt holes for fast and easy installation. It is constructed from sturdy zinc-plated steel for lasting wear and corrosion resistance.
Specifications
| Finish | Zinc Plated |
|---|---|
| Latch Style | Steel Hood Latch |
| Length (in.) | 2.463 |
| Material | Carbon Steel |
| Stiker or Bracket Included (y/n) | Yes |
| Striker Mounting Hole Diameter | 0.14 |
| Striker Mounting Holes Center to Center | 1.34 |
| Width (in.) | 1.665 |
Advanced Engineering Analysis: The Large Padlock Eye Pull-Down Catch with Striker - Zinc Plated
The Large Padlock Eye Pull-Down Catch with Striker represents a meticulously engineered solution for securing a diverse range of closures in demanding environments. This product is not merely a fastener; it is a critical component designed to provide robust security, reliable performance, and enhanced durability through its material selection and mechanical design. Understanding its intricate details reveals its superior suitability for industrial, commercial, and heavy-duty applications where both functionality and longevity are paramount.
Mechanical Design and Operational Principles
At its core, the Large Padlock Eye Pull-Down Catch operates on a principle of mechanical advantage to achieve secure closure and maintain constant tension across the mating surfaces. Classified as a "Steel Hood Latch" in the specifications, this design implies a specific geometry and leverage system that allows for an over-center locking action. When engaged, the catch arm, pivoting on an integral hinge, traverses a trajectory that draws the primary component (e.g., a door, lid, panel) firmly against its frame. The "pull-down" mechanism exerts significant compressive force, effectively sealing the joint, dampening vibrations, and preventing accidental disengagement under dynamic conditions. This over-center design ensures that once the latch is closed, it remains securely locked even in the absence of external forces, resisting loosening due to shock or vibration, which are common in mobile or industrial settings.
The ergonomic design of the pull-down handle, while not explicitly detailed, is implicitly optimized for manual operation, allowing for efficient engagement and release. The leverage provided by the catch’s geometry minimizes the force required by the operator while maximizing the clamping force applied to the closure. This balance is crucial for applications requiring frequent access without compromising the security or integrity of the sealed compartment.
The Integrated Padlock Eye: Enhanced Security Protocol
A distinguishing feature of this pull-down catch is the integrated "Padlock Eye." This element transforms a functional latch into a secure fastening system. The padlock eye is a reinforced aperture, precisely sized to accommodate a standard padlock shackle. When a padlock is inserted and locked, it physically obstructs the disengagement of the catch, thereby preventing unauthorized access or tampering. This dual-layer security – the inherent strength of the latch mechanism combined with the physical barrier of a padlock – offers superior protection against vandalism, theft, and accidental openings. The "Large" designation in the product title may also imply a robust padlock eye capable of accepting larger, more resilient padlock shackles, further augmenting the security profile.
The strategic placement of the padlock eye is critical. It must be positioned such that it is difficult to bypass or manipulate, requiring direct access and manipulation of the padlock itself. This design consideration elevates the overall security rating of the enclosure or compartment. For applications such as toolboxes on utility vehicles, equipment storage compartments, or industrial access panels, this integrated security feature is indispensable for safeguarding valuable contents and ensuring operational integrity.
The Striker Component: Precision Engagement and Longevity
The product comes "complete with a striker," which is an essential mating component for the pull-down catch. The striker is a stationary anchor point, designed to precisely engage with the moving catch arm. Its robust construction and specific dimensions are critical for the reliable operation and longevity of the entire latching system. The specifications provide key details regarding the striker: a "Striker Mounting Hole Diameter" of 0.14 inches and "Striker Mounting Holes Center to Center" distance of 1.34 inches. These dimensions are crucial for installers, ensuring proper alignment and secure fastening of the striker to the mating surface.
Precision in striker design and installation is paramount. Misalignment can lead to premature wear of both the catch and the striker, compromise the sealing integrity of the closure, or even prevent proper latching. The specified mounting hole dimensions indicate a design optimized for common industrial fasteners, facilitating a secure and stable attachment. The material of the striker is implicitly the same sturdy zinc-plated carbon steel as the catch, ensuring compatible wear characteristics and environmental resistance.
Material Science: Carbon Steel and Zinc Plating for Unrivaled Durability
The foundation of this product's exceptional durability lies in its material composition: "Carbon Steel" with a "Zinc Plated" finish. Carbon steel is a ferrous alloy renowned for its high tensile strength, excellent formability, and cost-effectiveness. The term "sturdy zinc-plated steel" directly correlates with the use of carbon steel, which offers the necessary mechanical properties to withstand significant loads, impacts, and repetitive stress cycles inherent in pull-down latch applications.
Carbon Steel Properties
The specific grade of carbon steel would typically be selected for its balance of hardness, ductility, and weldability. Common grades like AISI 1008 or 1010 are frequently used for formed components due to their good cold-forming characteristics, minimizing stress risers during manufacturing. This choice of base material ensures that the latch components possess the inherent strength to resist deformation, bending, and shear forces that could compromise the integrity of the closure or the security of the padlock eye. The inherent strength of carbon steel also contributes significantly to its resistance to fatigue over prolonged operational lifespans, even when subjected to constant vibration or cyclical loading.
Zinc Plating: A Shield Against Environmental Degradation
The "Zinc Plated" finish is a critical engineering decision for enhancing the longevity and performance of the carbon steel components. Zinc plating, often referred to as electrogalvanization, involves depositing a thin layer of zinc onto the steel surface through an electrolytic process. This coating serves a dual purpose in corrosion protection:
- Barrier Protection: The zinc layer acts as a physical barrier, isolating the underlying carbon steel from corrosive elements such as moisture, oxygen, and various atmospheric pollutants. As long as the zinc layer remains intact, it prevents direct contact between the steel and corrosive agents.
- Sacrificial (Cathodic) Protection: This is the more significant advantage. Zinc is electrochemically more active (anodic) than steel. In the presence of an electrolyte (e.g., moisture), if the zinc coating is scratched or compromised, exposing the steel, the zinc will preferentially corrode, sacrificing itself to protect the underlying steel. This cathodic protection mechanism significantly delays the onset of red rust on the steel substrate, extending the functional life of the component in corrosive environments.
The effectiveness of zinc plating is often quantified by its performance in salt spray tests (e.g., ASTM B117), which simulate corrosive marine or industrial atmospheres. While zinc plating provides excellent corrosion resistance, especially compared to uncoated steel, its performance can be further enhanced by applying a chromate conversion coating (passivation) over the zinc layer. This passivation layer, typically iridescent yellow or clear, improves the barrier properties, enhances adhesion for subsequent coatings (if any), and further boosts corrosion resistance, particularly against white rust (zinc oxide) formation. Modern zinc plating processes often utilize trivalent chromium passivation to comply with environmental regulations (e.g., RoHS), moving away from hexavalent chromium due to its toxicity.
The "lasting wear" aspect mentioned in the current description is significantly bolstered by this zinc plating. Beyond corrosion, the plating offers a degree of surface hardness and abrasion resistance, protecting the underlying steel from minor scratches and impacts that could otherwise initiate corrosion or compromise the fit and function of the moving parts.
Installation Engineering: Pre-Drilled Bolt Holes and Optimal Mounting
The design incorporates "pre-drilled bolt holes for fast and easy installation." This feature is a testament to thoughtful product engineering, focusing on user experience and efficiency. Precision-drilled holes ensure consistent alignment and eliminate the need for on-site drilling, which can be time-consuming, expensive, and potentially compromise the structural integrity of the component or the mounting surface. The diameter of the striker's mounting holes (0.14 inches) and their center-to-center distance (1.34 inches) provide critical information for selecting appropriate fasteners (e.g., rivets, screws, bolts) and designing mounting patterns for the base material.
For optimal installation, it is crucial to select fasteners of adequate strength and material compatibility. Stainless steel fasteners are often recommended for zinc-plated components, especially in outdoor or corrosive environments, to prevent galvanic corrosion between dissimilar metals (though zinc provides sacrificial protection, minimizing this risk with standard steel fasteners). The mounting surface must be sufficiently robust to support the forces exerted by the latch, especially the pulling force during engagement and the constant tension applied in the locked position. Proper torqueing of fasteners is essential to ensure a secure and stable installation that can withstand vibration and operational stresses without loosening.
Dimensions and Form Factor: The Significance of "Large"
The specified dimensions – Length (2.463 in.) and Width (1.665 in.) – coupled with the "Large" designation in the title, indicate a substantial component designed for significant load-bearing applications. These dimensions are not arbitrary; they are critical for the geometric leverage of the pull-down mechanism and the structural integrity required for heavy-duty use. A larger footprint allows for:
- Increased Load Distribution: Wider and longer components distribute forces over a greater area, reducing localized stress on both the latch itself and the mounting surface.
- Enhanced Mechanical Advantage: The larger dimensions provide a longer lever arm for the pull-down action, enabling greater clamping force with less manual effort.
- Robustness for Padlock Eye: A larger form factor often accommodates a more substantial padlock eye, capable of securing larger and more robust padlocks, reinforcing security.
- Visibility and Operability: A "large" latch is easier to locate and operate, especially in industrial environments where gloves may be worn or visibility may be limited.
Application Spectrum and Performance Expectations
The combination of robust materials, a secure pull-down mechanism with a padlock eye, and corrosion-resistant finishing makes this product exceptionally versatile. It is ideally suited for a wide array of demanding applications, including but not limited to:
- Commercial and Utility Vehicle Bodies: Securing access doors, toolboxes, cargo compartments on trucks, trailers, and vans.
- Industrial Enclosures and Cabinets: Providing secure closure for electrical panels, control boxes, machinery guards, and storage lockers within manufacturing plants or harsh outdoor settings.
- Agricultural Equipment: Latching access panels on tractors, harvesters, and other farm machinery, where exposure to dirt, moisture, and vibration is common.
- Marine Applications (with consideration): While zinc plating offers good protection, specific marine environments may require additional protective measures or periodic maintenance due to continuous saltwater exposure. However, for less direct exposure or freshwater applications, it provides reliable service.
- HVAC Systems: Sealing access panels on large air handlers or ductwork where airtightness and security are necessary.
- Building and Construction: Securing temporary access points, gang boxes, or job site enclosures.
The expectation for this component's performance extends beyond mere mechanical function. It is designed to withstand extreme temperatures, UV radiation, chemical exposure (depending on the specific plating passivate), and constant vibration without degradation in performance. Its "lasting wear" refers to its ability to maintain specified clamping forces, smooth operation, and structural integrity over thousands of operational cycles, minimizing the need for replacement and reducing downtime.
Conclusion: A Benchmark in Secure Fastening Solutions
In summary, the Large Padlock Eye Pull-Down Catch with Striker in a Zinc Plated finish is a meticulously engineered fastening solution designed for optimal performance in challenging environments. Its robust construction from high-quality carbon steel, coupled with advanced zinc plating, provides exceptional resistance to wear and corrosion, guaranteeing extended operational life. The mechanical advantage of the pull-down design ensures a consistently tight and vibration-resistant closure, while the integrated padlock eye offers a critical layer of physical security against unauthorized access. With pre-drilled bolt holes and precisely dimensioned components, installation is streamlined, facilitating efficient deployment. This product exemplifies a superior blend of material science, mechanical engineering, and practical design, making it an indispensable component for applications where reliability, durability, and security are non-negotiable requirements. It stands as a testament to engineering excellence in the realm of industrial hardware.
