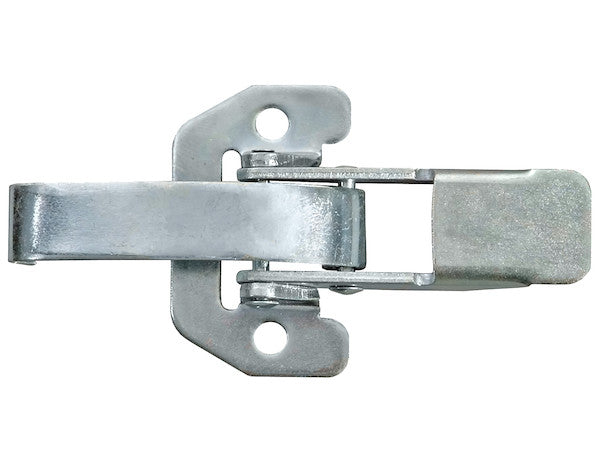

Buyers Products Hook Style Heavy Duty Pull Down Catch can be used for any general purpose application. The toggle action catch is constructed from zinc-plated steel for corrosion resistance. Catch is surface mounted and does not include striker.
Specifications
| Finish | Zinc Plated |
|---|---|
| Latch Style | Steel Hood Latch |
| Length (in.) | 3.69 |
| Material | Carbon Steel |
| Stiker or Bracket Included (y/n) | No |
| Striker Mounting Hole Diameter | 0.21 |
| Striker Mounting Holes Center to Center | 1.36 |
| Width (in.) | 1.87 |
Hook Style Heavy Duty Pull Down Catch-Toggle Action - Zinc Plated: An In-Depth Technical Review
The Buyers Products Hook Style Heavy Duty Pull Down Catch represents a pinnacle of robust and reliable latching technology, engineered to meet the demanding requirements of a wide array of industrial, commercial, and heavy-duty applications. This comprehensive technical overview delves into the design philosophy, material science, operational mechanics, and application versatility of this critical component, emphasizing its core attributes: the hook style mechanism, toggle action, heavy-duty construction, and zinc-plated finish.
Precision Engineering and Design: The Hook Style Mechanism
At the heart of this heavy-duty pull down catch lies its distinctive hook style design. Unlike simple bolt or cam latches, a hook style mechanism is specifically engineered to achieve a secure, positive engagement with a corresponding striker. The hook's geometry is meticulously crafted to wrap around the striker bar or pin, creating a mechanical interlock that resists disengagement even under significant tensile or shear forces. This design inherently provides superior resistance to accidental opening, making it ideal for applications where safety and security are paramount.
The hook's profile is not merely a functional element but a testament to ergonomic and mechanical efficiency. Its gradual curve facilitates smooth initial engagement, guiding the striker into its locked position without undue force. Once engaged, the hook's structure distributes forces efficiently, preventing localized stress concentrations that could lead to premature wear or failure. This thoughtful design ensures consistent performance over thousands of operational cycles, a critical factor in heavy-duty environments where reliability cannot be compromised.
Furthermore, the hook style offers a degree of self-alignment during closure. While precise installation of both the catch and striker is always recommended for optimal performance, the hook’s design allows for minor deviations in alignment, ensuring a successful latch without the need for absolute precision that some other latch types demand. This flexibility can be a significant advantage in field installations or on assemblies where dimensional tolerances might vary.
The Dynamic Advantage of Toggle Action
The "toggle action" is the foundational mechanical principle that elevates this pull down catch beyond conventional latching devices. A toggle mechanism operates on the principle of an over-center lock, where the linkage system moves past a central pivot point to create a self-locking state. When the catch is actuated to its closed position, the internal linkage system within the toggle mechanism moves beyond its equilibrium point. This creates a state of mechanical advantage where the latch is held securely closed without requiring continuous external force.
The primary benefit of toggle action is its unparalleled ability to generate significant clamping force. As the handle is pulled down, the mechanical leverage of the toggle system multiplies the input force, translating it into a substantial compressive force that pulls the two surfaces (the catch and the striker's mounting surface) tightly together. This robust clamping action is crucial for applications requiring tight sealing, vibration resistance, or the secure retention of components under dynamic loads.
Another critical aspect of toggle action is its inherent resistance to vibration and shock. Once an over-center lock is achieved, external forces acting to open the latch are met with increasing resistance, effectively preventing accidental disengagement caused by operational vibrations or impacts. This characteristic makes the Buyers Products pull down catch an indispensable solution for vehicles, machinery, and equipment exposed to harsh operational conditions. The intuitive operation, requiring a simple pull-down motion, combined with the secure, positive feel of the over-center lock, instills confidence in its functionality.
Heavy-Duty Construction: The Strength of Carbon Steel
Durability is a non-negotiable requirement for any component designated as "heavy-duty," and this pull down catch delivers through its robust material selection. Constructed from carbon steel, as specified, this latch possesses the inherent strength and structural integrity necessary to withstand significant mechanical stress and prolonged operational wear. Carbon steel is an alloy primarily composed of iron and carbon, with the carbon content dictating its mechanical properties such as hardness, tensile strength, and ductility.
The selection of carbon steel for this application is strategic. It offers an excellent balance of cost-effectiveness and superior mechanical properties compared to lighter alloys or plastics. Its high tensile strength means it can resist considerable pulling forces without deforming or fracturing. The material's yield strength indicates the point at which it begins to permanently deform, and for heavy-duty applications, a high yield strength is vital to ensure the latch maintains its structural integrity under repeated high loads. The overall hardness of the carbon steel contributes to its resistance against abrasive wear, ensuring the longevity of the hook and other moving parts.
The manufacturing process of these carbon steel components likely involves precision stamping, forming, and machining to achieve the exact dimensions and tolerances required for the toggle mechanism to function flawlessly. Subsequent heat treatment processes may be employed to further enhance specific mechanical properties, such as increasing surface hardness for improved wear resistance or optimizing the core toughness to resist impact loads. This meticulous attention to material science and manufacturing processes guarantees that each catch can endure the rigors of its intended heavy-duty environment.
Advanced Corrosion Protection: The Zinc Plated Finish
While carbon steel provides exceptional mechanical strength, it is inherently susceptible to corrosion, particularly oxidation (rust) when exposed to moisture and oxygen. To counteract this, the Buyers Products Hook Style Heavy Duty Pull Down Catch undergoes a meticulous zinc plating process, providing a critical layer of defense against environmental degradation.
Zinc plating, typically achieved through electroplating, involves depositing a thin layer of zinc onto the surface of the carbon steel. This creates a barrier that physically separates the steel from corrosive elements. However, the protection offered by zinc is far more sophisticated than a simple barrier. Zinc is a more electrochemically active metal than steel. In the presence of an electrolyte (like moisture), the zinc acts as a sacrificial anode, corroding preferentially to the underlying steel. This galvanic protection mechanism ensures that even if the zinc layer is scratched or compromised, the steel beneath remains protected until the adjacent zinc is consumed. This sacrificial property is a cornerstone of its effectiveness in prolonging the lifespan of steel components in challenging environments.
The benefits of zinc plating are manifold:
- Extended Lifespan: Significantly retards the onset of rust and other forms of corrosion, thereby extending the operational life of the latch.
- Reduced Maintenance: Minimizes the need for frequent inspection and maintenance associated with rust prevention.
- Aesthetic Appeal: Provides a clean, bright metallic finish that is visually appealing and indicative of a quality product.
- Cost-Effectiveness: Offers a high level of corrosion protection at a more economical cost compared to some other highly corrosion-resistant materials like stainless steel, making it ideal for high-volume industrial applications.
- Environmental Performance: Performs well in a variety of outdoor and indoor industrial settings, resisting the effects of humidity, temperature fluctuations, and exposure to mild chemicals.
Versatility in General Purpose Applications
The designation "general purpose application" for this pull down catch underscores its broad utility across diverse sectors. Its robust construction and reliable toggle action make it suitable for scenarios demanding secure closure and resistance to environmental factors. Specific examples include, but are not limited to:
- Commercial Vehicle & Fleet Management: Securing access panels, storage compartments, toolbox lids, and cargo doors on trucks, trailers, utility vehicles, and emergency service vehicles. The toggle action's vibration resistance is particularly critical here.
- Industrial Machinery & Equipment: Latching covers, guards, enclosures, and access points on manufacturing equipment, processing machinery, and power generation units, where robust closure and easy access for maintenance are required.
- HVAC Systems: Fastening inspection doors on ductwork, access panels on air handling units, and other components where airtight seals and secure closures are necessary for system efficiency and safety.
- Construction & Agricultural Equipment: Securing battery boxes, engine covers, and various compartments on excavators, tractors, and other heavy machinery operating in demanding outdoor environments.
- Storage & Transportation Cases: Providing reliable closure for durable goods cases, instrument boxes, and specialized shipping containers where contents must be protected and secured during transit.
- Marine Applications (Non-Direct Saltwater): Suitable for securing covers and compartments on boats and marine structures where direct, continuous saltwater immersion is not a factor but high humidity and occasional splash are present.
The selection criteria for using this latch in a given application typically involve considering the required clamping force, the frequency of operation, exposure to environmental corrosives, and the necessity for vibration resistance. Given its heavy-duty nature, it excels in scenarios where a light-duty latch would fail.
Detailed Technical Specifications and Installation
The provided specifications offer critical details for integration and application:
- Length (in.): 3.69, Width (in.): 1.87: These dimensions indicate a relatively compact footprint for a heavy-duty component, allowing for installation in confined spaces while still providing substantial mechanical engagement. The precise dimensions are crucial for design engineers planning mounting points and clearances.
- Surface Mounted: The surface-mounted design simplifies installation by eliminating the need for complex cut-outs or recessing. It allows the catch to be affixed directly to the exterior surface of the panel or frame. This method typically requires standard fasteners (not included, but commonly bolts, screws, or rivets) and offers adaptability across various material thicknesses. Proper fastener selection, considering material type and load requirements, is essential for maximizing the catch's performance and longevity.
-
Striker or Bracket Included (y/n): No: This design choice offers significant flexibility to the end-user. By supplying the catch separately, users can select or fabricate a striker that precisely matches their specific application needs. This is particularly advantageous for custom enclosures, varying panel thicknesses, or unique geometry requirements where a standard striker might not be optimal. The specifications further aid this process:
- Striker Mounting Hole Diameter: 0.21: This precise diameter (approximately 5.33 mm) guides the selection of appropriate fasteners for a compatible striker.
- Striker Mounting Holes Center to Center: 1.36: This center-to-center dimension (approximately 34.54 mm) is critical for fabricating or selecting a striker that aligns perfectly with the catch, ensuring proper engagement and optimal toggle action.
- Latch Style: Steel Hood Latch: While previously listed as "Steel Hood Latch," this broadly refers to the robust, automotive-grade nature often associated with such components, implying a design suitable for high-stress environments typical of engine hoods or heavy access panels. This reinforces its heavy-duty classification.
For installation, precise alignment of the catch with its corresponding striker is paramount. Misalignment can lead to premature wear, reduced clamping force, or difficult operation. Engineers should consider the leverage and potential forces exerted on mounting points during operation and select fasteners and reinforcement materials accordingly. Periodic inspection of both the catch and striker, along with their mounting points, is recommended to ensure continued secure operation, especially in high-vibration or high-cycle applications.
Performance, Reliability, and Value Proposition
The Buyers Products Hook Style Heavy Duty Pull Down Catch is a testament to engineering excellence, providing a solution that balances robust mechanical performance with practical design considerations. Its toggle action ensures a definitive and secure closure, resistant to dynamic forces, while the carbon steel construction guarantees structural integrity under demanding loads. The zinc-plated finish extends its operational life by offering superior corrosion resistance, making it suitable for a multitude of environments.
The adaptability offered by the striker-less design empowers users to tailor the latching solution to their exact requirements, making it a versatile component in custom fabrication and OEM applications. With dimensions optimized for effective force application and surface mounting for ease of installation, this catch is designed for maximum utility and minimal installation complexity.
In conclusion, for any application demanding a reliable, high-strength, and corrosion-resistant latching mechanism, the Hook Style Heavy Duty Pull Down Catch with Toggle Action from Buyers Products offers a superior technical solution. Its combination of durable materials, intelligent mechanical design, and protective finish ensures long-term performance and peace of mind in the most challenging operational contexts, affirming its position as an indispensable component in heavy-duty mechanical assemblies.
