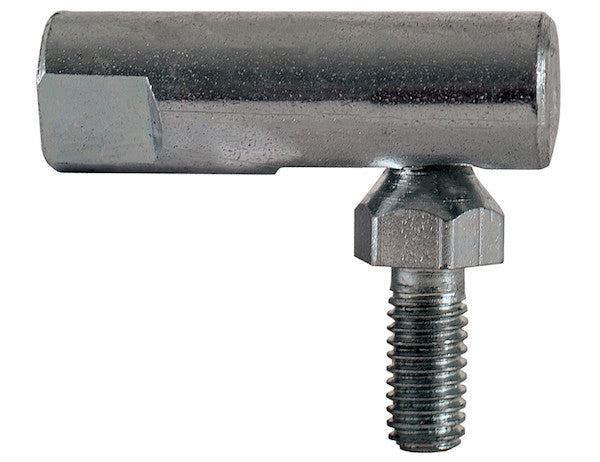

BJ52 - 1/4 Inch Ball Joint

The Buyers Products Ball Joint is constructed from steel and available in five sizes.

Specifications

Advanced Technical Overview: The 1/4 Inch Ball Joint for Precision Articulation

The Buyers Products 1/4 Inch Ball Joint represents a critical component in mechanical systems requiring robust and precise angular articulation. Engineered from high-grade steel, this ball joint is designed to offer exceptional durability and reliable performance across a multitude of industrial and commercial applications. Its construction and precise dimensional specifications ensure it meets rigorous demands for linkages, control systems, and motion transfer mechanisms where freedom of movement in multiple planes is paramount.

Material Science and Construction: The Advantage of Steel

The selection of steel as the primary construction material for this ball joint is a deliberate choice, rooted in its inherent mechanical properties that are indispensable for such a critical component. Steel, an alloy primarily composed of iron and carbon, offers an unparalleled combination of strength, toughness, and wear resistance, making it ideal for components subjected to dynamic loads and repetitive motion. The specific grade of steel employed, though not explicitly detailed, would typically be chosen for its excellent tensile strength and yield strength, ensuring the joint can withstand significant pulling and pushing forces without permanent deformation. Furthermore, its inherent hardness contributes to superior wear resistance, particularly at the articulating surfaces of the ball and socket, thereby extending the operational lifespan of the component.

Manufacturing processes for steel ball joints typically involve precision machining from bar stock or forging, followed by various finishing treatments. Forging enhances the grain structure of the steel, leading to improved strength and fatigue resistance, particularly crucial for parts experiencing cyclical stress. Subsequent machining operations, such as turning, milling, and grinding, are performed to achieve the intricate geometries and tight tolerances outlined in the product specifications. Heat treatments, such as hardening and tempering, may also be applied to optimize the steel’s mechanical properties, increasing its resistance to wear and enhancing its overall durability. Surface treatments, such as zinc plating or black oxide coatings, are commonly applied to steel components to provide enhanced corrosion resistance, protecting the ball joint from environmental degradation in various operating conditions and ensuring long-term functional integrity.

Detailed Dimensional Analysis and Engineering Precision

The provided specifications are not merely measurements; they are indicators of precise engineering and meticulous design, each dimension playing a vital role in the ball joint's functionality, integration, and performance.

• Center to Socket Face (0.969"): This critical dimension defines the spatial relationship between the rotational center of the ball and the outer face of the socket housing. It directly influences the overall kinematic envelope of the joint and is crucial for calculating clearances within an assembly. Proper consideration of this dimension is essential to prevent interference with adjacent components and to ensure the desired range of motion is achieved without obstruction.
• Center to Stud Shoulder (0.469"): This measurement indicates the distance from the center of the ball's articulation to the load-bearing shoulder of the threaded stud. It is fundamental in determining the effective moment arm when forces are applied to the stud, impacting the internal stress distribution within the joint. This dimension also guides designers in ensuring adequate stud engagement within mating components, preventing premature failure due to bending moments or shear forces at the stud-to-housing interface.
• Thread (1/4-28): The specification "1/4-28" denotes a Unified National Fine (UNF) thread series, with a nominal diameter of 1/4 inch and 28 threads per inch. The choice of a fine thread over a coarse thread (e.g., 1/4-20 UNC) is significant. Fine threads offer several advantages: they provide greater resistance to loosening under vibration due to their smaller helix angle and larger minor diameter, which translates to a larger shear area and increased clamping force. They also allow for finer adjustments and are less prone to stripping in thin-walled materials. The precision of this thread ensures a secure and robust connection to the mating part, critical for maintaining system integrity and transferring loads effectively.
• Movement Cone (35°): This specification quantifies the total angular range of motion achievable by the ball within its socket. A 35-degree movement cone typically implies approximately 17.5 degrees of angular deflection from the joint's neutral axis in any direction. This generous range of articulation allows the ball joint to accommodate significant angular misalignment between connected components, making it exceptionally versatile for dynamic linkages and control systems where perfect alignment cannot always be maintained. The precision with which this movement cone is designed ensures smooth, unhindered motion throughout its operational range, minimizing binding and wear.
• Stud Length from Shoulder (0.563"): This dimension specifies the usable length of the threaded stud extending beyond its shoulder. It is vital for ensuring sufficient thread engagement with the mating nut or threaded bore. An adequate stud length is necessary to achieve the prescribed clamping force and prevent thread stripping or premature failure under load. Designers must account for this length to ensure proper installation, accommodating washers, lock nuts, or other fastening accessories without bottoming out the thread or leaving insufficient engagement.
• Thread Depth (0.500"): The thread depth indicates the effective length of the threaded section available for engagement. This measurement confirms that the specified 1/4-28 thread has ample length to securely fasten the ball joint. In conjunction with the stud length from the shoulder, it assures that the mechanical connection will be robust and capable of withstanding the operational stresses for which it is designed.
• Ball Diameter (0.193"): The diameter of the spherical ball is the heart of the articulating mechanism. Its precise dimension, coupled with a high-quality surface finish and sphericity, is crucial for minimizing friction, reducing wear, and ensuring smooth, consistent movement within the socket. The material properties of the ball, including its hardness and surface treatment, are optimized to resist abrasive wear and maintain performance over extended operational periods.
• Socket Diameter (0.438"): The socket diameter is the internal dimension of the housing that accommodates the ball. The precise tolerance between the ball diameter and the socket diameter is critical for controlling play (lash) within the joint while allowing free articulation. The internal geometry and surface finish of the socket are engineered to complement the ball, facilitating smooth movement while securely retaining the ball under various load conditions. The design typically incorporates features to prevent the ball from dislodging, such as staking or a spring retention mechanism, though for this size, it's often a pressed-in or crimped design.
• Overall Length (1.219"): This dimension provides the total linear extent of the ball joint, from the tip of the threaded stud to the furthest end of the socket housing. It is a crucial parameter for system integrators and mechanical designers for spatial planning, ensuring the ball joint fits within the allocated space in an assembly and does not interfere with other components throughout its range of motion.

Functional Principles and Operational Mechanics

A ball joint operates on the principle of spherical articulation, allowing a connecting rod or linkage to pivot in multiple directions relative to its mounting point. Unlike a simple hinge (which permits rotation around a single axis) or a clevis joint (which provides limited angular movement in one plane), a ball joint offers two degrees of rotational freedom. This multi-axis movement is achieved by a spherical ball rotating within a conforming socket. This design is exceptionally beneficial in applications where components need to maintain a connection while undergoing complex, non-planar motions or where inherent misalignments must be absorbed.

In the 1/4 Inch Ball Joint, the spherical stud is securely housed within a precisely machined steel socket. The interface between the ball and socket is engineered for minimal friction, often relying on the inherent lubricity of the materials or protective coatings, to ensure smooth, responsive articulation. This allows the joint to transmit tensile and compressive forces effectively along its axis while simultaneously accommodating angular displacement up to its specified 35-degree movement cone. This capability is indispensable for precise control linkages, sensor mounting, and other mechanisms requiring dynamic adjustability and freedom of movement.

Diverse Application Spectrum

The robust design and precise articulation capabilities of the Buyers Products 1/4 Inch Ball Joint render it suitable for an extensive array of applications across numerous industries:

• Automotive and Transportation: While not typically found in heavy-duty suspension, smaller ball joints are crucial in throttle linkages, gear shift mechanisms, brake bias adjusters, and sensor mounts within engine compartments where compact, durable, and articulating connections are required.
• Industrial Machinery and Robotics: In factory automation, robotics, and specialized machinery, these ball joints are employed in control linkages for actuators, position sensors, and light-duty robotic arms. Their ability to handle angular misalignment simplifies assembly and enhances the flexibility of automated systems.
• Aerospace (Non-Critical Systems): For non-flight-critical applications such as cabin interior mechanisms, cargo bay linkages, or ground support equipment, these ball joints provide reliable articulation under moderate loads and specific environmental conditions.
• Medical Devices: In certain non-invasive medical equipment, laboratory apparatus, or rehabilitation devices, the precise movement and compact size of this ball joint make it ideal for delicate adjustment mechanisms and positioning systems.
• Marine Applications: For smaller craft or non-exposed control systems in marine environments, corrosion-resistant steel ball joints are used in steering linkages, throttle controls, or accessory mounts where reliable operation in potentially damp conditions is necessary.
• Consumer Products and Prototyping: Due to their versatility and ease of integration, these ball joints are frequently utilized in high-end consumer products requiring adjustable linkages, photographic equipment (e.g., small camera rigs), and in rapid prototyping for various mechanical designs.

Performance Characteristics and Reliability

The performance of this 1/4 Inch Ball Joint is characterized by several key metrics that define its suitability for demanding applications:

• Load Capacity: Engineered from steel, the ball joint exhibits significant load-bearing capabilities. It is designed to withstand both tensile (pulling) and compressive (pushing) axial loads, as well as radial forces, up to its specified limits. The strength of the 1/4-28 thread and the integrity of the ball-and-socket interface are critical in determining its maximum operational load without deformation or failure.
• Fatigue Life: In applications involving repetitive cyclical motion or varying loads, fatigue resistance is paramount. The high-quality steel construction and precision manufacturing processes minimize stress concentrations, thereby enhancing the component's fatigue life and ensuring consistent performance over millions of cycles.
• Wear Resistance: The meticulously machined surfaces of the ball and socket, combined with the inherent hardness of steel, contribute to excellent wear resistance. This ensures that the joint maintains its precise articulation and low-friction characteristics even after prolonged use, minimizing the development of undesirable play or looseness.
• Corrosion Resistance: As a steel component, it is susceptible to corrosion in certain environments. However, standard protective finishes, such as zinc plating or passivation, significantly enhance its resistance to oxidation and environmental degradation, broadening its application range. For highly corrosive environments, specific stainless steel variants or specialized coatings might be considered, though the base steel product offers robust protection for general industrial use.
• Operating Temperature Range: Steel ball joints are inherently stable across a wide range of temperatures, from sub-zero conditions to elevated industrial heat. The structural integrity and mechanical properties of the steel are maintained, ensuring consistent performance without material degradation within typical operational temperature envelopes.

Installation, Integration, and Quality Assurance

Proper installation is crucial for maximizing the performance and longevity of the 1/4 Inch Ball Joint. The 1/4-28 threaded stud allows for secure fastening into a corresponding tapped hole or with a mating nut. It is essential to adhere to recommended torque specifications during installation to achieve optimal clamping force without overstressing the threads or the joint itself. Careful consideration of alignment during assembly ensures that the full 35-degree movement cone is utilized efficiently, preventing binding or premature wear.

Buyers Products maintains stringent quality assurance protocols throughout the manufacturing process. This typically involves raw material inspection, in-process dimensional checks using precision metrology equipment (e.g., calipers, micrometers, optical comparators), and final product inspection. Components are often subjected to performance tests, such as pull-out strength tests, angular deflection verification, and sometimes even accelerated life cycle testing to ensure they meet or exceed industry standards and customer expectations. This commitment to quality ensures that each 1/4 Inch Ball Joint delivered is a reliable and high-performing component ready for demanding applications.

Conclusion

The Buyers Products 1/4 Inch Ball Joint stands as a testament to precision engineering and material excellence. Its robust steel construction, coupled with meticulously controlled dimensions like the 0.969" center to socket face, the secure 1/4-28 thread, and the expansive 35-degree movement cone, makes it an indispensable component for mechanical systems requiring reliable and flexible articulation. Whether integrated into complex robotic assemblies, vital industrial machinery, or sophisticated control linkages, this ball joint delivers consistent, durable, and precise performance, ensuring the longevity and efficiency of the overall system. It embodies a blend of strength, versatility, and precision, making it a superior choice for engineers and designers seeking an optimal solution for angular motion transfer.
