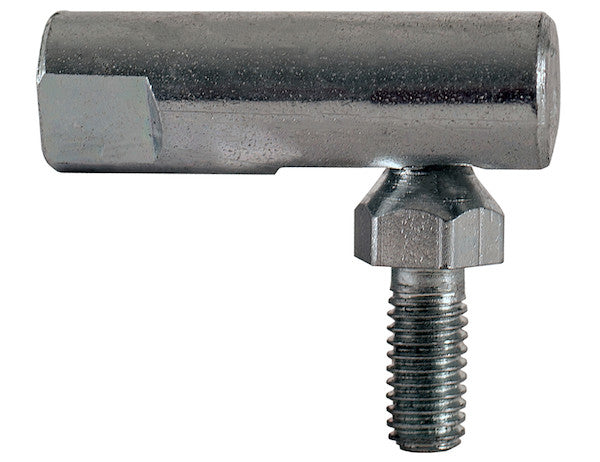

BJ82 - 1/2 Inch Ball Joint

The Buyers Products Ball Joint is constructed from steel and available in five sizes.

Specifications

Advanced Technical Overview: The Buyers Products 1/2 Inch Ball Joint

The Buyers Products 1/2 Inch Ball Joint represents a critical component in mechanical linkage systems requiring precise angular articulation and robust load-bearing capabilities. Engineered from high-grade steel, this ball joint is designed to provide reliable performance across a wide spectrum of industrial and commercial applications. Its construction emphasizes durability and functional longevity, addressing the stringent demands of dynamic mechanical environments.

Material Science and Construction

The core material choice for this ball joint is steel, selected for its superior mechanical properties including high tensile strength, excellent yield strength, and commendable fatigue resistance. The specific grade of steel employed would typically be a medium-carbon or alloy steel, which can be further enhanced through various heat treatment processes such as hardening and tempering. These treatments optimize the steel's microstructure, imparting exceptional hardness to wear surfaces while maintaining a ductile core to resist brittle fracture under shock loads. The manufacturing process likely involves forging or precision machining from solid bar stock, ensuring material integrity and dimensional accuracy. Forging, in particular, refines the grain structure of the steel, improving its strength and resistance to fatigue failure by aligning the material flow lines with the contours of the component. Surface treatments, such as phosphating or black oxide coatings, may also be applied to enhance corrosion resistance and reduce friction, particularly in applications where environmental exposure or abrasive wear are concerns.

Precision Engineering and Dimensional Specifications

The specifications provided illustrate the meticulous engineering behind this 1/2 inch ball joint. Each dimension plays a crucial role in its functionality and integration into complex assemblies:

Center to Stud Shoulder: 0.875 inches

This measurement defines the distance from the rotational center of the spherical ball to the load-bearing face of the stud shoulder. This dimension is critical for determining the effective lever arm in linkage designs, influencing torque transmission and stress distribution within the surrounding components. A precise shoulder provides a stable seating surface, ensuring that axial loads are distributed evenly and preventing eccentric loading on the stud threads. The tolerance on this dimension would be meticulously controlled to ensure consistent fit and function across production batches, vital for interchangeable parts.

Ball Diameter: 0.417 inches

The ball diameter dictates the primary contact surface within the socket and is fundamental to the joint's articulation capabilities. A spherical tolerance of extreme precision is required for the ball to ensure smooth, low-friction movement within the socket while maintaining a snug fit that minimizes play and backlash. The surface finish of the ball is also critical, typically polished to reduce wear on both the ball and the internal socket lining, which may be a polymer or a harder metallic alloy depending on the application and load requirements.

Socket Diameter: 0.750 inches

The socket diameter is slightly larger than the ball diameter, designed to encapsulate the ball and permit its specified angular movement. The internal geometry of the socket is typically spherical or near-spherical, precisely matching the ball's curvature. The material of the socket, while also steel, might feature an internal bearing surface of a different material, such as self-lubricating polymers (e.g., PTFE, nylon, or acetal) or bronze alloys, to reduce friction, absorb minor misalignments, and extend service life, especially in unlubricated or challenging environments. The interface between the ball and socket is where the rotational and angular forces are primarily managed.

Stud Length from Shoulder: 1.125 inches

This dimension specifies the length of the threaded stud projecting from the shoulder. It is crucial for determining the engagement depth with mating components and the suitability for various mounting thicknesses. Adequate stud length ensures full thread engagement, which is paramount for achieving the maximum tensile strength of the threaded connection. Insufficient engagement can lead to premature thread stripping or failure under dynamic loads. The stud length must also accommodate any washers, lock nuts, or other securing hardware.

Movement Cone: 35 degrees

The movement cone, specified at 35 degrees, represents the maximum permissible angular displacement of the stud relative to the socket's longitudinal axis. This crucial parameter defines the operational range of the ball joint. A 35-degree cone indicates significant flexibility, allowing for substantial misalignment compensation and robust articulation in complex linkages. This angular freedom is essential in applications where components are subject to dynamic movement or where precise alignment cannot be consistently maintained. The design of the socket and the constraints of the retaining features dictate this limit, preventing over-articulation that could lead to binding or structural damage.

Center to Socket Face: 1.938 inches

This measurement provides the overall height from the ball's rotational center to the outermost face of the socket. It is a critical dimension for clearance considerations and overall assembly length in system integration. Engineers use this specification to ensure adequate spacing between components and to calculate the effective length of the linkage arms, thereby influencing the kinematic behavior of the entire mechanism.

Thread: 1/2-20 UNF

The thread specification of 1/2-20 indicates a 1/2-inch nominal diameter with 20 threads per inch, typically referring to a Unified National Fine (UNF) thread series. UNF threads are characterized by a finer pitch compared to coarse threads (UNC), offering several advantages: increased tensile strength due to a larger minor diameter and shear area, reduced likelihood of loosening under vibration, and finer adjustment capabilities. The 1/2-20 UNF thread is a common industrial standard, ensuring compatibility with a wide range of fasteners and facilitating easy integration into existing designs. The precision of the thread rolling or cutting process is essential to meet class 2A or 3A fit standards, ensuring strong and reliable connections.

Overall Length: 2.375 inches

The overall length encompasses the entire physical extent of the ball joint, from the tip of the stud to the furthest extent of the socket. This dimension is vital for layout planning, ensuring that the ball joint fits within the designated envelope of the assembly without interfering with other components. It provides a quick reference for volumetric considerations and packaging constraints.

Thread Depth: 1.000 inches

The thread depth, or the length of the usable threaded portion of the stud, is specified at 1.000 inch. This ensures sufficient engagement for typical fastening applications, preventing thread stripping and distributing stress over a greater area. A minimum of 1.5 times the nominal diameter of engagement is often recommended for steel fasteners in steel components to achieve full strength, so this 1.000-inch depth with a 0.5-inch nominal diameter provides ample and robust engagement.

Applications and Operational Considerations

Ball joints like the Buyers Products 1/2 Inch model are indispensable in a myriad of industrial and heavy-duty applications. Their primary function is to permit relative angular movement between two connected components while transmitting forces in tension, compression, or shear. Common applications include:

• Steering and Suspension Systems: In vehicles and heavy equipment, ball joints are crucial for connecting the control arms to the steering knuckles, allowing wheels to pivot and articulate over uneven terrain.
• Agricultural Machinery: Used in linkages for implements, PTO (power take-off) systems, and various control mechanisms that require robust, articulating connections in often dusty and demanding environments.
• Construction Equipment: Essential in the control linkages of excavators, loaders, and cranes, where precise control and durability under heavy loads are paramount.
• Industrial Robotics and Automation: For articulated arms and end-effectors where precise, multi-axis movement is required to position tools or grippers accurately.
• Marine and Offshore Applications: In control systems for rudders, throttles, and other movable components, often requiring additional corrosion-resistant coatings or materials.
• Specialized OEM Equipment: Custom machinery and prototype designs frequently incorporate ball joints for their versatility in creating dynamic linkages.

When integrating this ball joint into a system, engineers must consider several operational factors:

• Load Capacity: While constructed from steel, the specific load ratings (tensile, compressive, shear, and fatigue) are critical. These ratings depend on the steel grade, heat treatment, and design geometry. Exceeding these limits can lead to premature failure.
• Lubrication: Depending on the design of the ball-socket interface, regular lubrication may be required to minimize friction and wear, particularly in high-cycle or high-load applications. Some designs incorporate grease zerks for easy maintenance.
• Environmental Factors: Exposure to moisture, dust, corrosive chemicals, or extreme temperatures can significantly impact the lifespan of the ball joint. Appropriate sealing or protective coatings should be considered for such environments.
• Vibration and Shock Resistance: The fine threads (1/2-20 UNF) inherently offer better resistance to loosening under vibration. However, for extreme vibration or shock loads, additional locking mechanisms like lock nuts or thread-locking compounds may be necessary.
• Life Cycle and Maintenance: All mechanical components have a finite lifespan. Regular inspection for wear, excessive play, or damage is crucial to prevent catastrophic failure, especially in safety-critical applications.

Conclusion

The Buyers Products 1/2 Inch Ball Joint stands as a testament to precision manufacturing and material science application in mechanical component design. Its robust steel construction, coupled with meticulously defined dimensional specifications and angular movement capabilities, positions it as a reliable and versatile solution for a broad array of industrial and commercial linkages. Understanding these technical details and considering the operational context is paramount for engineers and designers seeking to integrate this component effectively into their systems, ensuring optimal performance, longevity, and safety in demanding operational environments. The availability in multiple sizes further underscores its adaptability, allowing for precise selection based on specific load requirements and kinematic constraints.
