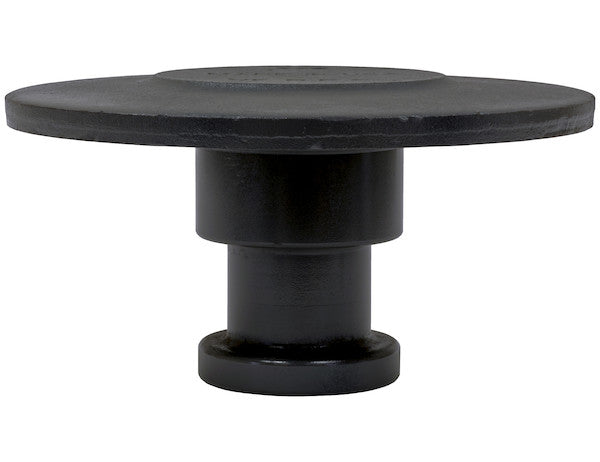

Trailer King Pins from Buyers Products provide strength and reliability in coupling your fifth wheel. They are forged from AISI 8630 steel and heat-treated to maintain a hardness of 302-363 BHN and 150,000 PSI in ultimate strength. They're available in several weldable bolster plate thicknesses. An 8 hole bolt-on version is also available.
Specifications
| Bolster Plate Thickness (in.) | 0.50 |
|---|---|
| Brinell Hardness | 302-363 BHN |
| Finish | Plain |
| Material | Forged Steel |
| Mount Type | Bolt |

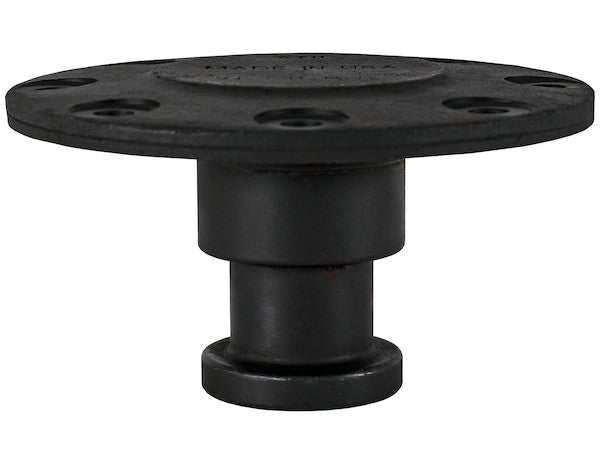

The 2-inch Forged SAE Trailer King Pin with a 1/2-inch Bolster Plate and Bolt-On mounting represents a critical component in the heavy-duty trucking and logistics industry. Engineered for unparalleled strength, reliability, and ease of installation, this king pin is designed to meet the rigorous demands of connecting a semi-trailer to a fifth wheel coupling. Its precise specifications and robust construction ensure optimal performance, safety, and longevity in commercial transport operations.
At the core of this product's superior performance is its material composition and manufacturing process. The king pin is meticulously forged from AISI 8630 alloy steel, a material specifically chosen for its exceptional mechanical properties and suitability for high-stress applications. AISI 8630 is a low-alloy steel known for its good strength, toughness, and hardenability. Its chemical composition typically includes chromium (0.40-0.60%), nickel (0.40-0.70%), and molybdenum (0.15-0.25%), which collectively contribute to its enhanced mechanical characteristics compared to plain carbon steels. Chromium increases hardness penetration and wear resistance, nickel improves toughness without sacrificing strength, and molybdenum enhances hardenability and elevated temperature strength. This synergistic alloying ensures that the king pin can withstand the dynamic and static loads inherent in heavy-duty trailer operations, including significant tension, compression, shear, and bending forces experienced during acceleration, braking, turning, and uneven road conditions.
The forging process further elevates the structural integrity of the king pin. Forging is a metal forming process that involves applying compressive forces to shape the steel, resulting in a refined grain structure that follows the contours of the part. This directional grain flow significantly improves the material’s resistance to fatigue and impact, which are critical considerations for a component subjected to constant stress cycling. Unlike casting or machining from bar stock, forging eliminates internal voids, porosity, and other material defects, leading to a much denser and more homogeneous microstructure. This process not only enhances the ultimate tensile strength but also significantly improves the yield strength and fatigue strength, making the forged king pin inherently more reliable and durable under extreme operating conditions. The forging operation precisely orientates the grain flow to be perpendicular to the axis of stress concentration, thereby maximizing the component's load-bearing capacity and extending its operational lifespan.
Following the forging process, the king pin undergoes a meticulously controlled heat treatment regimen. This critical step is designed to optimize the mechanical properties of the AISI 8630 steel, achieving a specific balance of hardness and toughness. The heat treatment typically involves austenitizing, quenching, and tempering. Austenitizing heats the steel to a temperature where its microstructure transforms into austenite, followed by rapid cooling (quenching) in a medium such as oil or water, which locks in a hard martensitic structure. Subsequently, the component is tempered, a process of reheating the steel to a lower temperature, which reduces brittleness and improves ductility and impact resistance while retaining the desired hardness. For this specific king pin, the heat treatment results in a Brinell Hardness Number (BHN) ranging from 302 to 363. This hardness range is carefully selected to provide excellent wear resistance against the constant friction and abrasive contact with the fifth wheel coupling, preventing premature material loss and ensuring consistent engagement. Concurrently, the heat treatment ensures an ultimate tensile strength of 150,000 PSI, indicating the maximum stress the material can withstand before fracture. This high ultimate strength is paramount for preventing catastrophic failure under the immense dynamic loads encountered during transportation, guaranteeing the safety and security of the coupled trailer.
The dimensional specifications of this king pin are in strict adherence to industry standards, specifically those set by the Society of Automotive Engineers (SAE). The 2-inch nominal diameter is a universally recognized standard (SAE J700, J2228), ensuring compatibility and interchangeability with standard fifth wheel hitches used across North America and beyond. This standardization is crucial for fleet operators, allowing for seamless integration and replacement without concerns about fitment issues. The king pin's critical dimensions, including the throat radius, upper coupler plate contact diameter, and engagement surface, are precisely machined to ensure smooth and secure coupling, minimizing play and reducing wear on both the king pin and the fifth wheel jaws.
A distinctive feature of this product is its integrated 1/2-inch bolster plate. The bolster plate serves as the structural interface between the king pin and the trailer's upper coupler assembly. A robust bolster plate is essential for effectively distributing the massive vertical and horizontal loads from the king pin into the trailer frame, preventing localized stress concentrations and potential structural fatigue. The 1/2-inch thickness provides a substantial foundation, offering superior rigidity and resistance to deformation under extreme stress. This thickness is carefully balanced to offer maximum strength without adding excessive weight, contributing to the trailer's overall payload capacity and fuel efficiency. The design and integrity of the bolster plate are paramount for maintaining the geometric stability of the coupling system, ensuring that forces are transmitted smoothly and efficiently between the tractor and trailer.

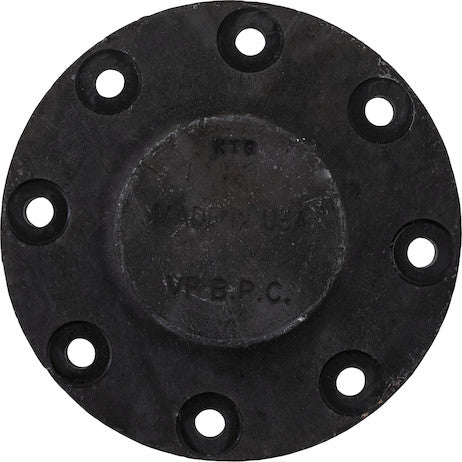

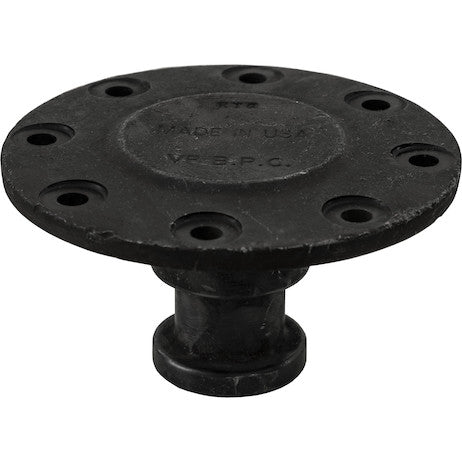

The "Bolt-On" mounting type is a significant advantage, differentiating this king pin from its weld-on counterparts. Bolt-on king pins offer several operational benefits, primarily concerning ease of installation, maintenance, and replacement. Installation typically involves securing the king pin and its bolster plate to the trailer’s upper coupler plate using a standardized 8-hole bolt pattern. This method eliminates the need for specialized welding equipment and highly skilled welders in the field, making replacements faster and more cost-effective. During trailer manufacturing, bolt-on king pins simplify assembly lines, avoiding the heat-affected zone issues associated with welding, which can alter the mechanical properties of adjacent materials. For maintenance and repairs, a damaged king pin can be unbolted and replaced without extensive fabrication work, minimizing downtime for critical transport vehicles. This flexibility is invaluable for large fleets where rapid repairs are essential to operational efficiency. The 8-hole bolt pattern ensures a secure and robust attachment, distributing clamping forces evenly across the bolster plate and into the trailer's structural members, preventing loosening and maintaining the integrity of the coupling point.
The "Plain" finish of the king pin indicates that the component is supplied without any additional surface coatings such as paint, powder coat, or galvanization. This plain finish is often preferred by trailer manufacturers and repair shops because it allows for custom application of primers and paints that match the trailer's existing finish or meet specific environmental protection requirements. It also ensures that there is no coating interference with critical mating surfaces, promoting optimal metal-on-metal contact with the fifth wheel jaws and bolster plate. For the installer, a plain finish allows for thorough inspection of the material for any surface imperfections before final integration, ensuring adherence to quality standards from the moment of receipt.
Quality control throughout the manufacturing process is paramount for a safety-critical component like a king pin. From the selection of certified AISI 8630 steel billets to the precision of the forging and machining operations, and the meticulous control of the heat treatment cycles, every stage is subject to stringent quality checks. These checks include material composition analysis, dimensional verification, hardness testing, and often non-destructive testing (NDT) methods like magnetic particle inspection to detect any surface or subsurface defects. Such rigorous quality assurance protocols ensure that each 2-inch Forged SAE Trailer King Pin consistently meets the specified mechanical properties and dimensional tolerances, providing operators with confidence in its reliability and safety.
The applications for this type of king pin are extensive, spanning across various sectors of the heavy-duty transport industry. It is the standard coupling component for a wide array of semi-trailers, including dry vans, refrigerated trailers, flatbeds, lowboys, dump trailers, tank trailers, and specialty heavy-haul trailers. Industries such as logistics, construction, agriculture, mining, and general freight all rely on the robust performance of such king pins to safely and efficiently transport goods and equipment. The demanding nature of these applications, often involving heavy loads, long distances, and diverse operating environments, underscores the necessity for a king pin engineered to the highest standards of strength and durability.
In conclusion, the 2-inch Forged SAE Trailer King Pin with a 1/2-inch Bolster Plate and Bolt-On mounting is an exemplary product designed for the most demanding heavy-duty trailer applications. Its construction from heat-treated AISI 8630 forged steel endows it with exceptional hardness (302-363 BHN) and ultimate strength (150,000 PSI), ensuring superior wear resistance, fatigue life, and load-bearing capacity. The standardized 2-inch diameter guarantees universal compatibility, while the substantial 1/2-inch bolster plate provides robust structural support. The bolt-on mounting configuration offers significant advantages in terms of ease of installation, maintenance, and replacement, minimizing vehicle downtime and operational costs. This king pin is not merely a component; it is a critical safety device, a cornerstone of reliable trailer-tractor coupling, and an investment in the efficiency and integrity of heavy-duty transportation systems. Its technical specifications and design features reflect a commitment to engineering excellence, providing a dependable solution for the challenges of modern commercial hauling.
