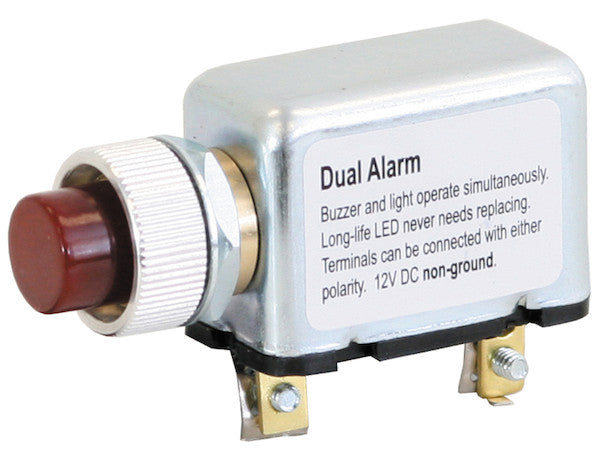

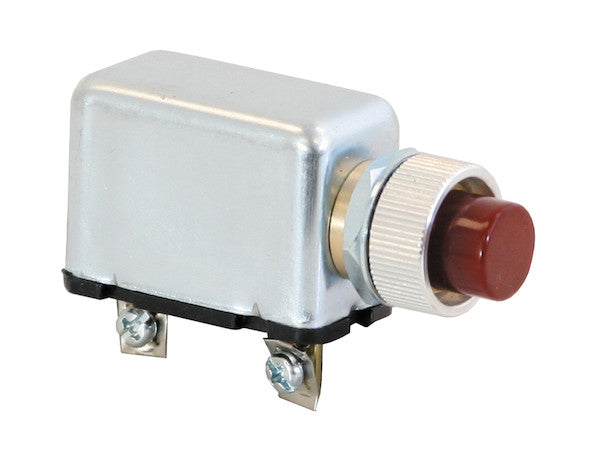

BL10 - Dump Body-Up Indicator Buzzer Light

Buyers Products Buzzer Light simultaneously illuminates a LED indicator light and sounds a 70 dB buzzer. The terminals can be connected with either polarity. The Buzzer Light has a red lens that snaps out for easy bulb replacement. It can be used for a variety of indicative purposes including in conjunction with Buyers Products Body-Up Indicator kits, or to signal PTO engagement.

Specifications

Advanced Technical Overview: Dump Body-Up Indicator Buzzer Light

In the demanding environment of commercial vehicle operation, particularly for dump trucks and similar heavy equipment, operator awareness is paramount to ensuring safety, preventing costly accidents, and maintaining operational efficiency. The Dump Body-Up Indicator Buzzer Light from Buyers Products represents a critical safety device engineered to provide clear, immediate, and unambiguous warnings to the operator regarding the status of the vehicle’s dump body or other vital functions. This comprehensive indicator system integrates both visual and auditory alerts, ensuring that critical information is conveyed effectively, even in high-stress or distracting conditions.

The Critical Role of Dump Body-Up Indication in Commercial Operations

The operation of a dump truck involves inherent risks, with one of the most significant being the inadvertent operation of the vehicle with the dump body in a partially or fully raised position. This seemingly minor oversight can lead to catastrophic consequences, including:

• Striking Overhead Obstacles: Bridges, power lines, overhead structures, tunnels, and low-clearance areas pose severe threats. Impacts can result in significant structural damage to the vehicle and infrastructure, power outages, and even fatal injuries to the operator or bystanders.
• Vehicle Instability: A raised dump body significantly alters the vehicle's center of gravity, making it unstable, especially during turns or on uneven terrain. This can lead to rollovers, loss of control, and severe accidents.
• Regulatory Non-Compliance: Many jurisdictions and regulatory bodies, such as the Department of Transportation (DOT) and Occupational Safety and Health Administration (OSHA), have strict guidelines regarding the safe operation of commercial vehicles. Failure to employ adequate safety measures, such as dump body indicators, can result in hefty fines, legal liabilities, and operational shutdowns.
• Reputational Damage and Financial Loss: Accidents not only incur direct costs in terms of repairs, medical expenses, and legal fees but also damage the company's reputation, leading to loss of contracts and increased insurance premiums.

Given these substantial risks, a reliable and highly visible/audible indicator system like the Buyers Products Buzzer Light is not merely an accessory but an indispensable safety component for any fleet prioritizing operator well-being and operational integrity.

Technical Deep Dive into Product Features

Dual-Modality Warning System: LED Indicator Light and 70 dB Buzzer

The core strength of this device lies in its dual-modality warning system, simultaneously engaging both the visual and auditory senses of the operator. This redundancy is crucial for critical safety alerts.

• LED Indicator Light: The illuminated LED provides a bright, unmistakable visual cue. Light Emitting Diodes (LEDs) are chosen for their superior performance characteristics in commercial vehicle applications:
  • High Visibility: LEDs offer intense brightness and focused light output, ensuring the red indicator is clearly visible under a wide range of ambient lighting conditions, from direct sunlight to low-light cab environments.
  • Energy Efficiency: Operating at a low amperage of 0.2A, LEDs consume significantly less power than traditional incandescent bulbs, reducing strain on the vehicle's electrical system and contributing to overall energy efficiency. This is particularly beneficial for vehicles with multiple auxiliary electrical components.
  • Exceptional Longevity: LEDs boast a significantly longer operational lifespan compared to conventional bulbs, dramatically reducing maintenance requirements and replacement costs. Their solid-state construction also makes them highly resistant to vibration and shock, a critical factor in heavy-duty vehicle environments.
  • Instant Illumination: LEDs provide instantaneous full brightness, ensuring that the warning is conveyed without any delay.
  • Red Lens: The inclusion of a red lens is intentional, as red is universally recognized as a warning or stop signal, instantly conveying a sense of urgency and danger. The snap-out design of the red lens, while providing access for potential service or inspection of the underlying LED assembly, also allows for easy cleaning or replacement of the lens itself, maintaining optical clarity over time.
• 70 dB Buzzer: Complementing the visual alert is an audible buzzer, rated at 70 dB. This decibel level is carefully selected to be highly effective in a typical truck cab environment:
  • Optimal Audibility: 70 dB is loud enough to cut through ambient cabin noise (engine rumble, HVAC fan, radio) without being excessively jarring or startling, which could distract the operator. It serves as a distinct, attention-grabbing sound.
  • Redundant Alert: The audible alarm is particularly vital when the operator's visual attention might be momentarily diverted from the dashboard or when environmental factors (e.g., glare) might obscure the light. It ensures that the warning penetrates the operator's consciousness regardless of their visual focus.
  • Distinctive Tone: The buzzer typically emits a continuous or intermittent tone designed to be easily distinguishable from other in-cab sounds, preventing confusion with other vehicle alerts.

Polarity Insensitivity and Simplified Installation

A significant design advantage of this buzzer light is its polarity-insensitive terminals. This technical feature simplifies the installation process considerably:

• Ease of Wiring: The installer does not need to worry about connecting the positive and negative terminals in a specific orientation. This eliminates a common source of installation errors, reducing setup time and the potential for incorrect wiring that could lead to device malfunction or damage.
• Reduced Troubleshooting: By removing polarity as a variable, troubleshooting during installation or maintenance becomes more straightforward, allowing technicians to focus on other aspects of the circuit.
• Internal Circuitry: This feature is typically achieved through internal circuitry, such as a full-wave bridge rectifier, which converts any input polarity into the correct polarity for the internal LED and buzzer components. This robust design enhances the device's resilience and ease of integration into existing electrical systems.

Robust Connector and Low Power Consumption

• Screw Terminal Connector: The utilization of screw terminals for electrical connection offers several key benefits:
  • Secure and Reliable Connection: Screw terminals provide a strong mechanical and electrical connection that resists vibration and loosening, crucial for devices operating in demanding vehicle environments.
  • Ease of Installation and Maintenance: Wiring is straightforward. Wires are stripped, inserted, and secured by tightening a screw, allowing for easy installation, inspection, and replacement without specialized tools like crimpers or soldering irons.
  • Versatility: Accommodates various wire gauges, offering flexibility in integration with different vehicle wiring harnesses.
• 12V Voltage and 0.2 Amperage: Designed to operate efficiently within standard 12-volt DC vehicle electrical systems. The extremely low amperage draw of 0.2A underscores the high efficiency of the LED and buzzer components, ensuring minimal impact on the vehicle’s battery and alternator, even during extended operation.

"Indicator Only" Functionality

The specification "Body Up Style: Indicator Only" clarifies the device's role. It means that this buzzer light serves solely as a warning output. It does not control any hydraulic functions, engine kill switches, or other active safety interlocks. Its purpose is to provide crucial information to the operator, who then takes the necessary corrective action. This distinction is important for understanding its integration into a broader safety system, where it acts as the primary operator interface for sensory alerts generated by a separate sensing mechanism (e.g., a limit switch or proximity sensor on the dump body).

Versatile Applications and Integration

Primary Application: Dump Body-Up Indication

The most prominent application for the Buyers Products Buzzer Light is its integration with Dump Body-Up Indicator kits. These kits typically consist of a sensor (such as a mechanical limit switch or a non-contact proximity sensor) mounted strategically to detect when the dump body is not fully lowered and secured. When the sensor detects a raised body, it completes a circuit, activating the Buzzer Light. This provides an instant, unmistakable alert to the driver before the vehicle moves or while it is in motion, preventing potentially catastrophic accidents.

Secondary Application: PTO Engagement Indication

Beyond dump body status, the buzzer light is highly effective for signaling Power Take-Off (PTO) engagement. PTO systems power auxiliary equipment like hydraulic pumps for cranes, spreaders, mixers, or other specialized tools. Accidental PTO engagement or failure to disengage can lead to:

• Unintended Equipment Operation: Poses safety risks to personnel around the vehicle.
• Mechanical Strain: Operating the PTO when not needed can put unnecessary wear on the drivetrain and auxiliary equipment.
• Reduced Fuel Efficiency: Running the PTO consumes fuel needlessly.

By connecting the Buzzer Light to the PTO engagement circuit, operators receive clear visual and audible confirmation of PTO status, enhancing operational control and safety.

Other Indicative Purposes

The versatility of this dual-modality indicator extends to numerous other applications across various commercial vehicles and industrial machinery where critical status notification is required:

• Low Air Pressure Warning: In vehicles equipped with air brakes, a low air pressure warning can be critical for safety.
• Hydraulic System Alerts: Indicating high hydraulic fluid temperature or low reservoir levels.
• Door Ajar Warning: For specialized compartments or passenger doors on certain vehicle types.
• Specialized Equipment Status: Alerting the operator to the activation or deactivation of specific functions on auxiliary equipment, such as a plow position, spreader engagement, or winch status.
• Maintenance Reminders: Though less common, it could be integrated into systems designed to alert operators to upcoming service intervals.

Installation and Ergonomics

Proper installation of the Buzzer Light is crucial for its effectiveness. It should be mounted within the operator's direct line of sight and hearing range, typically on the dashboard, overhead console, or a dedicated switch panel. The compact design allows for flexible placement. When integrating into a vehicle’s electrical system, standard best practices should be followed:

• Fused Circuitry: Always connect the device to a properly fused circuit to protect against overcurrent and short circuits.
• Wire Gauge: Use appropriate wire gauge for the current draw and length of the wiring run.
• Secure Mounting: Ensure the unit is securely fastened to withstand vehicle vibration.
• Testing: Post-installation testing is essential to confirm correct operation under various conditions, verifying that both the light and buzzer activate reliably when the triggering condition (e.g., dump body raised) is met.

Benefits for Fleet Managers and Operators

Investing in the Buyers Products Dump Body-Up Indicator Buzzer Light offers multifaceted benefits:

• Enhanced Operator Safety: The primary benefit is the significant reduction in accident risk, protecting drivers and the public.
• Asset Protection: Prevents costly damage to trucks, trailers, and infrastructure, extending the lifespan of equipment and reducing repair expenses.
• Regulatory Compliance: Helps fleets meet safety regulations and avoid fines and legal liabilities.
• Increased Operational Uptime: By preventing accidents and facilitating proactive maintenance, vehicles spend less time in the shop and more time generating revenue.
• Improved Driver Confidence: Operators work with greater peace of mind, knowing they have a reliable system alerting them to critical safety conditions.
• Cost-Effectiveness: A relatively small investment in a robust warning system can yield substantial returns by preventing a single major incident.
• Durability and Reliability: Built for the rigors of commercial use, the LED technology and robust screw terminals ensure long-term, dependable performance in harsh environments.

Conclusion

The Buyers Products Dump Body-Up Indicator Buzzer Light is a meticulously engineered safety device that stands as an essential component for any heavy-duty commercial vehicle. Its intelligent integration of visual and auditory alerts, combined with technical features like polarity insensitivity and low power consumption, makes it highly effective and easy to implement. While not water-resistant for external exposure, its design is optimized for internal cab environments, providing critical feedback where it matters most. By serving as an immediate and unequivocal warning system for conditions such as a raised dump body or engaged PTO, this indicator buzzer light significantly elevates operational safety, mitigates risks, and safeguards valuable assets, making it an indispensable tool for responsible fleet management and confident vehicle operation.
