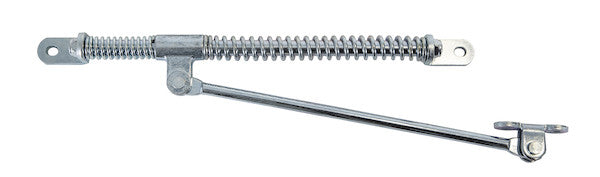

BM2395AA11 - Door Check and Hold Back with 11 Inch Arm/13 Inch Slide Rod/30 Pound Spring

Buyers Products Door Check and Hold Back operates on doors with vertical or horizontal hinges for maximum versatility. The spring-assisted slide passes over the center of the check to hold the door open at 90??. It releases automatically and closes door with a slight push. Parts are cadmium-plated for corrosion protection and are available with either 30 lb or 50 lb pressure springs.

Specifications

The Door Check and Hold Back system, specifically configured with an 11-inch arm, a 13-inch slide rod, and a 30-pound spring, represents a robust mechanical solution engineered for precision door control in demanding industrial and commercial environments. This device is meticulously designed to serve a dual function: to check the ingress or egress speed of a door and to securely hold it in an open position, typically at a 90-degree angle, enhancing operational safety and efficiency. Its versatility in application is a hallmark, functioning effectively on doors equipped with either vertical or horizontal hinge orientations, a critical consideration for diverse mounting scenarios.

At the core of its functionality lies a sophisticated spring-assisted slide mechanism. This component is integral to the "hold back" feature. As the door approaches its fully open position, the slide mechanism engages, passing over a critical "over-center" point. This mechanical principle creates a stable equilibrium, allowing the door to be held securely open at 90 degrees without constant manual intervention. The robust 30-pound spring provides the necessary compressive force to maintain this held position, resisting external forces such as wind gusts or vibrations commonly encountered in vehicle or industrial settings. When the need arises to close the door, a deliberate yet minimal push is all that is required. This slight force displaces the slide from its over-center position, allowing the spring mechanism to automatically retract, smoothly disengaging the hold and permitting the door to return to its closed state. This automatic release mechanism is a significant safety feature, preventing accidental entrapment or sudden closures that could result from manually disengaging less intuitive hold-back devices. The controlled release also contributes to the longevity of the door and frame by preventing slamming.

Delving into the specific technical specifications of this Door Check and Hold Back unit provides a comprehensive understanding of its design and operational parameters. The **Arm Length** is precisely 11.00 inches. This measurement is crucial as it dictates the effective reach and leverage of the mechanism. An 11-inch arm is optimized for a range of medium-to-large doors where a balance between compact storage in the retracted position and effective angular control is required. This length contributes significantly to the arc of motion and the mechanical advantage needed to manage door dynamics, ensuring smooth operation whether checking or holding. Paired with this is a **Slide Rod Length** of 13.00 inches. The slide rod works in conjunction with the arm, guiding the spring mechanism and providing the structural integrity for the entire assembly's dynamic movement. The difference in length between the arm and the slide rod is a deliberate design choice, allowing for the precise geometry required to achieve the over-center locking action and smooth retraction.

The **Spring Strength** of 30 pounds is a critical performance metric for this specific model. This rating signifies the force exerted by the internal spring, directly influencing the security of the door's held position and the resistance felt during opening and closing. A 30-pound spring is typically well-suited for medium to heavy-duty doors where reliable hold-back is paramount, but where excessive force to disengage would be undesirable. It provides ample resistance to prevent inadvertent closure from environmental factors like wind, yet allows for user-friendly manual disengagement. For applications demanding even greater holding power, other variants with higher spring strengths, such as 50-pound options, are available, though this particular model is specified for 30 pounds, catering to a broad spectrum of common industrial requirements. This careful calibration of spring strength ensures that the door remains securely open at 90 degrees, offering a stable and unobstructed access point for personnel or equipment.

Material selection and protective finishes are paramount for the durability and longevity of any mechanical hardware exposed to varying environmental conditions. This Door Check and Hold Back mechanism is constructed from **Carbon Steel**, a material renowned for its high tensile strength, excellent ductility, and robust structural integrity. Carbon steel provides the necessary resilience to withstand repetitive stress cycles inherent in door operation, resisting deformation and fatigue over extended periods of use. Its inherent strength makes it an ideal choice for components that experience dynamic loads and require consistent performance in demanding applications, such as commercial vehicle doors or industrial enclosures. To further enhance the material's inherent properties and provide superior resistance against degradation, the component features a **Zinc Plated** finish. Zinc plating creates a sacrificial barrier that protects the underlying carbon steel from rust and corrosion. In the presence of corrosive agents, the zinc coating corrodes preferentially, thereby preserving the structural integrity of the steel. This finish is highly effective in mitigating the effects of moisture, humidity, road salts, and mild chemical exposures, extending the service life of the door check and reducing maintenance requirements. The lustrous appearance of zinc plating also offers a clean, professional aesthetic suitable for visible installations.

Further detailed dimensions include the **Retracted Length** of 3.55 inches and an **Extended Length** of 6.84 inches. The retracted length refers to the compact dimension of the mechanism when the door is fully closed, minimizing its projection and potential for obstruction. Conversely, the extended length represents the maximum linear extension of the mechanism during the door's travel, crucial for determining clearance and fit within the door frame or surrounding structure. These dimensions are vital for precise installation planning and ensuring compatibility with the available space and door geometry. The specification indicating "Keeper Included (y/n): No" clarifies that this product is the standalone door check and hold-back mechanism itself, designed to be mounted directly to the door and its corresponding frame or adjacent structure. It does not come with a separate "keeper" or strike plate as might be found with a traditional latching mechanism. Its design is self-contained for its holding function, simplifying integration into existing or custom door assemblies where the mounting points are engineered to accommodate the mechanism directly.

The engineering principles underpinning this device emphasize both robust functionality and user convenience. The 'over-center' locking geometry is a testament to mechanical efficiency, requiring no external locking pins or complex electrical systems. This purely mechanical approach enhances reliability, particularly in environments where electrical power might be unreliable or impractical. The choice of materials and surface treatments reflects a commitment to industrial-grade durability, ensuring consistent performance over a prolonged operational lifespan. The seamless integration of the arm and slide rod, coupled with the calibrated spring, results in a smooth operational cycle – from controlled opening to secure holding and effortless release. The inherent shock absorption capabilities, a benefit of the spring-assisted design, also mitigate wear and tear on door hinges and associated hardware, thereby reducing long-term maintenance costs.

The applications for such a robust Door Check and Hold Back system are diverse and critical across numerous sectors. In the **commercial vehicle industry**, this mechanism is indispensable for truck bodies, trailers, utility vans, and service vehicle compartments. It ensures that heavy doors, often laden with tools or equipment, can be safely held open during loading, unloading, or access, preventing dangerous uncontrolled swings that could injure personnel or damage cargo. Similarly, in **industrial settings**, these units are vital for large access panels, machinery enclosures, storage cabinet doors, and specialized equipment hatches. The ability to secure these doors open at a precise 90-degree angle facilitates maintenance, inspection, and operational tasks, dramatically improving workplace safety and operational efficiency. Furthermore, in **marine applications**, while requiring additional consideration for salt-water exposure depending on the specific environment, the robust hold-back function can be highly beneficial for hatches and access points on vessels, providing stability against waves and wind. Other niche applications include securing doors on utility boxes, agricultural equipment, and specialized governmental or military vehicles where reliable door control in challenging conditions is a non-negotiable requirement. Its ability to operate on both vertical and horizontal hinged doors further broadens its adaptability to different structural designs and mounting preferences.

Proper installation is paramount to achieving the full functional benefits and ensuring the long-term reliability of the Door Check and Hold Back. While specific installation instructions should always be consulted, general considerations include precise alignment of the main body with the door and frame, ensuring adequate clearance for the arm's full range of motion. The mounting points must be robust enough to withstand the forces exerted by the spring and the dynamic loads of the door itself. Use of appropriate, high-strength fasteners is critical to prevent loosening over time, especially in high-vibration environments. Positioning the mechanism correctly is key to achieving the optimal 90-degree hold-back angle; deviations can impact the over-center engagement and release efficacy. Installers should also verify that the door's swing path is unobstructed and that the mechanism does not interfere with other components of the door assembly when fully opened or closed. The compact retracted length of 3.55 inches and extended length of 6.84 inches provide valuable parameters for determining spatial fit within constrained areas. The absence of a separate keeper streamlines the installation process, as the unit is designed for direct mounting to the door and frame interface.

The advantages of integrating this specific Door Check and Hold Back system are manifold. Firstly, it significantly enhances **safety** by preventing uncontrolled door closures or openings, which can cause injuries or damage. This is particularly crucial for heavy doors or those operating in windy conditions. Secondly, it improves **operational efficiency and ergonomics** by allowing hands-free access to compartments or interiors, facilitating easier loading, unloading, or maintenance tasks. The "slight push" release mechanism makes operation intuitive and user-friendly. Thirdly, the robust carbon steel construction with zinc plating offers exceptional **durability and corrosion resistance**, ensuring a long service life even in harsh environmental conditions. This translates into reduced replacement frequency and lower overall cost of ownership. Fourthly, by providing controlled door movement, it actively **reduces wear and tear** on hinges, latches, and the door structure itself, preventing stress fractures and premature component failure. Finally, its versatile design for vertical or horizontal hinges allows for broad applicability across a wide array of industrial and commercial door configurations, making it a highly adaptable solution for diverse mechanical control needs.

Maintenance requirements for this Door Check and Hold Back are minimal, a testament to its robust and well-engineered design. Periodic visual inspections are recommended to check for any signs of wear, loosening of fasteners, or accumulation of debris that might impede the smooth operation of the slide mechanism. Cleaning with appropriate non-corrosive agents can help maintain the integrity of the zinc plating and ensure free movement of components. Lubrication of moving parts, in accordance with manufacturer guidelines, can further extend the operational life and smoothness of the mechanism. Given its carbon steel construction and protective zinc plating, the unit is designed for a long service life under typical industrial operating conditions, provided it is installed correctly and not subjected to forces exceeding its design parameters. The inherent simplicity of the mechanical spring-assisted over-center principle means there are fewer complex components susceptible to failure, contributing to high reliability and reduced downtime.

In conclusion, the Door Check and Hold Back with an 11-inch arm, 13-inch slide rod, and 30-pound spring is an exemplary piece of industrial hardware, meticulously engineered for precision, durability, and operational safety. Its robust carbon steel construction, enhanced by a corrosion-resistant zinc-plated finish, guarantees dependable performance in challenging environments. The intelligently designed spring-assisted slide mechanism provides secure 90-degree door holding with an intuitive, automatic release, greatly improving user ergonomics and safety. Whether deployed in commercial vehicles, industrial enclosures, or specialized access panels, this mechanism offers a reliable solution for managing door dynamics, preventing uncontrolled movements, and maintaining secure open positions. Its adherence to stringent material and dimensional specifications, coupled with its versatile hinge compatibility, positions it as an essential component for professionals seeking uncompromising quality and performance in their door control systems. This product embodies a commitment to mechanical excellence, delivering both security and efficiency in a single, robust package.
