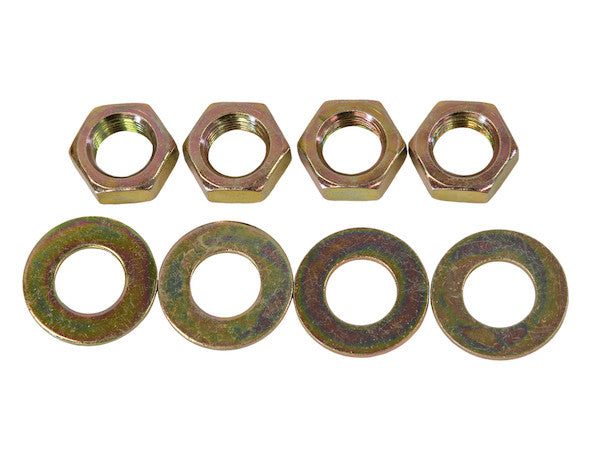

The Control Cable Nut and Washer Kit from Buyers Products includes four nuts and four washers to bulkhead mount a Buyers Products 6200 Series Universal Mount Control Cable.
Specifications
| Use WIth | 6200 Series Cable |
| Material | Carbon Steel |
| Description | For use w/ 62 series cable |
| FInish | Zinc Plated |
Technical Overview: Buyers Products 6200 Series Cable Nut and Washer Kit for Secure Bulkhead Mounting
This comprehensive technical description details the Nut and Washer Kit specifically designed for bulkhead mounting of Buyers Products 6200 Series Universal Mount Control Cables. Understanding the critical role these seemingly minor components play in the overall functionality and longevity of mechanical control systems is paramount. This kit provides the essential hardware to ensure a robust, reliable, and secure installation, preventing premature wear, operational failures, and safety hazards associated with improperly mounted control cables.1. Introduction to Control Cable Mounting and its Significance
Control cables are fundamental components in a vast array of mechanical systems, ranging from heavy-duty vehicle applications in construction and agriculture to industrial machinery and marine equipment. Their primary function is to transmit force or motion over a distance, enabling precise control of various mechanisms such as throttles, clutches, brakes, and power take-offs (PTOs). The integrity of this transmission is directly dependent on the secure and stable mounting of the cable assembly. Bulkhead mounting is a common and highly effective method for routing control cables through a panel, firewall, or chassis. This technique provides several advantages:- Protection: It shields the cable's internal components from external damage, abrasion, and environmental contaminants as it passes through a structural barrier.
- Stability: A securely mounted cable minimizes movement and vibration, which can otherwise lead to fatigue, fraying, or kinking of the cable conduit and inner wire.
- Ergonomics and Aesthetics: It allows for neat and organized cable routing, contributing to a cleaner installation and easier access for maintenance.
- Operational Reliability: By holding the cable firmly in place, it ensures that the applied force is efficiently transmitted to the controlled mechanism without loss due to excessive cable movement at the mounting point.
2. Detailed Analysis of Kit Components
The Buyers Products Control Cable Nut and Washer Kit comprises four nuts and four washers, specifically chosen and dimensioned for optimal performance with 6200 Series Universal Mount Control Cables.2.1. The Nuts
The nuts included in this kit are designed for threaded engagement with the external threads present on the bulkhead fitting of the 6200 Series control cable.- Type: Typically, these would be standard hex nuts, providing multiple wrenching surfaces for ease of tightening and high torque capabilities. The exact thread size and pitch are precisely matched to the 6200 Series cable's bulkhead fitting to ensure proper engagement and prevent cross-threading or stripping.
- Material: Carbon Steel. Carbon steel is chosen for its excellent balance of strength, hardness, and cost-effectiveness. This material provides the necessary tensile strength to withstand the forces exerted during cable operation and the tightening torque required for secure installation.
- Finish: Zinc Plated. Zinc plating is a sacrificial coating applied to the carbon steel to enhance its corrosion resistance. In environments where moisture, road salt, chemicals, or other corrosive agents are present, untreated carbon steel would quickly rust, compromising the structural integrity of the nut and potentially seizing the threads, making future adjustment or removal difficult. The zinc coating creates a barrier and, more importantly, acts as an anode, corroding preferentially to the steel substrate, thereby protecting the steel from rust. This finish extends the operational life of the nut and maintains its aesthetic appearance.
- Function: The primary function of the nut is to secure the cable's bulkhead fitting against the mounting panel. When tightened, it compresses the panel material (often with a washer acting as an interface) between the cable's shoulder and the nut, creating a stable, immovable connection.
2.2. The Washers
The washers in this kit serve several critical functions in the bulkhead mounting assembly.- Type: These are typically flat washers, designed to distribute the clamping force over a larger area.
- Material: Carbon Steel. Consistent with the nuts, the washers are also made from carbon steel, providing the requisite strength and rigidity to prevent deformation under tightening torque and operational stresses.
- Finish: Zinc Plated. Similar to the nuts, the zinc plating on the washers provides vital corrosion resistance, ensuring the longevity of the component and preventing rust stains or degradation of the mounting surface.
-
Function:
- Load Distribution: When a nut is tightened directly against a panel, the concentrated force can deform or damage the panel material, especially if it's softer (e.g., plastic, thin gauge metal). A washer distributes this clamping force over a broader area, reducing the localized stress and preventing damage to the panel.
- Bearing Surface: The washer provides a smooth, uniform bearing surface for the nut to turn against. This reduces friction during tightening, allowing for a more accurate torque application and preventing galling or scoring of the panel surface.
- Preventing Loosening: While flat washers themselves do not actively prevent loosening, their role in providing a stable, high-friction interface between the nut and the mounting surface contributes to the overall stability of the joint. When used in conjunction with a properly torqued nut, they help maintain the clamping force.
- Aesthetics: A washer can also provide a more finished appearance by covering any slight imperfections or burrs around the drilled hole in the bulkhead.
3. Compatibility and Application with 6200 Series Cables
This kit is explicitly designed for use with Buyers Products 6200 Series Universal Mount Control Cables. This specificity is crucial for several reasons:- Thread Compatibility: The nuts' internal threads perfectly match the external threads on the bulkhead fitting of the 6200 Series cables, ensuring a secure and interference-free fit. Using mismatched hardware can lead to stripped threads, loose connections, or permanent damage to the cable.
- Dimensional Compatibility: The washers' inner and outer diameters are sized appropriately for the 6200 Series cable's bulkhead fitting and typical mounting hole dimensions. This ensures adequate load distribution without interfering with the cable's articulation or presenting an excessively large profile.
- Material and Finish Suitability: The carbon steel construction and zinc plating are chosen to complement the typical operating environments and expected lifespan of the 6200 Series cables, providing a consistent level of durability and corrosion resistance across the entire assembly.
4. Installation Guidelines and Best Practices
Proper installation of the Nut and Washer Kit is critical to achieving the intended performance and longevity of the control cable system.4.1. Preparation
- Hole Preparation: Ensure the mounting hole in the bulkhead or panel is clean, free of burrs, and sized correctly according to the 6200 Series cable's specifications. An improperly sized hole can lead to a loose fit or difficulty in mounting.
- Cable Inspection: Before mounting, inspect the 6200 Series cable for any signs of damage to the outer casing or threaded fitting.
4.2. Mounting Procedure (General)
- Insert the threaded bulkhead fitting of the 6200 Series cable through the prepared hole in the mounting panel from the side where the cable's operational mechanism is located.
- On the opposite side of the panel, place one of the supplied carbon steel, zinc-plated washers over the threaded fitting. This washer will typically be positioned directly against the panel surface.
- Thread one of the supplied carbon steel, zinc-plated nuts onto the fitting.
- Hand-tighten the nut to ensure proper thread engagement.
- Using an appropriate wrench, tighten the nut securely. It is crucial to apply adequate torque to prevent loosening under vibration or operational stresses, but overtightening should be avoided as it can damage the cable fitting, the mounting panel, or strip the threads. Consult the 6200 Series cable's documentation or general engineering best practices for recommended torque specifications.
- Repeat this process if additional mounting points are required or for multiple cables.
4.3. Post-Installation Checks
- Security: Verify that the cable is firmly secured and does not exhibit any excessive movement at the mounting point.
- Cable Freedom: Ensure the cable operates smoothly throughout its full range of motion without binding, kinking, or excessive friction caused by the mounting.
- Environmental Seal (if applicable): In some applications, additional sealing (e.g., silicone sealant, rubber grommets) may be required around the bulkhead fitting to prevent water or dust ingress. While this kit provides mechanical security, it does not inherently offer an environmental seal.
5. Technical Specifications Summary and Benefits
The explicit technical specifications of this kit underscore its professional-grade design:- Use With: 6200 Series Cable – Guarantees precise fit and optimal performance.
- Material: Carbon Steel – Offers high tensile strength and durability, critical for sustained performance in demanding environments.
- Description: For use w/ 62 series cable – Reaffirms specific compatibility and application.
- Finish: Zinc Plated – Provides essential corrosion resistance, extending the lifespan of the components and the entire control cable assembly by preventing rust and degradation.
- Enhanced System Reliability: A secure mounting prevents operational failures due to loose cables, ensuring consistent and precise control.
- Extended Cable Lifespan: By minimizing cable movement and abrasion at the bulkhead, the kit helps to prevent premature wear and fatigue of the cable's conduit and internal wire.
- Improved Safety: A properly mounted cable reduces the risk of sudden control loss, which can have significant safety implications in machinery and vehicle applications.
- Reduced Maintenance and Downtime: Reliable mounting hardware translates to fewer repairs and less operational downtime.
- Professional Installation: Using the correct, purpose-designed hardware contributes to a high-quality, professional installation that meets industry standards.
- Corrosion Protection: The zinc-plated finish is crucial for applications exposed to harsh weather, moisture, road chemicals, or industrial environments.
6. Conclusion
The Nut and Washer Kit for 6200 Series Cable from Buyers Products is an indispensable component for any installation involving their 6200 Series Universal Mount Control Cables. Far from being a mere accessory, this kit provides the foundational mechanical integrity required for secure bulkhead mounting. Its carefully selected materials (carbon steel), protective finish (zinc plating), and precise compatibility ensure a durable, reliable, and high-performing connection. Investing in the correct mounting hardware is a critical aspect of sound engineering practice, safeguarding the functionality, longevity, and safety of the entire control system. This kit embodies Buyers Products' commitment to providing comprehensive solutions that meet the rigorous demands of professional-grade applications.
