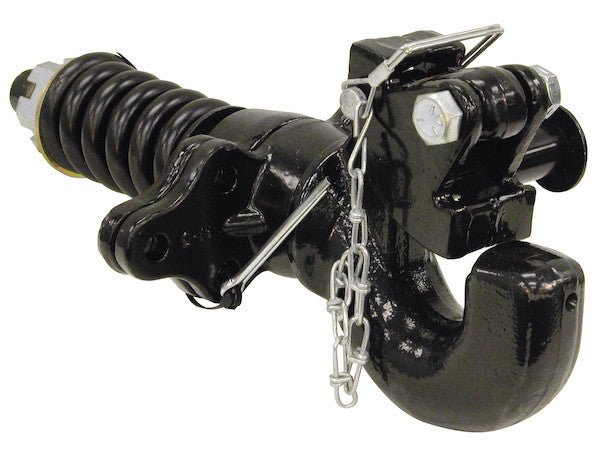

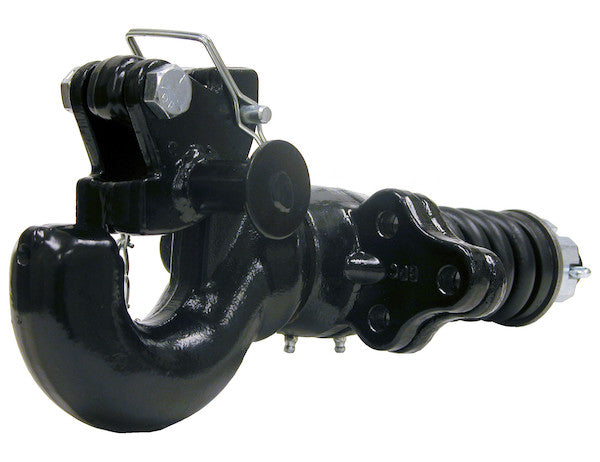

The 15 Ton Swivel Type Pintle Hook from Buyers Products has both a spring cushion and swivel action to reduce stress on towing mechanisms and allow for off-road and uneven terrain towing. The spring reduces stress upon acceleration and the swivel action allows for travel over rough terrain. The pintle hook is ideal for construction and utility equipment, military equipment, and highway construction towing purposes for loads up to 30,000 lb. For off-road use, load should be reduced by 25%.

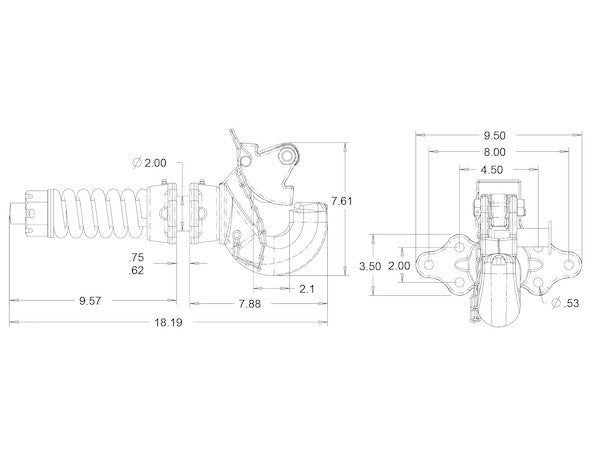

Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Compares To | Holland PH-T-100A |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.00 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 4.50/8.00 |
| M.G.T.W. (lbs) | 30,000 |
| M.V.L. (lbs) | 6,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.531 |
| Pintle Hook Type | Swivel |
| Vertical Hole Spacing (in.) | 2.00 |
Advanced Towing Dynamics: The 15 Ton Swivel Type Pintle Hook
In the demanding world of heavy-duty towing, where safety, reliability, and operational efficiency are paramount, the choice of towing hardware dictates the success and longevity of an entire operation. The 15 Ton Swivel Type Pintle Hook from Buyers Products represents the pinnacle of engineering for severe service applications. Designed to compare favorably with industry-leading models such as the Holland PH-T-100A, this pintle hook is not merely a component but a critical safety and performance enhancement for any heavy-duty towing setup. Its robust construction, incorporating both swivel articulation and spring cushioning, fundamentally transforms the towing experience, mitigating stress on mechanisms and ensuring superior control across varied and challenging terrains.
Engineering Excellence: The Forged Steel Advantage
The foundation of the 15 Ton Swivel Type Pintle Hook's formidable capabilities lies in its material composition and manufacturing process: high-grade forged steel. Unlike cast or fabricated components, forging involves shaping solid steel through immense pressure, which refines the metal's grain structure, eliminating internal voids and porosity. This process results in a material with exceptional strength-to-weight ratio, superior impact resistance, and significantly enhanced fatigue life. In heavy-duty towing, components are subjected to continuous dynamic loads, sudden jolts, and torsional stresses. Forged steel provides the metallurgical integrity required to withstand these punishing conditions without compromise, ensuring the hook maintains its structural integrity over an extended operational lifespan. This material choice directly contributes to the hook's impressive 15-ton capacity, translating to a Maximum Gross Trailer Weight (M.G.T.W.) of 30,000 lbs and a Maximum Vertical Load (M.V.L.) of 6,000 lbs, making it a reliable choice for the heaviest commercial and industrial applications.
The Mechanics of Stress Mitigation: Swivel and Spring Cushion Integration
The defining features of this pintle hook are its integrated swivel action and spring cushion mechanism, engineered to address the inherent stresses of heavy-duty towing, particularly in non-uniform environments. The swivel action provides a crucial degree of rotational freedom between the towing vehicle and the trailer. This articulation is indispensable when traversing uneven terrain, navigating sharp turns, or operating on sites with significant elevation changes. By allowing the pintle hook to rotate relative to the drawbar eye, torsional stresses are effectively eliminated from the hitch assembly, the trailer frame, and the towing vehicle's chassis. This prevents binding, reduces the likelihood of component fatigue and failure, and significantly enhances maneuverability. For off-road operations or construction sites where articulation is paramount, the swivel feature ensures the towing connection remains fluid and unstrained, preventing potentially dangerous load transfers and maintaining vehicle control.
Complementing the swivel action is the strategically integrated spring cushion. This mechanism is designed to absorb and dissipate the kinetic energy generated by sudden accelerations, abrupt decelerations, and impacts from road irregularities. During typical towing, particularly with heavy loads, abrupt changes in speed or terrain can induce severe shock loads that propagate throughout the entire towing system. The spring acts as a dampener, smoothing out these dynamic forces, thereby protecting the towing vehicle's drivetrain, suspension, and chassis, as well as the trailer's structural integrity and cargo. By cushioning these impacts, the spring not only extends the lifespan of all interconnected components but also contributes to a smoother, more controlled towing experience, reducing driver fatigue and enhancing overall operational safety. This dual-action stress mitigation system is a testament to the comprehensive engineering approach taken to optimize performance and durability under the most demanding conditions.
Load Rating and Operational Parameters for Optimal Safety
Understanding and adhering to the specified load ratings is fundamental to safe and compliant towing. The 15 Ton Swivel Type Pintle Hook boasts a Maximum Gross Trailer Weight (M.G.T.W.) of 30,000 lbs. This metric represents the absolute maximum combined weight of the trailer and its entire payload that the hook is designed to safely handle. Exceeding this limit will compromise the structural integrity of the hook, potentially leading to catastrophic failure, loss of control, and severe safety hazards. Equally critical is the Maximum Vertical Load (M.V.L.) of 6,000 lbs. The M.V.L. signifies the maximum downward force exerted by the trailer's drawbar eye onto the pintle hook. Proper vertical load distribution is essential for maintaining vehicle stability, braking effectiveness, and steering control. An M.V.L. that is too low can result in trailer sway, while an excessively high M.V.L. can overload the towing vehicle's rear axle and compromise steering responsiveness.
A crucial safety consideration highlighted for this product is the requirement to reduce the load by 25% for off-road use. This reduction is not merely a suggestion but a critical engineering guideline based on the increased dynamic stresses inherent in off-road environments. Unlike paved roads, off-road terrain introduces unpredictable and often severe shock loads due sudden impacts, steep inclines, uneven surfaces, and greater articulation demands. These conditions generate momentary peak forces that can far exceed the static load ratings of components. The 25% load reduction provides an essential safety margin, accounting for these transient overloads and ensuring the pintle hook's structural integrity is maintained, preventing fatigue and sudden failure during demanding off-highway operations. Adhering to this guideline is paramount for ensuring the longevity of the towing equipment and the safety of personnel and cargo.
Precision in Installation and Compatibility
Optimal performance and safety of any towing system rely heavily on precise installation and compatible components. The 15 Ton Swivel Type Pintle Hook is designed with specific dimensions to facilitate secure and robust integration into a wide range of heavy-duty towing setups. The Drawbar Eye Inner Diameter compatibility, ranging from 2.38 to 3.00 inches, ensures versatility with a variety of industry-standard drawbar eyes. This range minimizes slack between the pintle and the eye, reducing wear and tear, and enhancing the stability of the towed connection. A precise fit is crucial to prevent premature wear and excessive play, which can lead to accelerated component degradation and an unsafe towing condition.
For mounting, the pintle hook features a Mounting Hole Diameter of 0.531 inches, necessitating the use of high-grade fasteners, typically Grade 8 bolts, to ensure a connection capable of withstanding the immense forces involved in 15-ton towing. The specified Horizontal Hole Spacing of 4.50/8.00 inches and Vertical Hole Spacing of 2.00 inches conform to common industry bolt patterns, allowing for broad compatibility with various pintle mounts, receiver hitches, and cross members. Correct alignment and secure torquing of these mounting bolts to the manufacturer's precise specifications are absolutely critical. Improper installation, including incorrect bolt grades or inadequate torque, can compromise the structural integrity of the mounting point and the overall towing system, potentially leading to catastrophic failure. These precise dimensions reflect a design philosophy centered on safety, ease of integration, and long-term reliability.
Protective Coating and Aesthetic Durability
Beyond its mechanical and structural attributes, the 15 Ton Swivel Type Pintle Hook is finished with a durable black powder-coat. This advanced coating technique offers significant advantages over conventional liquid paints, particularly in the harsh environments often encountered in heavy-duty towing. Powder coating creates a robust, uniform layer that provides superior resistance to corrosion, abrasion, chipping, and fading. For components continuously exposed to elements such as moisture, road salts, chemicals, and physical impacts inherent in construction or off-road use, this protective finish is essential. It not only preserves the aesthetic appearance of the hook but, more importantly, provides a critical barrier against environmental degradation, thereby extending the service life of the forged steel base material and maintaining the structural integrity of the hook over many years of rigorous service. This attention to detail in surface protection underscores the product's overall commitment to durability and longevity.
Versatility Across Demanding Industries
The robust design and specialized features of the 15 Ton Swivel Type Pintle Hook make it an indispensable component across a spectrum of demanding industries. In the **construction and utility sectors**, this pintle hook is perfectly suited for towing heavy machinery such as skid-steer loaders, mini-excavators, generators, air compressors, and various material transport trailers. Its ability to absorb shock and articulate over uneven ground ensures that valuable equipment reaches its destination safely and efficiently, even across challenging job sites. For **military equipment**, where reliability and resilience under extreme field conditions are non-negotiable, this pintle hook provides the necessary robustness for transporting tactical trailers, mobile command units, and essential supply vehicles, offering dependable performance in hostile and unpredictable environments. Furthermore, in **highway construction towing**, the constant high loads and repetitive stress encountered when hauling asphalt pavers, rollers, aggregate trailers, and barrier trailers demand a towing solution that can consistently perform without fatigue. The spring cushion and swivel action reduce stress from constant starts, stops, and highway vibrations, ensuring smoother operation and minimizing wear on both the towing vehicle and the heavy equipment being transported. The hook's overall versatility makes it a preferred choice for any application requiring high-capacity, dynamic load handling capabilities where safety and durability cannot be compromised.
Adherence to Industry Standards and Quality Assurance
The statement that this product "Compares To Holland PH-T-100A" is significant, extending beyond mere cross-referencing. It implies that the 15 Ton Swivel Type Pintle Hook meets or exceeds the performance, dimensional, and quality benchmarks set by a leading manufacturer in the heavy-duty towing industry. This level of comparison suggests adherence to relevant industry standards, such as those published by the Society of Automotive Engineers (SAE), particularly SAE J847 for pintle hooks, which dictates design, testing, and performance criteria. Buyers Products' commitment to such standards assures customers of a reliable and high-quality alternative, guaranteeing compatibility, safety, and performance characteristics consistent with established industry leaders. This commitment is often backed by rigorous quality control processes, including material inspection, dimensional checks, load testing, and fatigue analysis, ensuring that each unit delivered is ready for the most strenuous applications.
Maintenance and Longevity
To ensure maximum service life and continued safe operation, regular inspection and basic maintenance are recommended for the 15 Ton Swivel Type Pintle Hook. Periodically check for signs of wear, deformation, or cracks on the pintle body, latch, and spring mechanism. Ensure that all mounting bolts remain securely torqued to specifications. While the swivel mechanism is designed for durability, occasional lubrication of specific points, if recommended by the manufacturer, can further enhance its smooth operation and extend its life. Adhering to a simple maintenance schedule will preserve the hook's integrity, ensuring consistent, reliable performance for years to come.
Conclusion: A Prudent Investment in Performance and Safety
The 15 Ton Swivel Type Pintle Hook from Buyers Products stands as an exemplary heavy-duty towing solution, meticulously engineered to tackle the most demanding applications with unmatched reliability and safety. Its forged steel construction, combined with the innovative stress-mitigating swivel action and spring cushion, positions it as a superior choice for operations requiring robust performance across diverse and challenging terrains. With a substantial 30,000 lb M.G.T.W. and 6,000 lb M.V.L., and the added assurance of comparison to industry benchmarks, this pintle hook is a critical investment in operational efficiency, component longevity, and, most importantly, the safety of your towing fleet. For professionals seeking a high-capacity, durable, and technologically advanced towing solution, this pintle hook delivers uncompromising quality and performance.
