BP125A - 15 Ton Swivel Type Pintle Hook-Compares to Holland# PH-T-125A

The 15 Ton Swivel Type Pintle Hook from Buyers Products has both a spring cushion and swivel action to reduce stress on towing mechanisms and allow for off-road and uneven terrain towing. The spring reduces stress upon acceleration and the swivel action allows for travel over rough terrain. The pintle hook is ideal for construction and utility equipment, military equipment, and highway construction towing purposes, with loads up to 30,000 lb. For off-road use, the load should be reduced by 25%.

Specifications

Advanced Engineering and Performance of the 15 Ton Swivel Type Pintle Hook

The 15 Ton Swivel Type Pintle Hook from Buyers Products represents a pinnacle of towing technology, meticulously engineered to facilitate the secure and efficient transport of heavy-duty equipment across diverse and challenging terrains. Designed with a robust 30,000 lb. (15 ton) Maximum Gross Trailer Weight (M.G.T.W.) capacity and a substantial 6,000 lb. Maximum Vertical Load (M.V.L.), this pintle hook is an indispensable component for industries demanding unwavering reliability and superior performance. Its core features, a sophisticated swivel action and an integrated spring cushion, are not mere additions but fundamental design elements that significantly enhance operational safety, mitigate stress on towing systems, and extend the service life of both the towing vehicle and the towed apparatus. This model stands as a direct and high-performance alternative, comparing favorably to the industry-renowned Holland PH-T-125A, signaling its adherence to stringent quality and performance benchmarks.

Unrivaled Versatility Through Swivel Action

The primary advantage of a swivel type pintle hook lies in its unparalleled ability to accommodate significant articulation between the towing vehicle and the trailer. Traditional rigid pintle hooks transfer torsional stresses directly to the towing frame and trailer A-frame during off-road or uneven terrain maneuvers. This constant twisting and binding can lead to premature wear, structural fatigue, and even catastrophic failure of critical components. The integrated swivel mechanism in this Buyers Products pintle hook mitigates these risks by allowing the drawbar eye to rotate freely, typically through a full 360-degree range relative to the pintle hook body. This rotational freedom ensures that the trailer can pitch and roll independently of the tow vehicle without imparting harmful torsional loads on the connection point.

For operations in demanding environments such as construction sites, unpaved utility corridors, or military tactical routes, the swivel action is not just a convenience but a critical safety feature. It prevents the pintle hook from binding when the towing vehicle and trailer are operating at different angles, for instance, when traversing steep inclines, crossing ditches, or navigating rugged, uneven ground. This dynamic flexibility drastically reduces the likelihood of axle binding, spring breakage, or frame damage on either vehicle. Furthermore, it enhances operator control by providing a smoother, more predictable towing experience, reducing the physical strain on equipment and personnel. The engineering of this swivel joint is designed for continuous heavy use, incorporating robust bearings and a secure locking mechanism that maintains integrity under the most strenuous dynamic loads, while facilitating necessary rotational movement.

Advanced Shock Absorption with Spring Cushion Technology

Complementing the swivel action is the integrated spring cushion, a vital innovation designed to absorb and dampen dynamic forces that arise during towing operations. Acceleration, deceleration, and impacts from road irregularities generate significant longitudinal forces within the towing system. Without adequate cushioning, these sudden jerks and jolts are directly transmitted through the drawbar, pintle hook, and frame, causing considerable stress. The spring cushion mechanism acts as a buffer, progressively absorbing these shock loads. Upon acceleration, the spring compresses, cushioning the initial pull and smoothly transferring power to the trailer. Similarly, during deceleration or braking, it helps to absorb the forward surge of the trailer, minimizing the abrupt impact on the tow vehicle.

The benefits of this spring cushion are multi-faceted. Firstly, it significantly reduces wear and tear on the entire driveline and chassis of both the towing vehicle and the trailer. Components such as differentials, transmissions, universal joints, and suspension systems are subjected to fewer peak stress loads, thereby extending their operational lifespan and reducing maintenance frequency. Secondly, it contributes to cargo protection by minimizing sudden movements that could potentially damage sensitive or unstable loads. Thirdly, it dramatically improves ride comfort for the operator, especially over long hauls or rough terrain, reducing driver fatigue and enhancing safety. The specific spring characteristics are precisely calibrated to handle the 15-ton capacity, ensuring optimal energy absorption without compromising the stability or integrity of the connection. This thoughtful design ensures a more controlled, stable, and safer towing environment, even under conditions that would severely challenge a rigid towing system.

Robust Capacity and Prudent Load Management

With an M.G.T.W. of 30,000 lbs. (15 tons) and an M.V.L. of 6,000 lbs., this pintle hook is engineered for substantial payloads. The M.G.T.W. rating dictates the maximum combined weight of the trailer and its cargo that the hook can safely pull, while the M.V.L. specifies the maximum downward force (tongue weight) that the hook can support. These ratings are not merely guidelines but critical safety parameters, established through rigorous testing and adherence to industry standards, ensuring structural integrity under specified operational conditions. It is imperative that operators strictly adhere to these limits to prevent equipment failure, potential accidents, and ensure compliance with regulatory requirements.

A crucial consideration highlighted in the product specifications is the requirement to reduce the load by 25% for off-road use. This translates to an off-road M.G.T.W. of 22,500 lbs. (11.25 tons). This reduction is not arbitrary; it is a direct reflection of the increased dynamic forces and unpredictable stresses encountered in off-road environments. Uneven terrain, sudden drops, sharp turns, and obstacles amplify the shock loads and torsional stresses far beyond those experienced on paved surfaces. The 25% derating accounts for these intensified forces, ensuring that the pintle hook, even with its advanced swivel and spring cushion, maintains an adequate safety margin when operating under more extreme conditions. This responsible engineering approach underscores a commitment to maximizing safety and durability across the full spectrum of intended applications. Proper load distribution on the trailer, ensuring the M.V.L. is not exceeded, is equally vital for maintaining vehicle stability and braking efficiency.

Superior Material Science and Protective Finishes

The foundational strength and longevity of this 15 Ton Swivel Type Pintle Hook are attributed to its construction from high-grade forged steel. Forging is a manufacturing process that involves shaping metal using localized compressive forces, resulting in a product that is significantly stronger and more durable than components produced by other methods, such as casting. The forging process refines the grain structure of the steel, eliminating internal voids and porosity, and aligning the grain flow with the part's contours. This metallurgical characteristic imbues the pintle hook with exceptional resistance to fatigue, impact, and wear – critical properties for components subjected to continuous, high-stress cyclical loading. Forged steel provides superior tensile strength and yield strength, ensuring the hook can withstand the immense pulling and vertical forces associated with heavy-duty towing without deforming or fracturing.

Further enhancing its durability and resistance to environmental degradation is the black powder-coat finish. Powder coating is an advanced dry finishing process that applies a protective layer more resistant to chipping, scratching, fading, and corrosion than conventional liquid paints. The finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded steel surface, adhering like a magnet. The part is then cured in an oven, where the powder melts and flows into a smooth, durable finish. This tough, uniform coating provides an excellent barrier against moisture, road salts, chemicals, and abrasive particles, which are commonly encountered in industrial, construction, and military applications. The black color offers a professional aesthetic and contributes to UV resistance, ensuring the pintle hook maintains its functional and visual integrity over an extended operational lifespan in harsh outdoor conditions.

Precision Compatibility and Secure Mounting

Designed for optimal versatility, this pintle hook accommodates drawbar eyes with an inner diameter ranging from 2.38 to 3.00 inches. This wide compatibility ensures that it can securely couple with a broad array of trailers, from standard utility and construction trailers to specialized military and agricultural implements. The precise fit between the pintle hook and the drawbar eye is crucial for minimizing play and preventing premature wear, excessive noise, and dangerous decoupling events. Operators must ensure that the drawbar eye fits within this specified range to guarantee a safe and stable connection.

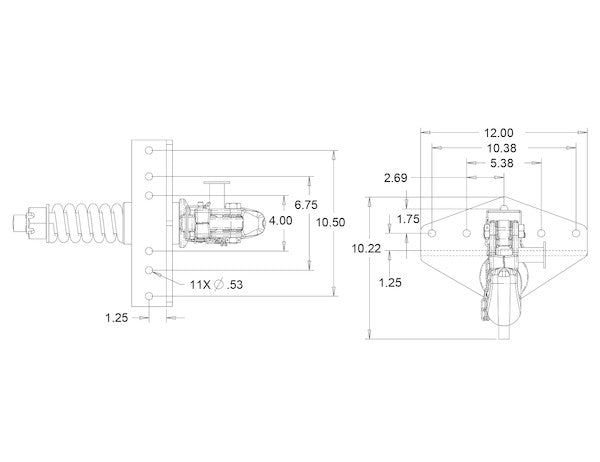

The mounting specifications are equally critical for a secure installation. The pintle hook features a standardized mounting hole pattern with horizontal hole spacing options of 5.375 inches and 10.375 inches, and a vertical hole spacing of 1.75 inches. Each mounting hole has a diameter of 0.562 inches. These precise dimensions allow for versatile attachment to various mounting plates, frame crossmembers, or custom tow hitches. The selection of appropriate Grade 8 fasteners (bolts, nuts, and washers) with corresponding tensile strength is paramount. Fasteners must be torqued to the manufacturer’s specifications to ensure a rigid, unyielding connection that can withstand the immense shear and tensile forces exerted during towing operations. Improper mounting or undersized fasteners can compromise the entire towing system, leading to structural failure and severe safety hazards. Professional installation and adherence to all torque specifications are strongly recommended to guarantee the optimal performance and safety of this heavy-duty pintle hook.

Diverse Industrial Applications

The robust design and advanced features of the 15 Ton Swivel Type Pintle Hook make it ideally suited for an extensive range of demanding industrial and commercial applications:

• Construction and Heavy Equipment Transport: Essential for towing large construction machinery such as excavators, bulldozers, loaders, skid steers, and compaction equipment between job sites. Its swivel action is invaluable on rugged terrain, ensuring stable transport over uneven ground prevalent in construction zones.
• Utility Sector: Critical for utility companies transporting power pole trailers, cable reel trailers, aerial lift equipment, and specialized service vehicles. The ability to navigate unimproved roads and rights-of-way with heavy loads is a distinct advantage.
• Military and Defense Logistics: Proven capable in the most challenging operational environments, this pintle hook is suitable for towing military tactical vehicles, supply trailers, mobile command units, and specialized equipment across diverse landscapes, often under extreme conditions. The spring cushion protects sensitive cargo and vehicle components during rapid maneuvers or travel over rough terrain.
• Highway Construction and Maintenance: Indispensable for moving asphalt pavers, road rollers, aggregate trailers, and other large-scale road-building equipment. The capacity and shock-absorbing features ensure efficient and safe transport along highways and access roads.
• Agriculture and Forestry: Well-suited for agricultural tractors towing large implements, grain wagons, and livestock trailers across fields and unpaved farm roads. In forestry, it supports the transport of logging equipment and timber trailers over rugged logging trails.
• Mining Operations: Used in open-pit and underground mining for transporting specialized heavy machinery, material haulage trailers, and support equipment, where terrain is consistently challenging and load demands are extreme.

The adaptability and strength of this pintle hook ensure consistent, reliable performance across these critical sectors, making it a cornerstone component for any fleet engaged in heavy-duty transport.

Comparison to Holland PH-T-125A

The statement "Compares to Holland PH-T-125A" is a significant indicator of the quality and performance benchmark achieved by this Buyers Products pintle hook. Holland, a brand synonymous with excellence in heavy-duty trucking components, sets a high standard for durability, reliability, and engineering precision. This comparison implies that the 15 Ton Swivel Type Pintle Hook from Buyers Products offers equivalent or superior functional specifications, dimensional compatibility, and operational performance to a recognized industry leader. For fleet managers and purchasing agents, this signifies that they can expect a product that meets rigorous operational demands, integrates seamlessly into existing systems designed for similar specifications, and delivers comparable longevity and safety. It positions the Buyers Products offering not merely as an alternative, but as a top-tier solution that adheres to the highest industry standards, providing confidence in its capability to perform reliably under continuous heavy-duty service.

Safety Protocols and Maintenance Regimen

To ensure the continued safe and effective operation of the 15 Ton Swivel Type Pintle Hook, adherence to a strict regimen of inspection and maintenance is paramount. Regular visual inspections should be conducted before each use to check for any signs of wear, cracks, distortion, or corrosion on the pintle hook body, latching mechanism, and spring assembly. Particular attention should be paid to the swivel joint for smooth operation and the integrity of its lubrication. The latching mechanism must operate freely and securely, positively engaging the drawbar eye without excessive play. Any damage or excessive wear warrants immediate replacement to prevent catastrophic failure.

Proper lubrication, as specified by the manufacturer, is essential for the smooth functioning of the swivel mechanism and the longevity of all moving parts. Grease fittings, if present, should be serviced regularly with appropriate grease to minimize friction and prevent seizing. Furthermore, the mounting bolts must be periodically checked for tightness, ensuring they remain torqued to the specified values. Loose fasteners can lead to premature wear of mounting holes, reduced towing capacity, and dangerous instability. Operator training on proper hitching procedures, load securement, and understanding the specific operational characteristics of a swivel-type, spring-cushioned pintle hook is crucial. Never exceed the rated M.G.T.W. or M.V.L., and always observe the 25% load reduction for off-road applications. Adhering to these safety and maintenance protocols will maximize the lifespan of the pintle hook, protect personnel, and safeguard valuable equipment and cargo.

Conclusion

The 15 Ton Swivel Type Pintle Hook from Buyers Products is an exemplary heavy-duty towing solution, meticulously engineered to address the complexities of transporting substantial loads across challenging environments. Its innovative combination of a dynamic swivel action and a responsive spring cushion not only reduces stress on critical towing components but also significantly enhances operational safety and extends equipment longevity. Constructed from forged steel and protected by a robust powder-coat finish, it guarantees enduring performance in the harshest conditions. With a substantial 30,000 lb. M.G.T.W. and precise mounting specifications, this pintle hook offers unparalleled versatility for construction, utility, military, and highway sectors. Its direct comparison to the Holland PH-T-125A underscores its position as a premium, reliable, and high-performance component within the heavy-duty towing industry. By integrating advanced engineering, superior materials, and a focus on operational safety, this pintle hook provides a robust and dependable connection, ensuring efficient and secure transport for the most demanding applications.
