Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Compares To | Wallace 2044101 |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.00 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 4.50/8.00 |
| M.G.T.W. (lbs) | 50,000 |
| M.V.L. (lbs) | 6,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.531 |
| Pintle Hook Type | Swivel |
| Vertical Hole Spacing (in.) | 2.00 |

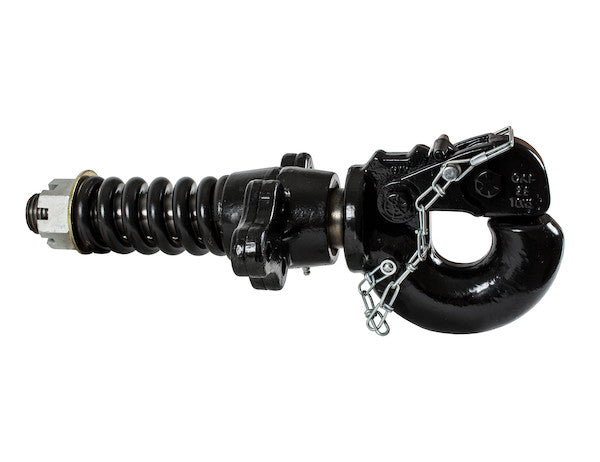

The 25 Ton Swivel Type Pintle Hook, engineered by Buyers Products, represents a pinnacle in heavy-duty towing technology, meticulously designed to meet the rigorous demands of professional applications across diverse and challenging environments. This robust towing component integrates advanced mechanical features, specifically a spring cushion and a swivel action, to deliver unparalleled performance, safety, and durability for towing systems handling loads up to 50,000 lb. Its design directly addresses the critical need for stress mitigation on both the prime mover and the towed equipment, particularly when operating on uneven terrain or subject to dynamic loading conditions.
Advanced Mechanical Integration: Swivel and Spring Cushion Mechanisms
The core innovation of this pintle hook lies in its sophisticated integration of a swivel mechanism and a spring cushion. Each component serves a distinct yet complementary function, synergistically enhancing the overall towing experience and component longevity.
The Swivel Action: Dynamic Articulation for Off-Road Superiority
The swivel action is a pivotal feature, providing a full 360-degree rotational freedom between the towing vehicle and the trailer's drawbar eye. This rotational capability is fundamental to maintaining stability and preventing torsional stress, particularly when navigating complex topographies inherent in off-road, construction, or military operational theaters. Without this swivel action, conventional pintle hooks would transfer severe twisting forces directly to the vehicle's frame and the trailer's tongue during articulation over uneven surfaces. Such forces can lead to accelerated fatigue, structural deformation, and catastrophic failure of critical components. By allowing independent angular movement, the swivel mechanism:
- Reduces Torsional Stress: Distributes and dissipates rotational stresses that would otherwise concentrate at the hitch point, safeguarding the structural integrity of both the tow vehicle's chassis and the trailer's frame.
- Enhances Maneuverability: Facilitates smoother turns and greater articulation angles, which is indispensable for navigating tight turns, inclines, declines, and obstacles commonly encountered in rugged environments. This significantly reduces the risk of jackknifing or binding.
- Improves Traction and Stability: By preventing the trailer from imposing excessive twisting forces on the tow vehicle, the swivel action helps the tow vehicle maintain optimal tire contact with the ground, thereby improving traction and overall stability, especially on slippery or loose surfaces.
- Minimizes Component Wear: Lessens the cumulative wear and tear on the entire towing assembly, including the pintle hook itself, the drawbar eye, and the vehicle's suspension system, by absorbing and redirecting dynamic loads.
The swivel mechanism is typically constructed with robust bearing surfaces or heavy-duty pivot points, engineered to withstand continuous high-load rotational forces while maintaining smooth operation and minimal friction. Regular lubrication and inspection of this mechanism are crucial to ensure its long-term functionality and prevent binding due to ingress of dirt or corrosion.

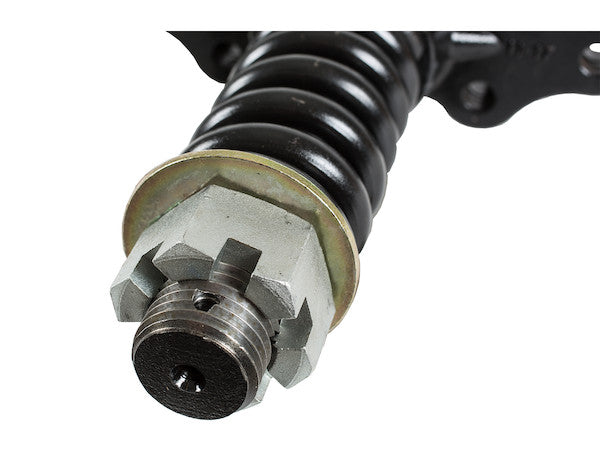

The Spring Cushion: Shock Absorption for Mitigated Impact Loads
Complementing the swivel action is the integral spring cushion. This mechanism is strategically designed to absorb and dampen longitudinal shock loads experienced during acceleration, deceleration, and transient impacts. In heavy-duty towing, particularly with substantial loads such as 25 tons (50,000 lb), sudden changes in speed or encountering road imperfections can generate significant kinetic energy. This energy, if not adequately managed, translates into severe shock forces that propagate through the entire towing system. The spring cushion acts as a critical buffer, offering several key advantages:
- Reduces Driveline Shock: Minimizes the severe jolt and strain on the tow vehicle's driveline components, including the engine, transmission, and differential, during initial acceleration or abrupt braking. This significantly extends the service life of these expensive components.
- Protects Cargo: Lessens the impact forces transmitted to the trailer and its cargo, reducing the potential for shifting, damage, or wear on sensitive equipment or materials being transported.
- Enhances Driver Comfort: By dampening longitudinal oscillations and sudden impacts, the spring cushion contributes to a smoother towing experience, reducing driver fatigue and increasing operational safety over long hauls.
- Extends Component Life: Decreases the peak stress cycles on the pintle hook itself, the trailer drawbar, and the vehicle's chassis and suspension, thereby prolonging the operational lifespan of the entire system.
The spring mechanism is typically a heavy-duty coil spring or an elastomer-based system engineered for high load deflection and rapid recovery, ensuring consistent performance under repeated stress cycles. The precise calibration of this spring is critical to effectively absorb shocks without compromising the stability or integrity of the connection.
Robust Construction and Material Science: Forged Steel and Powder-Coat Finish
The structural integrity and longevity of the 25 Ton Swivel Type Pintle Hook are underscored by its material selection and manufacturing process. Constructed from forged steel and finished with a durable powder coating, this product is built to endure the harshest operational conditions.
Forged Steel: Uncompromised Strength and Durability
The use of forged steel is a deliberate engineering choice that elevates this pintle hook above components made from cast or fabricated alternatives. Forging is a manufacturing process that involves shaping metal through localized compressive forces, typically with hammers or presses. This process results in:
- Superior Grain Structure: Forging refines the internal grain structure of the steel, aligning the grains with the direction of maximum stress. This creates a homogeneous, non-porous material that is significantly stronger and more resilient than cast metal.
- Enhanced Mechanical Properties: Forged components exhibit superior tensile strength, yield strength, fatigue resistance, and impact toughness. This means the pintle hook can withstand greater static and dynamic loads, resist deformation under stress, and endure repeated cycles of loading and unloading without developing microscopic cracks that could lead to failure.
- Elimination of Internal Defects: The forging process inherently eliminates internal gas pockets, shrinkage, and porosity commonly found in castings, resulting in a component free from internal defects that could compromise its strength.
This commitment to forged steel ensures that the pintle hook maintains its structural integrity even under extreme conditions, providing a critical safety margin for heavy-duty towing operations.
Powder-Coat Finish: Advanced Corrosion and Abrasion Protection
The black powder-coat finish is not merely aesthetic; it provides a high-performance protective layer essential for components exposed to severe environmental elements. Powder coating involves electrostatically applying a dry powder to the component, which is then cured under heat to form a durable, uniform finish. This process offers significant advantages over traditional liquid paints:
- Superior Corrosion Resistance: The thick, uniform coating provides an excellent barrier against moisture, road salts, chemicals, and other corrosive agents, preventing rust and degradation of the underlying steel.
- Enhanced Chip and Abrasion Resistance: Powder coat finishes are significantly more resistant to chipping, scratching, and abrasion, ensuring the protective layer remains intact even with impacts from road debris or incidental contact during operation.
- UV Stability: The finish is highly resistant to fading and degradation from ultraviolet (UV) radiation, maintaining its appearance and protective qualities over time even with prolonged outdoor exposure.
Together, the forged steel construction and the powder-coat finish ensure that the 25 Ton Swivel Type Pintle Hook remains robust, functional, and visually acceptable throughout its extended service life, minimizing maintenance and replacement costs.
Load Capacities and Operational Parameters: M.G.T.W. and M.V.L.
The performance of any towing apparatus is quantified by its load ratings, which define its safe operational limits. For this 25 Ton Swivel Type Pintle Hook, these are clearly defined by its Maximum Gross Trailer Weight (M.G.T.W.) and Maximum Vertical Load (M.V.L.).
Maximum Gross Trailer Weight (M.G.T.W.)
With an M.G.T.W. of 50,000 lbs (25 tons), this pintle hook is engineered for substantial towing requirements. The M.G.T.W. represents the total maximum weight of the fully loaded trailer that the pintle hook can safely tow under specified conditions. This capacity underscores its suitability for heavy-duty applications, including the transport of large construction machinery, utility infrastructure, and specialized military equipment where high payloads are standard.
Maximum Vertical Load (M.V.L.)
The M.V.L. of 6,000 lbs (3 tons) refers to the maximum downward force that can be safely exerted by the trailer's drawbar eye onto the pintle hook. This "tongue weight" is crucial for maintaining vehicle stability, traction, and proper steering. An appropriate M.V.L. ensures that a sufficient portion of the trailer's weight is transferred to the tow vehicle's rear axle, preventing trailer sway and improving overall control. Exceeding the M.V.L. can overload the tow vehicle's rear suspension, negatively impact steering, and compromise braking efficiency, leading to unsafe towing conditions.
Off-Road Load Reduction: A Critical Safety Consideration
A crucial specification for this pintle hook is the requirement to reduce the load by 25% for off-road use. This stipulation is not arbitrary but is based on fundamental principles of dynamic loading in rugged environments:
- Increased Dynamic Stresses: Off-road terrain introduces significantly higher and more unpredictable dynamic forces than paved roads. Impacts from rocks, ruts, sudden drops, and steep inclines generate extreme shock loads that can momentarily exceed static load ratings.
- Greater Articulation and Torsional Loads: The frequent and severe articulation required on uneven terrain places greater torsional and bending stresses on the pintle hook and its mounting system, even with the swivel mechanism.
- Reduced Traction and Control: Lower traction surfaces (mud, sand, gravel) mean that sudden acceleration or braking maneuvers can induce more violent snatching or surging forces on the hitch.
- Higher Risk of Component Fatigue: The cumulative effect of these increased, cyclical stresses accelerates material fatigue, making a conservative load rating essential for safety and longevity.
Therefore, when operating in off-road conditions, the effective maximum towing capacity of this pintle hook is approximately 37,500 lbs (50,000 lbs - 25%), and the M.V.L. should be proportionally reduced to 4,500 lbs. Adhering to this guideline is paramount for operational safety and preventing premature failure of the towing system.

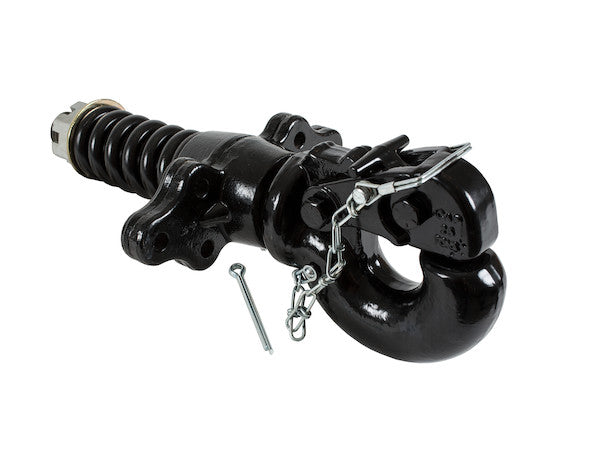

Precision Engineering for Compatibility: Mounting Specifications

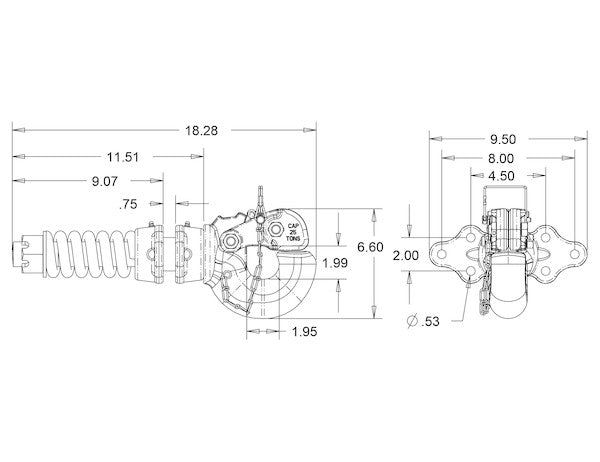

The successful integration of the pintle hook with a tow vehicle and a trailer depends on precise dimensional compatibility. The specifications provided for drawbar eye diameter, mounting hole diameter, and hole spacing are critical for ensuring a secure and reliable connection.
Drawbar Eye Inner Diameter (2.38-3.00 in.)
This range specifies the compatible internal diameter of the trailer's drawbar eye. The versatility to accommodate drawbar eyes between 2.38 and 3.00 inches ensures that this pintle hook can be paired with a wide array of heavy-duty trailers, including those adhering to military standards (typically 2.5-3.0 inches) and various commercial and agricultural equipment. This adaptability is key for fleet operators managing diverse trailer types.
Mounting Hole Diameter (0.531 in.)
The precise mounting hole diameter of 0.531 inches dictates the appropriate bolt size for securing the pintle hook to its mounting plate or crossmember. This dimension ensures a snug fit for standard heavy-duty fasteners, minimizing play and preventing shear forces from prematurely wearing down the mounting holes. Correctly sized and torqued bolts are fundamental to the safety and stability of the entire towing connection.
Horizontal Hole Spacing (4.50/8.00 in.) and Vertical Hole Spacing (2.00 in.)
These measurements define the bolt pattern required for mounting the pintle hook. The dual horizontal spacing (4.50/8.00 inches) and a consistent vertical spacing (2.00 inches) indicate a versatile mounting plate design, allowing for installation on a variety of vehicle frames or heavy-duty receiver hitches equipped with a compatible bolt pattern. Standardized hole spacing simplifies installation and ensures a robust connection to the tow vehicle’s structural elements, distributing the immense towing forces evenly across the mounting points.
Ideal Applications and Operational Environments
The 25 Ton Swivel Type Pintle Hook is purpose-built for environments where conventional towing mechanisms fall short. Its specialized features make it indispensable for:
- Construction and Utility Equipment: Transporting excavators, bulldozers, large generators, air compressors, and specialized utility trailers over construction sites, uneven terrain, and public roadways. The swivel action is particularly beneficial on rugged job sites, while the spring cushion protects sensitive equipment.
- Military Equipment: Essential for the demanding logistics of military operations, towing artillery pieces, personnel carriers, fuel tankers, and various support equipment across unimproved roads, cross-country terrain, and diverse climatic conditions. Reliability and shock absorption are paramount in these critical applications.
- Highway Construction Towing: Hauling heavy asphalt pavers, road graders, aggregate trailers, and other large machinery used in highway development and maintenance. The high M.G.T.W. and stress-reducing features ensure efficient and safe transport over long distances and varied road surfaces.
- Agricultural Heavy Equipment: Moving large tractors, planters, combines, and heavy implements between fields, often involving soft ground and uneven paths.
- Heavy Commercial Hauling: Specialized transport where heavy-duty trailers require a robust, articulating connection for enhanced maneuverability and load protection.
Safety, Maintenance, and Longevity
To ensure the continued safe and effective operation of the 25 Ton Swivel Type Pintle Hook, adherence to proper maintenance and safety protocols is critical:

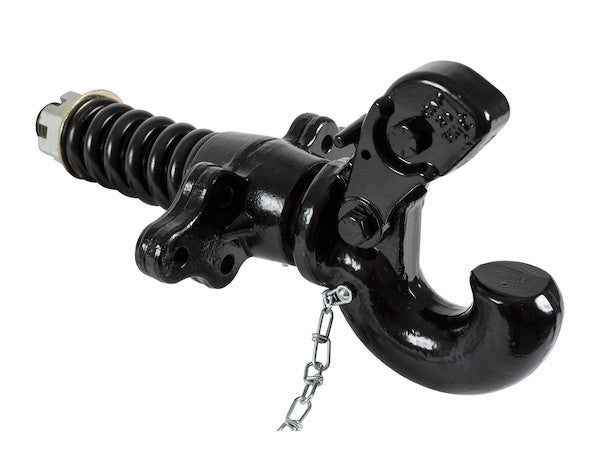

- Regular Inspections: Before each use, visually inspect the pintle hook for signs of wear, cracks, bending, or corrosion. Pay close attention to the integrity of the swivel mechanism, the spring, and the latching system.

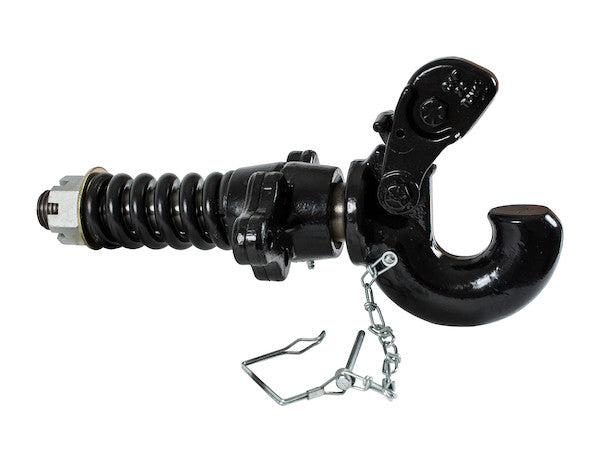

- Latching Mechanism: Ensure the pintle hook’s latch mechanism operates freely and securely locks the drawbar eye in place. Always use a safety pin or cotter pin to secure the latch in the closed position, preventing accidental disengagement.

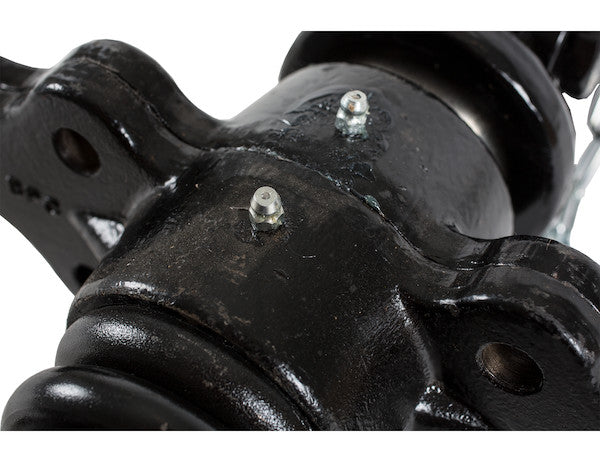

- Lubrication: Periodically lubricate the swivel pivot points and the latch mechanism as per manufacturer recommendations to ensure smooth operation and prevent binding or excessive wear.
- Mounting Hardware: Verify that all mounting bolts are correctly torqued to the manufacturer’s specifications. Loose mounting hardware can lead to premature failure and unsafe towing.
- Load Distribution: Always ensure that the trailer is loaded correctly, with the tongue weight (M.V.L.) within the specified limits. Improper load distribution can lead to instability and excessive stress on the pintle hook.
- Off-Road Awareness: Strictly adhere to the 25% load reduction for off-road operations. Exercise caution on challenging terrain, maintaining appropriate speeds and avoiding abrupt maneuvers.
By following these guidelines, operators can maximize the service life of their pintle hook and ensure the utmost safety for their personnel and cargo.
Comparative Performance and Market Position
The "Compares To Wallace #2044101" notation highlights this product's position within the heavy-duty towing market. Wallace Forge Company is a respected manufacturer of towing components, and the #2044101 model is recognized as a robust, swivel-type pintle hook. While references to other manufacturers and brands are purely for descriptive purposes and do not imply direct equivalence or endorsement, this comparison signifies that the Buyers Products 25 Ton Swivel Type Pintle Hook is designed to meet similar high-performance standards and cater to the same demanding customer base.
Both products are engineered for applications requiring superior articulation and shock absorption, indicating a shared design philosophy focused on durability, safety, and operational efficiency in extreme conditions. For professional users seeking a reliable, heavy-duty pintle hook with advanced stress-reducing features, the Buyers Products 25 Ton Swivel Type Pintle Hook offers a technically sophisticated and rigorously constructed solution that stands ready to perform alongside established industry benchmarks.
Conclusion
The Buyers Products 25 Ton Swivel Type Pintle Hook is an engineering marvel in the realm of heavy-duty towing. Its combination of a dynamic swivel action for unparalleled articulation on uneven terrain, a spring cushion for effective shock absorption, and a robust forged steel construction with a protective powder-coat finish ensures maximum performance, safety, and longevity. Designed to manage substantial loads up to 50,000 lbs, with clear guidelines for off-road reduction, and built to precise mounting specifications, this pintle hook is a critical component for professionals in construction, utility, military, and highway sectors. It represents a significant investment in operational efficiency, component protection, and the ultimate safety of towing personnel and valuable cargo, solidifying its status as a premier choice for demanding towing applications.
