Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Compares To | Wallace # 2046103 |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.00 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 5.375/10.375 |
| M.G.T.W. (lbs) | 50,000 |
| M.V.L. (lbs) | 6,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.562 |
| Pintle Hook Type | Swivel |
| Vertical Hole Spacing (in.) | 1.75 |

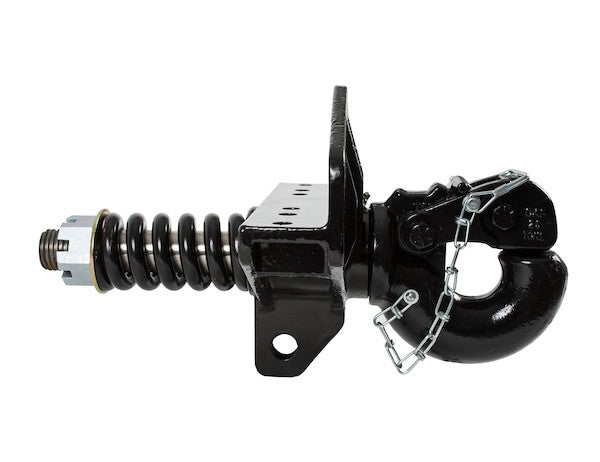

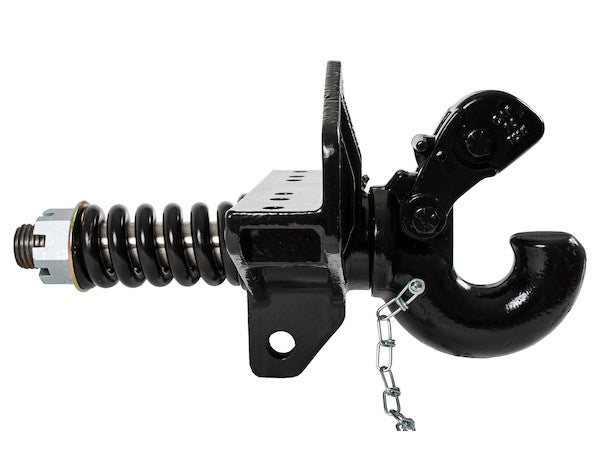

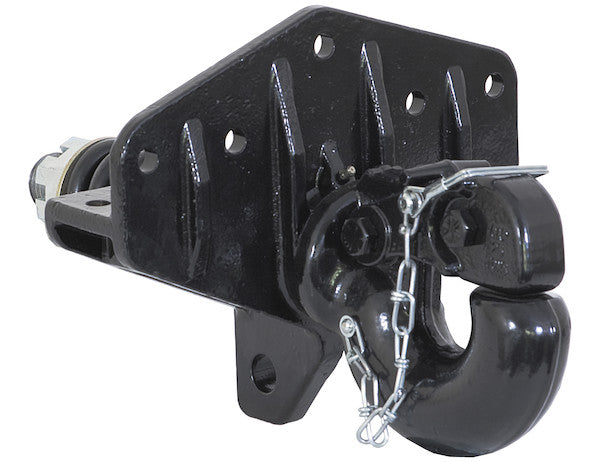

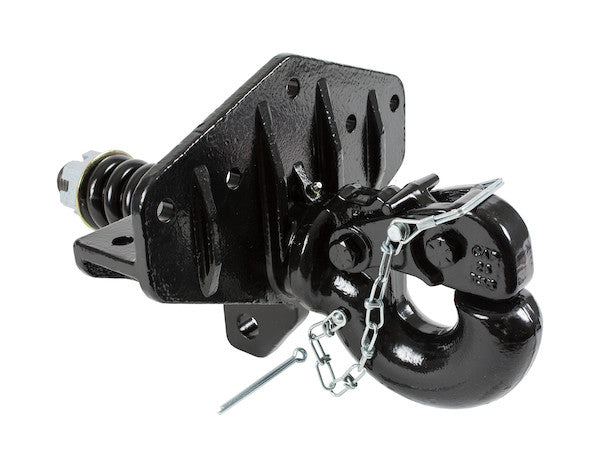

Advanced Engineering and Performance: The 25 Ton Swivel Type Pintle Hook with T-bracket
The 25 Ton Swivel Type Pintle Hook with T-bracket represents a pinnacle of towing technology, meticulously engineered to address the most demanding heavy-duty hauling requirements across a spectrum of challenging operational environments. Designed for unparalleled resilience and dynamic load management, this pintle hook is an indispensable component for professional applications in construction, utility, military logistics, and highway infrastructure development. Its robust 25-ton (50,000 lb.) Maximum Gross Trailer Weight (M.G.T.W.) capacity underscores its suitability for transporting substantial loads, including heavy machinery, large utility trailers, and specialized military equipment.
This advanced towing solution integrates two critical features: a precision-engineered swivel mechanism and a heavy-duty spring cushion. These elements are not merely additive but synergistic, working in concert to optimize performance, enhance safety, and prolong the lifespan of both the towing vehicle and the towed apparatus. The swivel action is fundamental for maintaining continuous articulation between the truck and trailer, a feature that becomes profoundly beneficial when navigating irregular, undulating, or off-road terrains. By allowing the pintle hook to rotate freely, it effectively isolates the rotational forces that would otherwise impose severe torsional stresses on the coupling points, preventing binding, excessive wear, and potential structural fatigue. The spring cushion, conversely, is strategically incorporated to absorb and mitigate transient forces generated during acceleration, deceleration, and impact over uneven surfaces. This damping capability reduces the jarring effect on the towing system, cushioning the driveline and chassis of the prime mover while protecting the trailer's frame and cargo from undue shock loads. This combination ensures a smoother, more controlled towing experience, minimizing wear and tear on mechanical components and enhancing operator comfort, especially over extended periods of heavy-duty operation.
Understanding the 25-Ton Capacity and Load Management
The formidable 25-ton (50,000 lb.) M.G.T.W. rating of this swivel type pintle hook signifies its capability to manage exceptionally heavy trailers and payloads. This capacity is critical for industries that routinely transport oversized or specialized equipment, where failure of the coupling mechanism can lead to catastrophic consequences. The M.G.T.W. rating, often determined through rigorous testing protocols conforming to industry standards such as SAE J847 and VESC V-5, indicates the maximum aggregate weight of the fully loaded trailer that the pintle hook is engineered to safely tow. When operating in off-road conditions, which inherently introduce more dynamic and unpredictable forces, the recommended load reduction of 25% is a vital safety directive. This adjustment, reducing the effective M.G.T.W. to 37,500 lbs. (18.75 tons), accounts for the increased shock loads, impacts, and angular stresses encountered on uneven terrain, ensuring the structural integrity of the hitch and its attachment points remains uncompromised.
Equally critical to the M.G.T.W. is the Maximum Vertical Load (M.V.L.) rating of 6,000 lbs. The M.V.L., commonly referred to as tongue weight, represents the maximum downward force that the trailer's drawbar eye can exert on the pintle hook. Proper management of the M.V.L. is paramount for vehicle stability and control. An inadequate M.V.L. can lead to trailer sway, reduced traction on the towing vehicle's drive wheels, and diminished braking performance. Conversely, an excessive M.V.L. can overload the towing vehicle's rear axle, compromise steering, and potentially damage the hitch receiver or chassis. The 6,000 lb. M.V.L. capacity of this pintle hook is engineered to accommodate significant static and dynamic vertical loads, ensuring stable and predictable handling even with heavy, unbalanced trailer configurations. Adherence to both M.G.T.W. and M.V.L. specifications is not merely a recommendation but a fundamental requirement for safe and efficient heavy-duty towing operations.
The Revolutionary Swivel Action for Unrestricted Articulation
The "Swivel Type" designation is a cornerstone of this pintle hook's advanced design, setting it apart from conventional rigid pintle hooks. This innovative mechanism facilitates a full range of rotational movement between the towing vehicle and the trailer's drawbar eye, preventing the buildup of torsional stresses that are endemic to towing over undulating or uneven surfaces. In dynamic environments such as off-road construction sites, military maneuvers across rough terrain, or utility work on undeveloped land, the vehicle and trailer are constantly subjected to varying degrees of pitch, roll, and yaw. A rigid connection would transmit these angular disparities directly into the frame and coupling components, leading to accelerated wear, fatigue cracking, and potential catastrophic failure. The swivel action acts as a critical interface, allowing for independent rotation and absorbing these angular misalignments, thereby protecting the structural integrity of the entire towing assembly.
The benefits of this unhindered articulation are multifaceted. Firstly, it significantly extends the operational lifespan of the pintle hook itself, as well as the drawbar eye and the mounting structure, by distributing stresses more evenly and eliminating localized strain concentrations. Secondly, it enhances maneuverability and control for the operator, especially when traversing sharp inclines, deep ditches, or severe side slopes, where a rigid hitch could bind or even cause a rollover. Thirdly, by preventing binding and abrupt force transmission, the swivel mechanism contributes to a smoother ride for the trailer and its cargo, which is particularly important when transporting sensitive equipment or fragile materials. This feature is a direct answer to the challenges of modern heavy-duty towing, where versatility and reliability across diverse terrains are non-negotiable requirements.
The Integral Spring Cushion: Dynamic Load Management
Complementing the swivel action is the robust spring cushion, a vital feature that differentiates this pintle hook from standard rigid designs. The spring cushion operates as a sophisticated shock absorber, specifically engineered to dampen the dynamic forces generated during the critical phases of towing: acceleration, deceleration, and impact over rough terrain. When a heavy trailer accelerates, a significant surge of force is transmitted to the pintle hook. Conversely, during braking or sudden stops, immense compressive forces are generated. These transient loads, if left unchecked, can induce severe stresses on the towing vehicle's drivetrain, transmission, and chassis, as well as the trailer's frame and coupling components.
The spring cushion effectively absorbs these longitudinal shocks and surges, distributing the impact forces over a longer duration and reducing their peak intensity. This translates to several tangible advantages: reduced wear and tear on critical drivetrain components such as U-joints, axles, and universal joints; minimized jerking and jarring for the operator, leading to improved comfort and reduced fatigue; and enhanced protection for the trailer and its cargo against damaging impacts. For applications involving expensive machinery, sensitive instrumentation, or delicate payloads, the spring cushion provides an essential layer of protection, preventing premature component failure and safeguarding valuable assets. Its inclusion reflects a comprehensive understanding of the complex kinetics involved in heavy-duty towing, prioritizing system longevity and operational safety.
Robust Construction and Optimized Mounting: Forged Steel with T-bracket
The selection of Forged Steel as the primary material for this pintle hook is a testament to its commitment to superior strength and durability. Forging is a manufacturing process that involves shaping metal through localized compressive forces, resulting in a product with a refined grain structure that is denser, stronger, and more resilient than components produced via casting or machining alone. This process eliminates internal voids and imperfections, providing exceptional resistance to impact, fatigue, and wear, which are critical properties for a component subjected to extreme tensile, shear, and compressive forces in heavy towing applications. The robust nature of forged steel ensures that the pintle hook maintains its structural integrity under continuous heavy loads and demanding environmental conditions.
Furthermore, the entire assembly is finished with a Powder-Coat in Black. Powder coating is an advanced dry finishing process that applies a protective layer far superior to conventional liquid paints. This thermoset polymer finish provides exceptional resistance against corrosion, chipping, scratching, and fading, which is crucial for equipment operating in harsh outdoor environments exposed to moisture, chemicals, road salts, and abrasive elements. The sleek black finish is not only aesthetically professional but also contributes to the longevity and low-maintenance profile of the pintle hook. This combination of forged steel and powder coating ensures that the product retains its functional and visual integrity throughout its extensive service life.
Integrated T-bracket and Precision Mounting Specifications

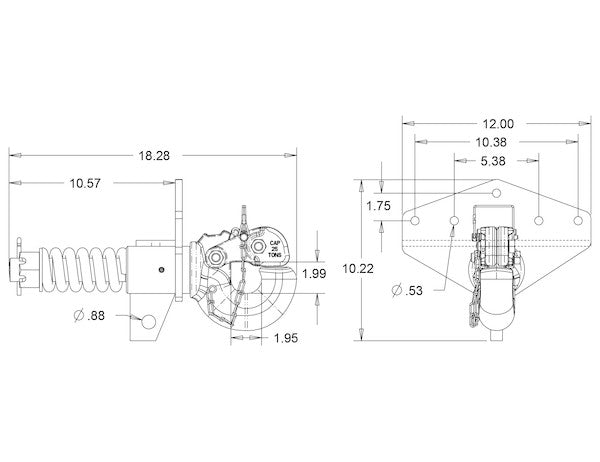

The "with T-bracket" designation is crucial, indicating a specific, robust mounting configuration designed for secure and stable attachment to the towing vehicle's frame. The T-bracket provides multiple points of contact and enhanced surface area for load distribution, which is paramount when dealing with the substantial forces exerted by a 25-ton M.G.T.W. The precision mounting hole specifications are essential for ensuring proper installation and compatibility with various vehicle frame structures and mounting plates. The Horizontal Hole Spacing of 5.375/10.375 inches offers flexibility for diverse frame configurations, allowing installers to select the optimal bolt pattern for maximum strength and load transfer. The Vertical Hole Spacing of 1.75 inches provides the necessary alignment for a secure two-dimensional attachment.
The Mounting Hole Diameter of 0.562 inches dictates the required fastener size, typically high-grade bolts designed for shear and tensile strength, ensuring a rigid and secure connection to the vehicle's frame. Proper torqueing of these fasteners is critical to prevent loosening under vibration and dynamic loads. The engineering behind these mounting dimensions aims to distribute the immense towing forces evenly across the chassis, minimizing localized stress points that could lead to frame distortion or fatigue cracking. When installing, it is imperative to use appropriate reinforcing plates or cross-members on the vehicle's frame to ensure the mounting structure can withstand the specified M.G.T.W. and M.V.L. ratings, preventing pull-through or structural compromise. The T-bracket design, coupled with these precise specifications, simplifies installation while guaranteeing a robust and reliable connection for severe-duty applications.
Interoperability and Standardization: Compares to Wallace # 2046103
The explicit mention that this 25 Ton Swivel Type Pintle Hook "Compares to Wallace # 2046103" is a significant indicator of its adherence to established industry standards and its designed interoperability within existing fleets. Wallace Forge is a well-regarded manufacturer in the heavy-duty towing sector, and their part number 2046103 represents a widely recognized and trusted component. This comparison signifies that the Buyers Products pintle hook is engineered to meet or exceed the performance, dimensional, and quality benchmarks set by such a reputable industry standard. For fleet managers and procurement specialists, this comparison provides assurance of compatibility, reliability, and ease of integration into diverse equipment rosters. It implies that users can expect similar mounting patterns, drawbar eye compatibility, and load ratings, facilitating direct replacement or integration without extensive modifications or compatibility concerns.
Furthermore, the specified Drawbar Eye Inner Diameter range of 2.38-3.00 inches is a critical detail for universal compatibility. This range accommodates a broad spectrum of trailer drawbar eyes, which are the circular attachment points on the trailer's tongue that engage with the pintle hook. A properly matched drawbar eye diameter minimizes slop and excessive play, which can otherwise lead to rattling, accelerated wear on both components, and potentially contribute to trailer instability. The optimal fit ensures a secure, quiet, and efficient connection, allowing the swivel and spring cushion mechanisms to perform optimally without undue mechanical inefficiencies. This meticulous attention to compatibility underscores the product's design philosophy: to provide a versatile and high-performance solution that integrates seamlessly into existing heavy-duty towing ecosystems.
Diverse Applications in Demanding Environments
The inherent design and robust specifications of this 25 Ton Swivel Type Pintle Hook render it exceptionally suitable for a diverse array of demanding applications across various industries:
- Construction and Utility Equipment: On construction sites, heavy equipment such as excavators, bulldozers, large generators, and material handlers are frequently transported between locations. This pintle hook's capacity and dynamic load management capabilities are ideal for hauling tandem-axle or tri-axle equipment trailers over uneven, muddy, or unpaved terrains. For utility companies, it facilitates the movement of pole trailers, cable reel trailers, and mobile workshops across service territories, often involving challenging off-road access points.
- Military Equipment: Military logistics demand the utmost reliability and ruggedness. This pintle hook is perfectly suited for tactical vehicles towing supply trailers, artillery pieces, communication units, or other specialized equipment across battlefields, undeveloped territories, and extreme climatic conditions. The swivel action is particularly critical for maintaining articulation and preventing binding in highly dynamic off-road military maneuvers, while the spring cushion protects sensitive onboard equipment.
- Highway Construction Towing: In highway infrastructure projects, heavy machinery like asphalt pavers, road rollers, concrete mixers, and large aggregate haulers must be moved efficiently. The 50,000 lb. M.G.T.W. handles these substantial loads with ease, and the spring cushion helps mitigate the harsh impacts experienced on temporary access roads or disturbed surfaces, ensuring smooth transport and reducing wear on expensive equipment.
- Agricultural and Industrial Heavy Hauling: Beyond these core sectors, the pintle hook finds utility in large-scale agricultural operations for moving implements and grain wagons, and in industrial settings for specialized transport needs where conventional hitches fall short of capacity or dynamic performance requirements.
In each of these scenarios, the combination of a high M.G.T.W., significant M.V.L., spring cushioning, and swivel articulation provides an unmatched level of safety, efficiency, and component longevity, making it the preferred choice for professional heavy haulers.
Maintenance and Operational Best Practices
To ensure the prolonged operational efficiency and safety of the 25 Ton Swivel Type Pintle Hook, adherence to a regimen of regular inspection and maintenance is imperative. Operators should routinely inspect the pintle hook for signs of wear, deformation, cracking, or corrosion, particularly in high-stress areas such as the hook, latch, and mounting points. The drawbar eye should also be checked for excessive wear, which can occur if the inner diameter exceeds the specified tolerance, leading to increased play and potential disengagement. Lubrication points, if applicable, should be greased according to manufacturer recommendations to maintain smooth operation of the swivel mechanism and latch components. Any evidence of fatigue, excessive play, or damage necessitates immediate replacement to prevent catastrophic failure.
Proper installation, as guided by the T-bracket's specifications, is paramount. All fasteners must be torqued to the manufacturer's specified values and checked periodically for loosening, especially after the initial break-in period. When operating off-road, the mandatory 25% reduction in load capacity must be strictly observed to account for the increased dynamic forces and impacts. Furthermore, operators should always ensure that the drawbar eye is fully seated and the latch mechanism is securely engaged before commencing towing operations. Adherence to these operational and maintenance best practices will maximize the lifespan of the pintle hook, safeguard personnel, and protect valuable assets, solidifying its role as a cornerstone of safe and reliable heavy-duty towing.
Conclusion
The 25 Ton Swivel Type Pintle Hook with T-bracket is an expertly engineered towing solution designed for the most demanding heavy-duty applications. Its impressive 50,000 lb. M.G.T.W. and 6,000 lb. M.V.L. capacities, combined with the innovative swivel action and integrated spring cushion, provide unparalleled dynamic load management, stress reduction, and articulation capabilities. Constructed from durable forged steel with a protective powder-coat finish, and featuring a versatile T-bracket mounting system, this pintle hook is built to withstand extreme operational conditions. Its equivalence to industry-standard components like Wallace # 2046103 underscores its reliability and seamless integration into professional fleets. Whether deployed in construction, utility, military, or highway infrastructure development, this pintle hook delivers superior performance, enhanced safety, and extended component life, representing an indispensable asset for critical heavy hauling tasks.
