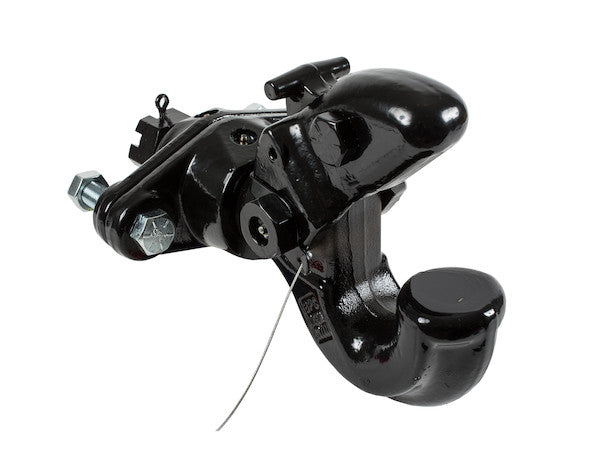

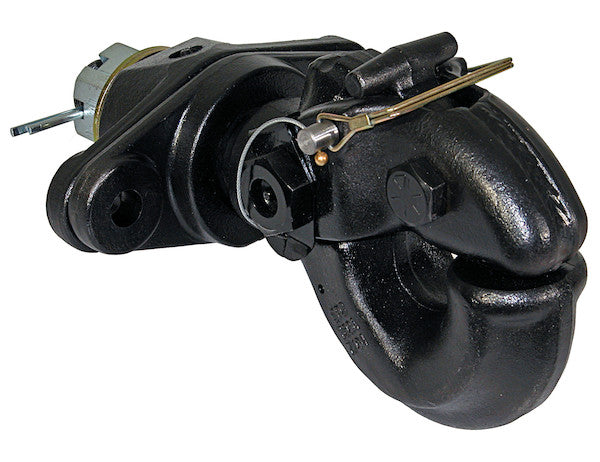

BP760A - 30 Ton Heavy-Duty Swivel Type Pintle Hook

The 30 Ton Heavy Duty Swivel Type Pintle Hook from Buyers Products features swivel action to reduce stress on towing mechanisms and allow for off-road and uneven terrain towing. The swivel action allows for travel over curbs and rough or broken terrain. The pintle hook is ideal for heavy duty construction, utility equipment and highway construction towing purposes, with towing loads up to 60,000 lb. For off-road use, the load should be reduced by 25%.

Specifications

The 30 Ton Heavy-Duty Swivel Type Pintle Hook: Engineered for Extreme Demands

The 30 Ton Heavy-Duty Swivel Type Pintle Hook from Buyers Products represents a pinnacle in towing technology, meticulously engineered to address the most rigorous demands of industrial and commercial applications. This specialized towing component is designed for the safe and efficient transport of heavy trailers and equipment across diverse and challenging terrains. With a robust design and innovative swivel mechanism, it offers unparalleled performance, durability, and operational safety, making it an indispensable asset for critical heavy-duty towing operations.

Defining High-Capacity Towing: The 30-Ton Advantage

The core characteristic of this pintle hook is its formidable 30-ton (60,000 lb) Maximum Gross Trailer Weight (M.G.T.W.) capacity. This rating signifies its capability to securely tow trailers with a combined weight of up to 60,000 pounds, encompassing the trailer's tare weight and its full payload. Such a substantial capacity is essential for industries where the movement of heavy machinery, bulk materials, and specialized equipment is routine. Applications ranging from large excavators and bulldozers in construction to oversized generators and utility modules in infrastructure projects require a towing solution that can consistently handle extreme loads without compromise. The pintle hook's design integrates significant safety factors, ensuring that its rated capacity is a conservative measure of its true structural integrity and operational reliability under demanding conditions.

Advanced Material Science: Forged Steel Construction

The intrinsic strength and longevity of the 30 Ton Swivel Type Pintle Hook are rooted in its construction from premium forged steel. Forging is a manufacturing process that involves shaping metal through localized compressive forces. Unlike casting or machining, forging improves the grain structure of the metal, aligning it with the desired shape and eliminating internal voids and defects. This results in a material with superior tensile strength, yield strength, and fatigue resistance, making it exceptionally robust against dynamic stresses, shocks, and vibrations inherent in heavy-duty towing. The homogeneous grain flow achieved through forging ensures that the pintle hook can withstand sustained high loads and cyclical stresses over its operational lifespan, minimizing the risk of material failure and enhancing overall safety.

Protective Coating: The Durability of Powder-Coat Finish

Complementing its forged steel core, the pintle hook features a resilient powder-coat finish in black. Powder coating is an advanced dry finishing process that provides a significantly more durable and protective layer than conventional liquid paints. The finely ground, dry particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded pintle hook. This process ensures a uniform, adhesive coating that is then cured under heat, causing the powder to melt and flow into a smooth, solid film. The resulting finish is highly resistant to abrasion, chipping, scratching, and, critically, corrosion from environmental factors such as moisture, road salts, chemicals, and UV radiation. This superior protection is vital for components exposed to harsh outdoor conditions, ensuring the pintle hook maintains its structural integrity and aesthetic appearance throughout its service life, reducing maintenance requirements and extending asset longevity.

The Innovation of Swivel Action: Enhancing Kinematic Integrity

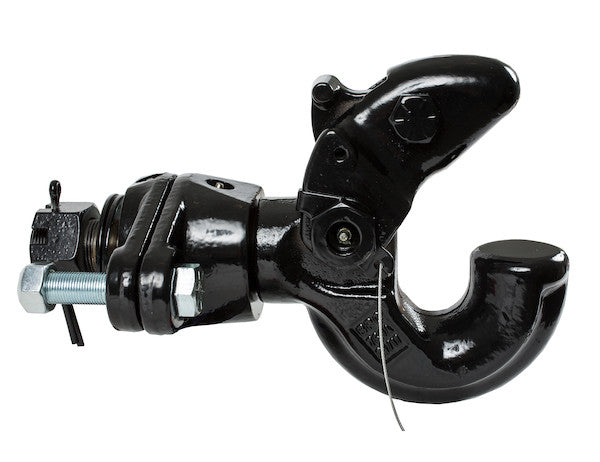

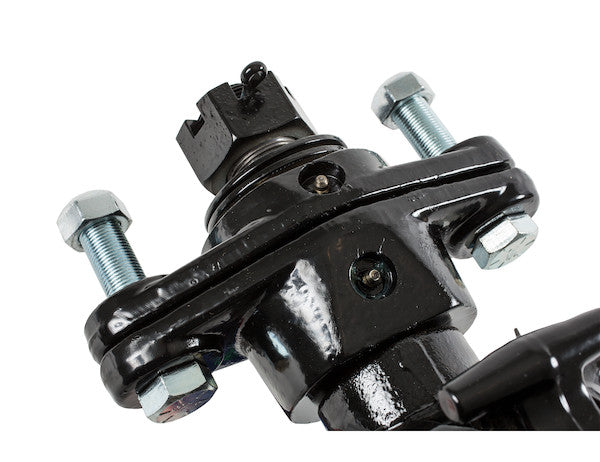

A hallmark feature of this pintle hook is its swivel action, a critical innovation designed to elevate towing performance and safety, especially in challenging environments. The swivel mechanism allows for rotational movement between the tow vehicle and the trailer's lunette ring, providing a degree of freedom that conventional rigid pintle hooks cannot match. This articulation serves several crucial functions:

• Stress Reduction: By accommodating angular displacements and twisting forces that arise during turns, uneven terrain navigation, or sudden movements, the swivel action significantly reduces torsional stress on the towing mechanisms. This protection extends to the pintle hook itself, the tow vehicle's hitch receiver, the trailer's drawbar, and the lunette ring, thereby preventing premature wear, metal fatigue, and potential structural damage.
• Enhanced Off-Road Capability: For operations over curbs, rough construction sites, unpaved roads, or any broken and uneven terrain, the swivel feature becomes indispensable. It allows the trailer to articulate independently of the tow vehicle, maintaining continuous ground contact for the trailer's wheels while the tow vehicle navigates obstacles. This independent movement prevents the hitch from binding or seizing, which can lead to loss of traction, instability, or mechanical failure in rigid systems.
• Improved Maneuverability and Control: The ability of the pintle hook to swivel facilitates smoother turns and greater control, particularly with long or multi-axle trailers. It minimizes the jarring and abrupt movements often associated with heavy towing over irregular surfaces, contributing to a more stable towing experience and reducing driver fatigue.
• Longevity of Components: By distributing dynamic loads more effectively and preventing concentrated stress points, the swivel action extends the service life of all interconnected towing components, leading to reduced operational costs and fewer unscheduled downtimes for repairs.

Load Dynamics and Safe Operation: Interpreting M.G.T.W. and M.V.L.

Understanding the specified load capacities is paramount for safe and efficient operation:

• M.G.T.W. (Maximum Gross Trailer Weight) - 60,000 lbs: As previously noted, this is the maximum allowable weight of the fully loaded trailer. Adhering to this limit is critical to prevent overloading the pintle hook, tow vehicle chassis, and braking systems, thereby preserving structural integrity and preventing catastrophic failures.
• M.V.L. (Maximum Vertical Load) - 12,000 lbs: Also known as tongue weight, this specifies the maximum downward force that the trailer's drawbar eye can exert on the pintle hook. Proper tongue weight distribution is vital for towing stability. Too little tongue weight can lead to trailer sway, while excessive tongue weight can overload the tow vehicle's rear axle and suspension, affecting steering and braking. The 12,000 lb M.V.L. for a 60,000 lb M.G.T.W. indicates that approximately 20% of the trailer's weight should be borne by the pintle hook, which is an ideal range for heavy-duty applications to ensure optimal stability.

The 25% Off-Road Load Reduction: A Critical Safety Protocol

The directive to reduce the load by 25% for off-road use is a crucial safety measure rooted in the principles of dynamic load analysis. While the pintle hook is rated for 60,000 lbs under standard highway conditions, off-road environments introduce significantly higher and more unpredictable dynamic stresses. These include:

• Impact Loads: Traversing bumps, rocks, potholes, and ditches generates sudden, high-magnitude impact forces that are many times greater than static loads.
• Shock Loads: Rapid changes in elevation, sudden braking, or acceleration on uneven surfaces create significant shock loads that can momentarily exceed the system's static capacity.
• Vibration and Fatigue: Constant vibration and oscillation on rough terrain accelerate material fatigue in components.

Reducing the load by 25% effectively lowers the operational stress margin, allowing the pintle hook and associated towing mechanisms to absorb these dynamic and unpredictable forces without exceeding their engineered limits. This ensures a higher factor of safety, prolongs the lifespan of equipment, and, most importantly, significantly reduces the risk of mechanical failure and accidents during off-road operations.

Precision Specifications for Seamless Integration

The detailed specifications provided ensure seamless integration and optimal performance:

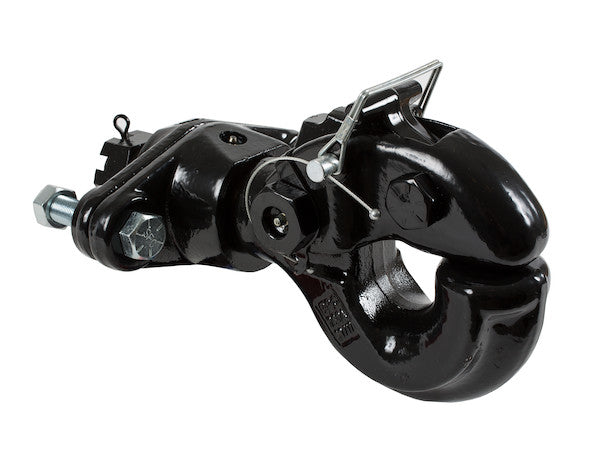

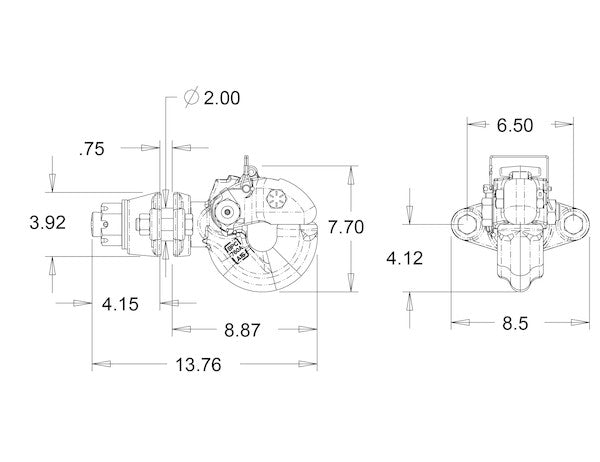

• Drawbar Eye Inner Dia. (in.): 3.0: This standard inner diameter ensures compatibility with widely available 3-inch lunette rings, crucial for secure coupling with a variety of heavy-duty trailers.
• Horizontal Hole Spacing (in.): 6.50 and Mounting Hole Diameter (in.): 0.781: These dimensions dictate the precise bolt pattern for mounting the pintle hook to a compatible mounting plate or tow vehicle chassis. The 0.781-inch diameter accommodates high-strength bolts, typically SAE Grade 8, which are essential for securing a component subjected to such immense forces. Accurate hole spacing and diameter are critical for proper load distribution and preventing shear stress on the mounting hardware.

Applications Across Demanding Industries

The 30 Ton Heavy-Duty Swivel Type Pintle Hook is purpose-built for industries where reliability and robustness are non-negotiable:

• Heavy Construction: Essential for towing dump trailers, equipment haulers, large-scale generators, concrete mixers, and specialized excavation machinery to and from demanding job sites.
• Utility Equipment: Ideal for power utility companies moving pole trailers, cable reel trailers, aerial lifts, and other specialized apparatus required for infrastructure maintenance and development.
• Highway Construction & Maintenance: Critical for transporting asphalt pavers, road rollers, aggregate haulers, signage trailers, and various support vehicles used in road building and repair.
• Mining and Quarrying: Capable of handling support trailers carrying tools, fuel, and smaller machinery within mining operations where terrain is typically harsh and loads are extreme.
• Heavy Haulage and Logistics: Suitable for specialized transport companies moving oversized or heavy industrial components.

Operational Safety and Maintenance Protocol

Ensuring the longevity and safe operation of the 30 Ton Swivel Type Pintle Hook requires adherence to strict operational and maintenance protocols:

• Pre-Operation Inspection: Before each use, a thorough visual inspection is mandatory. This includes checking the pintle hook body for any signs of cracks, excessive wear, deformation, or corrosion. The safety latch mechanism must operate freely and securely, and the lunette ring should be inspected for wear or damage.
• Secure Coupling: The lunette ring must be fully seated within the pintle hook, and the locking pin or mechanism must be engaged correctly to prevent accidental decoupling. Always ensure secondary safety chains are properly attached and crossed beneath the drawbar to provide backup in case of primary coupling failure.
• Lubrication: Regular lubrication of the swivel mechanism and moving parts is essential to maintain smooth operation, prevent seizing, and reduce wear. Consult the manufacturer's guidelines for recommended lubricant types and frequency.
• Fastener Integrity: Periodically check the torque specifications of all mounting bolts. Loose fasteners can lead to excessive wear, stress concentrations, and potential failure. Use torque wrenches to ensure proper tightening according to manufacturer specifications.
• Wear Limits: Components like the pintle horn and pintle latch are subject to wear over time. Establish and adhere to wear limits defined by industry standards or manufacturer recommendations for replacement to prevent failure due to excessive material loss.

Commitment to Quality and Compliance

Buyers Products is renowned for its commitment to engineering excellence and manufacturing robust, reliable towing solutions. This 30 Ton Heavy-Duty Swivel Type Pintle Hook is designed and produced to meet or exceed relevant industry standards for performance and safety, ensuring that it stands up to the most challenging applications. Through rigorous testing and quality control processes, Buyers Products guarantees a product that provides unparalleled strength, durability, and peace of mind for operators in the heavy-duty sector.

In conclusion, the 30 Ton Heavy-Duty Swivel Type Pintle Hook is more than just a towing accessory; it is a meticulously engineered component critical for the safe and efficient operation of heavy equipment transport. Its forged steel construction, advanced swivel articulation, high load capacities, and protective finish are all integral to its superior performance, making it the definitive choice for professionals who demand the utmost in reliability and safety for their most arduous towing challenges.
