Buyers Products Diamond Tread Aluminum L-Pack Truck Box with Offset Floor adds convenient and spacious storage behind the cab of your truck. The heavy duty two-level box features two additional bolt-on boxes to provide even more storage that's easily accessible from ground level. The box is ideal for use on flatbeds, stake bodies, dump bodies, and service bodies. The truck tool box is built with sturdy, corrosion resistant .100 in. thick diamond tread aluminum. A tough 1/4 in. pin, stainless steel continuous hinges, a rain channel, and watertight automotive bulb seal help keep your tools clean and dry. The reinforced locking die cast compression latch provides a tight seal and helps deter theft. Installation is easy with built-in frame mounting rails and a universal spring-cushioned mounting kit.
Specifications
| Box Finish | Diamond Tread |
|---|---|
| Box Gauge | 0.100" |
| Box Material | Aluminum |
| Box Thickness | Aluminum - 0.100" |
| Depth | 54.0 |
| Door Gauge | 0.100" |
| Door Material | Aluminum |
| Door Opening Width | 18.00 |
| Floor Offset | 16.4 |
| Gasket Type | Automotive Bulb Seal |
| Height | 70.0 |
| Hinge Style | Stainless Steel Hinge |
| Latch Style | Die Cast Compression Latch |
| Lock Included (y/n) | Yes |
| Number of Doors | 6 |
| Pro Series | False |
| Rain Gutter | True |
| Shelf | True |
| Width | 82.0 |

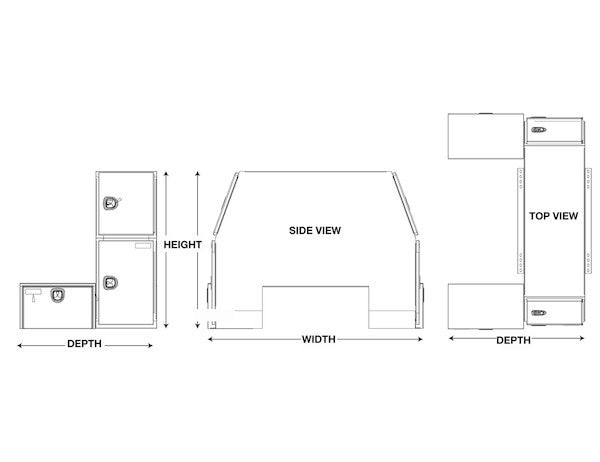

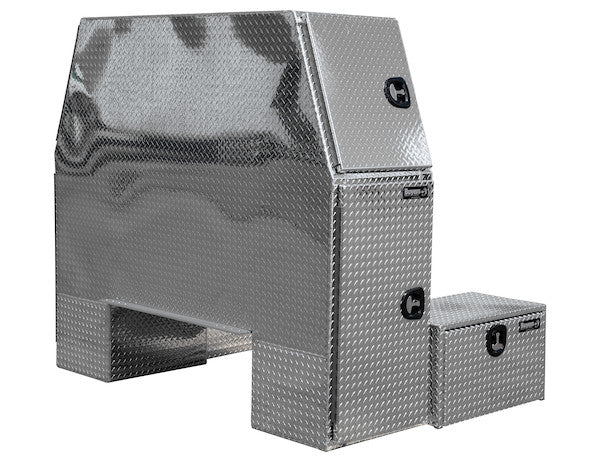

The 70x54x82 Inch Diamond Tread Aluminum L-Pack Backpack Truck Box with Offset Floor represents a pinnacle in professional-grade vehicle-mounted storage solutions. Engineered for the most demanding applications, this truck box integrates advanced material science with intelligent design to provide unparalleled durability, security, and accessibility for tools and equipment. Its substantial dimensions of 70 inches in height, 54 inches in depth, and 82 inches in width ensure expansive storage capacity, positioning it as an indispensable asset for a wide array of commercial and industrial vehicles.
At the core of this storage unit's robust construction is its use of premium-grade aluminum alloy, featuring a consistent thickness of 0.100 inches (equivalent to approximately 11 gauge). Aluminum is meticulously selected for its superior strength-to-weight ratio, which significantly reduces the overall impact on vehicle payload capacity while providing exceptional structural integrity. Unlike steel, aluminum inherently boasts outstanding corrosion resistance, making it impervious to rust and degradation even when exposed to harsh environmental conditions, road salts, moisture, and chemical agents commonly encountered in demanding work environments. This intrinsic property of aluminum ensures a prolonged service life and sustained aesthetic appeal, minimizing maintenance requirements and long-term replacement costs. The distinctive diamond tread finish is not merely an aesthetic choice; it serves a crucial functional role. This embossed pattern enhances the material's rigidity, effectively resisting dents, scratches, and abrasions that are commonplace in rugged operational settings. Furthermore, the textured surface provides a non-slip characteristic, which can be beneficial in certain applications, and subtly diffuses light to reduce glare, contributing to a more professional appearance.
The innovative L-Pack (or "Backpack") design with an offset floor is a key differentiator of this storage solution. This specialized configuration is engineered to seamlessly integrate behind the cab of various truck types, including flatbeds, stake bodies, dump bodies, and service bodies, without impeding visibility or vehicle maneuverability. The L-Pack design strategically utilizes the often-underutilized space behind the cab, wrapping around the vehicle's components to maximize volumetric efficiency. The critical feature, an offset floor of 16.4 inches, is meticulously engineered to accommodate the unique chassis configurations of modern heavy-duty trucks. This offset provides essential clearance for components such as exhaust systems, drivelines, frame rails, fifth-wheel hitches, or auxiliary equipment, ensuring a precise fit and preventing interference. Beyond clearance, the offset floor contributes to optimal weight distribution, helping to maintain vehicle balance and handling characteristics, particularly when the box is fully loaded with heavy tools and gear. This thoughtful design element not only solves common installation challenges but also allows for flexible placement of heavy items, contributing to a lower center of gravity for enhanced stability.

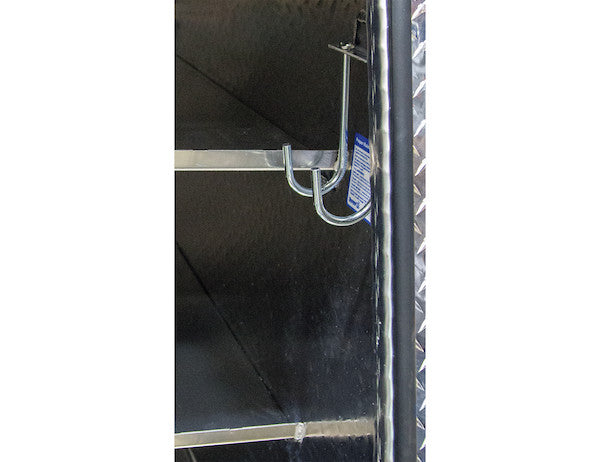

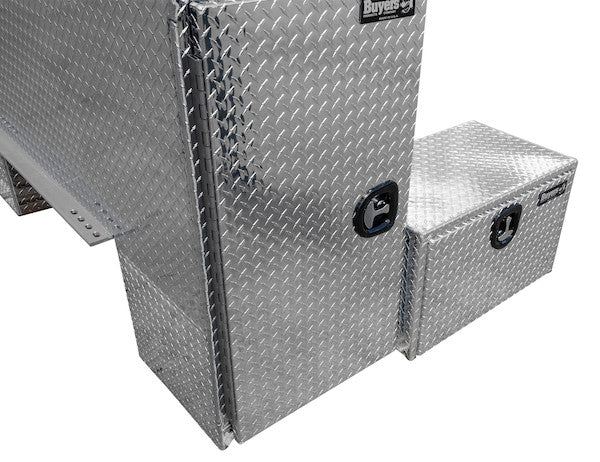

The storage system is intelligently segmented to promote superior organization and quick access. It features a heavy-duty two-level main compartment, further augmented by two additional bolt-on boxes. This modular approach translates into a total of six distinct doors, providing comprehensive access to specific tools or equipment without exposing the entire contents of the box to the elements or potential theft. Each door opening measures a practical 18.00 inches in width, facilitating easy loading and retrieval of even bulky items. The inclusion of internal shelving within the compartments further optimizes vertical storage space, allowing for neat arrangement of smaller tools, parts, and consumables, thereby reducing clutter and improving operational efficiency. The strategic placement and design ensure that all compartments are easily accessible from ground level, significantly enhancing ergonomic convenience and reducing the risk of strain or injury often associated with reaching into elevated or poorly designed storage units. This ground-level accessibility is a critical safety and productivity feature for workers frequently needing to retrieve tools throughout their workday.
Security and protection of valuable equipment are paramount considerations in the design of this truck box. Each door is secured by a reinforced, die-cast compression latch system. This advanced latch mechanism goes beyond simple engagement; it actively compresses the door against the box frame, creating a positive, tightly sealed closure. This compression action serves a dual purpose: it provides a robust deterrent against forced entry and prying, thereby safeguarding tools from theft, and simultaneously ensures an extremely effective seal against environmental ingress. Complementing the compression latches, a continuous, watertight automotive bulb seal lines the perimeter of each door opening. Crafted from durable, weather-resistant EPDM or a similar high-performance rubber compound, this seal forms an impenetrable barrier against moisture, dust, and airborne contaminants. The material properties of the automotive bulb seal ensure its resilience against UV radiation, extreme temperatures, and ozone, guaranteeing its integrity and sealing effectiveness over extended periods of use in varied climates. Further enhancing weather protection, a dedicated rain channel (or rain gutter) is integrated into the design. This channel actively diverts water away from the door openings, ensuring that any precipitation running down the box exterior is channeled away, preventing it from pooling or breaching the primary bulb seal. The synergistic action of the compression latches, automotive bulb seals, and rain gutters provides a superior level of protection, keeping tools and equipment clean, dry, and in optimal working condition.
The robust construction extends to the hardware components, most notably the hinges. The box features heavy-duty stainless steel continuous hinges, distinguished by a substantial 1/4 inch diameter pin. Stainless steel is chosen for its exceptional resistance to corrosion and its superior mechanical strength, ensuring the hinges withstand the repetitive stress of opening and closing, as well as the lateral forces that could be exerted on the doors. A continuous hinge, unlike multiple smaller butt hinges, distributes the door's weight and stress evenly across its entire length, preventing warping, sagging, and providing a higher level of security by eliminating vulnerable points for prying. The substantial 1/4 inch pin diameter reinforces the hinge's structural integrity, making it extremely difficult to compromise. The inclusion of locks, integrated within the compression latches, provides an immediate and comprehensive security solution straight out of the box.
Ease of installation is a critical factor for fleet managers and individual operators. This truck box is engineered for straightforward integration onto a variety of chassis. It features built-in frame mounting rails, which simplify the alignment and attachment process to the truck's frame. To further enhance vehicle integration and protect both the box and its contents, a universal spring-cushioned mounting kit is supplied. This innovative mounting system incorporates springs or other dampening elements designed to absorb and dissipate kinetic energy generated by road shock, vibrations, and sudden impacts. By isolating the truck box from direct, rigid connection to the frame, the spring-cushioned mounting system significantly reduces stress on the box structure and its mounting points, thereby extending the lifespan of the unit. More importantly, it safeguards sensitive tools, electronic equipment, and fragile components stored inside from damaging vibrations, ensuring their integrity and operational readiness. The "universal" aspect of the kit signifies its adaptability to various truck frame widths and configurations, streamlining the installation process across diverse fleet compositions.
The operational benefits of deploying the 70x54x82 Inch Diamond Tread Aluminum L-Pack Backpack Truck Box are manifold for any professional operation. Enhanced organization directly translates to increased productivity, as technicians spend less time searching for tools and more time performing their tasks. The dedicated compartments and shelving within the six-door system allow for systematic inventory management, reducing loss and ensuring that specialized tools are always readily available. The superior protection against weather and theft extends the lifespan of expensive tools and equipment, representing a significant return on investment by reducing replacement costs and downtime. The professional diamond tread finish and robust construction project an image of reliability and professionalism, which is valuable for businesses interacting with clients. Furthermore, the low-maintenance nature of aluminum means less time and resources are diverted to box upkeep, freeing up valuable operational capital. While not designated as a "Pro Series" product, the meticulous engineering, high-quality materials, and comprehensive feature set position this truck box as a professional-grade solution designed to meet and exceed the rigorous demands of daily commercial use. It is an investment in efficiency, security, and longevity, contributing to a more streamlined and productive mobile workforce.
In summary, the 70x54x82 Inch Diamond Tread Aluminum L-Pack Backpack Truck Box with Offset Floor stands as a testament to intelligent design and robust engineering. Its significant dimensions, coupled with a specific 16.4-inch offset floor, ensure compatibility and optimized weight distribution. Constructed from .100-inch thick diamond tread aluminum, it offers unparalleled resistance to corrosion and physical damage. Security is guaranteed through reinforced die-cast compression latches and sturdy stainless steel continuous hinges with a 1/4-inch pin. Comprehensive weather protection is provided by an automotive bulb seal and integrated rain channel. With six strategically placed doors and internal shelving, this box maximizes ground-level accessibility and organizational efficiency. The inclusion of built-in frame mounting rails and a universal spring-cushioned mounting kit simplifies installation and protects contents from road shock. This truck box is not merely a storage container; it is an integrated, high-performance solution engineered to enhance productivity, secure assets, and withstand the harshest operational realities for flatbeds, stake bodies, dump bodies, and service bodies, making it an indispensable asset for any demanding professional environment.
