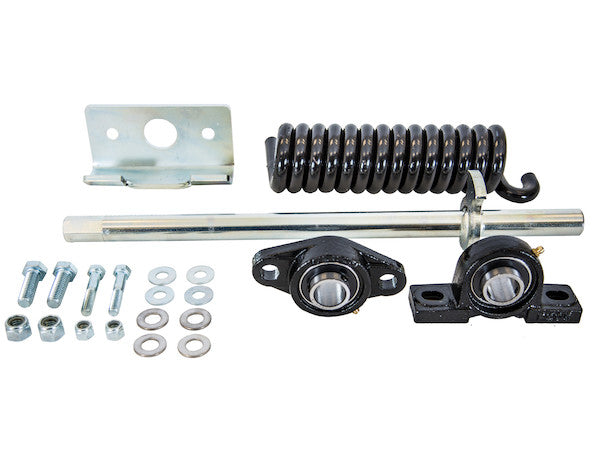

The slim-design Underbody Spring Assembly from Buyers Products keeps the tarp arm pivoting unit compact and out of the way. It's ideal for electric tarp systems with side arms. The assembly includes all mounting hardware, bearings and 15 coil torsion spring. It's available in both driver-side and passenger-side models.
Specifications
| Body Length | - |
|---|---|
| Dump Length Maximum | - |
| Dump Length Minimum | - |
| Finish | Powder-Coat |
| Inside Diameter | 1.50 |
| Leg Length | 2.88 |
| Material | Oil Tempered Steel |
| Number of Coils | 15 |
| Outside Diameter | 2.75 |
| Spring Length at Torque | 9.38 |
| System Style | Electric Underbody |
| Tarp Included (y/n) | - |
| Torque at 1/2 Leg Length | - |
| Wind Deflector Included (y/n) | - |
| Wind Deflector Width | - |
| Wire Diameter | 0.63 |
