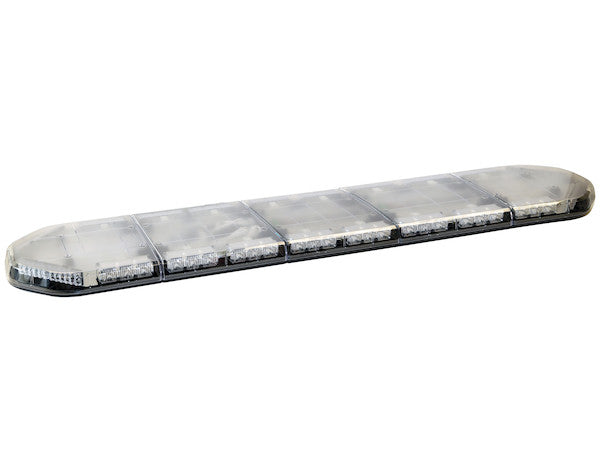

Buyers Products 60 Inch LED Modular Light Bars are available in seven standard configurations. The amber light bar is SAE Class 1 certified and has a CA13 rating. All models feature 11 flash patterns in five programmable groups for a total of 55 different possible flash sequences. A dimming mode also comes standard. Middle modules are reflective with three LEDs each. Corner modules have six LEDs each. Bright take down light modules are also available. See "Accessories" below for more details. The light bar's extruded aluminum frame is excellent at dissipating heat, and the sturdy polycarbonate lens is extremely resistant to impact. Two recessed mounting channels and a 10 ft pre-wired power/function cable make the light bar easy to install and operate. Mounting feet and controller are sold separately. Please contact Customer Service for more information. Modular light bars are backed with a 5-year warranty.
Specifications
| Amber Modules | 9 |
|---|---|
| Amp draw at 12 Volts | 16 |
| Base / Mount Type | Surface |
| Built-In Switch | No |
| Certification | CA13/SAE J845 Class 1/SAE J595 Class 1 |
| Class Level | 1 |
| Clear Modules | 9 |
| Color | Amber/Clear |
| Connector | Blunt Cut |
| Depth | - |
| Dimming Mode (y/n) | Yes |
| Hard Wired or Plug | Hard Wired |
| Height | 2.188 |
| Housing Material | Multiple |
| Lead Length | 15 |
| Lens Material | Polycarbonate |
| Lens Shape | Octagonal |
| Mounts Included | No |
| Number of Flash Patterns | 55 |
| Number of LEDs per Corner Strobe | 6 |
| Number of LEDs per Middle Strobe | 3 |
| Overall Width | 61 |
| Plug Included | No |
| Red Stop/Turn/Tail Modules? | No |
| Take Downs? | No |
| Traffic Adviser? | No |
| Type of Plug | Stripped Leads |
| Voltage | 12 |
| Wattage | 192 |
