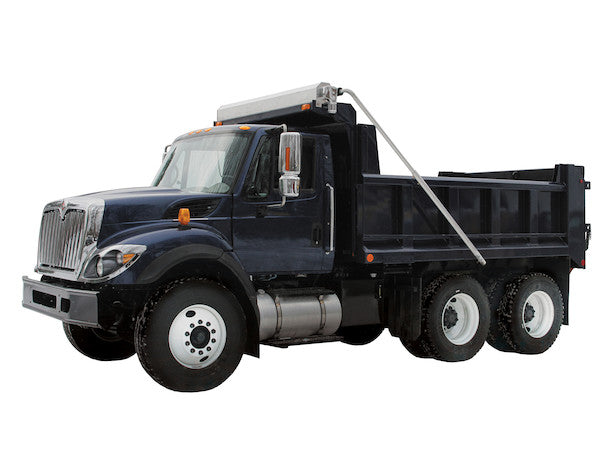

Aluminum Underbody-Spring Mount Tarp System for 8 to 19 Foot Dump Bodies keeps your payload in the truck and out of the weather. With strong, reliable technology and fingertip controls, the Underbody-Spring Mount Tarp System has got you covered. The telescoping tarp arms utilize a single underbody-mounted spring instead of two side-mounted springs to maintain tension. The design is simple, strong, and preserves a slim profile where the pivots attach to the dump body. The tarp system works time after time, thanks to its sturdy aluminum arms that telescope to fit dump bodies ranging from 8 ft to 19 ft. An optional aluminum wind deflector protects the tarp from wind and weather bombardment. At the back, an optional extruded aluminum tension bow keeps the tarp from flapping in transit. The system's gear motor features a bronze alloy gear for long life, protected by a weatherproof enclosure with a chrome cover. The system is available with the following motor options: High speed, 60:1 motor with a 1 or 3 year warranty High torque, 90:1 motor with 3 year warranty Regular speed, 90:1 motor with a 1 or 3 year warranty Tarps are sold separately. See Buyers large selection of solid and mesh tarps that will fit your application.
Specifications
| Arm Material | Aluminum |
|---|---|
| Arm Type | Telescoping |
| Circuit Breaker Amperage | 60 |
| Dump Length Maximum | 19 |
| Dump Length Minimum | 8 |
| Motor Amperage | 50 |
| Motor Gear Ratio | 90:1 |
| Motor Horsepower | 0.8 |
| Motor Mounting Pattern | 5 Hole |
| Motor Output Shaft Diameter | 0.75 |
| Motor Output Shaft Length | 3.13 |
| Motor Voltage | 12 |
| Motor Warranty Length | 1 Year |
| Motor Wattage | 600 |
| Number of Bumpers Included | 6 |
| Number of Springs per Arm | 1 |
| Solenoid Amperage | 150 |
| System Style | Electric Underbody |
| Tarp Included (y/n) | No |
| Wind Deflector Included (y/n) | Yes |
| Wind Deflector Material | Aluminum |
| Wind Deflector Width | 98 |
| Wire Gauge | 8 |
| Wire Length | 60 |
