The BPTSG PTO Connection Kit - Single Gear from Buyers Products has everything required to connect a clamp style push-pull cable to a cable-operated single gear Chelsea?? or Muncie?? PTO.
Specifications
| Connects To | Single Gear Chelsea & all Muncie P.T.O.s |
| Rotation | - |
| Compatible Cable Thread Size (in.) | 1/4-28 & 5/16-24 |
| Works w/Cable Travel (in.) | 3" |
| Works with Cable Type | 5200 Series & 6200 Series |
The BPTSG Single Gear PTO Connection Kit by Buyers Products represents a meticulously engineered solution for the efficient and reliable engagement of Power Take-Off (PTO) units in a wide array of commercial and industrial applications. This comprehensive kit is specifically designed to facilitate the seamless interface between a clamp-style push-pull control cable and a cable-operated single-gear PTO, encompassing both Chelsea and Muncie models. Understanding the critical role of the PTO in transferring engine power to auxiliary equipment, the BPTSG kit ensures precise control, enhanced operational safety, and extended system longevity.
At its core, the functionality of the BPTSG kit revolves around its ability to provide a robust and precise mechanical linkage. The kit is tailored for push-pull cables, which are ubiquitous in heavy-duty vehicles and machinery due to their simplicity, reliability, and ability to transmit linear force over considerable distances while accommodating turns and bends. The "clamp style" designation refers to the specific method by which the cable's inner wire is secured within the kit's components, ensuring a firm, non-slip connection that translates cable movement directly into PTO engagement or disengagement. This mechanical fidelity is paramount for applications where precise control over the PTO is essential, such as operating dump bodies, hydraulic pumps, winches, and other auxiliary systems.
Technical Compatibility and Application
The BPTSG kit exhibits broad compatibility, a key design consideration for manufacturers and operators alike. It is explicitly designed to connect to "Single Gear Chelsea & all Muncie P.T.O.s." This specification is crucial. Chelsea and Muncie are two of the most prominent manufacturers of PTO units globally, known for their robust construction and wide range of applications. The "single gear" distinction for Chelsea PTOs implies compatibility with models designed with a specific internal gear train configuration, which typically influences the PTO's output shaft rotation and torque characteristics. For Muncie PTOs, the kit's compatibility extends to "all Muncie P.T.O.s," indicating a universal fitment across their product lines that are cable-operated. This broad compatibility minimizes the need for specialized parts, simplifying inventory management and accelerating maintenance procedures.
A critical technical parameter is the "Compatible Cable Thread Size." The kit accommodates cables with thread sizes of 1/4-28 and 5/16-24 inches. These are standard thread specifications in the push-pull cable industry, ensuring that the BPTSG kit integrates seamlessly with a vast majority of existing cable systems. The thread size is vital for securely fastening the cable to the connection kit's linkage components, preventing slippage or disengagement under operational stresses. Precision in thread machining and material selection for these connection points are paramount to maintain the integrity of the control system.
The operational stroke, specified as "Works w/Cable Travel (in.): 3"," defines the maximum linear displacement of the inner cable wire that the kit is designed to accommodate and effectively translate into PTO actuation. A 3-inch travel is a common standard for PTO engagement cables, providing sufficient stroke to reliably shift the PTO's internal clutch mechanism from disengaged to fully engaged positions. This parameter ensures that the kit will function correctly without over-stressing or under-actuating the PTO, which could lead to incomplete engagement, premature wear, or operational failure. The design of the lever arm ratios and pivot points within the kit is optimized to utilize this 3-inch cable travel efficiently.
Furthermore, the kit's compatibility extends to specific cable types: "Works with Cable Type: 5200 Series & 6200 Series." These series designations typically refer to industrial-grade push-pull cables known for their durability, low friction, and long service life in demanding environments. Cables within these series often feature robust outer casings, corrosion-resistant inner wires, and specialized seals to protect against contaminants. The BPTSG kit is engineered to accept the specific terminal end designs and physical dimensions characteristic of these high-performance cables, thereby ensuring optimal mechanical fit and reliable operation.
Design and Construction Principles
The BPTSG PTO Connection Kit is constructed from high-quality, durable materials selected for their resistance to wear, corrosion, and fatigue, consistent with the demanding operating conditions found in heavy-duty vehicle applications. Components are typically manufactured from robust steels or alloys, often finished with protective coatings such as zinc plating or powder coating to enhance environmental resistance. Precision machining ensures tight tolerances, minimizing backlash and maximizing the responsiveness of the control system.

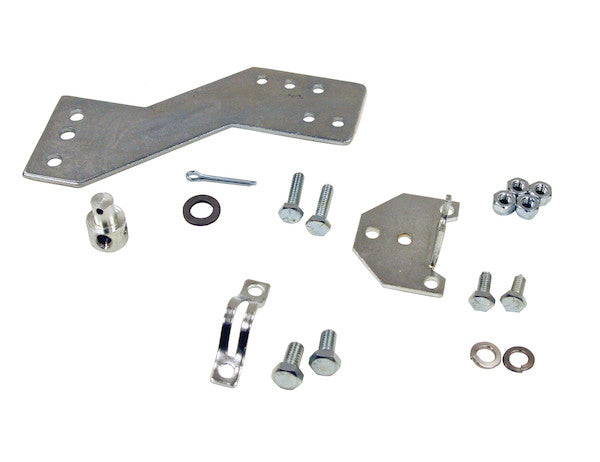

Key components within the kit typically include:
- Lever Mechanism: A precisely designed lever arm that interfaces with the PTO's engagement fork or lever. Its geometry is critical for converting the linear pull of the cable into the rotational or linear movement required by the PTO, with an optimized mechanical advantage.
- Cable Clamp/Mounting Hardware: Components designed to securely fasten the outer casing of the push-pull cable and to clamp the inner wire, ensuring that all cable travel is transmitted effectively to the lever mechanism. This often involves threaded adjusters for fine-tuning cable tension and stroke.
- Mounting Brackets and Fasteners: Robust brackets designed for secure attachment to the PTO unit or adjacent transmission housing. These components ensure the stability of the connection kit, resisting vibrations and dynamic forces during vehicle operation.
- Adjustment Features: Many kits incorporate adjustment mechanisms, such as threaded rods or clevis pins with multiple holes, to allow for fine-tuning of the PTO engagement point and to compensate for manufacturing variations or wear over time. This adjustability is crucial for achieving optimal PTO performance and preventing premature clutch wear.
Operational Benefits and Performance
The implementation of the BPTSG Single Gear PTO Connection Kit offers several significant operational benefits:
- Precision Control: The robust mechanical linkage ensures that every increment of cable movement translates accurately into PTO actuation, allowing for precise control over engagement and disengagement. This is critical for applications requiring fine control, such as operating sensitive hydraulic systems.
- Enhanced Reliability: By utilizing industrial-grade materials and precision manufacturing, the kit provides a highly reliable connection, reducing the likelihood of unexpected failures or malfunctions in demanding operational environments.
- Durability and Longevity: Designed to withstand the rigors of heavy-duty use, including exposure to vibration, shock, dirt, and moisture, the kit contributes to the overall longevity of the PTO system by ensuring proper engagement and reducing stress on internal components.
- Simplified Installation and Maintenance: The comprehensive nature of the kit, containing "everything required," streamlines the installation process. Standardized thread sizes and cable compatibility further simplify maintenance and component replacement.
- Safety: A properly functioning PTO connection system is vital for operational safety. The BPTSG kit helps prevent accidental engagement or disengagement, which could lead to equipment damage or personnel injury.
- Reduced Downtime: The reliability and ease of maintenance associated with the BPTSG kit contribute to reduced vehicle downtime, maximizing productivity and operational efficiency.
Installation Considerations
Proper installation of the BPTSG kit is paramount to ensure optimal performance and safety. Technicians should adhere to manufacturer guidelines for both the PTO unit and the connection kit. Key considerations include:
- Clearance: Ensuring adequate clearance for the cable routing and the kit's moving parts to prevent binding or interference with other vehicle components.
- Cable Routing: Routing the push-pull cable with gradual bends and avoiding sharp turns to minimize friction and extend cable life. Securing the cable at appropriate intervals prevents sagging and damage.
- Adjustment: Meticulously adjusting the cable travel and the PTO engagement point. This typically involves ensuring the PTO's internal shift mechanism fully engages without over-stroking and fully disengages without dragging.
- Torque Specifications: Adhering to all specified torque values for fasteners to prevent loosening under vibration and to avoid damaging components.
- Lubrication: Applying appropriate lubricants to pivot points and moving parts as recommended by the manufacturer to ensure smooth operation and reduce wear.
- Testing: Thoroughly testing the PTO engagement and disengagement functionality under various conditions after installation to confirm proper operation.
Conclusion
The BPTSG Single Gear PTO Connection Kit from Buyers Products is an indispensable component for any commercial or industrial vehicle requiring reliable and precise Power Take-Off operation. Its specialized design for single-gear Chelsea and all Muncie PTOs, coupled with broad cable compatibility (1/4-28 & 5/16-24 thread sizes, 3" travel, 5200 & 6200 Series cables), positions it as a versatile and robust solution. By ensuring a secure, adjustable, and durable mechanical linkage, the kit facilitates efficient power transfer to auxiliary equipment, enhances operational safety, and contributes significantly to the longevity and performance of the overall vehicle system. For professionals seeking a high-quality, comprehensive solution for PTO cable connection, the BPTSG kit represents an optimal choice, embodying the principles of engineering precision, reliability, and ease of integration.
