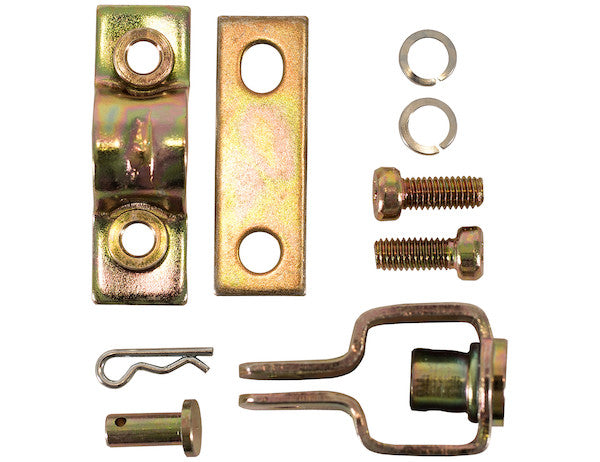

Buyers Products Shift Control Cable Connection Kit includes all pieces needed to attach a clamp type push-pull cable to any Buyers Products Q or B Series shift system.
Specifications
| Use WIth | 5200 Series Cable |
| Description | For use w/ 1/4 - 28 THD cables |
| FInish | Zinc Plated |
| Material | Carbon Steel |
Buyers Products Shift Control Cable Connection Kit: Precision Engineering for Robust Control Systems
The Buyers Products Shift Control Cable Connection Kit represents a critical component in the assembly and maintenance of sophisticated mechanical control systems, particularly those found in commercial vehicles, heavy equipment, and industrial machinery. Designed for seamless integration with Buyers Products Q and B Series shift systems, this kit ensures reliable and precise transmission of mechanical force via clamp-type push-pull cables. Its specific compatibility with 1/4-28 threaded control cables, coupled with its robust material and finish, positions it as an indispensable solution for demanding operational environments.Understanding the Core Functionality: Push-Pull Cable Systems
At the heart of many mechanical control applications lies the push-pull cable system. This mechanism facilitates the remote actuation of various functions, such as shifting gears, engaging power take-offs (PTOs), operating throttles, or controlling hydraulic valves. Unlike direct mechanical linkages, push-pull cables offer flexibility in routing, mitigate vibration transmission, and simplify installation over complex pathways. A typical push-pull cable consists of a core wire or strand assembly, often stainless steel, encased within a flexible conduit. The core transmits tensile (pull) and compressive (push) forces, while the conduit provides support and protection. The effectiveness of a push-pull cable system hinges critically on the integrity of its connections. Any compromise in this interface can lead to lost motion, reduced responsiveness, increased wear, or complete system failure. The Buyers Products Shift Control Cable Connection Kit is engineered specifically to address these challenges, providing a secure, durable, and precise connection between the cable and the actuation mechanism.Technical Deep Dive: Key Components and Specifications
The kit's design is informed by a deep understanding of mechanical engineering principles and the operational demands placed on control systems. Let's examine its specifications in detail:Compatibility: 1/4-28 Threaded Control Cables
The designation "1/4-28 THD cables" refers to a specific thread standard. "1/4" indicates the nominal outer diameter of the thread in inches, while "28" denotes the number of threads per inch. This fine thread pitch is crucial for several reasons:- Fine Adjustment: A higher thread count per inch allows for finer adjustments in the position of the cable end, which is critical for precise calibration of shift systems and other controls. This enables operators to achieve optimal engagement and disengagement points, minimizing slop and maximizing responsiveness.
- Increased Holding Power: While a coarser thread might appear more robust, a fine thread, when properly torqued, distributes the load over a greater number of engaged threads, often resulting in superior resistance to loosening under vibration and dynamic loads. This is particularly important in environments where machinery experiences constant motion and impact.
- Reduced Stress Concentration: Fine threads tend to have shallower thread roots, which can reduce stress concentration points compared to coarser threads, potentially improving fatigue life in high-cycle applications.
Material: Carbon Steel
The selection of carbon steel for the kit's components is a deliberate choice driven by its favorable mechanical properties:- High Tensile Strength: Carbon steel exhibits excellent tensile strength, meaning it can withstand significant pulling forces without deforming or fracturing. This is essential for components subjected to the repetitive and often high-force actuation cycles of shift systems.
- Durability and Wear Resistance: Its inherent hardness contributes to superior wear resistance, ensuring the components maintain their dimensional integrity and functional performance over extended periods, even with constant friction and mechanical stress.
- Formability: Carbon steel is highly formable, allowing for the precise machining and fabrication of complex shapes required for secure cable clamping and linkage attachment.
- Cost-Effectiveness: Compared to alloy steels or non-ferrous alternatives, carbon steel offers a cost-effective solution without compromising critical performance attributes for this application.
Finish: Zinc Plated
Zinc plating, also known as galvanization, is a widely adopted surface treatment for steel components, offering significant advantages, particularly in demanding operational environments:- Corrosion Protection: The primary benefit of zinc plating is its sacrificial corrosion protection. Zinc is electrochemically more active than steel. In the presence of moisture and oxygen, the zinc coating corrodes preferentially, protecting the underlying carbon steel from rust and oxidation. This is vital for components exposed to outdoor elements, road salts, chemicals, or humid industrial atmospheres.
- Abrasion Resistance: While not as hard as some other coatings, zinc plating does offer a degree of enhanced abrasion resistance, protecting the steel from minor scrapes and wear during installation and operation.
- Aesthetics: The bright, silvery appearance of zinc plating provides a clean and professional look, which is an added benefit for visible components.
- Cost-Effectiveness: Zinc plating is a relatively inexpensive process, making it an economically viable solution for providing robust protection to high-volume components.
Compatibility: 5200 Series Cable
While the primary description refers to 1/4-28 THD cables, the specific mention of "5200 Series Cable" suggests a particular line or type of push-pull cable from Buyers Products or a compatible manufacturer. This detail provides an additional layer of precision for users seeking to match components within an established ecosystem. The 5200 series likely denotes cables designed for specific force ratings, bend radii, or environmental resistances that align perfectly with the robust construction and intended use of this connection kit.The Importance of a Robust Connection Kit in Shift Systems
Shift systems in vehicles and machinery are subject to considerable mechanical stress. The repeated actuation of gear changes, often under varying loads and speeds, places significant demands on every component in the control linkage. A weak or improperly designed connection point can lead to:- Loose Shifting: Play in the connection translates directly into lost motion, making gear selection imprecise and challenging.
- Premature Wear: Excessive movement or vibration at the connection point can accelerate wear on the cable, the shift mechanism, and the connection kit itself.
- System Failure: In extreme cases, a compromised connection can lead to complete detachment of the cable, resulting in loss of control over the shift system. This can be a significant safety hazard and lead to costly downtime.
- Increased Maintenance: Frequent need for adjustments or replacements of connection components adds to operational costs and reduces equipment availability.
- Secure: The clamp-type design, combined with appropriate threading, ensures a firm grip on the cable end, preventing slippage or detachment.
- Precise: The fine threading allows for meticulous adjustment, minimizing play and ensuring crisp, responsive shifting.
- Durable: The choice of carbon steel and zinc plating guarantees resistance to wear, fatigue, and environmental degradation.
Applications and Target Audience
This connection kit is specifically tailored for a wide array of applications where Buyers Products Q and B Series shift systems are deployed. These systems are commonly found in:- Commercial Trucks: Medium and heavy-duty trucks for refuse collection, construction, utility services, and transportation often utilize these shift systems for manual transmissions, PTO engagement, and other auxiliary controls.
- Construction Equipment: Excavators, loaders, dozers, and other heavy machinery rely on robust control systems for engaging various functions, where precision and durability are paramount.
- Agricultural Machinery: Tractors and farming implements frequently employ push-pull cables for throttle control, PTO engagement, and implement adjustments.
- Vocational Vehicles: Specialty vehicles such as street sweepers, snowplows, and service vehicles often integrate these control systems for auxiliary equipment operation.
- Industrial Equipment: Manufacturing equipment, material handling systems, and stationary engines may also leverage similar control architectures.
Installation and Maintenance Considerations
While the kit provides all necessary components for connection, proper installation is crucial for optimal performance and longevity. Key considerations include:- Torque Specifications: Adhering to manufacturer-recommended torque specifications for threaded fasteners is essential to ensure a secure connection without over-stressing components.
- Cable Routing: Proper routing of the push-pull cable, avoiding tight bends, abrasive surfaces, and heat sources, will extend the life of both the cable and its connections.
- Lubrication: While the connection kit itself requires minimal lubrication due to its robust materials, ensuring the associated cable and shift mechanism are adequately lubricated per manufacturer guidelines will enhance overall system efficiency and reduce wear.
- Regular Inspection: Periodical inspection of the connection for signs of wear, corrosion, or loosening is recommended as part of a comprehensive preventative maintenance program.
Conclusion: The Foundation of Reliable Control
The Buyers Products Shift Control Cable Connection Kit for 1/4-28 Threaded Control Cable is more than just a collection of parts; it is a meticulously engineered solution designed to be the robust foundation of a reliable mechanical control system. By combining high-grade carbon steel, protective zinc plating, and precise threading for 1/4-28 cables, Buyers Products delivers a product that stands up to the most demanding operational environments. Its seamless integration with Q and B Series shift systems ensures that commercial vehicles and heavy equipment can maintain optimal performance, precision, and safety. For professionals seeking uncompromising quality and durability in their control system components, this connection kit represents an intelligent investment in operational longevity and efficiency. It underscores the critical role that seemingly small components play in the overall integrity and performance of complex machinery, ensuring smooth shifts and dependable control for years to come.
