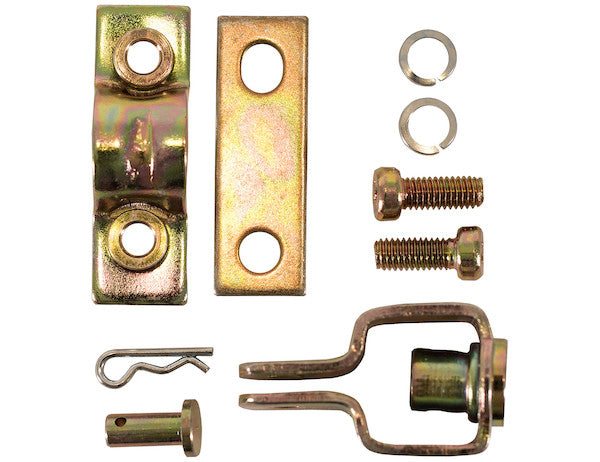

Buyers Products Shift Control Cable Connection Kit includes all pieces needed to attach a clamp type push-pull cable to any Buyers Products Q or B Series shift system.
Specifications
| Use WIth | 6200 Series Cable |
| Description | For use w/ 5/16 - 24 THD cables |
| FInish | Zinc Plated |
| Material | Carbon Steel |
Advanced Technical Overview: Shift Control Cable Connection Kit for 5/16-24 Threaded Control Cable
This document provides an in-depth technical description of the Shift Control Cable Connection Kit, specifically designed by Buyers Products for seamless integration with 5/16-24 threaded control cables. This kit is engineered to facilitate the precise and robust attachment of clamp-type push-pull cables to Buyers Products Q and B Series shift systems, ensuring reliable and efficient operation in a wide array of industrial and commercial applications.Product Overview and Application
The Shift Control Cable Connection Kit serves as a critical interface component within mechanical control systems. Its primary function is to establish a secure and dependable mechanical linkage between a standard 5/16-24 threaded push-pull control cable and the actuation mechanism of Buyers Products Q and B Series shift systems. These shift systems are commonly employed in heavy-duty vehicles, construction equipment, agricultural machinery, and various industrial applications where precise remote control of mechanical functions, such as power take-off (PTO) engagement, transmission shifting, or auxiliary equipment operation, is required. The kit's design addresses the fundamental need for a robust, corrosion-resistant, and easily installable connection that can withstand the demanding operational environments typical of these applications. By providing all necessary components, it streamlines the installation process, reduces downtime, and ensures compatibility, thereby optimizing the overall performance and longevity of the control system.Key Technical Specifications and Material Science
The effectiveness and durability of the Shift Control Cable Connection Kit are directly attributable to its meticulously selected materials and finishes.Cable Compatibility: 5/16-24 Threaded Cables (e.g., Buyers Products 6200 Series)
The kit is specifically engineered for use with control cables featuring a 5/16-24 UNF (Unified National Fine) thread specification. This thread standard is widely adopted in industrial control cables due to its balance of strength, fine adjustment capability, and resistance to loosening under vibration. The "5/16" denotes the nominal major diameter of the thread in inches, while "24" indicates 24 threads per inch (TPI). This fine pitch provides a larger thread contact area compared to coarser pitches of the same diameter, resulting in increased resistance to pull-out forces and improved precision in adjustment. While the kit is broadly compatible with any 5/16-24 threaded cable, its optimal performance is achieved when paired with the Buyers Products 6200 Series Cable. These cables are typically constructed with a robust outer conduit and a low-friction inner core, often featuring polymer liners, to ensure smooth and efficient transmission of force over long distances and through complex routing paths. The precise dimensional tolerances of the 6200 Series cables, especially at the threaded termination, ensure a perfect mechanical fit with the kit's components, minimizing play and maximizing control response.Material Composition: Carbon Steel
The primary structural components of the connection kit are manufactured from high-quality carbon steel. Carbon steel is chosen for its excellent balance of mechanical properties, including high tensile strength, yield strength, and hardness, making it ideal for components subjected to significant mechanical stress, repetitive motion, and potential impact loads. The specific grade of carbon steel used is selected to provide optimal machinability for precise threading and component fabrication, while also ensuring sufficient ductility to prevent brittle fracture under dynamic loading conditions. The inherent strength of carbon steel contributes significantly to the kit's ability to maintain structural integrity and resist deformation over its operational lifespan, even in applications where control forces can be substantial.Surface Finish: Zinc Plated
To combat the corrosive effects prevalent in outdoor and industrial environments, all carbon steel components of the kit undergo a zinc plating process. Zinc plating, often referred to as galvanization when applied in thicker layers, is a widely used method for enhancing the corrosion resistance of steel. The process involves electrodepositing a thin layer of zinc onto the steel surface. Zinc acts as a sacrificial anode, meaning it corrodes preferentially to the underlying steel when exposed to corrosive agents such as moisture, salt, and various chemicals. This cathodic protection mechanism significantly extends the service life of the components by preventing rust formation on the steel itself. Beyond corrosion resistance, zinc plating also provides a degree of abrasion resistance and contributes to the overall aesthetic appeal of the components. The typical thickness of zinc plating applied to these components is carefully controlled to ensure optimal protection without affecting dimensional tolerances or the functionality of threaded connections. Furthermore, the zinc plating process often includes a chromate conversion coating (passivation) as a post-treatment, which further enhances corrosion resistance and provides a more durable finish, often recognizable by its clear, yellow, or black iridescent appearance. This additional layer seals the zinc, preventing "white rust" (zinc oxide) formation and improving resistance to chemical attack.Design and Functional Principles of the Connection Kit
The kit is designed to address several critical aspects of control cable connection: secure attachment, precise adjustment, and resistance to environmental factors.Clamp-Type Push-Pull Cable Attachment
The core functionality of the kit revolves around its ability to firmly secure a clamp-type push-pull cable. This typically involves a mechanism where the end of the inner wire of the push-pull cable is captured and held immovably. The "clamp-type" designation implies a mechanical fastening method that exerts compressive force on the cable's inner wire or its ferrule, preventing longitudinal movement. This method offers a distinct advantage over crimped connections, as it often allows for easier adjustment, inspection, and replacement of the cable without specialized crimping tools. The precise design of the clamping mechanism within the kit ensures uniform pressure distribution on the cable, minimizing stress concentrations that could lead to premature cable failure. The interaction between the various kit components ensures that once assembled, the cable's position relative to the shift system's lever or actuator is rigidly fixed, translating control inputs directly and without undesirable slack or hysteresis.Interface with Buyers Products Q and B Series Shift Systems
The kit is engineered for direct compatibility with Buyers Products Q and B Series shift systems. These systems are typically characterized by robust construction and specific interface points (e.g., levers, clevises, or bellcranks) designed to receive mechanical control inputs. The kit's components, such as threaded couplers, clevis pins, and retaining clips, are dimensionally matched to these interface points, ensuring a perfect mechanical fit and proper kinematic alignment. The design takes into account the typical range of motion and force requirements of these shift systems, ensuring that the connection kit can transmit the necessary forces and withstand the associated stresses without failure or excessive wear. The integration is seamless, allowing for straightforward installation by technicians with standard tools.Component Breakdown and Assembly Logic
While the exact components may vary slightly, a typical Shift Control Cable Connection Kit for 5/16-24 threaded cables would generally include: 1. **Threaded Rod/Stud:** This component typically interfaces with the 5/16-24 female thread of the control cable. It provides the primary mechanical link to the cable and usually features an opposing thread or an eyelet for connection to other kit components. Its length is often optimized for providing sufficient adjustment range. 2. **Clevis/Yoke End:** A U-shaped component with holes at its ends, designed to straddle a lever or pin. One end is typically threaded (e.g., 5/16-24 or another standard thread) to screw onto the threaded rod/stud, allowing for fine adjustment of the overall length of the control linkage. 3. **Clevis Pin:** A cylindrical pin that passes through the holes of the clevis and the corresponding hole in the shift system's lever or actuator. This pin creates a pivoting connection, allowing for angular movement as the shift system operates. 4. **Retaining Clips/Cotter Pins:** Small fasteners (e.g., R-clips, cotter pins, or snap rings) used to secure the clevis pin in place, preventing its dislodgement during operation. 5. **Lock Nuts/Jam Nuts:** These nuts are crucial for securing the adjustment of the clevis or other threaded components. Once the desired length or position is achieved, the lock nut is tightened against the component, creating friction that prevents unintended loosening due to vibration or operational forces. The 5/16-24 thread on the cable itself would also typically receive a lock nut or jam nut to secure its position within a mounting bracket, if applicable, further enhancing the system's stability. 6. **Washers:** Flat or lock washers may be included to provide proper spacing, distribute load, or prevent loosening of fasteners. The assembly logic follows a straightforward sequence: the 5/16-24 threaded end of the control cable is connected to a corresponding threaded component of the kit (e.g., a threaded rod or directly into a clevis if internally threaded). This assembly is then adjusted for length. The clevis end of the kit is then aligned with the appropriate lever or actuating arm on the Buyers Products Q or B Series shift system. The clevis pin is inserted through the aligned holes, and retaining clips secure it. Finally, all threaded connections are locked with jam nuts to prevent vibrational loosening, ensuring the control system maintains its calibrated position and responsiveness.Performance Characteristics and Reliability Engineering
The Shift Control Cable Connection Kit is engineered to deliver high performance and reliability under strenuous operating conditions.Durability and Longevity
The combination of carbon steel construction and zinc plating ensures exceptional durability. The robust material resists mechanical wear from repeated articulation and impact, while the sacrificial zinc coating provides long-term protection against environmental degradation. This design choice contributes to an extended operational lifespan for the entire control system, reducing maintenance requirements and total cost of ownership.Precision and Responsiveness
The precise threading (5/16-24 UNF) and tight manufacturing tolerances of the components minimize backlash and play within the connection. This directly translates to enhanced precision and responsiveness of the control system. Operators experience a more immediate and accurate translation of their control inputs to the actuated mechanism, which is critical for safety and efficiency in tasks requiring fine control. The ability to precisely adjust the linkage length through threaded connections allows for optimal calibration, ensuring the full range of motion of the shift system is utilized and that neutral positions are accurately defined. The use of jam nuts ensures that once these adjustments are made, they remain stable over time, resisting loosening from vibration.Environmental Resistance
The kit is designed to operate reliably across a wide range of environmental conditions. The zinc plating offers significant protection against:- **Corrosion:** From moisture, road salts, agricultural chemicals, and industrial pollutants.
- **Temperature Fluctuations:** Carbon steel maintains its mechanical properties over a broad temperature range, ensuring consistent performance from extreme cold to high heat.
- **Vibration:** The secure threaded connections and locking mechanisms are engineered to resist loosening under constant vibration, a common challenge in mobile and industrial machinery.
- **Abrasive Elements:** While not impervious, the robust construction provides resistance to ingress of dust and debris that could otherwise compromise functionality.
Maintenance and Serviceability
The modular design of the connection kit facilitates straightforward installation and, if necessary, replacement of individual components. The clamp-type attachment, as opposed to permanent crimps, allows for easier cable removal and re-attachment, simplifying maintenance procedures. The use of standard fasteners and threads means that common tools can be used for assembly and adjustment, further enhancing serviceability. Regular inspection of the components for wear, corrosion, or looseness is recommended as part of a routine maintenance schedule. The zinc-plated finish makes visual inspection for signs of wear or impending corrosion easier, allowing for proactive replacement before catastrophic failure.Compliance and Quality Assurance
Buyers Products maintains rigorous quality control standards throughout the manufacturing process of its components. Materials are sourced from reputable suppliers and subjected to stringent quality checks. Manufacturing processes adhere to industry best practices, ensuring dimensional accuracy and consistency. The zinc plating process is carefully monitored to ensure uniform coating thickness and adherence to corrosion resistance specifications. This commitment to quality ensures that the Shift Control Cable Connection Kit meets or exceeds the performance expectations for demanding applications, providing a reliable and durable solution for control system integration. The design principles are often guided by relevant industry standards for mechanical linkages and control components, although specific certifications would be dependent on the application context.Conclusion
The Shift Control Cable Connection Kit for 5/16-24 Threaded Control Cable from Buyers Products represents a meticulously engineered solution for critical mechanical control interfaces. Its robust carbon steel construction, protected by a durable zinc plating, ensures exceptional longevity and corrosion resistance. Designed for precise integration with 5/16-24 threaded control cables and Buyers Products Q and B Series shift systems, it provides a highly reliable, precise, and responsive linkage. The kit's comprehensive inclusion of all necessary components, coupled with its straightforward assembly and robust design, minimizes installation complexity and maximizes operational uptime. This product is an essential component for engineers and technicians seeking a high-performance, durable, and easily maintainable connection solution for their industrial and heavy-duty vehicle control applications.
