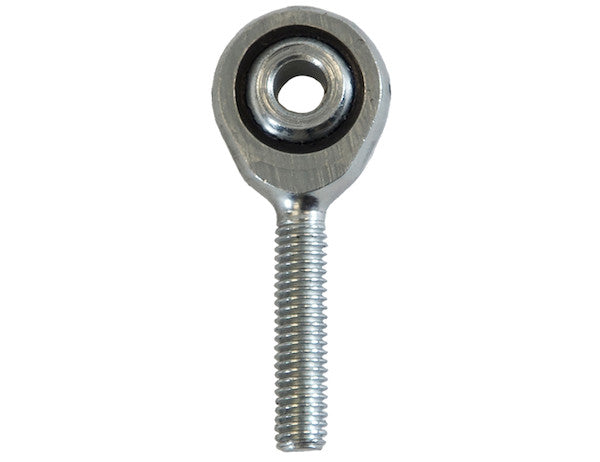

BRE32M - 10-32 Rod End Bearing - Male Thread

The Buyers Products Rod End Bearing Male Thread is constructed from steel and available in five sizes.

Specifications

Product Overview: The Buyers Products 10-32 Male Thread Rod End Bearing - Precision Engineering for Demanding Applications

The Buyers Products 10-32 Rod End Bearing with a Male Thread represents a meticulously engineered component designed for critical motion transfer and articulation applications across a wide spectrum of industrial and mechanical systems. Constructed from high-grade steel, this rod end bearing is a testament to durability, precision, and reliable performance under challenging operational conditions. This detailed product description delves into the technical specifications, material science, design principles, application versatility, installation considerations, and maintenance protocols associated with this essential mechanical linkage.

Material Science and Construction: The Foundation of Durability

The primary material utilized in the construction of this rod end bearing is steel. The specific grade of steel, while not explicitly detailed in the summary, would typically be selected for its advantageous mechanical properties, including high tensile strength, excellent yield strength, and robust fatigue resistance. Common choices for such applications include alloy steels (e.g., chromoly 4130, 4140) or hardened carbon steels, often with specific heat treatments to optimize their performance characteristics. Heat treatment processes such as hardening and tempering are crucial for enhancing the wear resistance of the spherical ball and the race, while maintaining the necessary ductility to prevent brittle fracture under shock loads or vibrations.

The steel construction ensures the bearing's ability to withstand significant axial and radial loads, as well as repetitive stress cycles inherent in dynamic mechanical systems. The use of steel also contributes to the product's longevity, making it a cost-effective solution in the long term by reducing the frequency of replacements and associated downtime. Furthermore, surface treatments, such as zinc plating or black oxide coating, are often applied to steel rod end bearings to provide corrosion resistance, particularly in environments exposed to moisture, chemicals, or abrasive particles. These coatings form a protective barrier, extending the operational life and maintaining the aesthetic integrity of the component.

Design Principles: Optimizing Motion Transfer and Articulation

The core function of a rod end bearing is to provide a spherical plain bearing in a housing with a male thread shank, allowing for angular misalignment between connected parts while transmitting force. This design enables a smooth, low-friction pivot point, crucial for articulated joints where precise motion control and flexibility are paramount. The male thread shank, specifically a #10-32 thread, allows for direct attachment to mating female-threaded components, such as control rods, linkages, or hydraulic cylinders, providing a secure and adjustable connection point.

Key design parameters that contribute to the performance of this rod end include:

• Spherical Ball and Race Configuration: The internal design features a hardened, ground, and polished spherical ball articulating within a precisely machined race. This ball-in-socket arrangement facilitates multidirectional movement, accommodating angular misalignment up to the specified "Movement Cone" of 50 degrees. The surface finish and hardness of both the ball and race are critical for minimizing friction, wear, and generating smooth rotational and oscillatory motion.
• Housing Design: The robust steel housing encapsulates the spherical bearing, providing structural integrity and a secure mounting point via the male thread. The "Socket Diameter" of 0.625 inches and "Socket Flats" of 0.308 inches refer to dimensions related to the outer housing, likely indicating areas for wrenching during installation or specific geometries for fitting into system components.
• Thread Specification: The #10-32 male thread is a fine thread standard, indicating a nominal major diameter of approximately 0.190 inches (or ~4.826 mm) and 32 threads per inch (TPI). This fine pitch provides excellent resistance to loosening under vibration and allows for precise adjustment of the linkage length. The "Thread Depth" of 0.750 inches ensures adequate thread engagement for secure fastening and load distribution, preventing premature stripping under high tensile or compressive forces.
• Dimensional Precision: Each specified dimension, including "Overall Length" (1.562"), "Center to Stud End" (1.250"), and "Ball Diameter" (0.437"), is critical for ensuring interchangeability, proper fitment, and predictable performance within an assembly. These precise tolerances minimize play and backlash, contributing to the accuracy and responsiveness of the connected mechanical system.

Technical Specifications in Detail: Decoding the Engineering Parameters

Let's break down the implications of each provided specification:

• Overall Length (1.562 "): This dimension represents the total length of the rod end bearing from the tip of the male thread to the opposite end of the housing. It is a critical parameter for calculating the total linkage length and ensuring clearance within the application envelope.
• Socket Flats (0.308 "): The presence of "Socket Flats" suggests that the housing features parallel flat surfaces, typically hex-shaped, to facilitate gripping with a wrench during installation or adjustment. The 0.308-inch dimension would relate to the across-flats measurement for the appropriate wrench size. This feature is vital for applying torque without damaging the bearing housing or affecting the internal spherical element.
• Movement Cone (50 degrees): This is a crucial performance metric, indicating the maximum permissible angular misalignment that the rod end can accommodate. A 50-degree movement cone means the spherical ball can articulate up to 25 degrees in any direction from its central axis. This significant range of motion is beneficial in applications where dynamic misalignments are common, preventing binding and reducing stress on other system components.
• Thread (#10-32): As discussed, this is a standard fine-pitch male thread. The fine pitch offers increased resistance to vibrational loosening and allows for finer adjustments compared to coarser threads. It's essential to match this with a corresponding #10-32 female thread in the mating component for proper engagement.
• Center to Stud End (1.250 "): This dimension is typically measured from the center of the spherical ball's pivot point to the very end of the male threaded stud. It's critical for calculating the effective length of the linkage and establishing the pivot point's location relative to the attachment surface.
• Socket Diameter (0.625 "): This refers to the outer diameter of the bearing housing, specifically the cylindrical or spherical portion that contains the ball. This dimension is important for ensuring proper fit into mounting brackets or other structural elements.
• Thread Depth (0.750 "): This specifies the length of the threaded portion of the stud. A generous thread depth of 0.750 inches ensures that sufficient threads are engaged when fastened, providing robust load-bearing capability and preventing premature thread stripping, even under dynamic loads.
• Ball Diameter (0.437 "): This is the diameter of the spherical ball within the bearing. A larger ball diameter generally correlates with higher load capacity and greater durability due to a larger contact area and increased material volume. The precision of this diameter is critical for smooth operation and minimal internal play.

Versatility Across Industries and Applications

The Buyers Products 10-32 Rod End Bearing with Male Thread is a highly versatile component, finding widespread application in a myriad of industries where precise motion transfer, angular accommodation, and robust linkages are essential. Its steel construction and specific thread size make it suitable for medium-duty to demanding applications. Key sectors and examples include:

• Automotive and Motorsports: Used in steering linkages, throttle linkages, shift mechanisms, suspension components (e.g., sway bar end links, adjustable control arms), and brake systems where precise and adjustable connections are critical for performance and safety.
• Agricultural Machinery: Employed in control linkages for tractors, harvesters, and implements; hydraulic cylinder connections; and steering systems where durability and resistance to harsh environmental conditions (dirt, moisture, vibration) are paramount.
• Industrial Automation and Robotics: Integral to robotic arm joints, linear actuator connections, sensing mechanisms, and conveyor systems where accurate positioning and smooth articulation are required for repetitive tasks.
• Marine Applications: Utilized in boat steering systems, engine controls, and various deck hardware where corrosion resistance (often achieved through specific coatings or stainless steel variants, though the base is steel here) and reliability in a saltwater environment are necessary.
• Aerospace (Ground Support & Non-Flight Critical): Found in ground support equipment, testing fixtures, and non-flight critical control systems where high strength-to-weight ratio and precision are valued.
• Packaging and Material Handling Equipment: Essential for the articulation of grippers, clamping mechanisms, diverting gates, and other moving parts in automated packaging lines and material transport systems.
• Construction Equipment: Used in linkages for excavators, loaders, and other heavy machinery where hydraulic cylinders connect to moving arms and buckets, requiring components that can withstand high impact and heavy loads.
• Specialty Vehicles and Trailers: Integrated into custom vehicle builds, trailer brake systems, and cargo securing mechanisms where adjustable and strong connections are needed.

Installation and Maintenance Best Practices

Proper installation and routine maintenance are crucial for maximizing the lifespan and performance of the Buyers Products 10-32 Rod End Bearing.

Installation:

1. Thread Preparation: Ensure that the mating female thread is clean, free of burrs, and correctly tapped to #10-32. Applying a small amount of anti-seize compound to the male thread can prevent galling and aid in future adjustments or removal, especially in steel-on-steel applications.
2. Engagement: Thread the rod end into the mating component, ensuring full and proper thread engagement. The "Thread Depth" of 0.750 inches provides ample engagement, but it's important not to overtighten, which can deform the threads or damage the housing.
3. Alignment: Align the rod end bearing such that the applied loads are primarily axial (tensile or compressive) to the threaded shank and radial (perpendicular) to the spherical bearing's pivot. While rod ends can accommodate angular misalignment, continuous operation at extreme angles (approaching the 50-degree movement cone limit) can accelerate wear.
4. Securing: Once the desired length and alignment are achieved, a jam nut (typically supplied separately, or integrated into the mating component design) should be tightened against the rod end housing to prevent loosening under vibration. This jam nut provides critical security, locking the rod end in position.
5. Lubrication: If the bearing is of a greaseable type (often indicated by a Zerk fitting, though not specified here), it should be lubricated prior to initial use and periodically thereafter with an appropriate high-pressure grease. For self-lubricating bearings (e.g., those with PTFE liners, not specified but common), external lubrication is typically not required for the spherical joint itself, but protecting it from contaminants is still important.

Maintenance:

1. Regular Inspection: Periodically inspect the rod end bearing for signs of wear, looseness, corrosion, or damage. Look for excessive play in the spherical joint, cracks in the housing, or damaged threads.
2. Lubrication Schedule: Follow manufacturer recommendations for lubrication intervals if the bearing is greaseable. Under severe operating conditions (high loads, extreme temperatures, dusty environments), lubrication may need to be more frequent.
3. Contaminant Protection: Protect the spherical joint from ingress of dirt, dust, water, and other abrasive contaminants. Rubber boots or seals can be installed over the joint to extend its life in harsh environments.
4. Torque Verification: Periodically check the torque of the jam nut and the thread engagement to ensure the rod end remains securely fastened and adjusted.
5. Replacement: If excessive play, noise, or visible damage is noted, the rod end bearing should be replaced immediately to prevent catastrophic failure of the linkage or connected system. Early detection and replacement prevent further damage to associated components.

Conclusion: A Component Engineered for Performance

The Buyers Products 10-32 Rod End Bearing with Male Thread is a robust and precisely manufactured mechanical component designed to meet the rigorous demands of industrial and mechanical applications. Its steel construction, detailed dimensional specifications, and impressive 50-degree movement cone ensure reliable force transmission and angular accommodation. By understanding its technical merits, proper installation procedures, and ongoing maintenance requirements, engineers and technicians can leverage this rod end bearing to achieve optimal performance, durability, and safety in their critical systems. This product stands as a testament to intelligent engineering, providing a vital link in the complex chain of mechanical motion.
