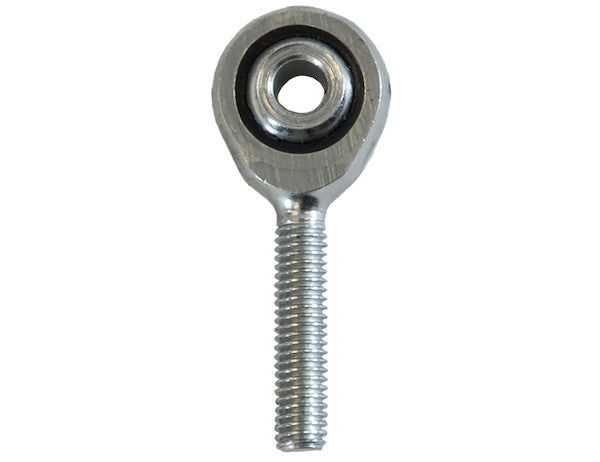

BRE52M - 1/4 Inch Rod End Bearing - Male Thread

The Buyers Products Rod End Bearing Male Thread is constructed from steel and available in five sizes.

Specifications

Advanced Technical Overview: The 1/4 Inch Rod End Bearing - Male Thread

This technical overview provides an in-depth analysis of the 1/4 Inch Rod End Bearing with a Male Thread, a critical component engineered for precision mechanical linkages. Manufactured by Buyers Products, this rod end bearing exemplifies robust construction and meticulous design, catering to a wide array of industrial and commercial applications requiring reliable articulation and load transmission. Constructed from high-grade steel, its design prioritizes durability, resistance to wear, and consistent performance under dynamic operating conditions.

Fundamental Principles of Rod End Bearings

Rod end bearings, often referred to as spherical plain bearings or Heim joints, are self-aligning mechanical components designed to accommodate angular misalignment between the axis of a shaft and the axis of the housing. Their primary function is to transmit static or dynamic loads while permitting relative angular motion between connected parts. They typically consist of a spherical inner ring (the ball) housed within a cylindrical outer ring (the socket or housing), which itself features an integral shank, often threaded, for attachment to a linkage rod or lever. The male thread configuration, as seen in this 1/4-28 model, integrates the threaded shank directly into the bearing housing, facilitating straightforward connection to female-threaded components.

Material Science and Construction

The selection of steel as the primary construction material for this rod end bearing is a deliberate engineering choice, offering a superior balance of tensile strength, yield strength, hardness, and fatigue resistance. Depending on the specific application demands and environmental factors, the steel utilized may be carbon steel, alloy steel, or stainless steel, potentially with surface treatments to enhance corrosion resistance and wear characteristics. For applications requiring high load capacity and excellent wear properties, through-hardened or case-hardened alloy steels are often employed for both the ball and the housing components. The spherical inner ring (ball) is typically precision-ground and polished to minimize friction and ensure smooth angular movement. The outer ring (socket) is designed to retain the ball while allowing its rotational and swiveling motion.

The manufacturing process involves several critical steps to ensure dimensional accuracy and material integrity. These include forging or machining of the raw steel stock, heat treatment processes (e.g., quenching and tempering, carburizing) to achieve desired hardness and toughness, precision grinding of the spherical and cylindrical surfaces, and thread cutting. Surface finishing techniques, such as black oxide coating, zinc plating, or phosphating, may be applied to provide additional corrosion protection and reduce friction, particularly in applications where environmental exposure is a concern.

Detailed Specifications and Their Implications

Socket Diameter: 0.750 inches

The socket diameter refers to the outer diameter of the cylindrical portion of the bearing housing where the spherical ball is seated. A diameter of 0.750 inches indicates a substantial housing, suggesting robustness and the capacity to withstand significant radial and axial loads. This dimension is crucial for fitting the rod end into specific mounting configurations or housings, ensuring proper clearance and secure integration within a mechanical system.

Thread Depth: 1.000 inches

The thread depth specifies the usable length of the threaded portion of the male shank. A depth of 1.000 inches (1 inch) provides ample engagement for a mating female thread, ensuring a secure and high-strength connection. Adequate thread depth is paramount in preventing thread stripping under tensile or cyclical loading, thereby maintaining the integrity of the linkage. This dimension directly influences the mechanical advantage and overall stiffness of the connection.

Center to Stud End: 1.562 inches

This dimension measures the distance from the center of the spherical ball's pivot point to the very end of the threaded stud. It is a critical parameter for determining the overall length of the linkage assembly when the rod end is fully integrated. Engineers utilize this specification for precise kinematic design, ensuring correct lever arm lengths and motion profiles within the system. It impacts reach, clearance, and the geometric configuration of the interconnected components.

Overall Length: 1.937 inches

The total length of the rod end bearing, from the extreme end of the threaded shank to the opposite end of the socket. This dimension is essential for space claim analysis and packaging within complex mechanical assemblies. It provides a comprehensive measure of the component's footprint, allowing designers to allocate sufficient space and prevent interference with other parts during operation. The overall length, in conjunction with the center-to-stud end, helps define the geometry of the unthreaded portion of the housing.

Movement Cone: 50 degrees

The movement cone, specified as 50 degrees, represents the maximum angular displacement that the spherical ball can achieve relative to the bearing housing without binding or mechanical interference. This value is a critical performance indicator for rod end bearings, defining their articulation range. A 50-degree movement cone signifies a substantial degree of angular freedom, making this bearing suitable for applications requiring significant angular misalignment compensation. This high degree of angularity ensures smooth operation even under dynamic conditions where components may shift relative to one another, preventing premature wear and failure.

Thread: 1/4-28 (UNF)

The thread specification "1/4-28" indicates a 1/4 inch nominal diameter and 28 threads per inch (TPI). The "28" TPI signifies a Unified National Fine (UNF) thread series. UNF threads are characterized by a higher number of threads per inch compared to the Unified National Coarse (UNC) series for the same nominal diameter. This results in a finer pitch, which provides several advantages:

• Increased Tensile Strength: The larger minor diameter and greater stress area of fine threads typically result in higher tensile strength compared to coarse threads of the same nominal diameter.
• Reduced Likate of Loosening: The finer pitch makes the fastener less prone to vibration loosening.
• Finer Adjustment: The smaller pitch allows for more precise adjustments of the connected components.
• Thinner Walls: UNF threads are often used in applications where the wall thickness of the mating component is limited.

This 1/4-28 UNF thread is a standard industrial thread size, ensuring compatibility with a wide range of commercially available fasteners and threaded rods. Proper thread engagement and torque are crucial for achieving the specified load capacity and maintaining the integrity of the connection.

Ball Diameter: 0.516 inches

The ball diameter refers to the diameter of the spherical inner ring. A diameter of 0.516 inches provides a substantial load-bearing surface within the socket. This dimension is directly related to the bearing's static and dynamic load capacities. A larger ball diameter generally correlates with higher load ratings due to increased contact area and reduced contact stresses. Precision in the ball's sphericity and surface finish is paramount for minimizing friction, preventing galling, and ensuring long operational life.

Socket Flats: 0.357 inches

The socket flats refer to the width across the flats on the hexagonal or octagonal section of the bearing housing, typically used for gripping with a wrench during installation or adjustment. A dimension of 0.357 inches across flats facilitates easy and secure tightening or loosening of the rod end bearing within an assembly. The presence of flats is a practical design feature that ensures proper torque application and prevents damage to the bearing housing during installation.

Performance Characteristics and Applications

Load Capacity

Rod end bearings are rated for both static and dynamic load capacities. Static load capacity (C₀) refers to the maximum load that a non-moving bearing can withstand without permanent deformation of the spherical surfaces. Dynamic load capacity (C) refers to the constant radial load that a bearing can endure for a specified number of revolutions or oscillating movements, typically 1 million, before evidence of fatigue appears. While specific load ratings are not provided in the current description, the robust steel construction, 0.750-inch socket diameter, and 0.516-inch ball diameter indicate a design capable of handling significant loads characteristic of industrial applications.

Friction and Wear

The interface between the spherical ball and the socket is critical for minimizing friction and wear. In unsealed steel-on-steel designs, lubrication is often required. The presence of a smooth, precision-ground ball and a well-machined socket aims to minimize frictional torque and prevent premature wear. For applications where frequent lubrication is not feasible or desirable, rod end bearings with self-lubricating liners (e.g., PTFE composites) are often specified. However, for a general-purpose steel construction, appropriate lubrication practices are essential for maximizing service life.

Operating Temperature Range

The operating temperature range for steel rod end bearings is typically broad, limited more by the choice of lubricant or any non-metallic components (e.g., seals, liners) than by the steel itself. Generally, steel bearings can operate effectively from sub-zero temperatures up to several hundred degrees Fahrenheit, provided appropriate lubrication is maintained. For extreme temperature applications, specialized materials and lubrication strategies would be necessary.

Applications

The 1/4 Inch Rod End Bearing - Male Thread is highly versatile and finds application across numerous industries. Its capability to handle angular misalignment and transmit loads makes it indispensable in:

• Automotive and Transportation: Steering linkages, suspension components, shift linkages, and control rods in commercial vehicles, agricultural machinery, and off-highway equipment.
• Industrial Machinery: Actuator linkages, control arms, clevis connections, and pivot points in conveyors, packaging machinery, textile machinery, and material handling systems.
• Hydraulics and Pneumatics: Connecting rod ends for hydraulic cylinders and pneumatic actuators, facilitating smooth and reliable piston rod articulation.
• Marine Applications: Control systems for boats and marine engines, where robust and corrosion-resistant components are often preferred (though further surface treatment or stainless steel might be considered for direct saltwater exposure).
• Robotics and Automation: Articulated joints and linkages in robotic arms, automated assembly lines, and motion control systems requiring precise and repeatable angular movement.
• Aerospace (Non-Critical): Certain ground support equipment, non-flight critical control linkages, or test fixtures.

Installation and Maintenance Considerations

Installation

Proper installation is paramount to ensure the optimal performance and longevity of the rod end bearing. The threaded shank must be engaged sufficiently into the mating component to achieve full thread strength, typically 1.5 times the nominal diameter. Torque specifications, if provided by the manufacturer, should be strictly adhered to using appropriate torque wrenches and the 0.357-inch socket flats. Care must be taken to ensure that the bearing is not subjected to excessive preload or misalignment during installation that could exceed its movement cone capacity.

Lubrication

For steel-on-steel rod end bearings, regular lubrication with an appropriate grease or oil is essential to reduce friction, minimize wear, and protect against corrosion. Lubrication intervals depend on the application's operating conditions, including load, speed, temperature, and environmental contamination. Bearings equipped with lubrication fittings (e.g., grease zerks) simplify this process. Without adequate lubrication, premature wear and increased operating temperatures are likely to occur.

Environmental Protection

In environments prone to dust, dirt, moisture, or corrosive agents, selecting a rod end bearing with appropriate sealing mechanisms or surface treatments is crucial. While this specific model is described as steel construction, additional sealing boots or covers can be installed to protect the articulating surfaces from contaminants, significantly extending its service life. For highly corrosive environments, stainless steel variants or specialized coatings would be recommended.

Inspection and Replacement

Routine inspection of rod end bearings for signs of wear, looseness, pitting, or corrosion is a critical aspect of predictive maintenance. Any increase in play, binding, or audible noise during operation can indicate impending failure. Replacement should occur before a catastrophic failure to prevent damage to interconnected components and ensure system reliability and safety.

Conclusion

The 1/4 Inch Rod End Bearing with a Male Thread from Buyers Products is a meticulously engineered component designed for robust performance in demanding mechanical linkages. Its steel construction, combined with precise dimensional specifications such as the 0.750-inch socket diameter, 1.000-inch thread depth, 50-degree movement cone, and 1/4-28 UNF thread, ensures high load capacity, extensive angular articulation, and secure integration into diverse mechanical systems. Understanding these technical specifications and their implications allows engineers and designers to confidently select and implement this bearing, thereby optimizing the performance, reliability, and longevity of their assemblies. Its versatility makes it an indispensable component across a wide spectrum of industrial, automotive, and automation applications requiring precise motion control and dependable load transmission.
