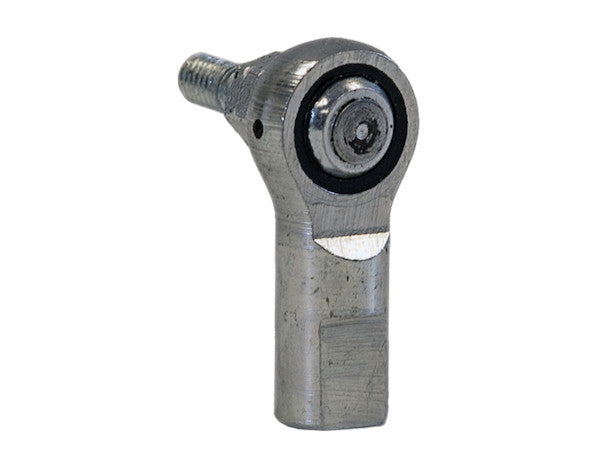

BRE52S - 1/4 Inch Rod End Bearing with Stud

The Buyers Products Rod End Bearing with Stud is constructed from steel and available in five sizes.

Specifications

Technical Deep Dive: The 1/4 Inch Rod End Bearing with Stud for Precision Mechanical Linkages

This document provides an exhaustive technical analysis of the 1/4 Inch Rod End Bearing with Stud, a critical component engineered by Buyers Products for demanding mechanical applications. Constructed from high-grade steel and offered in a versatile range of five distinct sizes, this bearing assembly is designed to facilitate robust and articulate connections within various industrial and automotive systems. Our focus here will be on the 1/4-inch variant, detailing its design parameters, material science, operational principles, and the specific implications of its stated specifications for performance and application.

Design and Construction Overview

The rod end bearing, often referred to as a spherical plain bearing, is a mechanical articulating joint. Its fundamental purpose is to connect control rods, steering linkages, or other mechanical components that require relative angular movement between the connected parts. The integration of a stud directly into the bearing housing distinguishes this particular variant, offering a compact and robust mounting solution that simplifies assembly and enhances structural integrity.

Material Composition: High-Grade Steel

The selection of steel as the primary construction material is paramount to the bearing's performance characteristics. Steel offers an exceptional balance of tensile strength, yield strength, hardness, and fatigue resistance. For a component subjected to dynamic loads, vibrations, and potential shock impacts, these properties are indispensable. The specific grade of steel employed, while not explicitly detailed, would typically be a high-carbon alloy steel, such as 4140, 52100 (for the ball/race components), or an equivalent, selected for its ability to be heat-treated to achieve optimal hardness and wear resistance in the bearing surfaces, coupled with a tough core to resist fracturing. Surface treatments like phosphating, zinc plating, or even more advanced coatings may be applied to enhance corrosion resistance, particularly in environments exposed to moisture, chemicals, or road salts, thereby extending the operational lifespan of the component.

Spherical Plain Bearing Mechanism

At the core of the rod end is a spherical plain bearing. This consists of a spherical inner ring (the ball) and an outer ring (the housing or socket) that has a corresponding concave spherical surface. This design permits angular misalignment between the shaft and the housing, accommodating oscillatory movements, tilting, and rotational motion up to a specified angular limit. In this instance, the "Movement Cone" specification of 50 degrees indicates the maximum permissible angular displacement from the central axis, a critical parameter for ensuring the bearing operates within its intended design envelope without binding or excessive wear.

Detailed Specification Analysis

Let's delve into each listed specification, explaining its significance and implications for engineers and end-users.

Thread: 1/4-28

The thread specification "1/4-28" denotes a 1/4-inch nominal diameter unified fine thread with 28 threads per inch. This is a critical interface for attaching the rod end to an external threaded rod or shaft. The fine pitch (28 TPI) offers several advantages:

• Increased Tensile Stress Area: Fine threads typically have a larger minor diameter, resulting in a greater cross-sectional area and thus higher tensile strength for a given nominal diameter compared to coarse threads.
• Finer Adjustability: The smaller pitch allows for more precise linear adjustment when rotating the rod end, which is crucial in applications requiring exact linkage lengths.
• Reduced Likelihood of Loosening: Fine threads are generally less prone to vibrational loosening due to their smaller helix angle and greater number of threads engaged within a given length.
• Thinner Wall Thickness for Mating Components: In some designs, fine threads allow for thinner wall sections on mating components without compromising thread engagement strength.

Understanding this specification is vital for selecting appropriate mating fasteners and ensuring proper thread engagement, which directly impacts the strength and reliability of the connection.

Ball Diameter: 0.516 "

This measurement refers to the external diameter of the spherical ball within the bearing. This dimension is fundamental to the bearing's load-carrying capacity and its overall operational smoothness. A larger ball diameter generally correlates with a larger contact area between the ball and socket, which can distribute loads more effectively, leading to lower contact stresses and potentially longer life. It also influences the internal clearances and the maximum angular movement achievable.

Socket Diameter: 0.468 "

The socket diameter refers to the internal diameter of the spherical race within the housing that envelops the ball. The difference between the ball diameter and the socket diameter, along with manufacturing tolerances, defines the internal clearance of the bearing. This clearance is crucial:

• Lubrication: Adequate clearance is necessary for the retention and distribution of lubricants, though many modern rod ends are considered "maintenance-free" due to self-lubricating liners.
• Friction and Wear: Too little clearance can lead to excessive friction, heat generation, and premature wear. Too much clearance can result in excessive play, leading to imprecise control, rattling, and accelerated wear under dynamic loads.
• Angular Movement: The precise fit enables the specified angular movement (Movement Cone) without binding.

Center to Socket Face: 1.312 "

This dimension measures the distance from the theoretical center of the spherical ball to the outermost face of the bearing housing (socket). This is a critical dimension for determining the overall effective length of the linkage when the rod end is fully assembled. Engineers use this measurement in conjunction with other dimensions to calculate the precise length of control rods and ensure proper fit within an assembly, maintaining critical geometric relationships.

Movement Cone: 50 degrees

As previously mentioned, the Movement Cone specifies the maximum permissible angular displacement from the central axis that the stud can articulate relative to the bearing housing. A 50-degree cone implies a generous range of motion, allowing for significant angular misalignment or oscillatory movement without causing binding or imposing undue stress on the bearing or connecting components. This large angular capability is particularly beneficial in applications where dynamic movements, chassis flex, or manufacturing tolerances necessitate a high degree of articulation.

Stud Length from Shoulder: 0.562 "

This dimension is crucial for the mating interface of the stud. It specifies the length of the cylindrical portion of the stud, from its shoulder (where it transitions from the main body or a larger diameter) to its end. This length must be sufficient to pass through the mating component and allow for secure fastening, typically with a nut and washer. Insufficient stud length can lead to inadequate thread engagement, compromising the strength of the connection. Excessive length might require spacers or could interfere with other components.

Overall Length: 1.687 "

The overall length represents the total linear dimension of the rod end bearing assembly from one extreme to the other. This measurement is vital for packaging constraints and for determining the total spatial requirement of the component within an assembly. It allows engineers to plan clearances and ensure the rod end fits within the designated envelope without interference.

Center to Stud Shoulder: 0.485 "

This dimension measures the distance from the theoretical center of the spherical ball to the shoulder of the integrated stud. Similar to "Center to Socket Face," this is a critical reference point for engineers designing linkages. It helps in precisely locating the pivot point relative to the mounting point of the stud, ensuring accurate kinematic geometry and predictable system behavior.

Socket Flats: 0.435 "

The presence of "Socket Flats" indicates that the outer housing of the rod end bearing is machined with flat surfaces, typically hexagonal, to allow for the use of a wrench. The dimension 0.435 inches likely refers to the width across these flats. This feature is essential for installation and adjustment, enabling technicians to apply torque efficiently and precisely without damaging the bearing. It facilitates tightening the rod end into a threaded component or securing a lock nut against it. This simple feature significantly improves the maintainability and ease of assembly of the component.

Thread Depth: 0.750 "

This specification refers to the effective depth of the internal thread within the rod end housing, where the external rod or shaft would thread in. A thread depth of 0.750 inches (3/4 inch) for a 1/4-inch nominal diameter rod end indicates substantial thread engagement. Adequate thread depth is crucial for maximizing the strength of the threaded connection, distributing loads over a larger number of threads, and preventing thread stripping under tensile or vibrational stresses. This dimension, in conjunction with the 1/4-28 thread specification, dictates the minimum engagement length required for the mating male thread to achieve full strength.

Operational Principles and Application Considerations

Load Carrying Capacity

Rod end bearings are designed to handle various types of loads: radial, axial, and combined. Given its steel construction, this bearing is expected to possess significant load-carrying capabilities. The specific load ratings (static and dynamic) would typically be provided by the manufacturer based on extensive testing. In general, the load capacity is influenced by:

• Material Strength: The yield strength and tensile strength of the steel components.
• Contact Area: The size of the spherical contact area between the ball and socket.
• Surface Hardness: The hardness of the bearing surfaces, which resists indentation and wear.
• Lubrication/Liner: The presence and type of lubrication or self-lubricating liner material, which reduces friction and wear.

Fatigue Life

In dynamic applications where the bearing is subjected to repeated loading and unloading cycles, fatigue life is a critical design parameter. The use of high-grade steel and appropriate heat treatments enhances the component's resistance to fatigue crack initiation and propagation, thereby extending its operational life under cyclic loading conditions.

Environmental Factors

While steel provides inherent strength, environmental factors such as moisture, corrosive agents, extreme temperatures, and abrasive contaminants can impact performance. The "steel construction" implies a baseline, but for specific harsh environments, additional protective measures, such as specialized coatings (e.g., zinc-nickel plating, passivation, or polymer-based coatings), or the use of stainless steel variants (if available in other sizes) might be necessary to ensure long-term reliability and corrosion resistance. The stated availability in "five sizes" suggests a product family, potentially offering variations tailored for different environmental or load requirements.

Maintenance and Lubrication

Many modern rod end bearings are designed to be "maintenance-free" due to the incorporation of self-lubricating liners (e.g., PTFE-based fabric) between the ball and socket. If this particular model features such a liner, it would eliminate the need for periodic re-lubrication, reducing maintenance burden and operational costs. However, if it relies on conventional grease lubrication, provisions for grease fittings (zerk fittings) would typically be present, and a specific lubrication schedule would be recommended to ensure optimal performance and longevity. The absence of a grease fitting in the visible specifications might suggest a maintenance-free design for this specific 1/4-inch variant.

Applications

The 1/4 Inch Rod End Bearing with Stud is ideally suited for a wide array of applications requiring precise, strong, and articulating linkages. Common sectors and specific uses include:

• Automotive Industry: Control linkages for throttle, transmission, gear selectors, and braking systems; suspension components in light vehicles; steering tie-rod ends in various applications.
• Heavy Equipment: Actuator linkages in construction machinery, agricultural equipment, and utility vehicles; control systems for hydraulic cylinders and implements.
• Industrial Machinery: Robotics; packaging equipment; textile machinery; automation systems; conveyor systems; printing presses where angular movement and load transmission are critical.
• Marine Applications: Control linkages for engines, steering, and rigging in boats and marine vessels (assuming appropriate corrosion protection).
• Aerospace (Non-Flight Critical): Ground support equipment; cargo handling systems; specialized test fixtures.
• Specialty Vehicles: ATV/UTV linkages; custom fabrication projects; performance vehicle modifications.

Conclusion

The Buyers Products 1/4 Inch Rod End Bearing with Stud represents a robust and precisely engineered mechanical component. Its steel construction, coupled with detailed specifications for thread, ball and socket dimensions, angular movement, and critical lengths, underscores its suitability for demanding applications requiring reliable articulation and load transmission. The integration of a stud simplifies mounting, while features like socket flats enhance ease of installation and adjustment. Engineers and designers can leverage these detailed specifications to accurately integrate this bearing into their systems, ensuring optimal performance, longevity, and safety. The availability in multiple sizes further highlights Buyers Products' commitment to providing versatile solutions for a broad spectrum of industrial and automotive challenges, ensuring that the right component is available for the right application.
