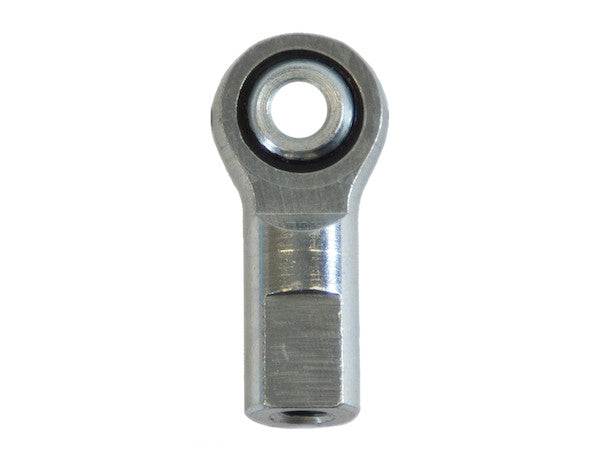

BRE62F - 5/16 Inch Rod End Bearing

The Buyers Products Rod End Bearing is constructed from steel and available in five sizes.

Specifications

Advanced Technical Overview: The Buyers Products 5/16 Inch Rod End Bearing

This document provides an in-depth technical analysis of the Buyers Products 5/16 Inch Rod End Bearing, specifically focusing on the variant detailed by the provided specifications. Rod end bearings, also known as spherical plain bearings or Heim joints, are critical mechanical components designed to articulate angular misalignment between two connected parts. They are indispensable in applications requiring rotational movement combined with a degree of angular flexibility, commonly found in automotive steering and suspension systems, industrial machinery, agricultural equipment, and various motion control linkages.

Construction Material and Manufacturing Excellence

The foundational characteristic of the Buyers Products Rod End Bearing is its construction from high-quality steel. The selection of steel as the primary material is not arbitrary; it is a deliberate engineering choice driven by the need for superior mechanical properties. Steel, particularly certain alloy variants, offers an exceptional balance of tensile strength, yield strength, hardness, and fatigue resistance. These properties are paramount for a component subjected to dynamic loads, vibrations, and potential shock impacts during its operational lifespan.

The precise grade of steel used, while not explicitly stated, can be inferred to be one optimized for bearing applications. This typically involves medium to high carbon steels, often alloyed with elements such as chromium, manganese, or molybdenum to enhance specific attributes like wear resistance, hardenability, and corrosion resistance. The manufacturing process likely involves precision machining, followed by heat treatment processes such as hardening and tempering. Hardening increases the surface hardness and wear resistance of critical areas like the ball and socket, while tempering improves toughness and reduces brittleness, ensuring the bearing can withstand cyclical stresses without premature failure. The external surfaces might also undergo protective treatments, such as zinc plating or black oxide coatings, to resist corrosion, especially in environments exposed to moisture, chemicals, or abrasive particles. This multi-stage material and manufacturing approach contributes directly to the bearing's reliability and extended service life.

Dimensional Precision and Functional Impact

The provided specifications offer a detailed dimensional blueprint of the 5/16 Inch Rod End Bearing, each parameter having significant implications for its application and performance:

Thread (5/16-24) and Thread Depth (0.750")

The thread specification, 5/16-24, indicates a nominal thread diameter of 5/16 inches and a thread pitch of 24 threads per inch (TPI). This is a fine thread series, typically preferred in applications where a strong, precise, and vibration-resistant connection is required. Fine threads offer a larger stress area compared to coarse threads of the same nominal diameter, leading to higher shear strength and better resistance to loosening under dynamic loads. The 5/16 inch nominal diameter suggests a component designed for moderate load applications, balancing strength with compact size.

The thread depth of 0.750 inches (3/4 inch) is critical. It defines the maximum engagement length for the mating threaded component. Adequate thread engagement is essential for achieving the full strength of the threaded connection. Insufficient engagement can lead to thread stripping or premature failure, while excessive engagement provides no additional strength benefit and may add unnecessary weight or complexity to the mating part. A 0.750-inch depth for a 5/16-24 thread offers robust engagement, ensuring secure attachment within the specified load limits.

Socket Flats (0.435")

The socket flats dimension of 0.435 inches refers to the width across the flats on the wrenching surface of the bearing's housing. This dimension dictates the size of the wrench or spanner required for installation and adjustment. Precision in this dimension ensures a snug fit for standard tools, preventing slippage, rounding of corners, and facilitating proper torque application during assembly. This seemingly minor detail is crucial for efficient and reliable installation in manufacturing and maintenance operations.

Center to Socket Face (1.375")

This dimension, 1.375 inches, measures the distance from the center of the spherical ball's bore to the front face of the bearing's socket housing. It is a critical parameter for design engineers as it defines the effective length of the bearing from its pivot point to the end of its housing. This measurement directly influences the overall kinematic envelope of the linkage system. It affects clearance considerations, the positioning of connected components, and the effective lever arm in various mechanical assemblies. Accurate knowledge of this dimension is vital for proper spacing, preventing interference, and ensuring the correct geometry of the articulated system.

Ball Diameter (0.622")

The ball diameter of 0.622 inches specifies the outer diameter of the spherical inner ring. This dimension is central to the bearing's load-carrying capacity and its ability to articulate. A larger ball diameter generally correlates with a larger contact area between the ball and the outer race (socket), which can enhance load distribution and reduce Hertzian contact stresses. The precision of this spherical surface is paramount for smooth articulation, minimal friction, and extended life. It is typically ground to a very fine finish to reduce wear and friction, often with a specific surface roughness (Ra) target.

Socket Diameter (0.500")

The socket diameter of 0.500 inches refers to the inner diameter of the outer race, or housing, where the spherical ball resides. The fit between the ball and the socket is a critical design aspect. It can range from a clearance fit to an interference fit, depending on the desired rotational freedom and pre-load requirements. In rod end bearings, a slight clearance is common to allow for angular misalignment and rotational movement, while still maintaining precision. The surface of the socket that contacts the ball is typically polished or coated with a low-friction material to minimize wear and improve the bearing's efficiency. The half-inch diameter of the socket ensures robust support for the ball, distributing loads effectively across the bearing's articulating surface.

Overall Length (1.812")

The overall length of 1.812 inches is the total length of the rod end bearing from the end of its threaded shank to the front face of the socket housing. This dimension is crucial for packaging and space allocation within an assembly. Designers must account for this total length, along with any mating components, to ensure proper fitment within the allocated space. It also influences the mechanical advantage and leverage in certain linkage designs, making it a key consideration for system-level integration.

Movement Cone (50 degrees)

The "Movement Cone" specified as 50 degrees is a critical functional parameter that defines the maximum angular misalignment the bearing can accommodate without binding or experiencing excessive stress. This value, often expressed as a total included angle (e.g., +/- 25 degrees from the central axis), represents the cone of angular freedom within which the inner ball can pivot relative to the outer housing. A 50-degree movement cone is quite substantial for a rod end bearing of this size, indicating a design capable of handling significant angular displacement. This is particularly advantageous in applications where precise alignment between connecting components cannot be maintained, or where significant motion is required. For instance, in suspension linkages, agricultural machinery, or certain control systems, large angular movements are inherent to the operation. The ability to accommodate this without inducing undue stress on the bearing or adjacent components significantly enhances system flexibility and prevents premature failure. This feature is a strong indicator of the bearing's versatility and robustness in dynamic, articulating environments.

Application Context and Performance Considerations

Given its robust steel construction, precision dimensions, and substantial angular movement capability, the Buyers Products 5/16 Inch Rod End Bearing is suitable for a wide array of demanding mechanical applications. Its design suggests an emphasis on durability and reliable performance under varying operational conditions.

Typical Applications:

• Automotive and Motorsports: Linkages for steering systems (e.g., tie rods, drag links), suspension components (e.g., sway bar links, control arm ends), and shifter mechanisms where precise, yet flexible connections are vital.
• Industrial Machinery: Actuator linkages, control arms, and connecting rods in manufacturing equipment, packaging machines, and material handling systems that require robust articulation and resistance to wear.
• Agricultural Equipment: Various control linkages for implements, steering components for tractors, and hydraulic cylinder connections where exposure to harsh environments, dirt, and moisture is common. The steel construction, potentially with corrosion-resistant coatings, would be highly beneficial here.
• Marine Applications: Control linkages for rudder systems, throttle controls, and other deck machinery where resistance to corrosion and robust performance in wet conditions are crucial.
• Aerospace (Non-Flight Critical): Ground support equipment, test rigs, and non-primary flight control surfaces where precise motion and durability are required.
• Robotics and Automation: Articulated joints in robotic arms, end-effectors, and other automated systems where controlled angular movement is essential.

Load Characteristics:

While specific load ratings (radial, axial, static, dynamic) are not provided, the 5/16-24 thread and steel construction generally indicate suitability for moderate to heavy-duty loads relative to its size class. The fine thread enhances tensile strength, allowing for secure fastening under significant pulling or pushing forces. The robust ball and socket interface, coupled with the specified dimensions, implies a design capable of distributing loads effectively, reducing stress concentrations. The "Movement Cone" also plays a role in load management, as it ensures that the bearing can articulate freely without generating destructive bending moments on the shaft or housing components under angular misalignment.

Lubrication and Maintenance:

The longevity and performance of any rod end bearing are significantly influenced by proper lubrication. While not specified, these bearings are often available as self-lubricating (e.g., with PTFE liners or composite materials in the socket) or require periodic re-lubrication via grease fittings. For a steel-on-steel design, regular lubrication is typically recommended to minimize friction, prevent wear, and inhibit corrosion. The choice of lubricant (e.g., lithium-based grease, synthetic grease) depends on the operating temperature, load, and environmental conditions. The absence of specific lubrication instructions implies a general expectation of standard industrial practices or that the bearing is designed for a specific low-maintenance application where infrequent lubrication is sufficient, possibly due to advanced surface treatments or materials in the articulating surfaces.

Conclusion

The Buyers Products 5/16 Inch Rod End Bearing, as characterized by its steel construction and precise specifications, represents a technically sound and highly versatile component for mechanical linkages requiring angular articulation. Its detailed dimensions, from the fine 5/16-24 thread to the generous 50-degree movement cone, are indicative of a component engineered for robust performance, durability, and adaptability across a broad spectrum of industrial, automotive, and agricultural applications. The careful selection of materials and the inherent design features contribute to a product designed for reliable operation even in demanding environments, offering engineers a dependable solution for their motion control and linkage requirements. The clarity of its specifications allows for precise integration into complex mechanical systems, ensuring functional compatibility and predictable performance.
