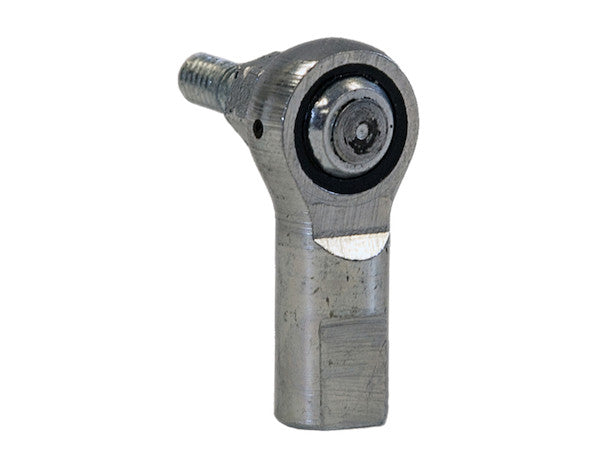

BRE62S - 5/16 Inch Rod End Bearing with Stud

The Buyers Products Rod End Bearing with Stud is constructed from steel and available in five sizes.

Specifications

Technical Deep Dive: The 5/16 Inch Rod End Bearing with Stud - Precision Engineering for Demanding Applications

The Buyers Products 5/16 Inch Rod End Bearing with Stud represents a critical component in mechanical systems requiring precise articulation, load transmission, and rotational freedom. Engineered from robust steel, this bearing is designed to meet the rigorous demands of various industrial, automotive, agricultural, and marine applications. Its integrated stud design simplifies installation and provides a direct, secure connection point, making it an indispensable element for linkage, control, and motion transfer mechanisms.

Fundamental Design and Material Science

At its core, a rod end bearing, often referred to as a spherical plain bearing or a Heim joint, is a mechanical articulating joint. It comprises a spherical inner ring (the ball) and an outer ring (the housing or socket) that permits angular misalignment between the connected parts. The specific model under discussion incorporates an integral stud, which is a threaded or unthreaded shaft extending from the ball, eliminating the need for a separate bolt or pin for connection. This integration enhances strength, reduces complexity, and optimizes space.

The choice of steel as the construction material is deliberate and paramount to the bearing's performance. Steel offers an excellent balance of tensile strength, yield strength, hardness, and fatigue resistance. Depending on the specific grade of steel used (e.g., carbon steel, alloy steel, or stainless steel), the bearing can exhibit enhanced resistance to wear, corrosion, and extreme temperatures. For typical industrial applications, heat-treated alloy steels are often employed for the ball and socket components to achieve superior hardness and wear resistance on the bearing surfaces, while maintaining ductility in the core to prevent brittle fracture under shock loads. Surface treatments such as black oxide finishes or zinc plating may be applied to provide additional corrosion protection and aesthetic appeal.

Detailed Specification Analysis

Understanding the provided specifications is crucial for proper application and integration:

• Thread: 5/16-24
  This specification denotes a 5/16 inch nominal diameter thread with 24 threads per inch (TPI). This is a fine thread series (UNF), which offers several advantages over coarse threads (UNC). Fine threads typically have a larger minor diameter for a given major diameter, resulting in a stronger stud and increased shear strength. They also provide finer adjustment capabilities and are less prone to loosening under vibration due to their smaller helix angle. The 5/16-inch diameter is standard for many light-to-medium duty applications, offering a balance between size, strength, and component compatibility.
• Ball Diameter: 0.622 inches
  The ball diameter refers to the outer diameter of the spherical inner ring. This dimension is critical as it dictates the contact area between the ball and the socket, which directly influences the bearing's load carrying capacity and wear characteristics. A larger ball diameter generally correlates with higher load ratings and extended service life, assuming appropriate material hardness and surface finish. The 0.622-inch diameter positions this bearing within a range suitable for substantial, yet not excessively heavy, loads.
• Socket Diameter: 0.500 inches
  The socket diameter, or bore diameter, refers to the internal diameter of the outer housing where the spherical ball resides. This dimension is fundamental for fitting the bearing onto an accompanying shaft or pin, or for mounting within a clevis or bracket. In some rod ends, the socket diameter might refer to the internal diameter of the housing where the ball is pressed in, and the 0.500" here might refer to the mounting bore itself. The precise fit between the ball and socket, accounting for manufacturing tolerances and clearances, is vital for smooth operation and preventing excessive play.
• Thread Depth: 0.750 inches
  This specifies the length of the threaded portion of the stud or the rod end body. A sufficient thread depth is essential for ensuring full thread engagement with the mating component, which maximizes the strength of the threaded connection and prevents premature stripping under tensile or shear loads. The 0.750-inch depth provides ample engagement for secure fastening in most typical applications.
• Center to Stud Shoulder: 0.531 inches
  This dimension measures the distance from the center of the spherical ball to the shoulder of the stud. The shoulder is a non-threaded cylindrical section that typically provides a bearing surface for a nut or an adjacent component, ensuring precise positioning and preventing thread damage from over-tightening. This measurement is crucial for accurate geometric positioning within a linkage assembly.
• Center to Socket Face: 1.375 inches
  This measurement indicates the distance from the center of the spherical ball to the face of the rod end housing. This dimension is critical for calculating overall linkage lengths and ensuring proper clearance and alignment within the mechanical system. It helps determine the effective length of the rod end as part of a larger assembly.
• Socket Flats: 0.544 inches
  The presence of "Socket Flats" indicates that the rod end housing has machined flat surfaces, typically on opposite sides. These flats provide a purchase point for a wrench, allowing for secure tightening or loosening of the rod end into a mating component (e.g., a female threaded rod). The 0.544-inch measurement refers to the wrench size required for these flats, simplifying installation and adjustment.
• Movement Cone: 50 degrees
  The "Movement Cone" or "Angular Misalignment" specification is a key characteristic of spherical plain bearings. It defines the maximum angle, in degrees, that the stud can articulate relative to the rod end housing before mechanical interference occurs. A 50-degree movement cone is quite substantial, indicating a high degree of angular flexibility. This feature is particularly valuable in applications where there may be significant non-axial motion or misalignment between connecting components, preventing binding and reducing stress on the bearing and adjacent parts.
• Stud Length from Shoulder: 0.687 inches
  This measures the effective length of the stud available for connection, starting from the shoulder. This dimension is critical for determining the required thickness of the mating component or the necessary number of threads for a secure connection with a nut. It ensures that there is enough thread engagement without bottoming out the nut on the shoulder.
• Overall Length: 1.812 inches
  This is the total length of the rod end bearing from one end to the other, encompassing the threaded stud, the spherical ball, and the housing. This dimension is crucial for space planning, fitment checks, and overall design of the mechanical assembly.

Performance Characteristics and Operational Considerations

The performance of a rod end bearing is multifaceted and depends on several factors beyond its static dimensions:

1. Load Capacity: Rod end bearings are typically rated for both static radial load and dynamic radial load. The static load capacity refers to the maximum load the bearing can withstand without permanent deformation when there is no relative motion. The dynamic load capacity is relevant when the bearing is operating under oscillatory motion or rotation, indicating the load it can sustain for a specified service life. For this steel-on-steel configuration, the load capacity will be significant, determined by the strength of the steel and the contact area.
2. Wear Resistance: The bearing surfaces (ball and socket) are subject to wear, especially under high loads, abrasive conditions, or insufficient lubrication. The quality of the steel, its hardness (achieved through heat treatment), and surface finish are primary determinants of wear resistance.
3. Friction: Steel-on-steel bearings can exhibit higher friction compared to those incorporating PTFE liners or other low-friction materials. While this model does not specify liners, the inherent friction will influence the force required for articulation and can generate heat, which needs to be considered in high-frequency motion applications.
4. Lubrication: Depending on the design and intended application, some steel rod ends are designed to be lubricated, often through a grease fitting (zircon fitting), while others are considered maintenance-free. If lubrication is required, proper grease selection and routine maintenance are crucial for maximizing bearing life and reducing friction.
5. Corrosion Resistance: While steel provides strength, it is susceptible to corrosion, particularly in harsh environments. Surface treatments like zinc plating, black oxide, or the use of stainless steel (if applicable for other sizes or variants) are vital for extending the lifespan in corrosive atmospheres.
6. Operating Temperature Range: Steel components are inherently robust across a wide range of temperatures. However, extreme temperatures can affect lubricant viscosity (if applicable) and potentially alter material properties over long durations.

Applications and Use Cases

The 5/16 Inch Rod End Bearing with Stud is highly versatile and finds application in numerous industries:

• Automotive Industry: Used in steering linkages, throttle linkages, shifter mechanisms, and suspension components, particularly in aftermarket modifications, race cars, and heavy-duty trucks where durability and adjustability are key.
• Agricultural Equipment: Critical for control linkages in tractors, harvesters, and implements, managing the movement of various operational arms, levers, and power take-off (PTO) components.
• Construction Equipment: Employed in hydraulic cylinder linkages, control rods for booms, buckets, and other articulation points in excavators, loaders, and graders.
• Material Handling: Found in conveyor systems, packaging machinery, and robotic arms, providing the necessary articulation for precise movement and positioning of goods.
• Marine Applications: Used in steering systems, throttle controls, and sail rigging mechanisms in boats and ships, where corrosion resistance (often requiring specific coatings or materials) and reliability are paramount.
• Industrial Machinery: Integral to a wide array of industrial machines, including textile machinery, printing presses, and automation equipment, where precise and repeatable motion transfer is required.
• Off-Road Vehicles: Essential for robust steering and suspension systems in ATVs, UTVs, and custom off-road vehicles, withstanding shock loads and extreme articulation.

Installation and Maintenance Best Practices

Correct installation and ongoing maintenance are critical to the longevity and performance of any rod end bearing:

1. Alignment: Ensure that the rod end is properly aligned with its mating components to minimize binding and uneven wear. While the movement cone allows for misalignment, operating continuously at extreme angles can reduce service life.
2. Torque Specification: Always adhere to the manufacturer's recommended torque specifications for tightening the stud nut or the threaded body into its housing. Over-tightening can deform components, while under-tightening can lead to loosening and premature wear.
3. Lubrication (if applicable): If the bearing is designed for lubrication, use the specified grease and follow recommended lubrication intervals. Over-lubrication can also be detrimental by attracting contaminants.
4. Contamination Protection: Protect the bearing from ingress of dirt, dust, moisture, and other abrasive contaminants, especially in harsh environments. Rubber boots or seals can be used to extend bearing life.
5. Inspection: Regularly inspect the rod end for signs of wear, corrosion, excessive play, or damage. Replace bearings that show significant wear to prevent catastrophic failure of the system.
6. Component Compatibility: Ensure that all mating components (bolts, nuts, shafts, clevises) are dimensionally compatible and manufactured to appropriate standards to ensure a secure and functional assembly.

Conclusion

The Buyers Products 5/16 Inch Rod End Bearing with Stud is a testament to precision engineering, offering a robust, reliable, and versatile solution for motion control and linkage applications across diverse industries. Its steel construction ensures durability, while the detailed specifications provide engineers and designers with the precise information needed for seamless integration. Understanding its technical attributes, performance characteristics, and best practices for installation and maintenance will enable users to maximize its operational life and ensure the reliability of the mechanical systems in which it is employed. This component is more than just a connection point; it is a critical element that enables the intricate dance of modern machinery, providing the essential articulation and load transmission necessary for smooth and efficient operation.
