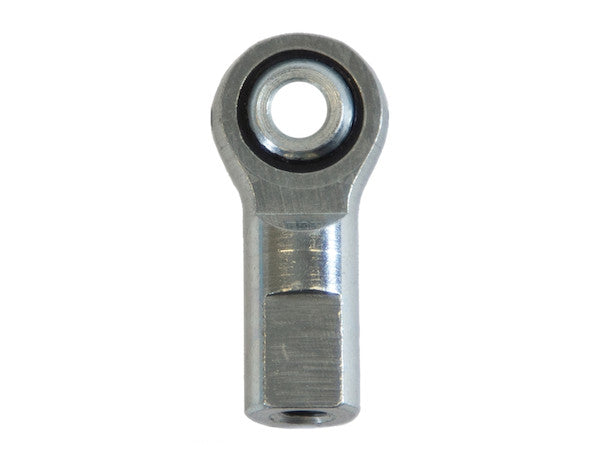

BRE72F - 3/8 Inch Rod End Bearing

The Buyers Products Rod End Bearing is constructed from steel and available in five sizes.

Specifications

Advanced Technical Overview: 3/8 Inch Rod End Bearing

This comprehensive technical description elaborates on the design, material properties, functional characteristics, and application considerations of the Buyers Products 3/8 Inch Rod End Bearing. Engineered for precision and durability, this component is a critical interface in numerous mechanical systems, facilitating angular misalignment while transmitting dynamic loads.

Product Overview and Fundamental Design

The Buyers Products Rod End Bearing, specifically the 3/8-inch variant, represents a pivotal component in mechanical linkage systems. Also known as a spherical plain bearing or Heim joint, its primary function is to permit relative angular movement between two parts while simultaneously supporting radial and axial loads. Constructed from robust steel, this component is designed for demanding industrial and commercial applications where durability and reliable performance are paramount. The availability in five distinct sizes indicates a versatile product line, catering to a broad spectrum of load requirements and design envelopes, with the 3/8-inch designation referring to the nominal thread size, which dictates the mating component interface.

Material Selection and Engineering Rationale

The selection of steel as the primary construction material for this rod end bearing is a deliberate engineering choice, driven by its exceptional mechanical properties. Steel, an alloy of iron and carbon, offers a superior combination of high tensile strength, yield strength, and hardness, essential for components subjected to significant stress and wear. Depending on the specific grade of steel employed (e.g., carbon steel, alloy steel, or stainless steel), additional properties such as corrosion resistance, fatigue strength, and impact toughness can be optimized. For a rod end bearing, resistance to cyclic loading and abrasive wear is critical to ensure a prolonged service life and prevent premature failure. The steel construction ensures that the bearing can withstand the compressive and tensile forces inherent in its operational environment without undergoing plastic deformation or fracture. Furthermore, steel is amenable to various surface treatments and heat treatments, such as hardening, tempering, and plating, which can further enhance its wear resistance, fatigue life, and corrosion protection, thereby extending the bearing's operational lifespan in challenging conditions.

Detailed Dimensional Analysis and Tolerances

Precision manufacturing and adherence to tight dimensional tolerances are crucial for the optimal performance and interchangeability of rod end bearings. The provided specifications offer a detailed insight into the critical dimensions of this 3/8-inch rod end bearing:

• Socket Diameter (0.687"): This dimension refers to the internal diameter of the bearing housing that encapsulates the spherical ball. The precise tolerance on this dimension is critical for establishing the correct fit with the ball, minimizing clearance, and ensuring smooth articulation without excessive play. Too tight a fit can lead to binding, while too loose a fit can result in premature wear and reduced positional accuracy.
• Overall Length (2.125"): The total length of the rod end, from the tip of the threaded shank to the outermost face of the socket, provides a critical parameter for design integration into linkage systems. This dimension influences the packaging space required and the lever arm length in certain applications.
• Movement Cone (50°): This specification quantifies the maximum permissible angular misalignment that the rod end bearing can accommodate. A 50-degree movement cone (typically referring to +/- 25 degrees from the central axis) signifies a substantial degree of articulation, allowing for significant angular compensation between misaligned components without inducing bending stresses on the linkage or premature wear on the bearing surfaces. This characteristic is particularly valuable in applications where precise alignment is difficult to maintain or where dynamic movements introduce varying angles.
• Ball Diameter (0.716"): This is the diameter of the spherical inner ring (the "ball") around which the angular motion occurs. The precise matching of the ball diameter to the socket diameter, with appropriate internal clearances, is fundamental to the bearing's functionality, influencing friction, play, and load distribution.
• Thread Depth (0.937"): The axial length of the threaded portion of the shank. This dimension is crucial for ensuring adequate thread engagement with the mating component, preventing thread stripping under load. Proper thread depth ensures that the load is distributed over a sufficient number of thread turns, enhancing the structural integrity of the connection.
• Socket Flats (0.560"): These refer to the dimension across the flats of the hex or wrench flats on the exterior of the socket, designed for gripping with a wrench during installation or adjustment. The specified dimension ensures compatibility with standard tools, facilitating secure tightening.
• Center to Socket Face (1.625"): This dimension measures the distance from the center of the spherical ball to the outermost face of the bearing socket. It is a critical parameter for determining the effective length of the linkage and for calculating lever arms in mechanical designs.
• Thread (3/8-24): This specifies the thread type and size. "3/8" indicates a nominal major diameter of 3/8 inch, and "-24" signifies 24 threads per inch (TPI). This is a fine-pitch unified national thread series, offering good resistance to loosening under vibration and providing precise adjustment capabilities. The choice of a fine thread pitch for a 3/8-inch diameter typically offers greater strength due to a larger minor diameter and increased shear area, as well as finer adjustment increments compared to coarse thread series.

Functional Principles and Kinematics

The fundamental principle of a rod end bearing is to provide a swivel point that allows angular articulation between a shaft or rod and a mounting structure, while simultaneously transmitting radial and axial forces. The spherical geometry of the inner ring (ball) within the conforming spherical concave surface of the outer ring (socket) facilitates this multi-axis rotational capability. The 50-degree movement cone is a critical kinematic parameter, defining the range of angular deflection available without binding or causing excessive stress on the bearing components. This allows the connected elements to move out of perfect alignment, accommodating dynamic shifts, manufacturing inaccuracies, or structural deflections. The precise internal clearances between the ball and socket are engineered to minimize friction during articulation while maintaining sufficient rigidity to handle applied loads. Under load, the contact area between the ball and socket distributes forces, preventing localized stress concentrations and ensuring smooth, predictable movement.

Load Capabilities and Performance Characteristics

While specific load ratings (static and dynamic radial/axial) are not provided, the steel construction and the specified dimensions imply a significant load-carrying capacity. Rod end bearings are typically designed to handle a combination of static loads (loads applied without motion) and dynamic loads (loads applied during oscillation or rotation).

• Static Radial Load: The maximum load a bearing can sustain without permanent deformation of its components. This is primarily limited by the yield strength of the steel used in the ball and socket.
• Dynamic Radial Load: The load that a bearing can withstand for a specified number of oscillations or rotations without fatigue failure. This is influenced by the material's fatigue limit, surface finish, and lubrication conditions.
• Axial Load: The load applied along the axis of the bore. Rod end bearings can typically handle a certain degree of axial load, although their primary design is for radial forces. The specific design and internal geometry determine the axial load capacity.

The performance characteristics are also influenced by the surface finish of the spherical surfaces. A smooth, hardened surface reduces friction and wear, contributing to higher efficiency and extended bearing life. The presence or absence of lubrication (e.g., PTFE liners, grease fittings) also profoundly impacts friction, wear, and load capacity. While not explicitly stated, typical steel-on-steel rod ends often benefit from external lubrication to reduce friction and prevent galling, especially under heavy loads or oscillatory motion. Self-lubricating variants incorporate low-friction liners (e.g., PTFE composite) that eliminate the need for external greasing, making them suitable for maintenance-free applications or environments where lubrication is difficult.

Installation and Maintenance Considerations

Proper installation is paramount to achieving the intended performance and longevity of the rod end bearing. The 3/8-24 thread requires a precisely tapped mating hole. The specified socket flats (0.560") facilitate secure tightening using a standard wrench, ensuring that the bearing is properly seated and torqued to the manufacturer's recommendations. Over-tightening can induce excessive stress, leading to premature failure, while under-tightening can result in loosening and vibrational wear. Regular inspection for signs of wear, such as excessive play, noise, or visible damage to the spherical surfaces or threads, is recommended. Depending on the operating environment and the presence of lubrication, periodic lubrication might be required for unsealed, steel-on-steel variants. Environmental factors such as dust, moisture, and corrosive agents can significantly impact bearing life. The steel construction, while robust, may require protective coatings (e.g., zinc plating, black oxide) in corrosive environments to prevent rust and maintain structural integrity. The choice of protective finish should be considered based on the application's specific environmental exposure.

Applications and Industry Relevance

The 3/8-inch rod end bearing is a versatile component found across a vast array of industries and applications due to its ability to accommodate angular movement while transmitting loads. Its robust steel construction makes it particularly suitable for:

• Automotive and Motorsports: Linkages in suspension systems, steering mechanisms, shift levers, and control arms where robust, articulated connections are required to handle dynamic loads and vibrations.
• Agricultural Equipment: Control linkages for implements, hydraulic cylinder mounts, and steering components on tractors and other machinery, operating in demanding outdoor conditions.
• Construction Equipment: Pivot points in heavy machinery, excavators, loaders, and cranes where high loads and angular misalignments are common.
• Industrial Machinery: Robotics, packaging machinery, textile machinery, and material handling systems where precise motion control and durable linkages are essential.
• Aerospace (Non-Critical Systems): In less critical control linkages or ground support equipment where high strength and angular compensation are needed without the extreme weight constraints or certification requirements of flight-critical components.
• Marine Applications: Control linkages for steering, throttle, and engine components, often requiring specialized corrosion-resistant finishes.
• Custom Fabrication and OEM Projects: Its standardized thread and robust design make it an ideal choice for prototype development and series production in various original equipment manufacturing (OEM) contexts.

The ability of this bearing to handle a 50-degree movement cone is particularly advantageous in applications where precise static alignment is challenging or where dynamic operation introduces significant angular variations. This characteristic reduces the need for perfectly aligned shafts, simplifying assembly and reducing stress on interconnected components.

Conclusion

The Buyers Products 3/8 Inch Rod End Bearing, with its meticulously engineered steel construction and precise dimensional specifications, stands as a high-performance mechanical component designed for reliability and longevity in demanding applications. Its capacity to accommodate significant angular misalignment (50° movement cone) while transmitting loads makes it an indispensable element in control linkages, suspension systems, and various industrial machinery. The detailed specifications, including socket diameter, ball diameter, thread depth, and overall length, provide critical parameters for seamless integration into diverse mechanical designs. By understanding the material properties, functional principles, and installation considerations, engineers and designers can leverage this robust rod end bearing to enhance the performance, durability, and operational efficiency of their systems, ensuring stable and precise articulation under a wide range of operational conditions.
