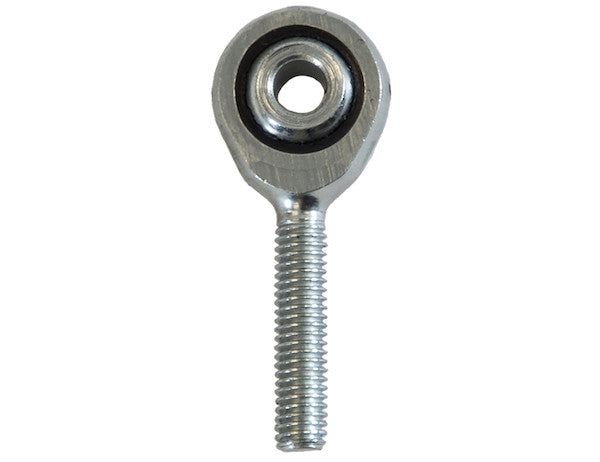

BRE72M - 3/8 Inch Rod End Bearing - Male Thread

The Buyers Products Rod End Bearing Male Thread is constructed from steel and available in five sizes.

Specifications

Technical Overview: 3/8 Inch Rod End Bearing - Male Thread

This document provides a comprehensive technical overview of the 3/8 Inch Rod End Bearing with a Male Thread, designed and manufactured by Buyers Products. This component is engineered for critical applications requiring robust, reliable, and precise mechanical linkage, primarily facilitating angular misalignment and oscillating motion. Constructed from high-grade steel, these rod end bearings are available in a range of five distinct sizes to accommodate various load capacities and dimensional requirements within diverse industrial and automotive contexts. The specific model detailed herein features a 3/8-24 male thread, indicating a nominal thread diameter of 3/8 inch with 24 threads per inch, conforming to UNC (Unified National Coarse) or UNF (Unified National Fine) standards as specified, with this particular designation suggesting UNF given the thread count. This threading standard is crucial for ensuring compatibility with corresponding female threaded components, guaranteeing secure and repeatable assembly.

Design and Construction Material

The primary material utilized in the construction of this rod end bearing is steel. The selection of steel is paramount for its inherent strength, durability, and resistance to fatigue under cyclic loading conditions. Depending on the specific application requirements and the manufacturing process, the steel alloy may vary, often comprising low-carbon steel for general-purpose applications, or medium-carbon alloy steels (e.g., 4140, 4340) for enhanced strength and wear resistance, especially when heat treatment processes like hardening and tempering are applied. The housing, which encompasses the spherical ball, is typically machined from a solid steel bar or forged for superior structural integrity. The spherical ball itself is often made from a hardened steel alloy, such as 52100 bearing steel, known for its excellent hardness, wear resistance, and fatigue life, critical properties for the bearing's articulation function. Surface treatments, such as zinc plating or phosphating, may be applied to the steel components to enhance corrosion resistance, particularly in environments exposed to moisture or corrosive agents, thereby extending the operational lifespan of the bearing.

Key Dimensional and Performance Specifications

The provided specifications are crucial for proper integration and performance assessment of the rod end bearing within a mechanical system. Let's delve into each parameter:

• Movement Cone: 50 degrees
  The "Movement Cone" specification of 50 degrees refers to the maximum allowable angular misalignment between the axis of the rod end housing and the axis of the mating pin that passes through the spherical ball. This value is expressed as the total included angle. A movement cone of 50 degrees signifies substantial flexibility, enabling the bearing to accommodate significant dynamic angular displacement without binding or inducing excessive stress on the connecting components. This characteristic is particularly vital in applications where precise alignment cannot be maintained or where the linkage experiences large oscillating movements. The design of the spherical inner race and outer race interface facilitates this range of motion, ensuring smooth articulation throughout the specified cone of movement. Exceeding this limit can lead to premature wear, damage to the bearing, or increased operational friction.
• Overall Length: 2.437 inches
  The overall length of 2.437 inches (approximately 61.9 mm) is a critical dimensional parameter for space allocation and system integration. This measurement extends from the extreme end of the male threaded shank to the furthest point of the bearing housing. Engineers must consider this dimension carefully when designing linkages to ensure adequate clearance and proper geometric fit within the assembly. It directly influences the effective length of a push-pull rod or linkage arm when the rod end is fully installed.
• Socket Diameter: 0.995 inches
  The socket diameter, measuring 0.995 inches (approximately 25.27 mm), refers to the outer diameter of the spherical housing or body of the rod end. This dimension is crucial for calculating clearances between adjacent components and for determining the necessary space envelope for the bearing. It also dictates the size of any clevis, bracket, or mounting feature designed to house or interface with the bearing's body, particularly if the bearing is constrained from radial movement at its housing.
• Ball Diameter: 0.716 inches
  The ball diameter of 0.716 inches (approximately 18.19 mm) specifies the diameter of the spherical inner race or "ball" component within the rod end. This dimension is directly related to the load-carrying capacity and wear characteristics of the bearing. A larger ball diameter generally correlates with a higher static and dynamic load rating due to increased contact area and reduced Hertzian stresses. The bore through this ball (which is not explicitly stated but implied by the "3/8 inch rod end" title often referring to the bore size or the thread size, here it's the thread size) would accommodate the pivot pin or bolt, typically with a precise fit to minimize play.
• Center to Stud End: 1.937 inches
  The "Center to Stud End" dimension of 1.937 inches (approximately 49.2 mm) is a critical reference measurement. It typically refers to the distance from the center of the spherical ball (i.e., the pivot point of the bearing) to the extreme end of the male threaded stud. This dimension is invaluable for calculating linkage lengths, determining mechanical advantage in lever systems, and ensuring precise spacing between pivot points in an assembly. It directly impacts the effective length and kinematics of the linkage system.
• Socket Flats: 0.514 inches
  The "Socket Flats" dimension of 0.514 inches (approximately 13.06 mm) likely refers to the width across the flats on the wrenching surface of the rod end housing. These flats are integral to the design, providing a purchase point for a wrench or spanner during installation, adjustment, or removal. The specific dimension indicates the required tool size for secure manipulation, preventing damage to the bearing housing during tightening operations. Ensuring the correct wrench size is used is crucial to apply the specified torque without deforming the housing.
• Thread Depth: 1.250 inches
  The thread depth of 1.250 inches (approximately 31.75 mm) denotes the effective length of the male thread on the stud. This dimension is critical for ensuring sufficient engagement with the corresponding female threaded component, providing adequate strength and resistance to pull-out or stripping under tensile loads. Proper thread engagement is essential for the structural integrity of the connection and for distributing stresses effectively across the mating threads. It should be fully engaged to prevent stress concentrations.
• Thread: 3/8-24
  The thread specification "3/8-24" is fundamental. "3/8" indicates a nominal major diameter of 0.375 inches, and "24" represents 24 threads per inch (TPI). This combination typically signifies a Unified National Fine (UNF) thread series, known for its finer pitch compared to UNC threads. UNF threads offer several advantages, including increased resistance to loosening under vibration, finer adjustment capabilities, and often higher shear strength due to more engaged threads over a given length, despite the smaller thread depth. This thread standard ensures precise and secure attachment to mating components, which typically include clevises, adjusting rods, or machine housings with tapped holes. It is imperative that the mating female thread also adheres to the 3/8-24 UNF standard to ensure full compatibility, proper thread engagement, and reliable performance.

Applications and Operational Considerations

Rod end bearings, such as this 3/8-inch male threaded variant, are indispensable in a multitude of mechanical systems across various industries due to their ability to accommodate angular misalignment and facilitate oscillating motion. Common applications include:

• Automotive and Transportation: Steering linkages, suspension components, shift linkages, throttle controls, and hydraulic cylinder connections. The robust steel construction and generous movement cone are well-suited for the dynamic and often harsh environments encountered in vehicles.
• Agricultural Machinery: Control linkages for implements, hydraulic cylinder pivots, and steering mechanisms on tractors and other farm equipment, where ruggedness and resistance to environmental contaminants are key.
• Construction Equipment: Linkages in excavators, loaders, and other heavy machinery, particularly in hydraulic cylinder attachments, where high loads and precise control are required.
• Industrial Automation and Robotics: Actuator connections, linear slide mechanisms, and robotic arm joints where precise, repeatable motion with some degree of angular freedom is necessary.
• Packaging and Material Handling: Conveyor systems, indexing mechanisms, and other automated processes requiring reliable mechanical linkages.
• Marine Applications: Control linkages for engines, steering systems, and other vessel mechanisms, often requiring specific corrosion-resistant coatings in saltwater environments.

When selecting and integrating this rod end bearing, several operational considerations must be taken into account:

1. Load Capacity: While not explicitly stated, the design and material choice imply a specific static and dynamic load rating. It is crucial to consult the manufacturer's data sheets for these ratings and ensure they meet or exceed the maximum anticipated loads (tensile, compressive, and radial) in the application. Overloading can lead to premature failure.
2. Lubrication: Depending on the internal design (e.g., plain bearing with self-lubricating liner or metal-on-metal with grease fitting), lubrication requirements vary. Self-lubricating rod ends often feature PTFE liners, reducing maintenance. Metal-on-metal designs typically require periodic greasing to prevent wear and ensure smooth operation.
3. Environmental Factors: Exposure to dust, dirt, moisture, corrosive chemicals, or extreme temperatures can significantly impact bearing life. Protective boots or seals may be necessary in harsh environments. The steel construction, especially if surface treated, offers a degree of protection, but severe conditions might necessitate more specialized materials or coatings.
4. Fatigue Life: For applications involving high-frequency cyclic loading, fatigue life is a critical parameter. The quality of the steel and manufacturing processes directly influences the bearing's resistance to fatigue failure.
5. Vibration and Shock: Rod end bearings are generally robust, but excessive vibration or shock loads can accelerate wear. Proper system design to mitigate these factors is essential. The fine pitch of the 3/8-24 UNF thread also contributes to better vibration resistance compared to coarse threads, reducing the likelihood of loosening.
6. Installation Torque: Adhering to specified torque values for tightening the male thread into its mating component is vital. Overtightening can strip threads or induce excessive stresses, while undertightening can lead to loosening and potential failure.

Conclusion

The 3/8 Inch Rod End Bearing with a Male Thread from Buyers Products is a meticulously engineered component designed for demanding mechanical linkage applications. Its steel construction, coupled with precise dimensional specifications such as a 50-degree movement cone, 0.716-inch ball diameter, and 3/8-24 UNF male thread, underscores its capability to provide reliable performance in oscillating and angular misalignment scenarios. The detailed specifications provided enable engineers to accurately integrate this component into designs, ensuring optimal functionality and longevity. By carefully considering the design, material, dimensional parameters, and operational considerations, this rod end bearing can effectively contribute to the efficiency, safety, and durability of a wide array of industrial and automotive systems.
