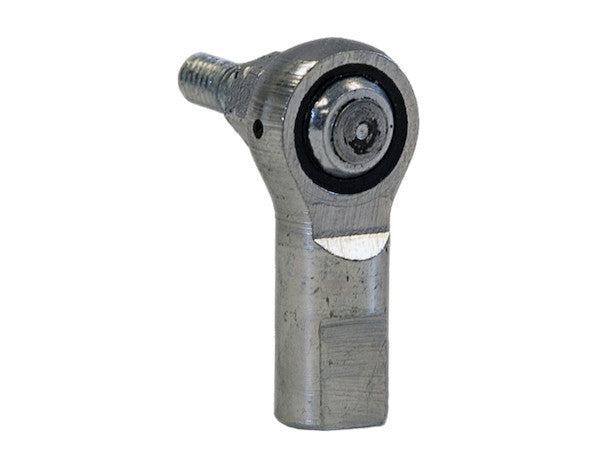

BRE72S - 3/8 Inch Rod End Bearing with Stud

The Buyers Products Rod End Bearing with Stud is constructed from steel and available in five sizes.

Specifications

Advanced Technical Overview: The 3/8 Inch Rod End Bearing with Stud by Buyers Products

The 3/8 Inch Rod End Bearing with Stud from Buyers Products represents a critical component in the design and operation of numerous mechanical and electromechanical systems. Engineered for precision and durability, this specific rod end bearing is distinguished by its integrated stud configuration, offering a streamlined solution for applications requiring reliable articulation and compensation for angular misalignment. Manufactured from robust steel, it embodies a commitment to high performance and longevity, catering to demanding industrial, agricultural, automotive, and construction environments where resilience and accuracy are paramount.

Fundamental Principles of Rod End Bearings

A rod end bearing, often referred to as a spherical rod end or heim joint, is a mechanical articulating joint that combines a spherical plain bearing with an integral body, typically threaded for connection to a rod or linkage. Its primary function is to permit angular motion between two connected parts along multiple axes while simultaneously carrying radial and axial loads. The spherical inner ring (ball) seated within a mating outer ring (socket) allows for a range of angular movement, crucial for accommodating misalignment that can arise from structural deflections, manufacturing tolerances, or dynamic operational shifts. The "with Stud" configuration of this particular model replaces the traditional bore in the spherical ball with a robust, externally threaded stud, simplifying installation and often reducing the overall component count in an assembly.

Material Science and Construction: The Advantage of Steel

The selection of steel as the construction material for both the body and the integrated stud of this Buyers Products rod end bearing is a deliberate choice driven by its superior mechanical properties. Steel, an alloy of iron and carbon, offers an exceptional balance of tensile strength, yield strength, hardness, and fatigue resistance. For rod end bearings, which are frequently subjected to cyclical loading, shock, and vibration, these properties are indispensable. While specific grades of steel are not detailed, common choices for high-performance rod ends include alloy steels (e.g., SAE 4130, 4140) or carbon steels (e.g., SAE 1045), which can be heat-treated to optimize their strength-to-weight ratio and wear characteristics. Heat treatment processes, such as quenching and tempering, enhance the core hardness and surface integrity, thereby extending the operational life of the bearing under stringent conditions.

Furthermore, the steel construction provides inherent resistance to impact and abrasion. In many applications, steel components are subjected to various surface treatments to augment their performance. While not explicitly stated for this product, common treatments for steel rod ends include zinc plating for enhanced corrosion resistance, particularly in environments exposed to moisture or corrosive agents, or phosphate coatings which offer moderate corrosion protection and act as a primer for paints. The robust nature of steel ensures that the bearing can withstand significant static and dynamic loads without permanent deformation or catastrophic failure, making it a reliable choice for critical linkages.

Precision Engineering: In-Depth Analysis of Specifications

The detailed specifications provided for the Buyers Products 3/8 Inch Rod End Bearing with Stud are not merely dimensions; they are critical parameters that define its fit, function, and performance envelope. Each measurement is a result of meticulous engineering and manufacturing precision, ensuring seamless integration into mechanical systems.

Thread (3/8-24): The Connection Standard

The specification "3/8-24" denotes the thread size and pitch. "3/8" indicates a nominal diameter of 0.375 inches, while "24" signifies 24 threads per inch (TPI). This is a Unified National Fine (UNF) thread series, known for its fine pitch. UNF threads offer several advantages over Coarse (UNC) threads, particularly in applications requiring higher strength, finer adjustments, and resistance to loosening under vibration. The increased number of threads per unit length results in a larger stress area, providing greater shear strength and enhanced clamping force for a given torque. This fine pitch also allows for more precise adjustments and is less prone to loosening due to dynamic loads compared to coarser threads. The consistency and adherence to this widely recognized standard ensure compatibility with standard 3/8-24 nuts and mating components, simplifying procurement and assembly.

Stud Length from Shoulder (0.875 inches) and Thread Depth (0.937 inches)

The "Stud Length from Shoulder" at 0.875 inches specifies the usable length of the threaded portion of the stud, measured from the base of the stud (the shoulder) to its tip. This dimension is crucial for determining the adequate thread engagement with a mating nut or component. Proper thread engagement is essential for achieving the specified clamping force and preventing premature thread stripping. The "Thread Depth" at 0.937 inches likely refers to the total length of the threaded section of the stud. The slight difference between the stud length from shoulder and the thread depth might indicate a small unthreaded relief at the very base of the threads or simply a manufacturing tolerance. These dimensions must be carefully considered during system design to ensure that the chosen nut provides full and effective engagement, thereby maximizing the strength of the connection and preventing fatigue failure at the thread roots.

Center to Socket Face (1.625 inches) and Overall Length (2.125 inches)

The "Center to Socket Face" measurement of 1.625 inches defines the distance from the centerline of the spherical ball to the outermost face of the bearing body (socket). This dimension is fundamental for calculating the effective length of a linkage assembly and for ensuring proper clearance within an application. It directly influences the lever arm and the overall kinematic geometry. Coupled with the "Overall Length" of 2.125 inches, which provides the total linear extent of the component, these dimensions are critical for spatial integration and interference checks during the design phase. Precision in these measurements ensures that the rod end fits within its intended envelope without impinging on adjacent components, while also maintaining the specified geometry of the connected system.

Socket Diameter (0.687 inches) and Ball Diameter (0.716 inches)

The "Socket Diameter" of 0.687 inches and the "Ball Diameter" of 0.716 inches are core to the spherical plain bearing mechanism. These dimensions define the precision fit between the spherical inner ring (ball) and the outer ring (socket). The slight difference in diameters allows for the necessary radial clearance, which facilitates smooth angular movement while minimizing play. The quality of the surface finish on both the ball and socket, although not explicitly stated, is paramount. A highly polished or precisely machined surface reduces friction and wear, contributing significantly to the bearing's efficiency and longevity. The integrity of this spherical interface directly impacts the bearing's load-carrying capacity and its ability to withstand dynamic forces without excessive wear or binding.

Socket Flats (0.612 inches)

The presence of "Socket Flats" measuring 0.612 inches on the bearing body is a practical design feature. These flats typically correspond to a wrenching surface, allowing for the application of torque during installation to secure the bearing into a threaded housing or to adjust its position within a linkage. The precise dimension ensures compatibility with standard wrench sizes, facilitating easy and secure tightening. In some applications, these flats might also serve to prevent rotation of the bearing body within a mating part, providing additional stability to the linkage assembly.

Center to Stud Shoulder (0.656 inches)

This measurement, "Center to Stud Shoulder" at 0.656 inches, provides another critical geometric reference point. It indicates the distance from the centerline of the spherical ball to the shoulder of the integrated stud. This dimension is vital for accurately determining the pivot point of the bearing relative to the mounting surface or component where the stud is inserted. It directly impacts the effective length of the linkage and the precise kinematic behavior of the articulated joint. Consistency in this dimension across multiple units is indicative of high manufacturing control and is essential for interchangeable parts.

Movement Cone (50 degrees)

The "Movement Cone" of 50 degrees is a profoundly important performance specification. It quantifies the total angular misalignment capability of the rod end bearing. This means the spherical ball can pivot up to 25 degrees in any direction from its centerline, resulting in a 50-degree included angle of motion. This substantial angular capability is crucial for systems where perfect alignment between connecting components cannot be guaranteed or where dynamic deflections are expected. In practical terms, a 50-degree movement cone allows the bearing to absorb significant structural play, compensate for fabrication inaccuracies, and prevent binding in mechanisms subjected to complex multi-axial movements. This feature is particularly beneficial in off-highway vehicles, agricultural machinery, and industrial automation where components may shift relative to each other during operation due to terrain, load variations, or operational forces.

Performance Characteristics and Design Considerations

Beyond its dimensions and material, the performance of the 3/8 Inch Rod End Bearing with Stud is characterized by several key attributes:

• Load Capacity: While specific static and dynamic load ratings are not provided, the steel construction implies substantial load-carrying capabilities. Rod end bearings are typically rated for both radial (perpendicular to the stud axis) and axial (along the stud axis) loads. The robustness of the steel and the precision fit of the spherical components enable this bearing to manage significant forces, contributing to the structural integrity of the assembly.
• Fatigue Resistance: In applications involving repetitive motion and cyclical loading, fatigue resistance is paramount. The quality of the steel and its potential heat treatment, combined with the optimized geometry of the ball and socket, contribute to a prolonged fatigue life, minimizing the risk of premature failure.
• Wear Resistance: The bearing surfaces, particularly the interface between the spherical ball and the socket, are engineered for high wear resistance. Depending on the design, these surfaces may be hardened, coated, or operate with a small amount of lubrication (greaseable or permanently lubricated) to minimize friction and extend operational life, even in abrasive environments.
• Environmental Adaptability: The steel construction, potentially enhanced by surface treatments, allows this rod end bearing to operate reliably across a wide range of environmental conditions, including varying temperatures, humidity, and exposure to dust and debris. Its robust design contributes to its suitability for demanding outdoor and industrial applications.
• Vibration and Shock Absorption: The inherent design of a spherical plain bearing allows it to absorb and distribute shock loads and vibrations more effectively than rigid connections, thus protecting adjacent components and enhancing overall system stability.

Typical Applications

The versatility and robust design of the Buyers Products 3/8 Inch Rod End Bearing with Stud make it an ideal choice for a diverse array of applications:

• Automotive and Transportation: Crucial for steering linkages, suspension systems (e.g., sway bar links, control arms), shifter mechanisms, and various articulating components in trucks, trailers, and specialized vehicles.
• Agricultural Machinery: Essential for control linkages, implement connections, and hydraulic cylinder mounts on tractors, harvesters, and other farm equipment, where strength and misalignment capability are critical due to uneven terrain and heavy loads.
• Construction Equipment: Used in excavators, loaders, graders, and other heavy machinery for hydraulic cylinder connections, bucket linkages, and steering mechanisms, enduring high loads and harsh operating conditions.
• Industrial Machinery: Integral in automation systems, packaging machinery, textile equipment, and material handling systems for connecting control rods, pneumatic and hydraulic cylinders, and various articulated joints where precise motion control and durability are required.
• Marine Applications: Suitable for control systems, rudder linkages, and engine components in marine vessels, particularly when additional corrosion protection (e.g., plating) is applied.
• Robotics and Automation: Employed in robotic arms and automated manufacturing lines where complex multi-axis motion and high precision are necessary for repetitive tasks.

Installation and Maintenance Considerations

Proper installation is paramount to leveraging the full performance capabilities and lifespan of the 3/8 Inch Rod End Bearing with Stud. The threaded stud allows for straightforward mounting using a compatible nut, which must be torqued to specifications to ensure secure fastening without overstressing the stud. Consideration of the thread engagement length is critical. When incorporating the bearing into a system, designers must account for the 50-degree movement cone to ensure that the bearing operates within its intended angular limits, preventing binding or premature wear.

While often designed for minimal maintenance, periodic inspection for signs of wear, corrosion, or damage is advisable, particularly in high-load or harsh environments. The "available in five sizes" aspect of the Buyers Products line underscores the importance of selecting the correct size and load rating for each specific application to achieve optimal performance and safety, reinforcing the manufacturer's commitment to providing versatile solutions for a broad range of engineering challenges.

Commitment to Quality and Standardization

Buyers Products' offering of this rod end bearing reflects a commitment to quality and adherence to industry standards. Components like the 3/8 Inch Rod End Bearing with Stud are typically manufactured under strict quality control protocols, ensuring dimensional accuracy, material integrity, and consistent performance across production batches. This adherence to high standards guarantees that the bearing will reliably meet the demands of its intended application, providing engineers and manufacturers with a dependable and high-performance solution.

Conclusion

The 3/8 Inch Rod End Bearing with Stud by Buyers Products is a meticulously engineered component that combines robust steel construction with precise dimensional and performance specifications. Its integrated stud design simplifies assembly, while its generous 50-degree movement cone offers exceptional angular misalignment capability. From its critical 3/8-24 UNF thread to the intricate interplay of ball and socket diameters, every aspect is designed for durability, reliability, and seamless integration into demanding mechanical systems. This rod end bearing stands as a testament to advanced engineering, offering a high-performance solution for industries requiring articulate motion, load management, and enduring quality in their critical linkages.
