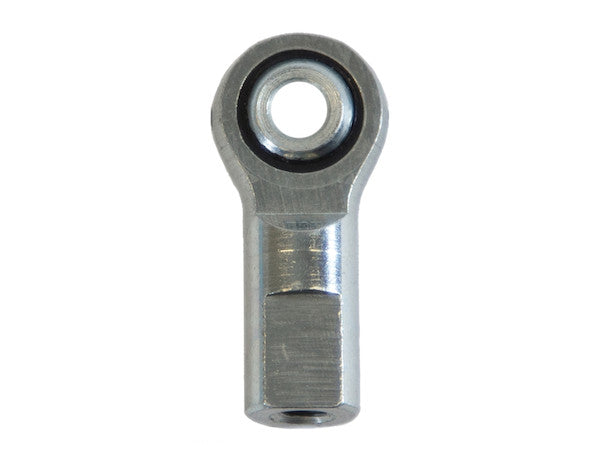

BRE82F - 1/2 Inch Rod End Bearing

The Buyers Products Rod End Bearing is constructed from steel and available in five sizes.

Specifications

The Buyers Products 1/2 Inch Rod End Bearing is a meticulously engineered component, vital for mechanical linkage systems demanding robust performance and exceptional durability across a spectrum of industrial and heavy-duty applications. As a cornerstone in motion control, this bearing is designed to adeptly manage significant angular misalignment between interconnected parts, a frequent challenge in dynamic operational environments. Constructed from high-strength steel, this Buyers Products rod end bearing exemplifies reliability and longevity, positioning it as an essential choice for engineers who prioritize both operational efficiency and extended service life. Its precise dimensions and material composition are optimized for superior functionality, even under demanding conditions involving vibration, shock loads, and variable operational angles. The stated availability in multiple sizes underscores Buyers Products' commitment to versatile solutions, with the 1/2-inch variant meeting a broad range of common industrial needs through its balanced strength and compact footprint. Its comprehensive design facilitates straightforward integration into both new and existing mechanical systems, fostering seamless functionality and enhanced operational stability.

The strategic selection of steel as the primary construction material for this rod end bearing is grounded in its superior mechanical properties. Steel, an alloy of iron and carbon, delivers an optimal combination of tensile strength, yield strength, hardness, and fatigue resistance—critical attributes for components subjected to repetitive loading and dynamic stresses. The specific grade of steel employed by Buyers Products is chosen to withstand substantial radial and axial loads without experiencing deformation or premature wear. Furthermore, steel's excellent machinability permits the precise fabrication of critical dimensions such as the bearing race, spherical ball, and threaded shank, fundamental for accurate alignment and smooth operation. Its inherent resistance to impact and abrasion significantly contributes to the bearing's longevity, particularly in harsh environments. Heat treatment capacity further refines its surface hardness and core toughness, achieving an optimized balance between wear resistance at contact surfaces and overall structural integrity. This robust material foundation guarantees that the Buyers Products rod end bearing maintains functional precision over extensive operational periods, minimizing replacement frequency and contributing to reduced maintenance costs and enhanced system reliability.

Fundamentally, a rod end bearing, often termed a spherical plain bearing with an integral housing, enables rotational and angular articulation within mechanical linkages. The Buyers Products 1/2 Inch Rod End Bearing features a precision-machined steel housing that securely encases a hardened steel spherical ball. This ball pivots within the housing’s inner race, allowing the bearing to compensate for angular misalignment up to its specified movement cone, effectively preventing binding and mitigating stress on interconnected components. The contact surfaces of the housing and ball are meticulously finished to ensure smooth, low-friction operation. While the initial description does not detail the liner, typical designs may incorporate PTFE composite liners for self-lubricating, maintenance-free performance, or bronze/steel-on-steel interfaces for higher load capacities and re-lubrication. The integrated threaded shank facilitates direct, secure, and adjustable attachment to a mating threaded rod, providing a reliable connection point within an assembly. This design ensures efficient transmission of both tensile and compressive forces while enabling angular motion, rendering the bearing exceptionally versatile for complex mechanical systems demanding both strength and flexibility.

Detailed Specifications Analysis

Center to Socket Face: 2.125 inches (53.975 mm)

This critical dimension precisely measures the distance from the spherical ball's theoretical pivot point (the center of its bore) to the outermost face of the housing's socket. For engineers designing intricate linkage systems, a precise "Center to Socket Face" measurement is paramount for achieving geometric accuracy and kinematic precision. This dimension directly influences the effective length of control rods or linkage arms, impacting lever ratios, swing angles, and the precise spatial positioning of connected components. In high-precision applications, such as robotic assemblies or fine-tuned control mechanisms, consistent center-to-face distances across multiple linkages are crucial for desired motion profiles and system repeatability. Deviations can lead to assembly complications, uneven load distribution, or accelerated wear. Buyers Products' specification of 2.125 inches ensures a standard, repeatable dimension, supporting consistent design, manufacturing, and interchangeability for maintenance within compatible systems.

Movement Cone: 50 degrees

The "Movement Cone" specification of 50 degrees highlights the exceptional angular misalignment capacity of this rod end bearing. This value defines the total conical angle through which the spherical ball can pivot within its housing, indicating the maximum allowable angular deviation between the axis of the threaded shank and the axis of the ball's bore. A 50-degree movement cone is remarkably generous, signifying the bearing’s capability to accommodate substantial dynamic or static misalignment without binding, undue wear, or premature failure. In many mechanical systems, achieving or sustaining perfect alignment is challenging due to manufacturing tolerances, structural deflections under load, or deliberate design requirements for operational flexibility. Bearings featuring a high movement cone are indispensable where components undergo significant relative angular motion, including vehicle suspension systems, heavy machinery control linkages, or agricultural equipment. This high degree of articulation minimizes stress concentrations on both the bearing and adjacent components, extending assembly lifespan and enhancing operational reliability by providing essential kinematic flexibility.

Overall Length: 2.781 inches (70.637 mm)

The "Overall Length" denotes the total linear dimension of the rod end bearing, from the tip of the threaded shank to the outermost face of the socket housing. This measurement is crucial for envelope design and meticulous space allocation within mechanical assemblies. Engineers must carefully consider the overall length to ensure ample clearance with surrounding components, preventing interference throughout the full range of motion. In spatially constrained designs, every millimeter is critical for integration. Furthermore, the overall length can influence the stiffness and natural frequency of a linkage, particularly when designing for vibration isolation or dynamic response. While inherently linked to the thread depth and ball housing dimensions, the overall length provides a comprehensive figure that simplifies system integration planning. Buyers Products' precise measurement enables designers to accurately model and integrate this bearing into their CAD systems, facilitating efficient layout and mitigating costly rework during assembly.

Thread Depth: 1.187 inches (30.150 mm)

The "Thread Depth" specifies the effective length of the threaded portion of the shank. This dimension is paramount for ensuring adequate thread engagement when the rod end bearing is coupled with a mating threaded component, such as a tie rod or an adjusting shaft. Proper thread engagement is fundamental for transmitting tensile and compressive loads both efficiently and safely. Insufficient thread depth can precipitate premature thread stripping under load, severely compromising structural integrity and potentially leading to catastrophic failure. Conversely, excessive thread depth might add unnecessary material and weight. A thread depth of 1.187 inches for a 1/2-inch diameter thread (1/2-20) provides a robust engagement length, significantly contributing to the bearing's load-carrying capacity and resistance to pull-out forces. This length allows for ample turns of engagement, distributing load evenly across more threads, vital for applications experiencing high static or dynamic stresses, and offers sufficient adjustment range while maintaining a secure connection.

Socket Flats: 0.748 inches (18.999 mm)

The "Socket Flats" dimension refers to the width across the parallel flat surfaces on the hexagonal or octagonal section of the bearing's housing. This feature is engineered for wrench engagement, making it indispensable for the correct installation, tightening, and adjustment of the rod end bearing. The precise dimension of 0.748 inches ensures compatibility with standard imperial wrenches or sockets, facilitating easy and secure torque application. Proper tightening is critical to prevent loosening under vibration and to ensure the bearing is correctly seated, both directly impacting its long-term performance and reliability. Without adequately sized and positioned flats, installation becomes difficult or impossible, potentially resulting in improper tightening, damage, or unsafe operating conditions. The inclusion of these flats highlights Buyers Products' practical design considerations, acknowledging the importance of field serviceability and ease of maintenance for the end-user.

Thread: 1/2-20

The "Thread: 1/2-20" specification is a crucial identifying characteristic of this rod end bearing. "1/2" denotes the nominal major diameter of the thread in inches, signifying its compatibility with 1/2-inch diameter mating components. The "20" indicates 20 threads per inch (TPI), classifying it as a Unified National Fine (UNF) thread series. UNF threads are distinguished by their finer pitch compared to Unified National Coarse (UNC) threads of the same diameter. This finer pitch offers several key advantages: enhanced resistance to loosening under vibration, enablement of finer adjustments in linkage length, and often a stronger connection in terms of shear strength due to more engaged threads. The 1/2-20 thread size is a highly prevalent standard in North American industrial and automotive applications, ensuring broad compatibility with a wide array of existing shafts, bolts, and mounting points. Its widespread use simplifies component sourcing and integration, establishing this rod end bearing as a versatile and practical choice for various engineering tasks.

Socket Diameter: 0.875 inches (22.225 mm)

The "Socket Diameter" refers to the internal diameter of the spherical cavity within the housing that accommodates the ball component. This dimension is precisely engineered to provide an optimal fit for the spherical ball, ensuring smooth articulation while minimizing excessive play or "slop" that could lead to premature wear or reduced precision. A correctly dimensioned socket diameter is paramount for securely containing the spherical ball under load, preventing its dislodgement while facilitating necessary angular movement. The manufacturing tolerance between the socket diameter and the ball diameter is meticulously controlled to achieve the desired fit, balancing low-friction operation with robust load support. In self-lubricating designs, this fit is essential for maintaining the integrity of any PTFE liners or similar materials that contribute to maintenance-free performance. For the Buyers Products 1/2 Inch Rod End Bearing, a socket diameter of 0.875 inches, with the specified ball diameter, confirms a well-engineered interface for reliable, long-term operation.

Ball Diameter: 0.937 inches (23.800 mm)

The "Ball Diameter" specifies the nominal diameter of the spherical inner ring (the ball) itself. This dimension is intrinsically linked to the socket diameter and is fundamental to the bearing's load capacity and angular movement capability. Generally, a larger ball diameter translates to a greater surface area in contact with the housing's race, which, for a given material and hardness, can support higher radial and axial loads. The precision of the ball's sphericity and its surface finish are critical for minimizing friction, extending wear life, and ensuring smooth operation, particularly when accommodating the full 50-degree movement cone. The ball material is typically hardened steel, chosen for its resistance to wear and deformation under concentrated loads. The specified 0.937 inches for the ball diameter, used with the 0.875 inches socket diameter, implies a specific clearance or interference fit strategy employed by Buyers Products to optimize performance. This careful sizing directly contributes to the bearing's ability to maintain precise motion control and long-term durability in demanding applications.

The robust design and precise dimensions of the Buyers Products 1/2 Inch Rod End Bearing render it exceptionally well-suited for a broad spectrum of industrial, commercial, and heavy-duty applications. Key sectors where such bearings are indispensable include: Automotive and Motorsports (steering linkages, suspension components, shifter mechanisms); Heavy Equipment and Construction (hydraulic cylinder mounts, control arms, stabilizer linkages); Agricultural Machinery (various implements and components requiring durable connections); Industrial Automation and Robotics (robotic arm joints, linear actuators, sensor linkages); Material Handling Systems (conveyor guides, lifting equipment, crane controls); Packaging Machinery (smooth operation of intricate mechanical movements); and Marine Applications (boat steering, throttle controls, sail rigging, often requiring corrosion-resistant variants). Its capacity to handle significant misalignment and transmit substantial forces guarantees reliable performance across these diverse and often challenging environments.

Key performance characteristics and inherent advantages of this Buyers Products 1/2 Inch Rod End Bearing include its superior Load Capacity, derived from robust steel construction and optimized surface contact area, enabling it to endure high static and dynamic loads. Its Durability and Longevity are significantly enhanced by precision manufacturing, material hardness, and effective operation with minimal maintenance, especially when equipped with a self-lubricating liner. The exceptional Misalignment Compensation, exemplified by the 50-degree movement cone, substantially reduces stress on adjacent components and accommodates structural flex, vital for systems experiencing dynamic shifts in alignment. The design also contributes to effective Vibration and Shock Absorption, dampening forces and extending the lifespan of the entire mechanical assembly. Furthermore, the standardized 1/2-20 thread and clearly defined socket flats ensure Ease of Installation and Adjustment, streamlining assembly processes and facilitating field maintenance. These attributes establish the Buyers Products rod end bearing as a highly reliable and cost-effective solution for critical mechanical linkages.

When selecting a rod end bearing, engineers must meticulously consider several critical factors to ensure optimal performance and extended longevity. Load Requirements (static, dynamic, radial, axial) are paramount, necessitating a bearing rated to comfortably exceed maximum anticipated forces. The Operating Environment—encompassing temperature extremes, contaminants (dust, moisture, chemicals), and potential for corrosion—dictates specific material choices, sealing options, and protective coatings. The required Misalignment Capacity is directly addressed by the movement cone, verifying the bearing can accommodate necessary angular deviations. The Speed of Oscillation or Rotation and frequency of movement influence wear characteristics and lubrication strategy. Lubrication Needs vary; self-lubricating options provide maintenance-free operation, while re-lubricable bearings might be preferred for higher loads or extreme conditions. Life Expectancy and overall Cost-Effectiveness must be balanced against stringent application demands. Buyers Products' commitment to quality is evident in its precision machining, material certification, and adherence to established engineering standards, ensuring this 1/2 Inch Rod End Bearing delivers consistent performance and reliability. By thoroughly evaluating these criteria, customers can confidently integrate this robust bearing into their systems, expecting long-term, trouble-free operation.

In conclusion, the Buyers Products 1/2 Inch Rod End Bearing epitomizes precision engineering and judicious material selection. Its steel construction, combined with meticulously defined dimensions such as the 2.125-inch center to socket face, an impressive 50-degree movement cone, and the widely compatible 1/2-20 thread, guarantees unparalleled performance in demanding mechanical applications. Engineered to provide superior angular articulation, high load capacity, and exceptional durability, this rod end bearing offers a highly reliable solution for critical linkages across a diverse array of industries, from heavy machinery to industrial automation. Its thoughtful design prioritizes ease of installation, maintenance, and long-term operational integrity, making it an invaluable component for engineers seeking to enhance the reliability and efficiency of their mechanical systems. Buyers Products consistently delivers a component that not only meets but frequently surpasses the rigorous demands of modern industrial environments, ensuring sustained performance and a maximized return on investment.
